TS9011
Taiwan Semiconductor
250mA Low Quiescent Current CMOS LDO
DESCRIPTION
TS9011 is a positive voltage regulator developed
utilizing CMOS technology featured very low power
consumption, low dropout voltage and high output
voltage accuracy. Built in low on-resistor provides
low dropout voltage and large output current. A 1µF
or greater can be used as an output capacitor.
TS9011 are prevented device failure under the worst
operation condition with both thermal shutdown and
current fold-back. These series are recommended for
configuring portable devices and large current
application, respectively.
FEATURES
●
●
●
●
●
●
●
●
Dropout Voltage 0.4V (typ.) @ Io=250mA
Output Current up to 250mA
Low Power Consumption, 2µA (typ.)
Output Voltage
±
2%
Internal Current Limit
Thermal Shutdown Protection
Compliant to RoHS Directive 2011/65/EU and in
accordance to WEEE 2002/96/EC.
Halogen-free according to IEC 61249-2-21
APPLICATION
●
●
●
●
●
●
Battery-operated systems
Microprocessor reset circuitry
Memory battery back-up circuits
Power-on reset circuits
Power failure detection
System battery life and charge voltage monitors
SOT-23
Pin Definition:
1. Ground
2. Output
3. Input
SOT-89
Pin Definition:
1. Ground
2. Input
3. Output
Notes:
Moisture sensitivity level: level 3. Per J-STD-020
TYPICAL APPLICATION CIRCUIT
*Tantalum capacitor for Input & Output capacitor are recommended.
1
Version: H1608
TS9011
Taiwan Semiconductor
ABSOLUTE MAXIMUM RATINGS
(T
A
= 25°C unless otherwise specified)
(Note 1)
PARAMETER
Input Supply Voltage
Output Current
Power Dissipation
Operating Ambient Temperature
Junction Temperature Range
Storage Temperature Range
SOT-23
SOT-89
SYMBOL
V
IN
I
OUT
P
D
T
OPR
T
J
T
STG
LIMIT
12
250
0.30
0.50
-40 ~ +85
-40 ~ +150
-65 ~ +150
UNIT
V
mA
W
o
o
C
C
o
C
THERMAL PERFORMANCE
PARAMETER
Thermal Resistance - Junction to Ambient
SOT-23
SOT-89
SYMBOL
R
ӨJA
LIMIT
333
200
UNIT
o
C/W
Note:
Measured with FR4 4-layer board having thermal via holes
ELECTRICAL SPECIFICATIONS
(T
A
= 25°C unless otherwise specified)
PARAMETER
CONDITION
TS90115
TS9011S
Output Voltage
V
IN
=V
O
+ 1V,
I
O
=40mA,
TS9011P
TS9011K
TS9011D
Maximum Output Current
Input Stability
V
IN
=V
O
+1V,
V
O
+1V
≤
V
IN
≤
V
O
+2V, I
O
=1mA
V
IN
=V
O
+1V,
1mA≤I
L
≤100mA
Load Regulation
(Note1)
MIN
4.90
3.23
2.94
2.45
1.76
250
--
--
TYP
5.0
3.3
3.0
2.5
1.8
--
0.2
40
MAX
5.10
3.36
3.06
2.55
1.83
--
0.3
80
UNIT
V
mA
%
TS90115
TS9011S
TS9011P
TS9011K
TS9011D
TS90115
TS9011S
TS9011P
TS9011K
TS9011D
--
--
--
--
--
--
--
--
--
400
400
400
400
400
2
400
30
100
600
650
700
700
750
5
--
--
--
µA
mA
dB
ppm/ C
o
mV
--
40
90
V
IN
=V
O
+1V,
1mA≤I
L
≤80mA
I
O
=250mA
I
O
=200mA
Dropout Voltage
(Note 2)
I
O
=160mA
I
O
=160mA
I
O
=120mA
mV
Quiescent Current
Output Current Limit
Power Supply Rejection Ratio
Output Voltage Temperature
(Note 3)
Coefficient
V
IN
=V
O
+1V, I
O
=0A
V
OUT
< 0.4V
At f=100kHz, I
O
=10mA,
Note:
1. Regulation is measured at constant junction temperature, using pulsed ON time.
2. Dropout is measured at constant junction temperature, using pulsed ON time, and the criterion is V
OUT
inside
target value +/-2%.
3. Guaranteed by design.
2
Version: H1608
TS9011
Taiwan Semiconductor
ELECTRICAL CHARACTERICS CURVES
(T
A
=25
o
C, unless otherwise noted)
Figure 1. Output Voltage vs. Output Current
Figure 2. Output Voltage vs. Input Voltage
Figure 3. Quiescent Current vs. Input Voltage
Figure 4. Short Circuit Current vs. Input Voltage
4
Version: H1608
TS9011
Taiwan Semiconductor

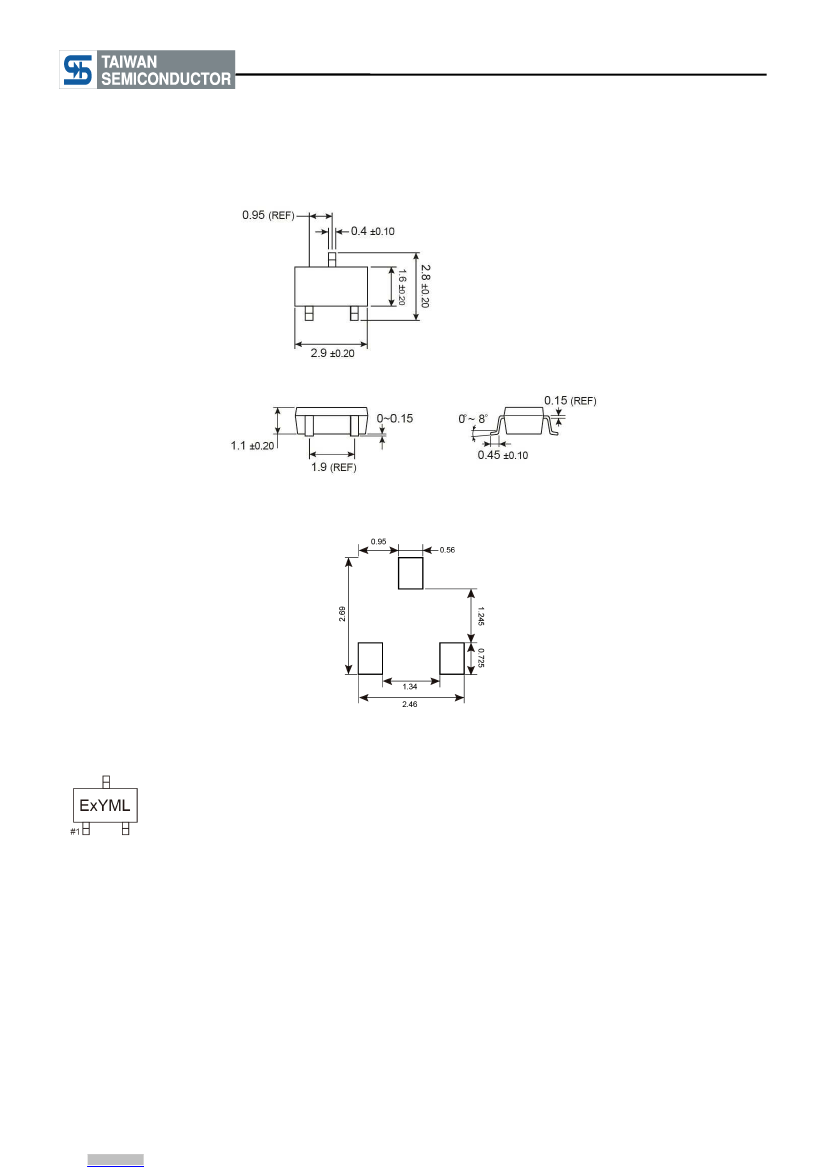

PACKAGE OUTLINE DIMENSIONS
(Unit:
Millimeters)
SOT-23
SUGGESTED PAD LAYOUT
(Unit: Millimeters)
MARKING DIAGRAM
E
= Product Code
Y
= Year Code
M
= Month Code for Halogen Free Product
O
=Jan
P
=Feb
Q
=Mar
R
=Apr
`
S
=May
T
=Jun
U
=Jul
V
=Aug
W
=Sep
X
=Oct
Y
=Nov
Z
=Dec
L
= Lot Code (1~9, A~Z)
X
= Fixed Output Voltage Code
A=1.5V, D=1.8V, K=2.5V, P=3.0V, S=3.3V, 5=5.0V.
5
Version: H1608
