8689500000: DescriptionPower/Signal Relay, SPST, Momentary, 0.044A (Coil), 12VDC (Coil), 500mW (Coil), DC Input, AC Output, Through Hole-Straight Mount,; CategoryMechanical and electronic products relay; File Size246KB，2 Pages; ManufacturerWeidmuller; Websitehttp://www.weidmuller.com/

Download Datasheet Parametric View All

8689500000 Overview

Power/Signal Relay, SPST, Momentary, 0.044A (Coil), 12VDC (Coil), 500mW (Coil), DC Input, AC Output, Through Hole-Straight Mount,

8689500000 Parametric

Parameter Name	Attribute value
Maker	Weidmuller
Reach Compliance Code	compliant
ECCN code	EAR99
body width	12.6 mm
body height	25.5 mm
Body length or diameter	29 mm
Maximum coil current (DC)	0.044 A
Coil operating voltage (DC)	8.4 V
Coil power	500 mW
Coil release voltage (DC)	1.2 V
Coil resistance	270 Ω
Maximum coil voltage (DC)	12 V
Coil/Input Power Type	DC
Contact (AC) maximum rated R load	16A@440VAC
Maximum contact current (AC)	16 A
Maximum contact voltage (AC)	440 V
Contact/Output Power Type	AC
Electrical life	110000 Cycle(s)
Installation features	THROUGH HOLE-STRAIGHT MOUNT
operating hours	12 ms
Maximum operating temperature	70 °C
Minimum operating temperature	-40 °C
method of packing	BULK
physical size	29mm x 12.6mm x 25.5mm
Guideline	UL; VDE
Relay action	MOMENTARY
Relay function	SPST
Relay type	POWER/SIGNAL RELAY
release time	6 ms
seal	IP40; IP67
surface mount	NO
Termination type	SOLDER
Base Number Matches	1

Preview

Download Datasheet

View All

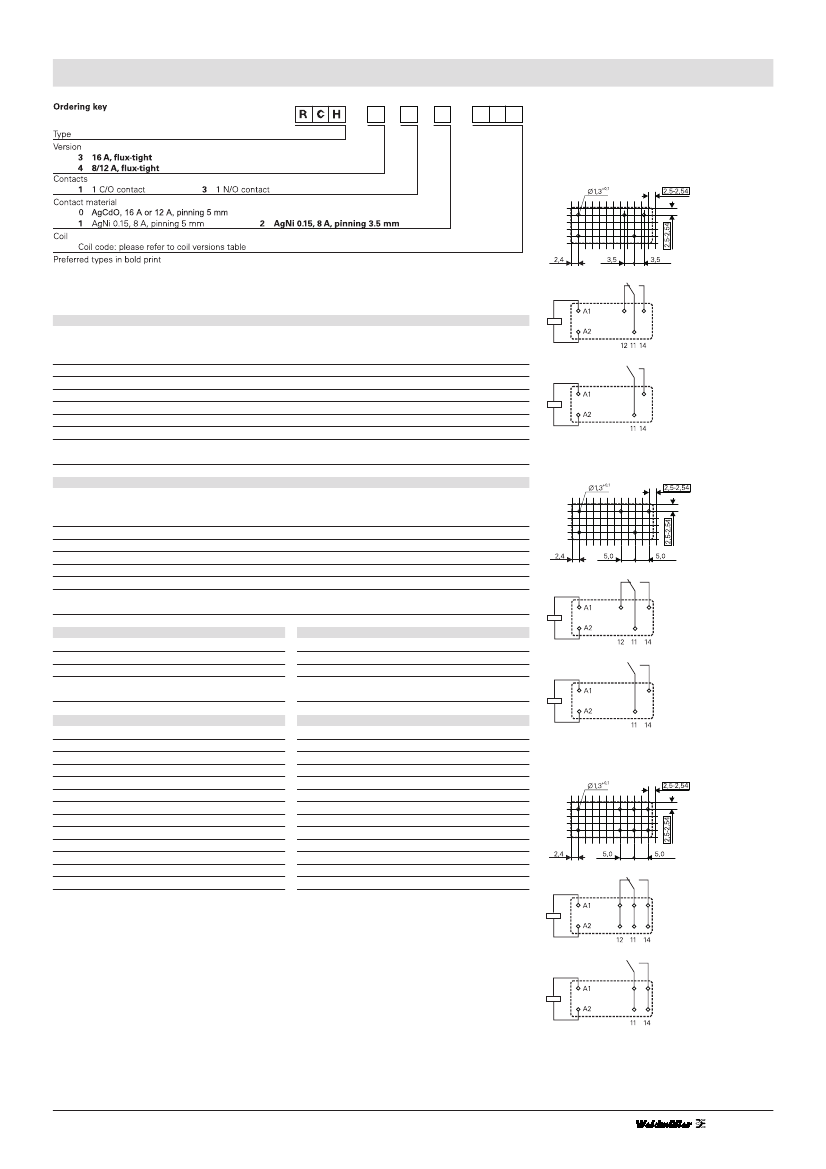

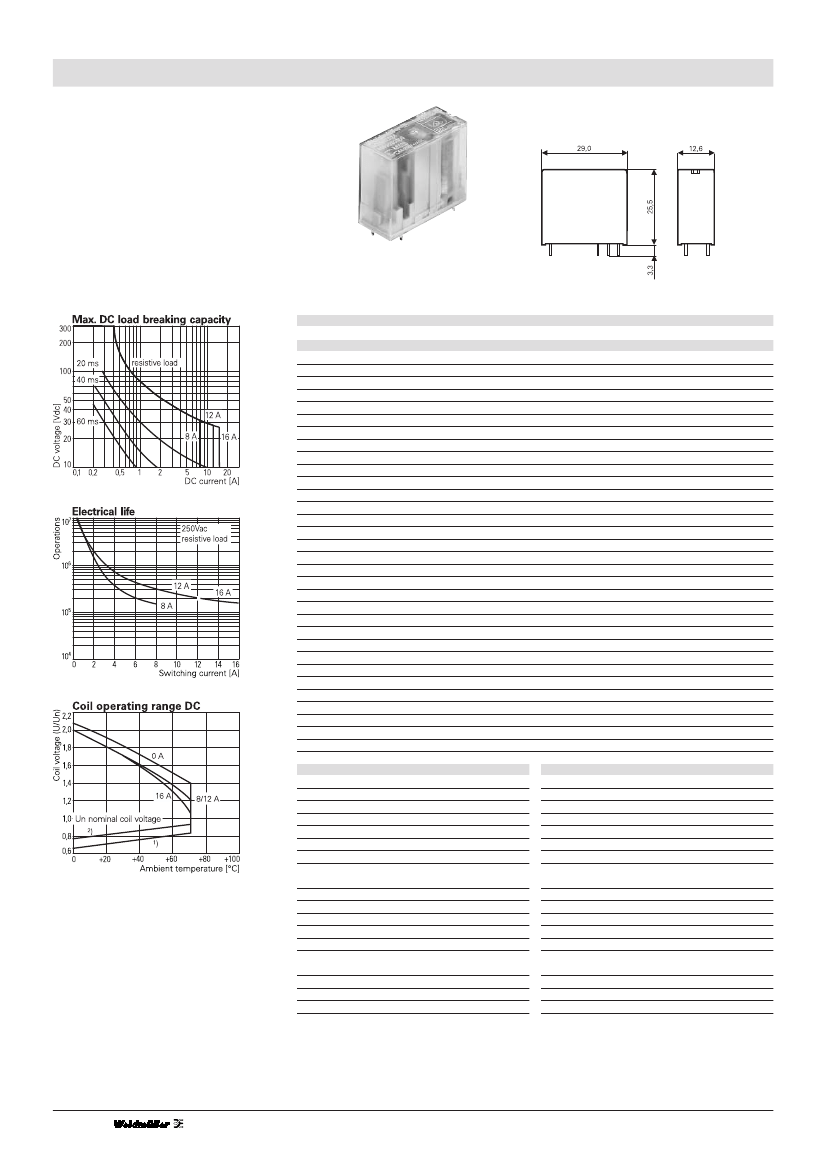

PCB Relay RCH II/1 – 1 pole 8 / 12 / 16 A

•

1 C/O or 1 N/O contact

•

4 kV / 8 mm coil-contact

•

Pinning 3.5 or 5 mm (8 / 12 A)

and 5 mm (16 A)

Dimensions in mm

Applications

Power supplies, domestic appliances,

heating control, installation

Approvals:

m{

Ordering data

Type

RCH310006

RCH310012

RCH310024

RCH310048

RCH310512

RCH310524

RCH310548

RCH310615

RCH310730

RCH330006

RCH330012

RCH330024

RCH330730

RCH411006

RCH411012

RCH411024

RCH411048

RCH411110

RCH411524

RCH411615

RCH411730

RCH412006

RCH412012

RCH412024

RCH412048

RCH412110

RCH412512

RCH412524

RCH412548

RCH412560

RCH412615

RCH412730

Version

16 A

pinning 5mm

””

8A

pinning 5mm

””

8A

pinning 3,5mm

””

Contacts

1 C/O contact

””

1 N/O contact

””

1 C/O contact

””

Cont. Material

AgCdO

””

AgNi 0,15

””

Coil

6 Vdc

12 Vdc

24 Vdc

48 Vdc

12 Vac

24 Vac

48 Vac

115 Vac

230 Vac

6 Vdc

12 Vdc

24 Vdc

230 Vac

6 Vdc

12 Vdc

24 Vdc

48 Vdc

110 Vdc

24 vac

115 Vac

230 Vac

6 Vdc

12 Vdc

24 Vdc

48 Vdc

110 Vdc

12 Vac

24 Vac

48 Vac

60 Vac

115 Vac

230 Vac

Part No.

8692490000

8689150000

4064580000

8689440000

8689450000

8689460000

8689470000

8689480000

8689490000

8692360000

8689500000

8689510000

8692320000

8689520000

8689540000

8689570000

8689550000

8689560000

8689570000

8689580000

8689590000

8689020000

8689040000

8689050000

8689060000

8689070000

8688500000

8688970000

8688980000

8688990000

8689000000

8689010000

Technical data

Configuration

Type of contact

Rated current

Rated voltage / max.breaking voltage AC

Maximum breaking capacity AC

Make current

Contact material

Contact ratings

Type

RCH411

RCH412

RCH330

Coil data

Nominal voltage

Nominal coil power

Operate category

1 C/O contact or 1 N/O contact

single contact

8A

12 A

250 Vac / 440 Vac

2000 VA

3000 VA

16 A

20 A

AgNi 0.15

AgCdO

16 A

4000 VA

25 A

AgCdO

Operations

10

5

10

5

1.1x10

5

> 3x10

4

Standard

AC 1

VDE 0630

Load

8 A, 250 Vac, cosD=1, 50% duty cycle

18.2 A, 250 Vac, cosD=1, 600/h, 15% duty cycle

96 A ON, 16 A OFF, 250 Vac, cosD=0.6, 450/h

5...110 Vdc / 12…230 Vac

500 mW

2/b

8
