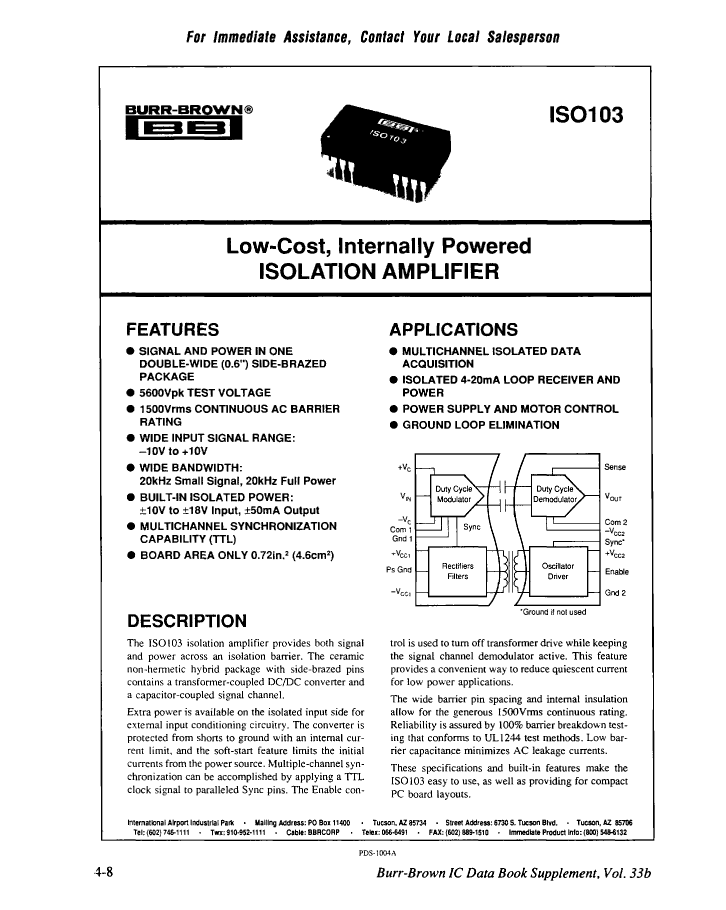

Basic information of ISO103BG amplifier:
ISO103BG is an ISOLATION AMPLIFIER.
ISO103BG amplifier core information:
The minimum operating temperature of ISO103BG is -25 °C and the maximum operating temperature is 85 °C.

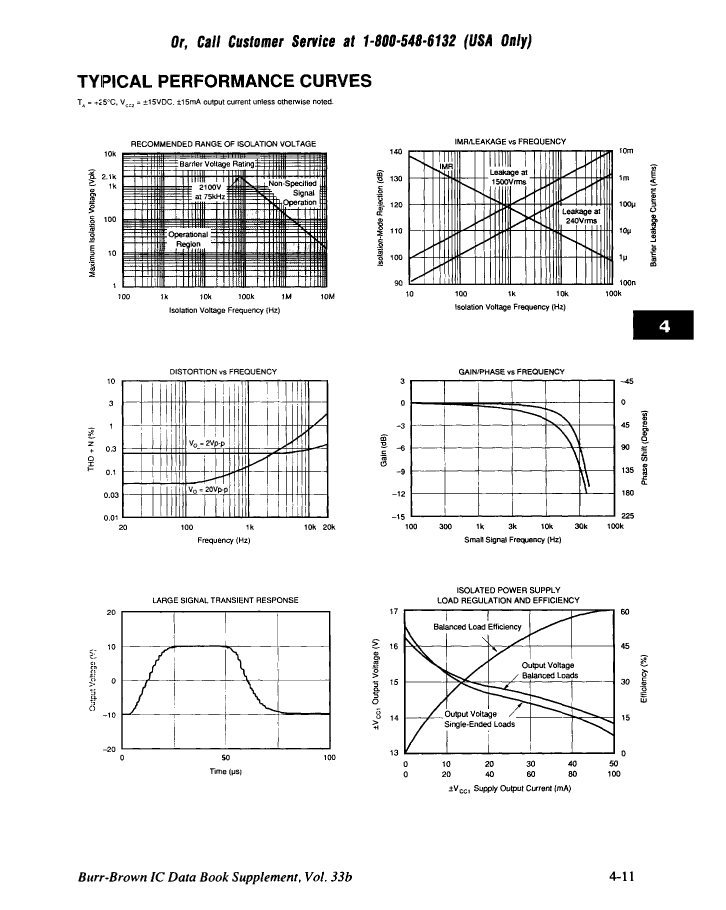

When the op amp is used in closed loop, at a certain closed-loop gain (usually 1 or 2, 10, etc.), the frequency when the ISO103BG gain becomes 0.707 times the low-frequency gain is 20 MHz.
The nominal supply voltage of ISO103BG is 15 V, and its corresponding nominal negative supply voltage is -15 V.

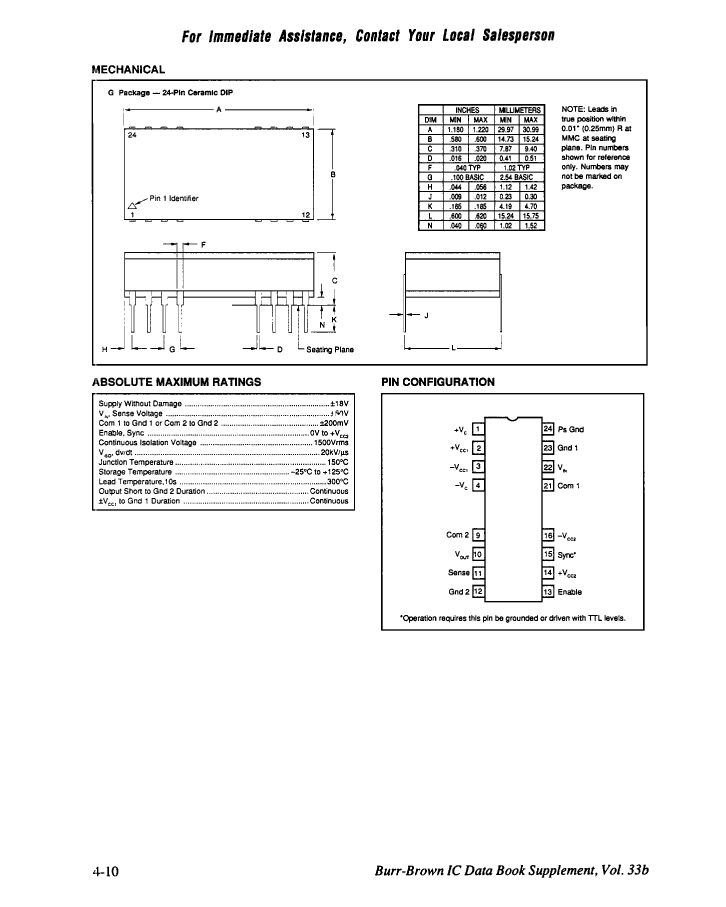

Related dimensions of ISO103BG:
ISO103BG has 16 terminals. Its terminal position type is: DUAL.
ISO103BG amplifier additional information:
Its temperature grade is: OTHER. The corresponding JESD-30 code is: R-PDIP-T16. The materials used for ISO103BG packaging are mostly PLASTIC/EPOXY. The package shape is RECTANGULAR. ISO103BG package pin formats are: IN-LINE.
Its terminal form is: THROUGH-HOLE.
Basic information of ISO103BG amplifier:
ISO103BG is an ISOLATION AMPLIFIER.
ISO103BG amplifier core information:
The minimum operating temperature of ISO103BG is -25 °C and the maximum operating temperature is 85 °C.
When the op amp is used in closed loop, at a certain closed-loop gain (usually 1 or 2, 10, etc.), the frequency when the ISO103BG gain becomes 0.707 times the low-frequency gain is 20 MHz.

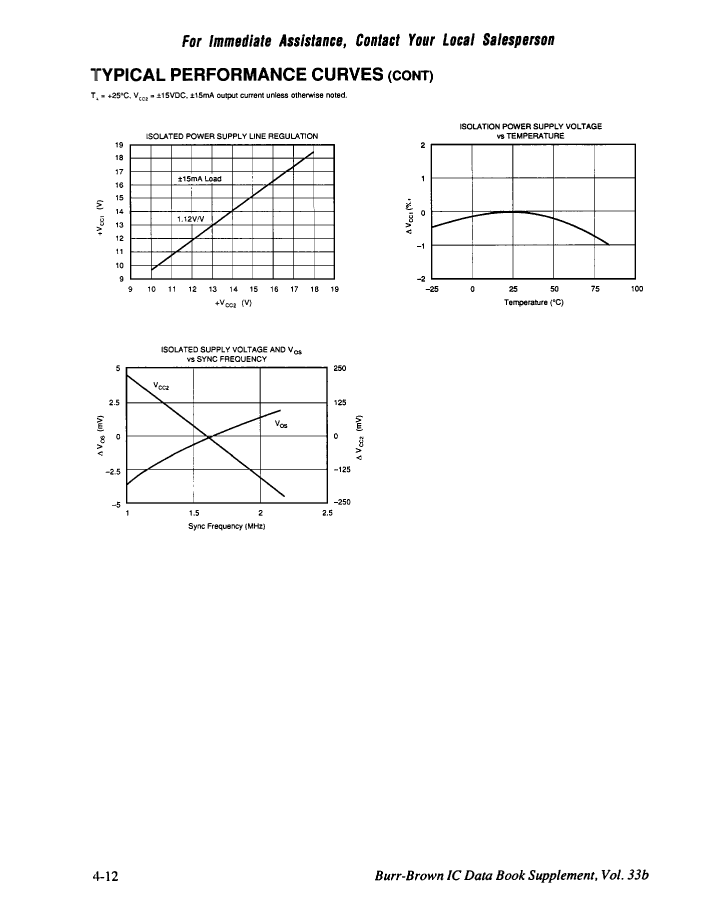

The nominal supply voltage of ISO103BG is 15 V, and its corresponding nominal negative supply voltage is -15 V.
Related dimensions of ISO103BG:
ISO103BG has 16 terminals. Its terminal position type is: DUAL.
ISO103BG amplifier additional information:
Its temperature grade is: OTHER. The corresponding JESD-30 code is: R-PDIP-T16. The materials used for ISO103BG packaging are mostly PLASTIC/EPOXY. The package shape is RECTANGULAR. ISO103BG package pin formats are: IN-LINE.
Its terminal form is: THROUGH-HOLE.

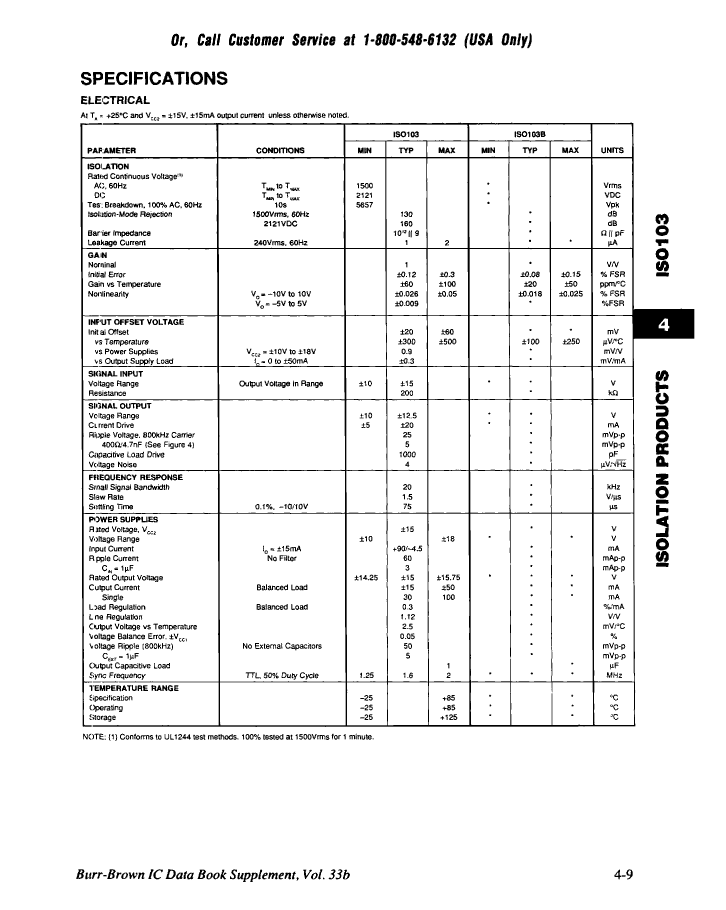

| Parameter Name | Attribute value |
| Maker | Burr-Brown |
| Reach Compliance Code | unknown |
| Amplifier type | ISOLATION AMPLIFIER |
| Nominal bandwidth (3dB) | 20 MHz |
| Maximum common mode voltage | 1500 V |
| Minimum insulation voltage | 1500 V |
| JESD-30 code | R-PDIP-T16 |
| Negative supply voltage upper limit | -18 V |
| Nominal Negative Supply Voltage (Vsup) | -15 V |
| Number of functions | 1 |
| Number of terminals | 16 |
| Maximum operating temperature | 85 °C |
| Minimum operating temperature | -25 °C |
| Package body material | PLASTIC/EPOXY |
| Package shape | RECTANGULAR |
| Package form | IN-LINE |
| Certification status | Not Qualified |
| Supply voltage upper limit | 18 V |
| Nominal supply voltage (Vsup) | 15 V |
| surface mount | NO |
| Temperature level | OTHER |
| Terminal form | THROUGH-HOLE |
| Terminal location | DUAL |
| Base Number Matches | 1 |
| ISO103BG | ISO103G | |
|---|---|---|
| Description | Isolation Amplifier, 1 Func, 1500V Isolation-Min, 20MHz Band Width, PDIP16, | Isolation Amplifier, 1 Func, 1500V Isolation-Min, 20MHz Band Width, PDIP16, |
| Reach Compliance Code | unknown | unknown |
| Amplifier type | ISOLATION AMPLIFIER | ISOLATION AMPLIFIER |
| Nominal bandwidth (3dB) | 20 MHz | 20 MHz |
| Maximum common mode voltage | 1500 V | 1500 V |
| Minimum insulation voltage | 1500 V | 1500 V |
| JESD-30 code | R-PDIP-T16 | R-PDIP-T16 |
| Negative supply voltage upper limit | -18 V | -18 V |
| Nominal Negative Supply Voltage (Vsup) | -15 V | -15 V |
| Number of functions | 1 | 1 |
| Number of terminals | 16 | 16 |
| Maximum operating temperature | 85 °C | 85 °C |
| Minimum operating temperature | -25 °C | -25 °C |
| Package body material | PLASTIC/EPOXY | PLASTIC/EPOXY |
| Package shape | RECTANGULAR | RECTANGULAR |
| Package form | IN-LINE | IN-LINE |
| Certification status | Not Qualified | Not Qualified |
| Supply voltage upper limit | 18 V | 18 V |
| Nominal supply voltage (Vsup) | 15 V | 15 V |
| surface mount | NO | NO |
| Temperature level | OTHER | OTHER |
| Terminal form | THROUGH-HOLE | THROUGH-HOLE |
| Terminal location | DUAL | DUAL |
| Base Number Matches | 1 | 1 |
