30433 datasheet, PDF - EEWORLD Datasheet

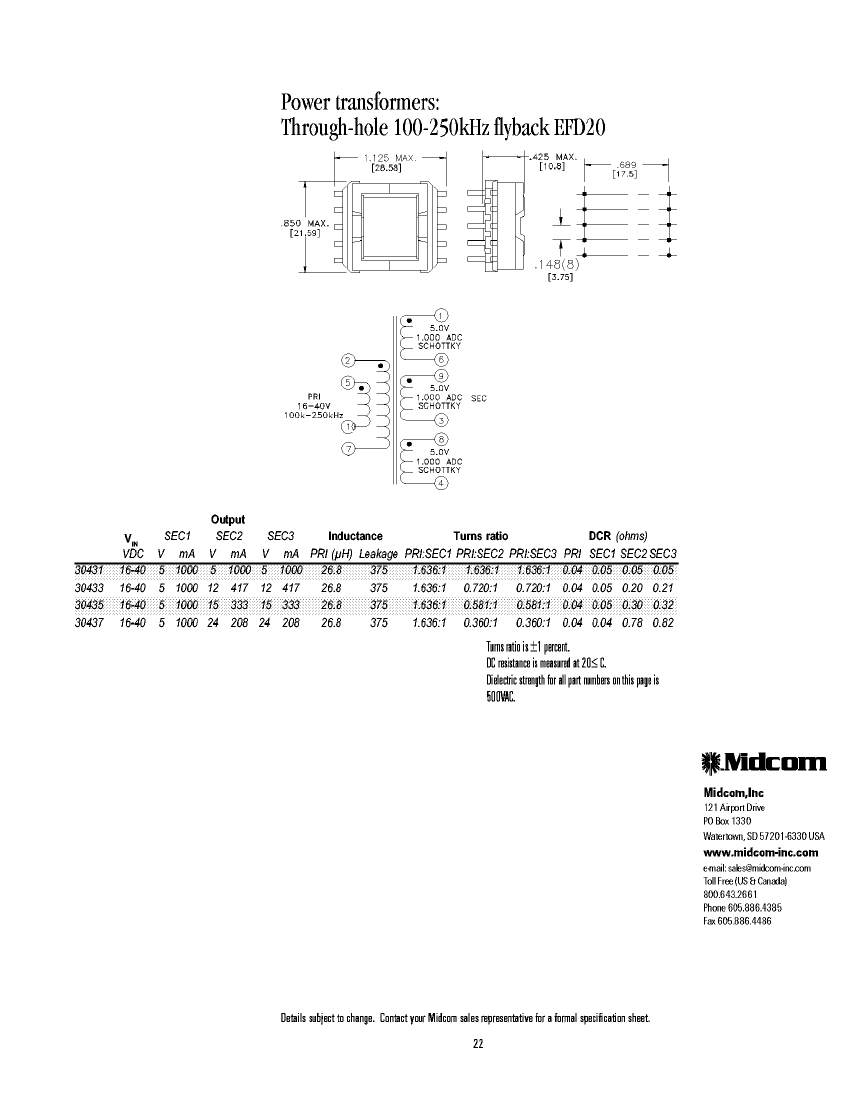

30433: DescriptionSMPS Transformer; CategoryPower management transformer; File Size24KB，1 Pages; ManufacturerWurth Elektronik

Download Datasheet Parametric Compare View All

30433 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	30433	-	-	View	Buy Now

SMPS Transformer

Parameter Name	Attribute value
Maker	Wurth Elektronik
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	12V OUTPUT VOLTAGE IS ALSO AVAILABLE
high	10.8 mm
Maximum input voltage	40 V
Minimum input voltage	16 V
length	28.58 mm
Manufacturer's serial number	30433
Installation features	THROUGH HOLE MOUNTED
Number of primary windings	1
Number of secondary windings	3
Maximum operating frequency	250 kHz
Minimum operating frequency	100 kHz
Output voltage 1	12 V
Output voltage 2	5 V
physical size	28.58mm X 21.59mm X 10.8mm
Primary inductance	26.8 µH
surface mount	NO
Transformer type	SMPS TRANSFORMER
width	21.59 mm
Base Number Matches	1

	30433	30437
Description	SMPS Transformer	SMPS Transformer
Maker	Wurth Elektronik	Wurth Elektronik
Reach Compliance Code	unknown	unknown
ECCN code	EAR99	EAR99
Other features	12V OUTPUT VOLTAGE IS ALSO AVAILABLE	24V OUTPUT VOLTAGE IS ALSO AVAILABLE
high	10.8 mm	10.8 mm
Maximum input voltage	40 V	40 V
Minimum input voltage	16 V	16 V
length	28.58 mm	28.58 mm
Manufacturer's serial number	30433	30437
Installation features	THROUGH HOLE MOUNTED	THROUGH HOLE MOUNTED
Number of primary windings	1	1
Number of secondary windings	3	3
Maximum operating frequency	250 kHz	250 kHz
Minimum operating frequency	100 kHz	100 kHz
Output voltage 1	12 V	24 V
Output voltage 2	5 V	5 V
physical size	28.58mm X 21.59mm X 10.8mm	28.58mm X 21.59mm X 10.8mm
Primary inductance	26.8 µH	26.8 µH
surface mount	NO	NO
Transformer type	SMPS TRANSFORMER	SMPS TRANSFORMER
width	21.59 mm	21.59 mm
Base Number Matches	1	1
