DEVICE NUMBER：BL-HKB35A-TRE
SHEET
DATE
2005.2.15
1
2
3
4
5
6
7
CONTENTS
Original Released
1.0 1.0 1.0 1.0 1.0 1.0 1.0
½鴻工業股½有限公司
BRIGHT LED ELECTRONICS CORP.
台北縣板橋市和平路
19
號
3
樓
3F., No. 19, Ho Ping Road, Pan Chiao City,
Taipei, Taiwan, R. O. C.
Tel: 886-2-29591090
Fax: 886-2-29547006/29558809
www.brtled.com.
APPROVED
DRAWER
張
2005.2.15
孫
2005.2.15
孝 嚴
秀 梅
BRIGHT LED ELECTRONICS CORP.
SINCE 1981
BL-HKB35A-TRE
●
Features:
1. Emitted Color : Super Yellow
2. Lens Appearance : Water Clear
3. Mono-color type.
4. 2.0x1.25x1.0mm(0805) standard package
5. Suitable for all SMT assembly methods.
6. Compatible with infrared and vapor phase
reflow solder process.
7. Compatible with automatic placement
equipment.
8. This product doesn’t contain restriction
Substance, comply ROHS standard.
●
Package Dimensions:
2.0(.079)
±
0.2
Cathode Mark
1.2(.047)
LED dice
1.25(.049)
±
0.2
3
°
1.0(.039)
±
0.2
2-R0.05(.002) MAX.
2-R0.05(.002) MAX
For reflow soldering
0.3(.012)
1.4(.055)
1.2(.047)
0.9(.035)
1.2(.047)
1.00
1.25(.049)
Cathode Mark
0.4(.016)
0.4(.016)
●
Applications:
1.
2.
3.
Automotive : Dashboards, stop lamps,
turn signals.
Backlighting : LCDs, Key pads advertising.
Status indicators : Comsumer & industrial
electronics.
NOTES:
1.All dimensions are in millimeters (inches).
2.Tolerance is ± 0.10mm (0.004”) unless otherwise specified.
3.Specifications are subject to change without notice.
4.
General use.
●
Absolute Maximum Ratings(Ta=25℃)
Parameter
Power Dissipation
Forward Current
Peak Forward Current
＊1
Reverse Volage
Operating Temperature
Storage Temperature
Soldering Temperature
Symbol
Pd
I
F
I
FP
V
R
Topr
Tstg
Tsol
Rating
100
30
100
5
-25℃~80℃
-30℃~85℃
See Page6
Unit
mW
mA
mA
V
-
-
-
＊1
Condition for IFp is pulse of 1/10 duty and 0.1msec width.
Ver.1.0 Page 1 of 7
BRIGHT LED ELECTRONICS CORP.
SINCE 1981
BL-HKB35A-TRE
●
Electrical and optical characteristics(Ta=25℃)
Parameter
Forward Voltage
Luminous Intensity
Reverse Current
Peak Wave Length
Dominant Wave Length
Spectral Line Half-width
Veiwing Angle
Symbol
Vf
Iv
I
R
λp
λd
Δλ
2θ
1/2
Condition
I
F
=20mA
I
F
=20mA
V
R
=5V
I
F
=20mA
I
F
=20mA
I
F
=20mA
I
F
=20mA
Min.
-
28
-
-
582
-
-
Typ.
2.1
55
-
590
-
15
120
Max.
2.6
-
100
-
592
-
-
Unit
V
mcd
µA
nm
nm
nm
deg
●

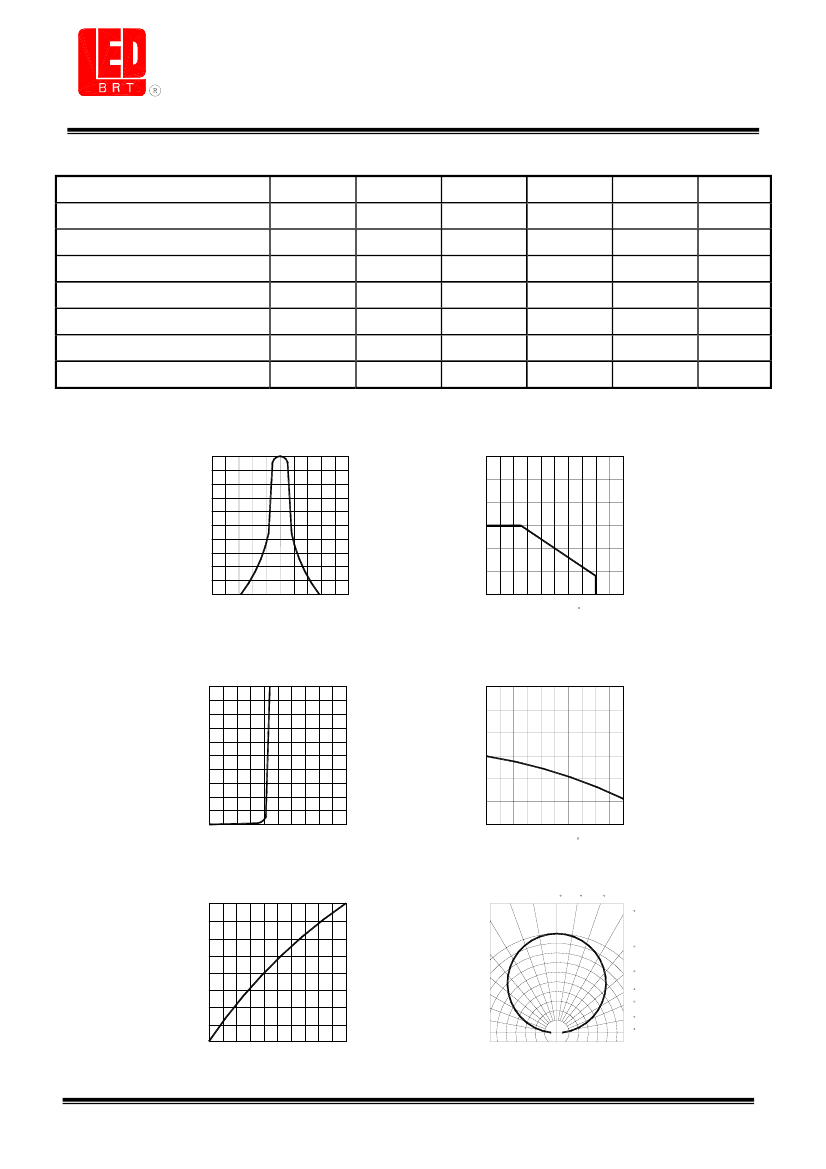

Typical Electro-Optical Characteristics Curves
Fig.2 Forward current derating curve
Fig.1 Relative intensity vs. wavelength
1.0
60
vs. ambient temperature
50
Relative radiant intensity
Forward current (mA)
40
0.5
30
20
10
0
540
590
640
0
20
40
60
80
100
Wavelength (nm)
Ambient temperature Ta( C)
Fig.3 Forward current vs. forward voltage
50
3.0
Fig.4 Relative luminous intensity vs.
ambient temperature
40
2.5
Relative Luminous intensity
(Normalized @20mA)
Forward current (mA)
2.0
30
1.5
20
1.0
10
0.5
0
1
2
3
4
5
0
-40
-20
0
20
40
60
Forward voltage(V)
Ambient temperature Ta( C)
A
Fig.5 Relative luminous intensity vs. forward current
2.0
Fig.6 Radiation diagram
0
10
20
30
Relative luminous intensity (@20mA)
Relative radiant intensity
1.5
40
1.0
0.9
0.8
50
60
70
0.7
80
90
1.0
0.5
0
10
20
30
40
50
0.5
0.3
0.1
0.2
0.4
0.6
Forward current (mA)
Ver.1.0 Page 2 of 7
BRIGHT LED ELECTRONICS CORP.
SINCE 1981
BL-HKB35A-TRE
●

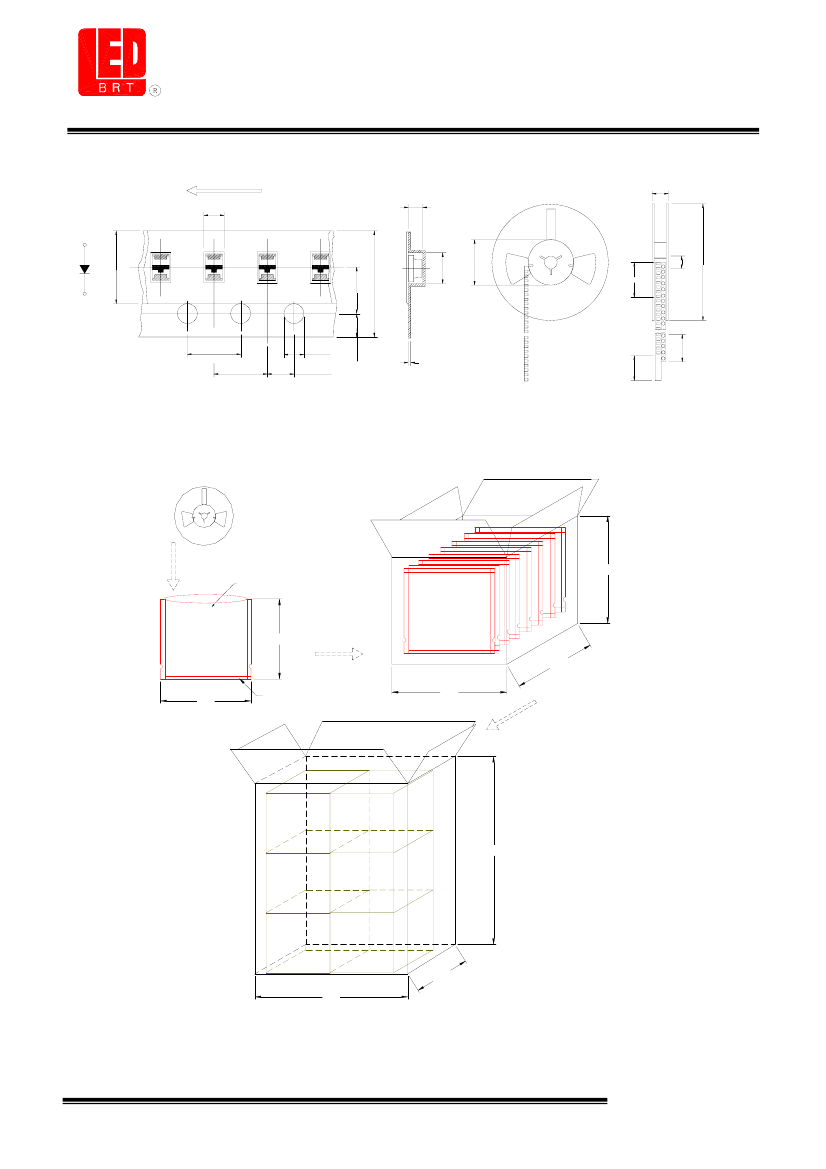

Tapping and packaging specifications(Units: mm)
USER DIRECTION OF FEED
1.3
±
0.1
1.42
±
0.1
ANODE
START
END
13.0
±
0.5
13.0
±
0.5
71.0
±
1
5.3
±
0.05
8.0
±
0.3
2.26
±
0.1
CATHODE
4.0
±
0.1
4.0
±
0.1
1.5
±
0.1
2.0
±
0.05
1.75
±
0.1
3.5
±
0.05
TRAILER
LEADER
0.3
FIXING TAPE
NOTE: 3000 pcs PER REEL
179
±
1
v
●
Package Method:(unit:mm)
12 bag/box
3000 pcs/reel
215
Bar Code Label
245
230
167
220
Aluminum Foil Bag
645
6 box/carton
230
334
●
Bin Limits
Ver.1.0 Page 3 of 7
BRIGHT LED ELECTRONICS CORP.
SINCE 1981
BL-HKB35A-TRE
Intensity Bin Limits (At 20mA)
BIN CODE
Min. (mcd)
M
N
P
Q
24
37
55
82
Max. (mcd)
48
72
11 0
160
●
B IN：
x
Intensity BIN CODE
●
Reliability Test
Ver.1.0 Page 4 of 7
Classification
Test Item
Reference Standard
Test Conditions
Result
