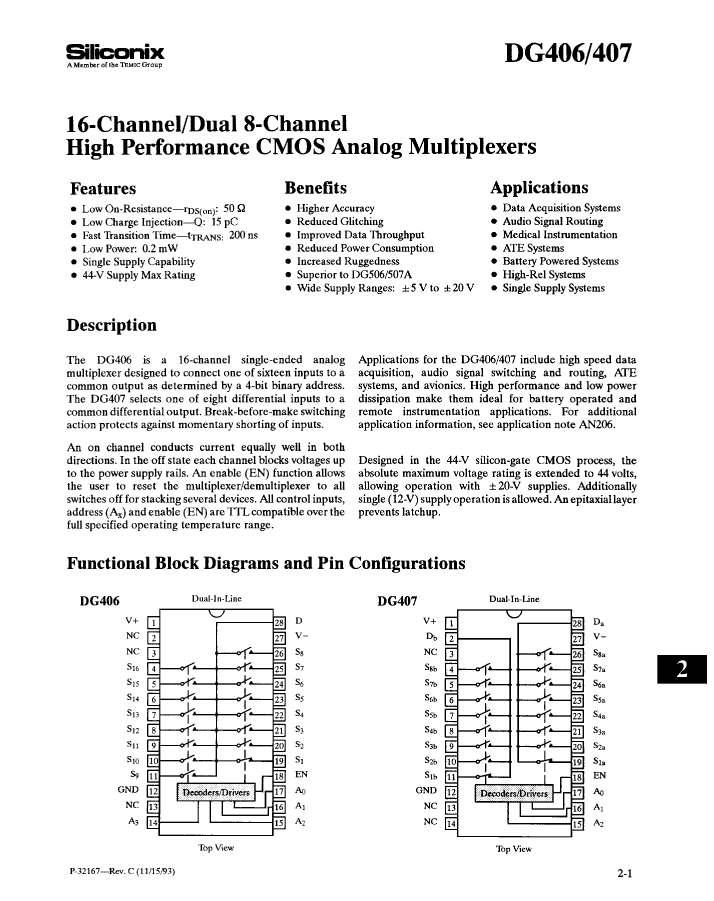

Single-Ended Multiplexer, 1 Func, 16 Channel, CQCC28, CERAMIC, LCC-28

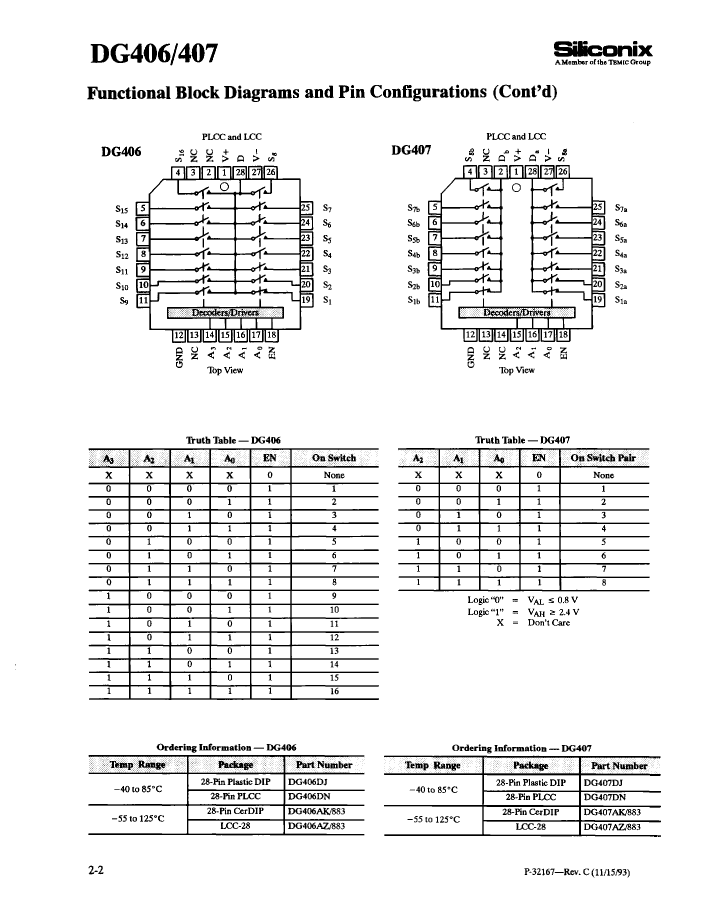

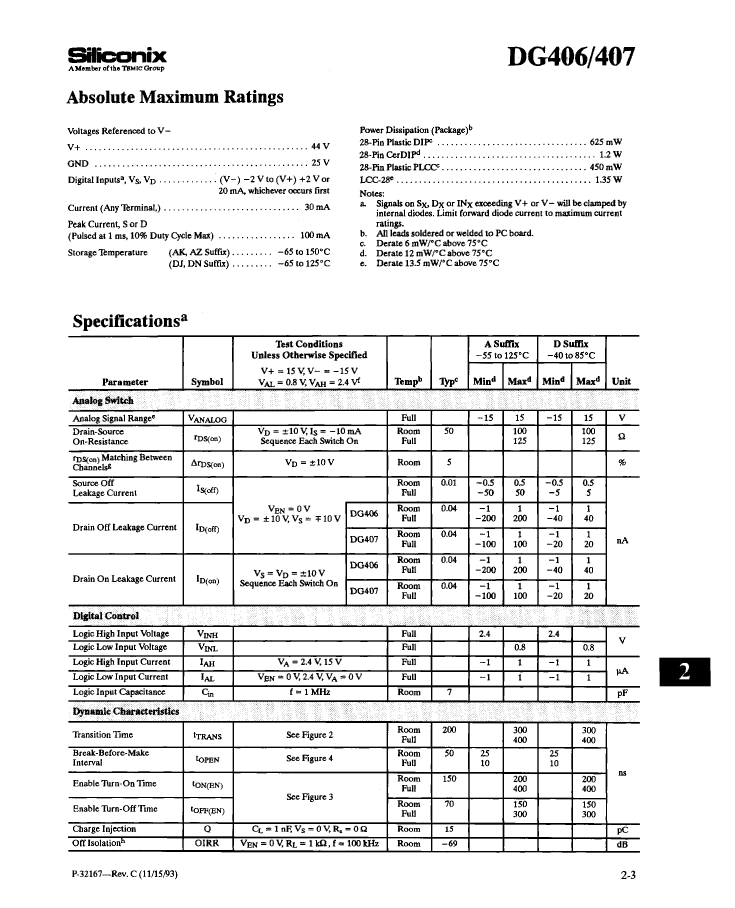

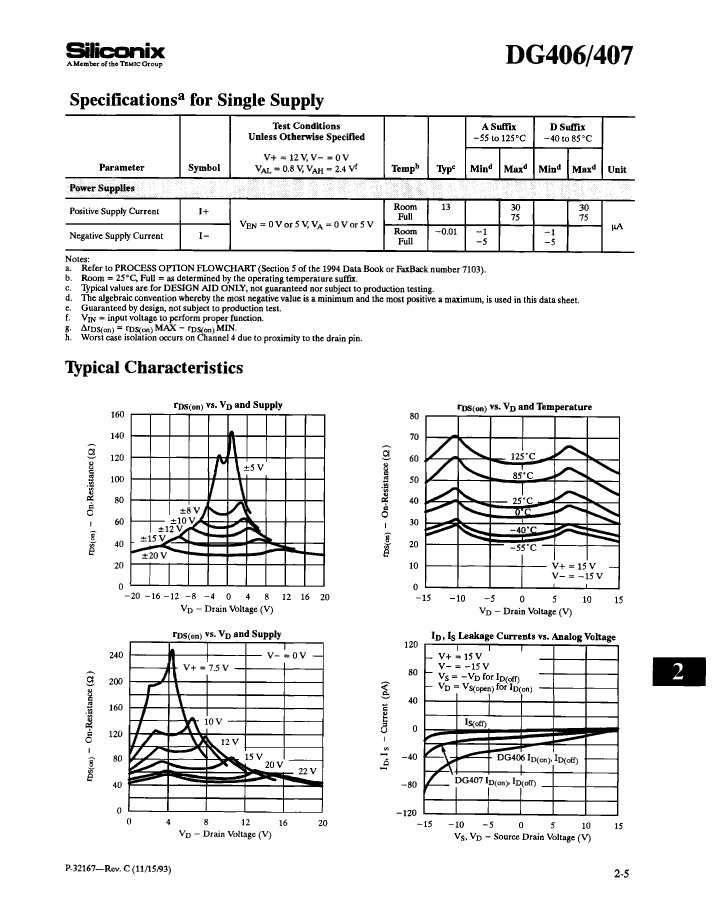

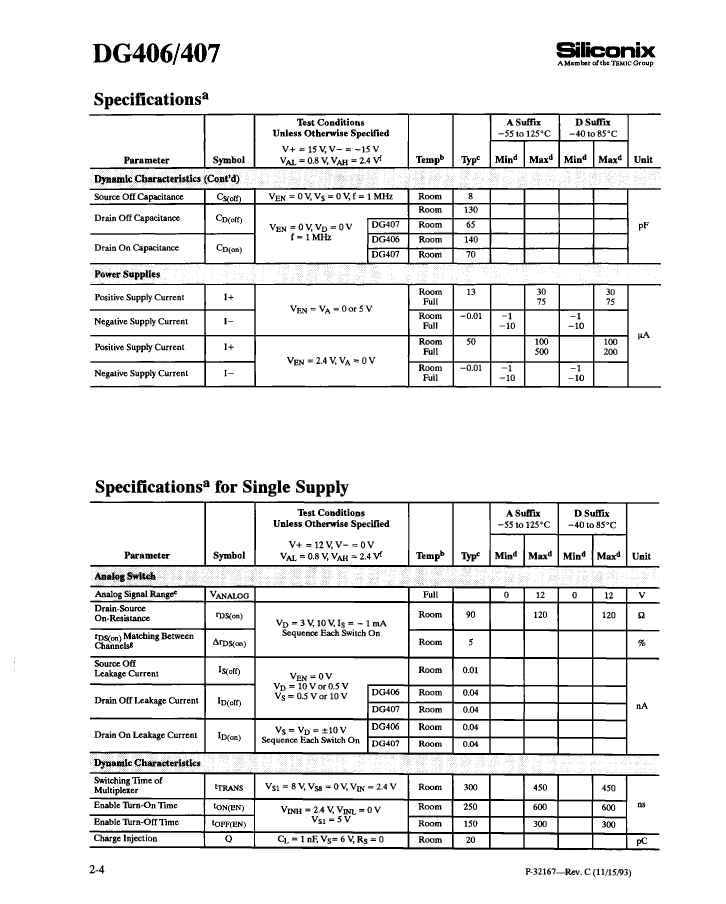

| Parameter Name | Attribute value |
| Parts packaging code | QLCC |
| package instruction | QCCN, |
| Contacts | 28 |
| Reach Compliance Code | unknown |
| Base Number Matches | 1 |
| 5962-9562301Q3X | 5962-9562302QXX | 5962-9562301QXX | 5962-9562302Q3X | |
|---|---|---|---|---|
| Description | Single-Ended Multiplexer, 1 Func, 16 Channel, CQCC28, CERAMIC, LCC-28 | Differential Multiplexer, 1 Func, 8 Channel, CMOS, CDIP28, CERDIP-28 | Single-Ended Multiplexer, 1 Func, 16 Channel, CMOS, CDIP28, CERDIP-28 | Differential Multiplexer, 1 Func, 8 Channel, CQCC28, CERAMIC, LCC-28 |
| Parts packaging code | QLCC | DIP | DIP | QLCC |
| package instruction | QCCN, | DIP, | DIP, | QCCN, |
| Contacts | 28 | 28 | 28 | 28 |
| Reach Compliance Code | unknown | unknown | unknown | unknown |
| Base Number Matches | 1 | 1 | 1 | 1 |
| Maker | - | Vishay | Vishay | Vishay |
| Analog Integrated Circuits - Other Types | - | DIFFERENTIAL MULTIPLEXER | SINGLE-ENDED MULTIPLEXER | DIFFERENTIAL MULTIPLEXER |
| JESD-30 code | - | R-GDIP-T28 | R-GDIP-T28 | S-CQCC-N28 |
| Nominal Negative Supply Voltage (Vsup) | - | -15 V | -15 V | -15 V |
| Number of channels | - | 8 | 16 | 8 |
| Number of functions | - | 1 | 1 | 1 |
| Number of terminals | - | 28 | 28 | 28 |
| Nominal off-state isolation | - | 69 dB | 69 dB | 50 dB |
| On-state resistance matching specifications | - | 2.5 Ω | 2.5 Ω | 15 Ω |
| Maximum on-state resistance (Ron) | - | 100 Ω | 100 Ω | 90 Ω |
| Maximum operating temperature | - | 125 °C | 125 °C | 125 °C |
| Minimum operating temperature | - | -55 °C | -55 °C | -55 °C |
| Package body material | - | CERAMIC, GLASS-SEALED | CERAMIC, GLASS-SEALED | CERAMIC, METAL-SEALED COFIRED |
| encapsulated code | - | DIP | DIP | QCCN |
| Package shape | - | RECTANGULAR | RECTANGULAR | SQUARE |
| Package form | - | IN-LINE | IN-LINE | CHIP CARRIER |
| Certification status | - | Not Qualified | Not Qualified | Not Qualified |
| Filter level | - | MIL-PRF-38535 Class Q | MIL-PRF-38535 Class Q | MIL-PRF-38535 Class Q |
| Nominal supply voltage (Vsup) | - | 15 V | 15 V | 15 V |
| surface mount | - | NO | NO | YES |
| Maximum disconnect time | - | 150 ns | 150 ns | 150 ns |
| Maximum connection time | - | 200 ns | 200 ns | 200 ns |
| Temperature level | - | MILITARY | MILITARY | MILITARY |
| Terminal form | - | THROUGH-HOLE | THROUGH-HOLE | NO LEAD |
| Terminal location | - | DUAL | DUAL | QUAD |
