Non-Cooled Large Area Red Silicon Avalanche Photodiode
SD 630-70-72-500
WWW.LUNAINC.COM
Precision – Control – Results

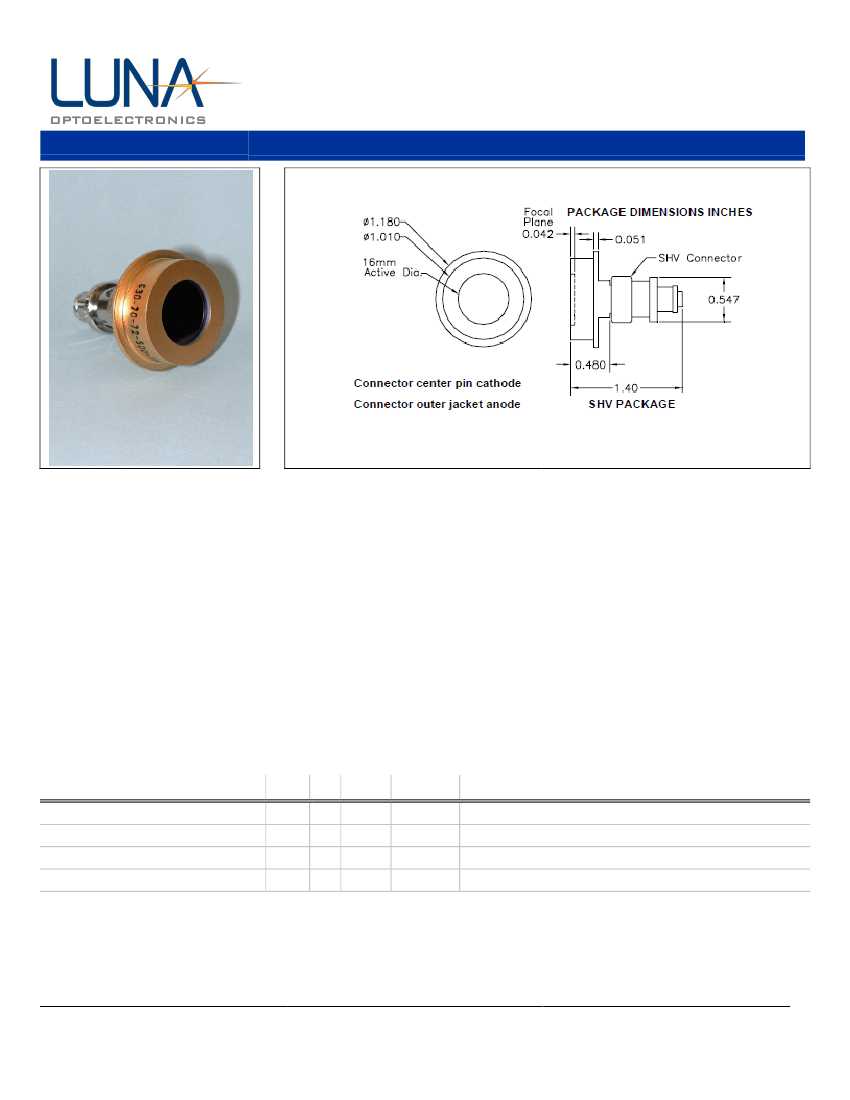

DESCRIPTION
The
SD 630-70-72-500
is a windowless non-cooled large area red enhanced
silicon avalanche photodiode (APD) with high gain and low noise in a SHV
package.
.
FEATURES
Low Noise
High Gain
High Speed
Windowless
RELIABILITY
Contact Luna for recommendations on specific test conditions and
procedures.
APPLICATIONS
Instrumentation
Medical
ABSOLUTE MAXIMUM RATINGS
SYMBOL
Gain
Storage Temperature
Operating Temperature
Soldering Temperature*
* 1/16 inch from case for 3 seconds max
MIN
-
-55
-55
-
-
to
to
-
MAX
250
+70
+40
+240
UNITS
-
°C
°C
°C
T
a
= 23°C
UNLESS NOTED OTHERWISE
-
-
-
Information in this technical datasheet is believed to
be correct and reliable. However, no responsibility is
assumed for possible inaccuracies or omission.
Specifications are subject to change without notice.
Page 1/2
REV 02-07-18
© 2018 Luna Optoelectronics. All rights reserved.
Luna Optoelectronics, 1240 Avenida Acaso, Camarillo CA 93012 • Phone (805) 987-0146 • Fax (805) 484-9935
Non-Cooled Large Area Red Silicon Avalanche Photodiode
SD 630-70-72-500
WWW.LUNAINC.COM
OPTO-ELECTRICAL PARAMETERS
PARAMETER
Dark Current
Junction Capacitance
Noise Current Spectral Density
Spectral Application Range
Responsivity
Operating Voltage
Temp. Coeff. Breakdown Voltage
Response Time**
-
f =
1 MHz
f
= 100 kHz
Spot Scan
=
750 nm
-
Constant Gain =200
RL = 50Ω,
= 675nm
Precision – Control – Results
T
a
= 23°C, Gain is M=200
UNLESS NOTED OTHERWISE
TEST CONDITIONS
MIN
-
-
-
300
-
1700
-
-
TYP
280
130
2.5
-
100
-
2
12
MAX
600
-
5.5
1000
-
2000
-
18
UNITS
nA
pF
pA/Hz
nm
A/W
V
V
nS
**Response time of 10% to 90% is specified at 675nm wavelength light.

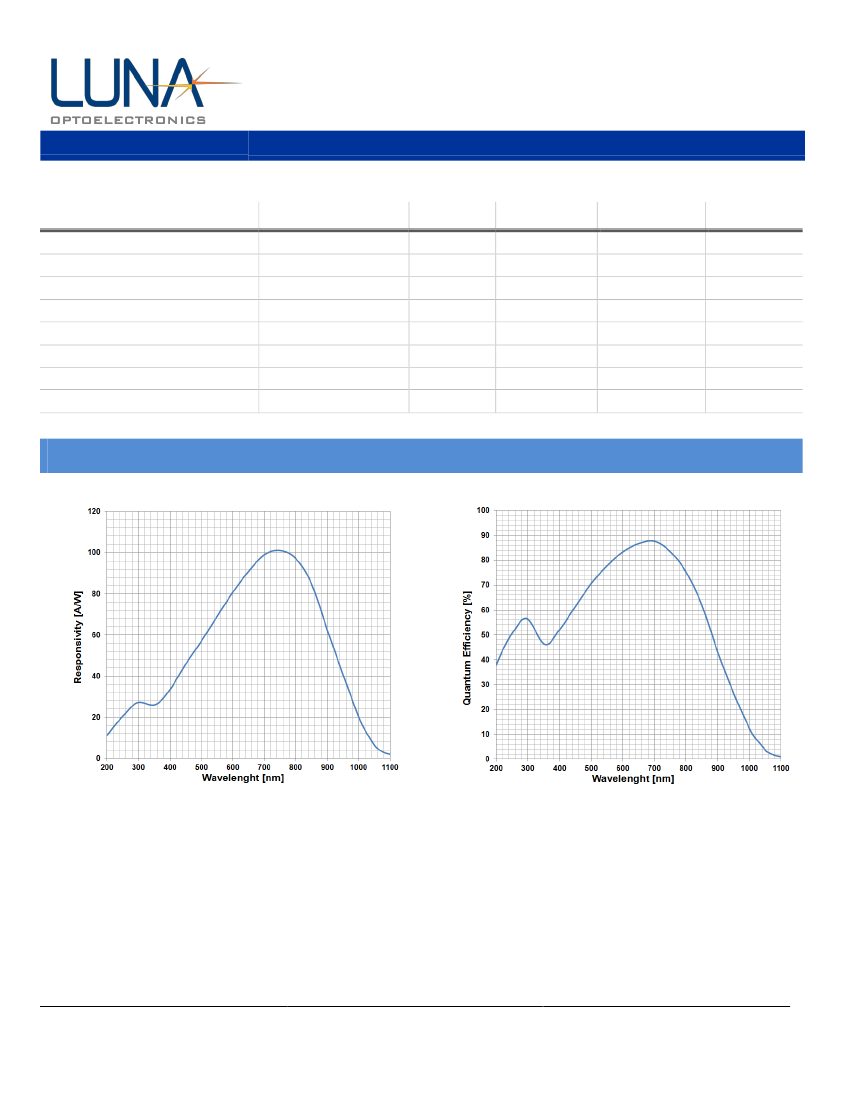

TYPICAL PERFORMANCE
SPECTRAL SENSITIVITY
QUANTUM EFFICIENCY
Information in this technical datasheet is believed to
be correct and reliable. However, no responsibility is
assumed for possible inaccuracies or omission.
Specifications are subject to change without notice.
Page 2/2
REV 02-07-18
© 2018 Luna Optoelectronics. All rights reserved.
Luna Optoelectronics, 1240 Avenida Acaso, Camarillo CA 93012 • Phone (805) 987-0146 • Fax (805) 484-9935
