5962H9656101VEA datasheet, PDF

5962H9656101VEA: DescriptionBinary Counter, ACT Series, Synchronous, Positive Edge Triggered, 4-Bit, Bidirectional, CMOS, CDIP16, SIDE BRAZED, CERAMIC, DIP-16; Categorylogic logic; File Size126KB，5 Pages; ManufacturerCobham Semiconductor Solutions

Download Datasheet Parametric View All

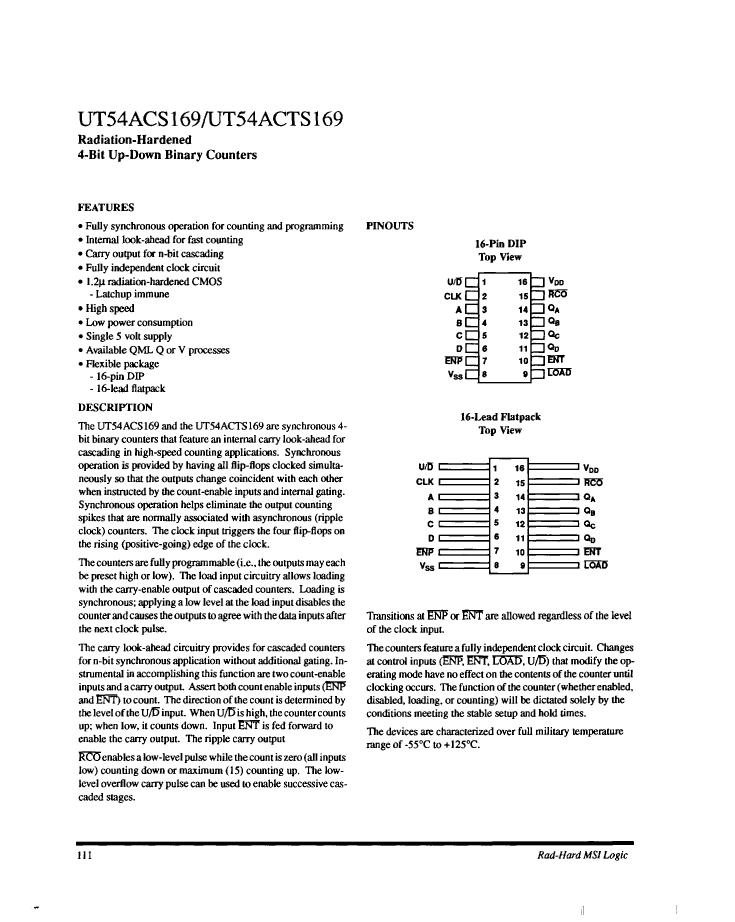

5962H9656101VEA Overview

Binary Counter, ACT Series, Synchronous, Positive Edge Triggered, 4-Bit, Bidirectional, CMOS, CDIP16, SIDE BRAZED, CERAMIC, DIP-16

Parameter Name	Attribute value
Parts packaging code	DIP
package instruction	DIP,
Contacts	16
Reach Compliance Code	unknown
ECCN code	3A001.A.1.A
Other features	TCO OUTPUT
Counting direction	BIDIRECTIONAL
series	ACT
JESD-30 code	R-CDIP-T16
JESD-609 code	e0
length	19.05 mm
Load/preset input	YES
Logic integrated circuit type	BINARY COUNTER
Operating mode	SYNCHRONOUS
Number of digits	4
Number of functions	1
Number of terminals	16
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package body material	CERAMIC, METAL-SEALED COFIRED
encapsulated code	DIP
Package shape	RECTANGULAR
Package form	IN-LINE

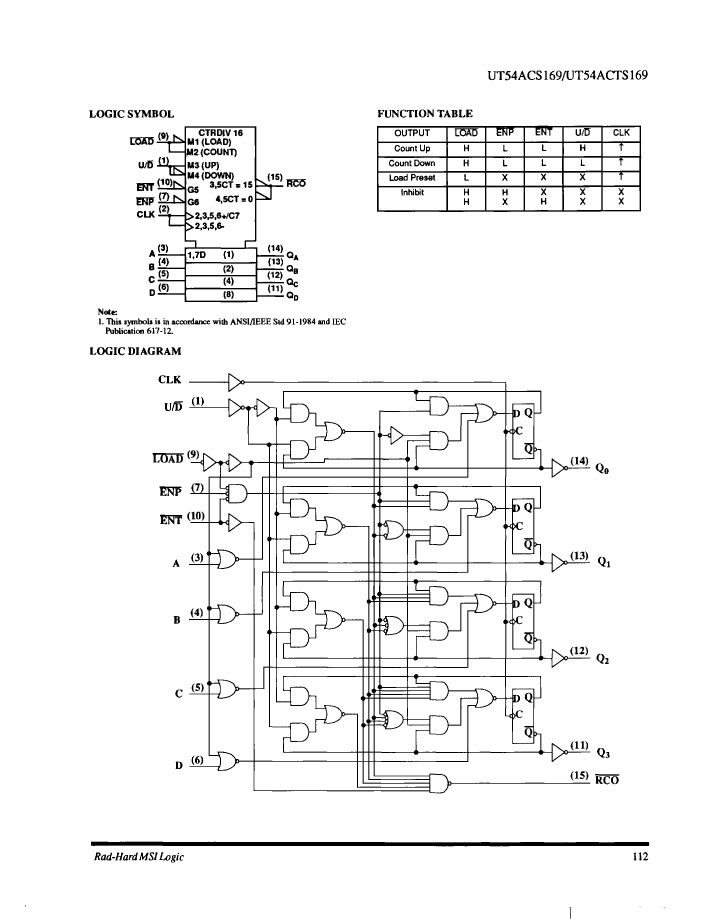

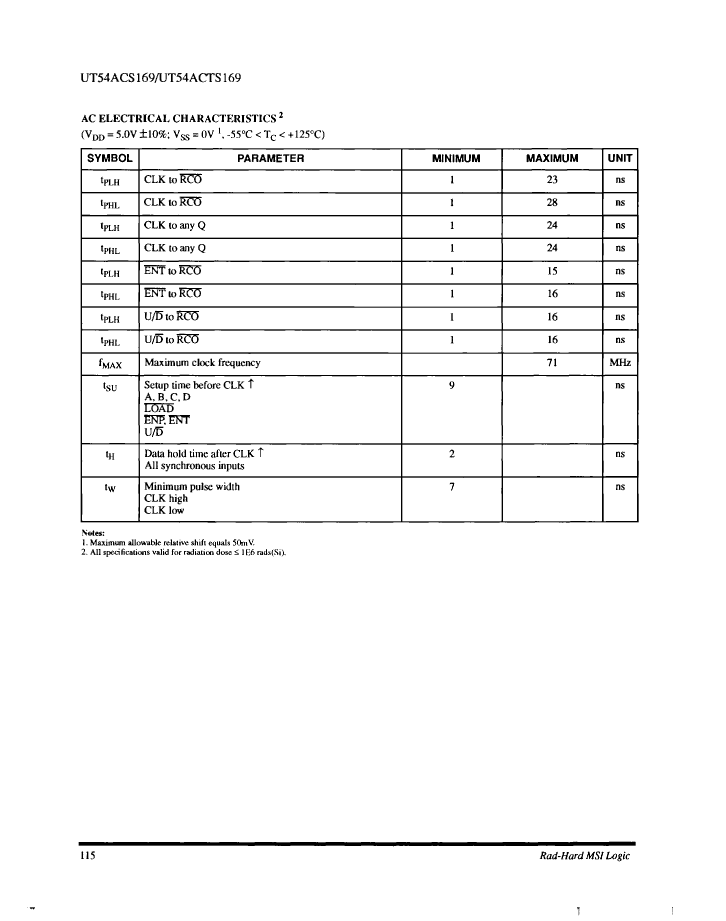

propagation delay (tpd)	24 ns
Certification status	Not Qualified
Maximum seat height	5.08 mm
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	CMOS
Temperature level	MILITARY
Terminal surface	TIN LEAD
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL

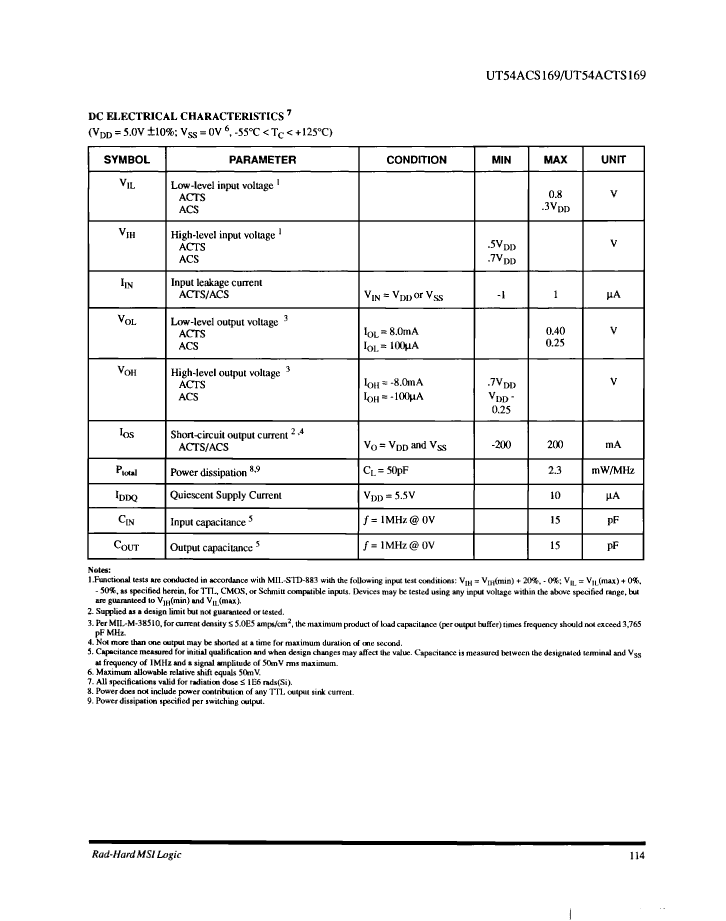

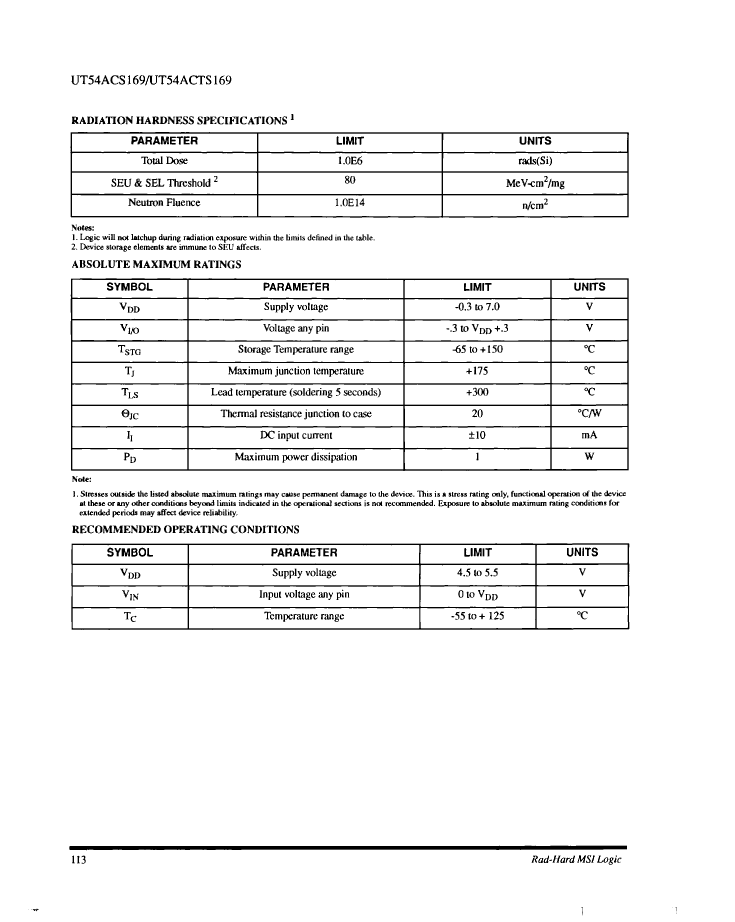

total dose	1M Rad(Si) V
Trigger type	POSITIVE EDGE
width	7.62 mm
minfmax	71 MHz
Base Number Matches	1
