5962-8686103XA datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Power/power management> The power supply circuit> 5962-8686103XA

5962-8686103XA: DescriptionThree Terminal Voltage Reference, 1 Output, 2.5V, BIPolar, MBCY3, METAL CAN-3; CategoryPower/power management The power supply circuit; File Size85KB，11 Pages; ManufacturerMicross; Websitehttps://www.micross.com

Download Datasheet Parametric View All

5962-8686103XA Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	5962-8686103XA	-	-	View	Buy Now

5962-8686103XA Overview

Three Terminal Voltage Reference, 1 Output, 2.5V, BIPolar, MBCY3, METAL CAN-3

5962-8686103XA Parametric

Parameter Name	Attribute value
Maker	Micross
package instruction	METAL CAN-3
Reach Compliance Code	compliant
ECCN code	EAR99
Analog Integrated Circuits - Other Types	THREE TERMINAL VOLTAGE REFERENCE
JESD-30 code	O-MBCY-W3
JESD-609 code	e0
Number of functions	1
Output times	1
Number of terminals	3
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Maximum output voltage	2.51 V
Minimum output voltage	2.49 V
Nominal output voltage	2.5 V
Package body material	METAL
Package shape	ROUND
Package form	CYLINDRICAL
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Certification status	Not Qualified
Filter level	MIL-STD-883
Maximum supply voltage (Vsup)	30 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	15 V
surface mount	NO
technology	BIPOLAR
Maximum voltage temperature coefficient	10 ppm/°C
Temperature level	MILITARY
Terminal surface	TIN LEAD
Terminal form	WIRE
Terminal location	BOTTOM
Maximum time at peak reflow temperature	NOT SPECIFIED
Fine-tuning/adjustable output	NO
Base Number Matches	1

Preview

Download Datasheet

View All

REVISIONS

LTR

DESCRIPTION

Add device type 03. Add one vendor, CAGE 64155. Make changes to table I

and throughout.

Changes in accordance with 5962-R271-92.

Changes in accordance with 5962-R016-97.

Changes in accordance with 5962-R253-97.

Drawing updated to reflect current requirements. - ro

Drawing updated as part of 5 year review. -rrp

DATE (YR-MO-DA)

91-02-14

APPROVED

M. A. FRYE

92-11-20

96-10-23

97-04-08

02-06-20

09-01-13

M. A. FRYE

R. MONNIN

R. HEBER

THE ORIGINAL FIRST SHEET OF THIS DRAWING HAS BEEN REPLACED.

REV

SHEET

REV

SHEET

REV STATUS

OF SHEETS

PMIC N/A

REV

SHEET

PREPARED BY

RICK C. OFFICER

STANDARD

MICROCIRCUIT

DRAWING

THIS DRAWING IS AVAILABLE

FOR USE BY ALL

DEPARTMENTS

AND AGENCIES OF THE

DEPARTMENT OF DEFENSE

CHECKED BY

CHARLES E. BESORE

DEFENSE SUPPLY CENTER COLUMBUS

COLUMBUS, OHIO 43218-3990

http://www.dscc.dla.mil

APPROVED BY

MICHAEL A. FRYE

MICROCIRCUIT, LINEAR, PRECISION VOLTAGE

REFERENCE, 2.5 VOLT, MONOLITHIC SILICON

DRAWING APPROVAL DATE

87-11-17

AMSC N/A

REVISION LEVEL

SIZE

SHEET

CAGE CODE

14933

1 OF

5962-86861

DSCC FORM 2233

APR 97

5962-E398-07

1.4 Recommended operating conditions.

Supply voltage (V

) .................................................................... +4.5 V dc to +30 V dc

Ambient operating temperature range (T

) ................................... -55C to +125C

2. APPLICABLE DOCUMENTS

2.1 Government specification, standards, and handbooks. The following specification, standards, and handbooks form a

part of this drawing to the extent specified herein. Unless otherwise specified, the issues of these documents are those cited in

the solicitation or contract.

DEPARTMENT OF DEFENSE SPECIFICATION

MIL-PRF-38535 - Integrated Circuits, Manufacturing, General Specification for.

DEPARTMENT OF DEFENSE STANDARDS

MIL-STD-883 -

MIL-STD-1835 -

Test Method Standard Microcircuits.

Interface Standard Electronic Component Case Outlines.

DEPARTMENT OF DEFENSE HANDBOOKS

MIL-HDBK-103 -

MIL-HDBK-780 -

List of Standard Microcircuit Drawings.

Standard Microcircuit Drawings.

(Copies of these documents are available online at

http://assist.daps.dla.mil/quicksearch/

or from the Standardization

Document Order Desk, 700 Robbins Avenue, Building 4D, Philadelphia, PA 19111-5094.)

2.2 Order of precedence. In the event of a conflict between the text of this drawing and the references cited herein, the text

of this drawing takes precedence. Nothing in this document, however, supersedes applicable laws and regulations unless a

specific exemption has been obtained.

3. REQUIREMENTS

3.1 Item requirements. The individual item requirements shall be in accordance with MIL-PRF-38535, appendix A for non-

JAN class level B devices and as specified herein. Product built to this drawing that is produced by a Qualified Manufacturer

Listing (QML) certified and qualified manufacturer or a manufacturer who has been granted transitional certification to MIL-

PRF-38535 may be processed as QML product in accordance with the manufacturers approved program plan and qualifying

activity approval in accordance with MIL-PRF-38535. This QML flow as documented in the Quality Management (QM) plan

may make modifications to the requirements herein. These modifications shall not affect form, fit, or function of the device.

These modifications shall not affect the PIN as described herein. A “Q” or “QML” certification mark in accordance with MIL-

PRF-38535 is required to identify when the QML flow option is used.

3.2 Design, construction, and physical dimensions. The design, construction, and physical dimensions shall be as specified

in MIL-PRF-38535, appendix A and herein.

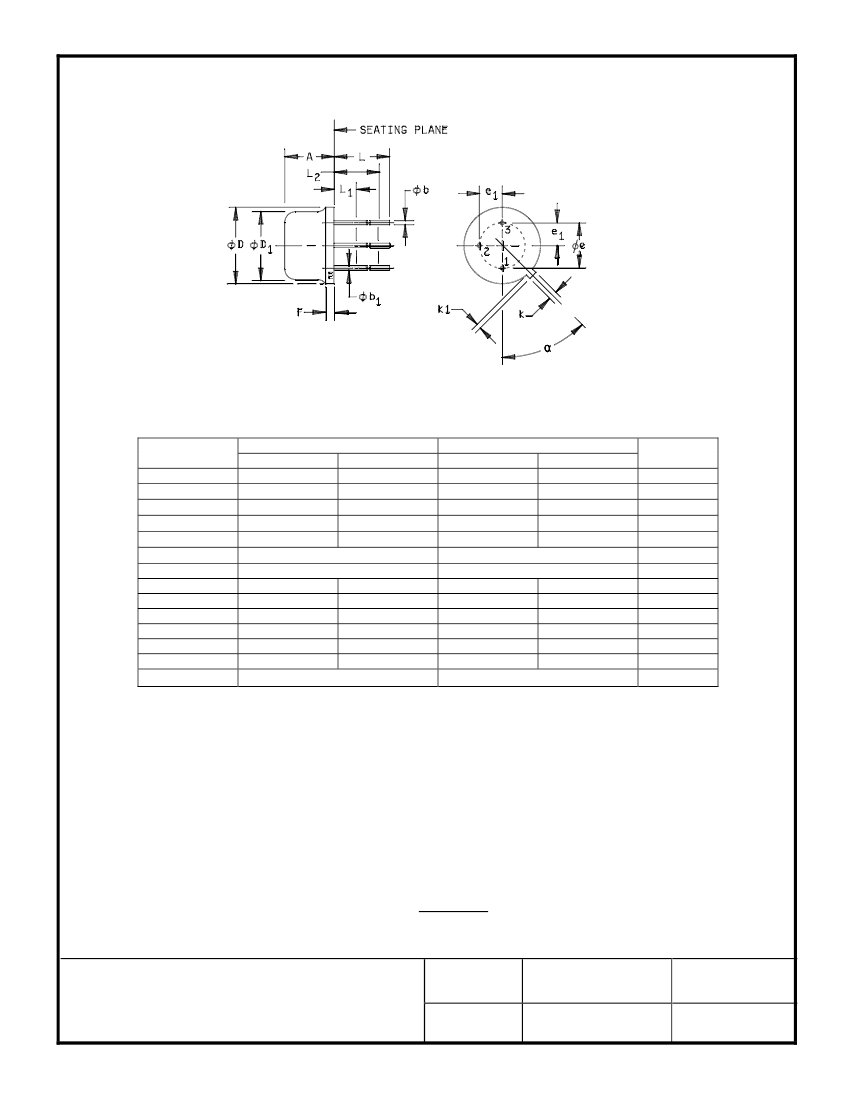

3.2.1 Case outlines. The case outlines shall be in accordance with 1.2.2 herein and figure 1.

3.2.2 Terminal connections. The terminal connections shall be as specified on figure 2.

3.3 Electrical performance characteristics. Unless otherwise specified herein, the electrical performance characteristics are

as specified in table I and shall apply over the full ambient operating temperature range.

3.4 Electrical test requirements. The electrical test requirements shall be the subgroups specified in table II. The electrical

tests for each subgroup are described in table I.

3.5 Marking. Marking shall be in accordance with MIL-PRF-38535, appendix A. The part shall be marked with the PIN listed

in 1.2 herein. In addition, the manufacturer’s PIN may also be marked. For packages where marking of the entire SMD PIN

number is not feasible due to space limitations, the manufacturer has the option of not marking the “5962-“ on the device.

SIZE

STANDARD

MICROCIRCUIT DRAWING

DEFENSE SUPPLY CENTER COLUMBUS

COLUMBUS, OHIO 43218-3990

DSCC FORM 2234

APR 97

REVISION LEVEL

5962-86861

SHEET
