3SK294
TOSHIBA Field Effect Transistor
Silicon N-Channel Dual Gate MOS Type
3SK294
TV Tuner, VHF RF Amplifier Application
•
•
•
Superior cross modulation performance
Low reverse transfer capacitance: C
rss
= 20 fF (typ.)
Low noise figure: NF = 1.4dB (typ.)
Unit: mm
Absolute Maximum Ratings
(Ta
=
25°C)
Characteristics
Drain-source voltage
Gate 1-source voltage
Gate 2-source voltage
Drain current
Drain power dissipation
Channel temperature
Storage temperature range
Symbol
V
DS
V
G1S
V
G2S
I
D
P
D
T
ch
T
stg
Rating
12.5
±8
±8
30
100
125
−55
to 125
Unit
V
V
V
mA
mW
°C
°C
1.Drain
2.Source
3.Gate1
4.Gate2
USQ
JEDEC
―
Note: Using continuously under heavy loads (e.g. the application of high
JEITA
―
temperature/current/voltage and the significant change in
temperature, etc.) may cause this product to decrease in the
TOSHIBA
2-2K1B
reliability significantly even if the operating conditions (i.e.
Weight: 6 mg (typ.)
operating temperature/current/voltage, etc.) are within the
absolute maximum ratings.
Please design the appropriate reliability upon reviewing the Toshiba Semiconductor Reliability Handbook
(“Handling Precautions”/“Derating Concept and Methods”) and individual reliability data (i.e. reliability test
report and estimated failure rate, etc).
Electrical Characteristics
(Ta
=
25°C)
Characteristics
Gate 1 leakage current
Gate 2 leakage current
Drain-source voltage
Drain current
Gate 1-source cut-off voltage
Gate 2-source cut-off voltage
Forward transfer admittance
Input capacitance
Reverse transfer capacitance
Power gain
Noise figure
Symbol
I
G1SS
I
G2SS
V
(BR) DSX
I
DSS
V
G1S (OFF)
V
G2S (OFF)
⎪Y
fs
⎪
C
iss
C
rss
G
ps
NF
Test Condition
V
DS
=
0, V
G1S
= ±6
V, V
G2S
=
0
V
DS
=
0, V
G1S
=
0, V
G2S
= ±6
V
V
G1S
= −0.5
V, V
G2S
= −0.5
V,
I
D
=
100
μA
V
DS
=
6 V, V
G1S
=
0, V
G2S
=
4.5 V
V
DS
=
6 V, V
G2S
=
4.5 V, I
D
=
100
μA
V
DS
=
6 V, V
G1S
=
4.0 V, I
D
=
100
μA
V
DS
=
6 V, V
G2S
=
4.5 V, I
D
=
10 mA,
f
=
1 kHz
V
DS
=
6 V, V
G2S
=
4.5 V, I
D
=
10 mA,
f
=
1 MHz
V
DS
=
6 V, V
G2S
=
4.5 V, I
D
=
10 mA,
f
=

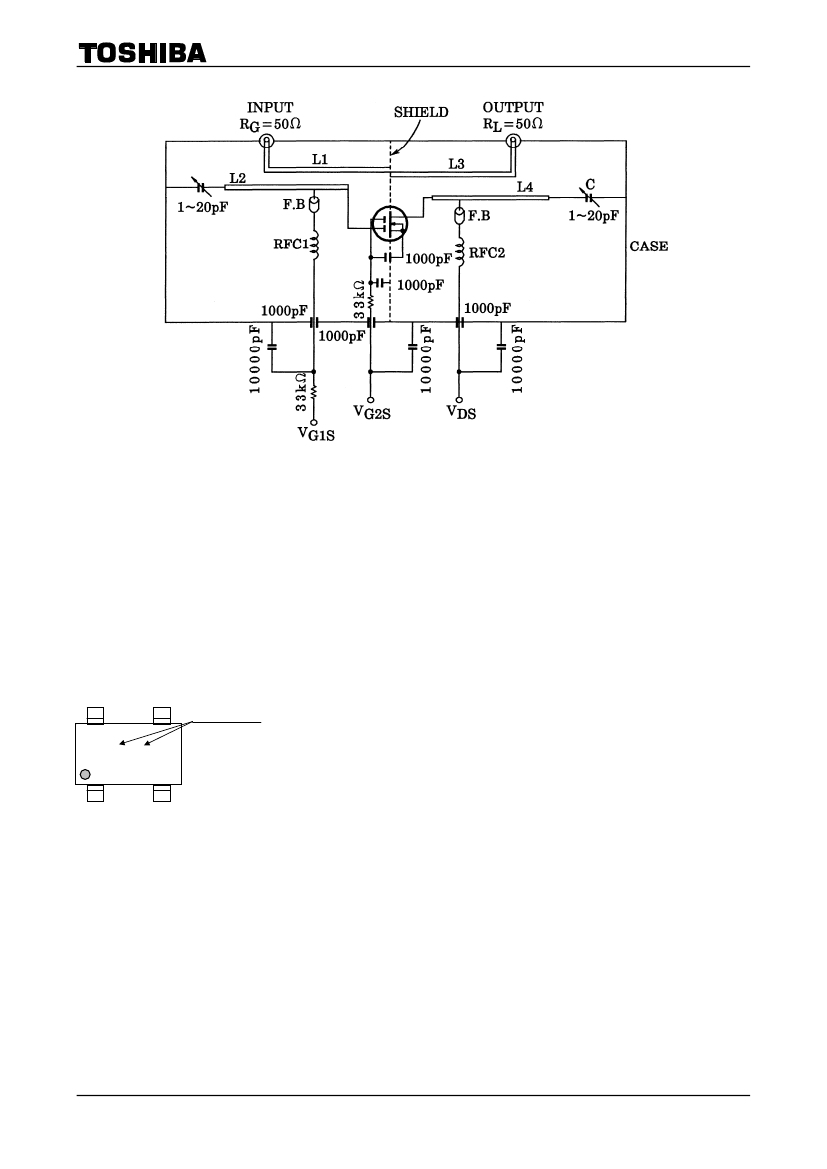

500 MHz (Figure 1)
Min
⎯
⎯
12.5
⎯
0.3
0.5
19.5
⎯
⎯
23.5
⎯
Typ.
⎯
⎯
⎯
⎯
0.9
1.0
23.5
2.5
20
26.0
1.4
Max
±50
±50
⎯
0.1
1.3
1.5
⎯
3.1
40
⎯
2.5
Unit
nA
nA
V
mA
V
V
mS
pF
fF
dB
dB
1
2010-06-30

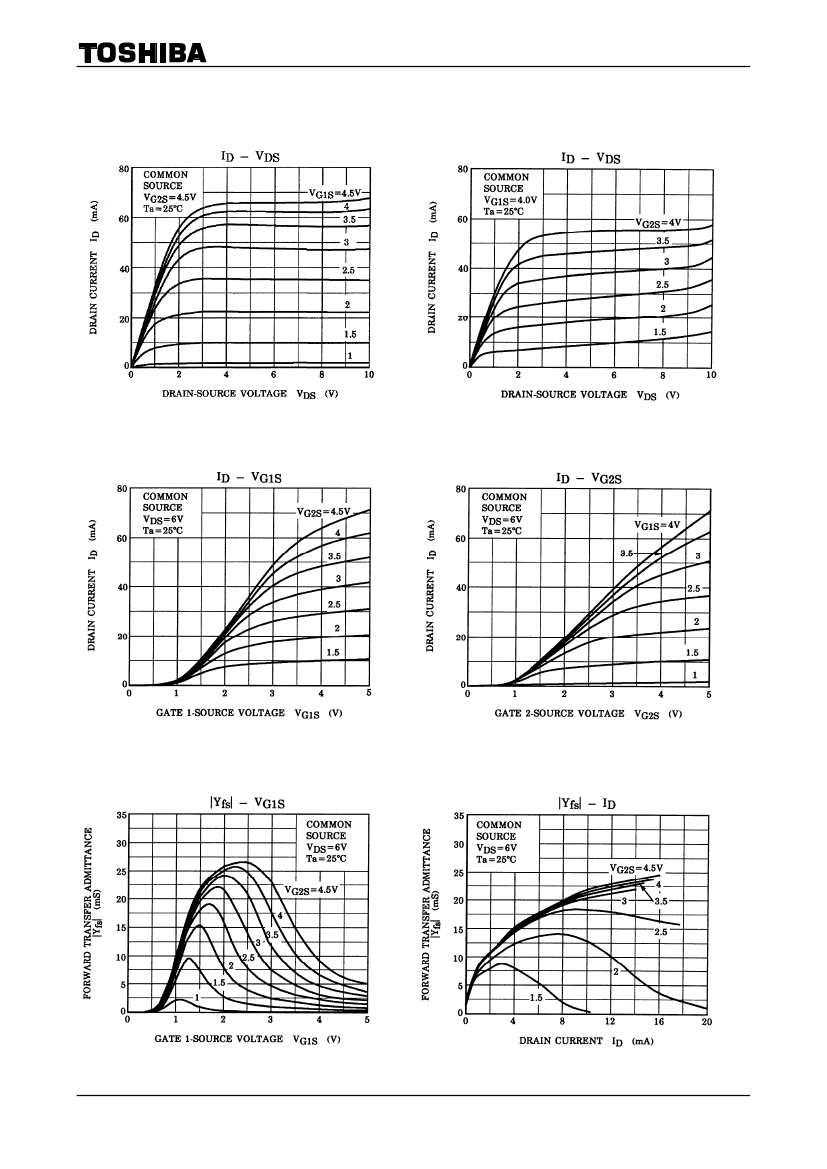

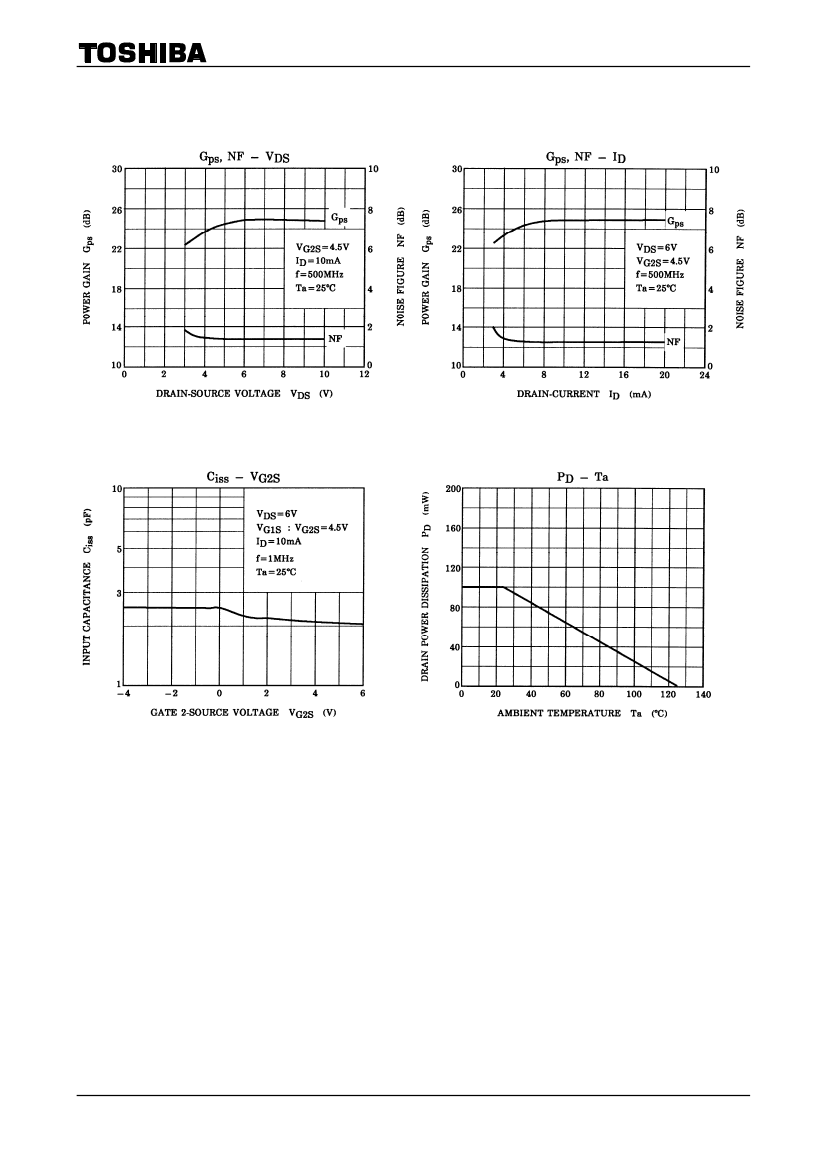

3SK294
RESTRICTIONS ON PRODUCT USE
•
Toshiba Corporation, and its subsidiaries and affiliates (collectively “TOSHIBA”), reserve the right to make changes to the information
in this document, and related hardware, software and systems (collectively “Product”) without notice.
•
This document and any information herein may not be reproduced without prior written permission from TOSHIBA. Even with
TOSHIBA’s written permission, reproduction is permissible only if reproduction is without alteration/omission.
•
Though TOSHIBA works continually to improve Product’s quality and reliability, Product can malfunction or fail. Customers are
responsible for complying with safety standards and for providing adequate designs and safeguards for their hardware, software and
systems which minimize risk and avoid situations in which a malfunction or failure of Product could cause loss of human life, bodily
injury or damage to property, including data loss or corruption. Before customers use the Product, create designs including the
Product, or incorporate the Product into their own applications, customers must also refer to and comply with (a) the latest versions of
all relevant TOSHIBA information, including without limitation, this document, the specifications, the data sheets and application notes
for Product and the precautions and conditions set forth in the “TOSHIBA Semiconductor Reliability Handbook” and (b) the
instructions for the application with which the Product will be used with or for. Customers are solely responsible for all aspects of their
own product design or applications, including but not limited to (a) determining the appropriateness of the use of this Product in such
design or applications; (b) evaluating and determining the applicability of any information contained in this document, or in charts,
diagrams, programs, algorithms, sample application circuits, or any other referenced documents; and (c) validating all operating
parameters for such designs and applications.
TOSHIBA ASSUMES NO LIABILITY FOR CUSTOMERS’ PRODUCT DESIGN OR
APPLICATIONS.
•
Product is intended for use in general electronics applications (e.g., computers, personal equipment, office equipment, measuring
equipment, industrial robots and home electronics appliances) or for specific applications as expressly stated in this document.
Product is neither intended nor warranted for use in equipment or systems that require extraordinarily high levels of quality and/or
reliability and/or a malfunction or failure of which may cause loss of human life, bodily injury, serious property damage or serious
public impact (“Unintended Use”). Unintended Use includes, without limitation, equipment used in nuclear facilities, equipment used
in the aerospace industry, medical equipment, equipment used for automobiles, trains, ships and other transportation, traffic signaling
equipment, equipment used to control combustions or explosions, safety devices, elevators and escalators, devices related to electric
power, and equipment used in finance-related fields. Do not use Product for Unintended Use unless specifically permitted in this
document.
•
Do not disassemble, analyze, reverse-engineer, alter, modify, translate or copy Product, whether in whole or in part.
•
Product shall not be used for or incorporated into any products or systems whose manufacture, use, or sale is prohibited under any
applicable laws or regulations.
•
The information contained herein is presented only as guidance for Product use. No responsibility is assumed by TOSHIBA for any
infringement of patents or any other intellectual property rights of third parties that may result from the use of Product. No license to
any intellectual property right is granted by this document, whether express or implied, by estoppel or otherwise.
•
ABSENT A WRITTEN SIGNED AGREEMENT, EXCEPT AS PROVIDED IN THE RELEVANT TERMS AND CONDITIONS OF SALE
FOR PRODUCT, AND TO THE MAXIMUM EXTENT ALLOWABLE BY LAW, TOSHIBA (1) ASSUMES NO LIABILITY
WHATSOEVER, INCLUDING WITHOUT LIMITATION, INDIRECT, CONSEQUENTIAL, SPECIAL, OR INCIDENTAL DAMAGES OR
LOSS, INCLUDING WITHOUT LIMITATION, LOSS OF PROFITS, LOSS OF OPPORTUNITIES, BUSINESS INTERRUPTION AND
LOSS OF DATA, AND (2) DISCLAIMS ANY AND ALL EXPRESS OR IMPLIED WARRANTIES AND CONDITIONS RELATED TO
SALE, USE OF PRODUCT, OR INFORMATION, INCLUDING WARRANTIES OR CONDITIONS OF MERCHANTABILITY, FITNESS
FOR A PARTICULAR PURPOSE, ACCURACY OF INFORMATION, OR NONINFRINGEMENT.
•
Do not use or otherwise make available Product or related software or technology for any military purposes, including without
limitation, for the design, development, use, stockpiling or manufacturing of nuclear, chemical, or biological weapons or missile
technology products (mass destruction weapons). Product and related software and technology may be controlled under the
Japanese Foreign Exchange and Foreign Trade Law and the U.S. Export Administration Regulations. Export and re-export of Product
or related software or technology are strictly prohibited except in compliance with all applicable export laws and regulations.
•
Please contact your TOSHIBA sales representative for details as to environmental matters such as the RoHS compatibility of Product.
Please use Product in compliance with all applicable laws and regulations that regulate the inclusion or use of controlled substances,
including without limitation, the EU RoHS Directive. TOSHIBA assumes no liability for damages or losses occurring as a result of
noncompliance with applicable laws and regulations.
5
