5962-9224701MKA datasheet, PDF

Datasheet> All Categories > logic> logic> 5962-9224701MKA

5962-9224701MKA: DescriptionCPACK-24, Tube; Categorylogic logic; File Size191KB，7 Pages; ManufacturerIDT (Integrated Device Technology)

Download Datasheet Parametric Compare View All

5962-9224701MKA Overview

CPACK-24, Tube

5962-9224701MKA Parametric

Parameter Name	Attribute value
Brand Name	Integrated Device Technology
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Parts packaging code	CPACK
package instruction	DFP, FL24,.4
Contacts	24
Manufacturer packaging code	CP24
Reach Compliance Code	not_compliant
Other features	WITH DUAL OUTPUT ENABLE
Control type	ENABLE LOW
series	FCT
JESD-30 code	R-GDFP-F24
JESD-609 code	e0
length	15.748 mm
Load capacitance (CL)	300 pF
Logic integrated circuit type	BUS DRIVER
MaximumI(ol)	0.032 A
Humidity sensitivity level	1
Number of digits	10
Number of functions	1
Number of ports	2
Number of terminals	24
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Output characteristics	3-STATE
Output polarity	TRUE
Package body material	CERAMIC, GLASS-SEALED
encapsulated code	DFP
Encapsulate equivalent code	FL24,.4
Package shape	RECTANGULAR
Package form	FLATPACK
Peak Reflow Temperature (Celsius)	260
power supply	5 V
Prop。Delay @ Nom-Sup	9 ns
propagation delay (tpd)	17 ns
Certification status	Not Qualified
Filter level	MIL-STD-883
Maximum seat height	2.286 mm
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	CMOS
Temperature level	MILITARY
Terminal surface	TIN LEAD
Terminal form	FLAT
Terminal pitch	1.27 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
width	9.144 mm
Base Number Matches	1

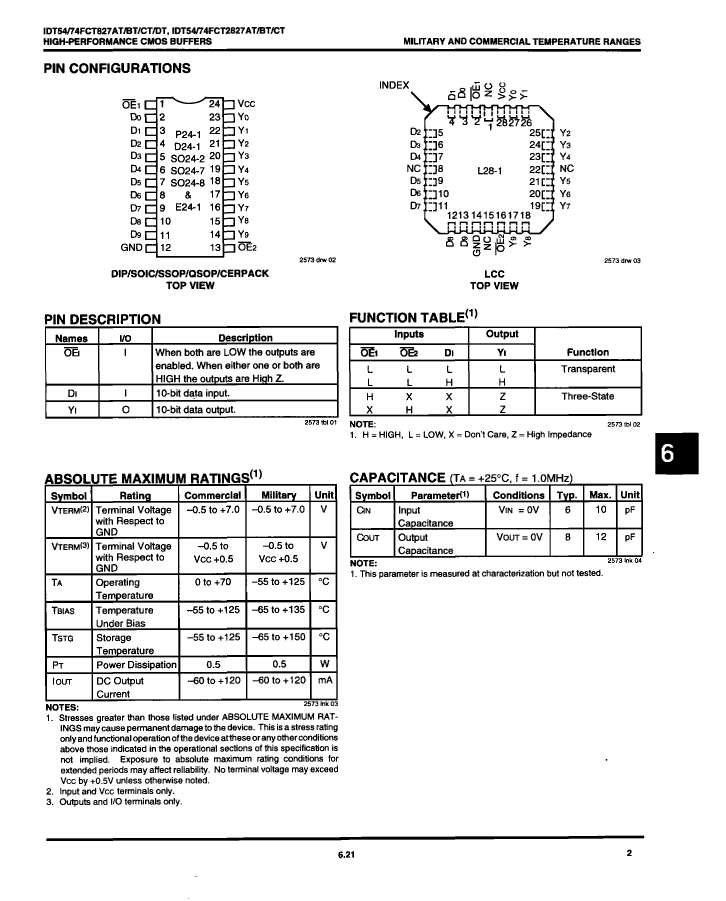

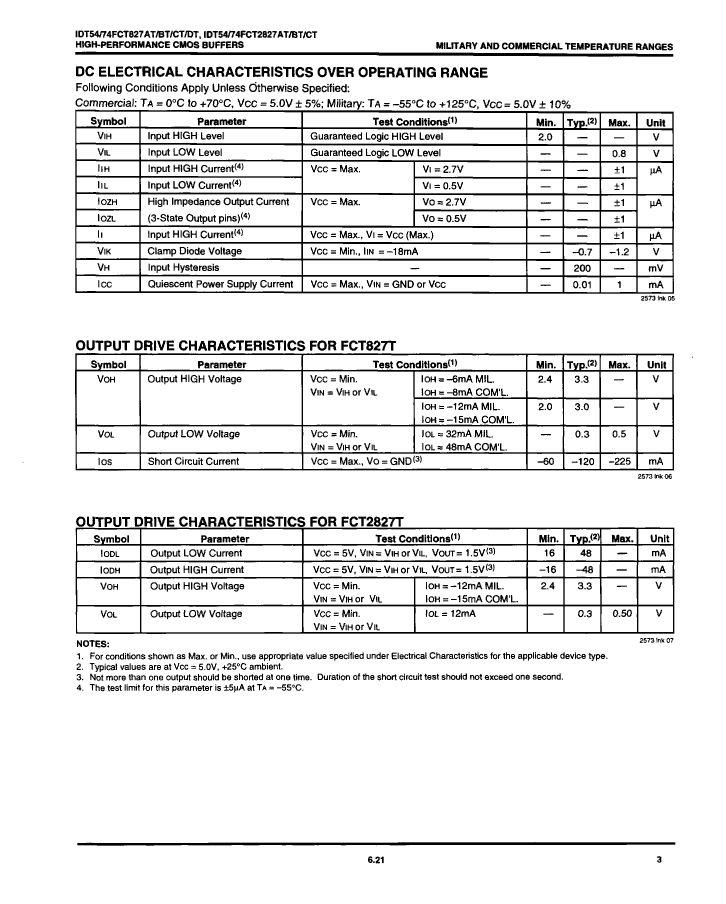

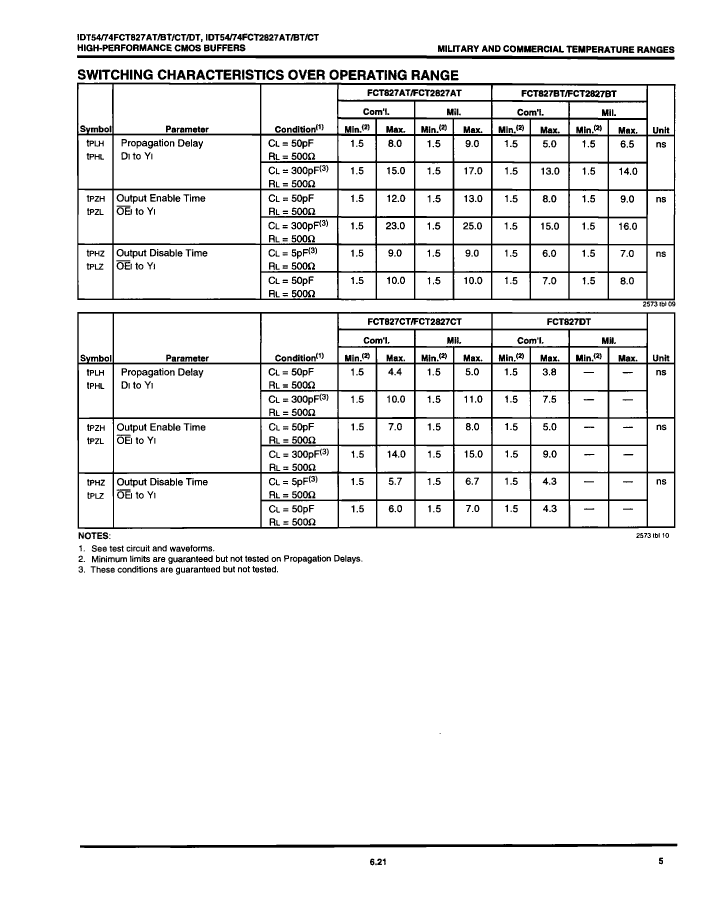

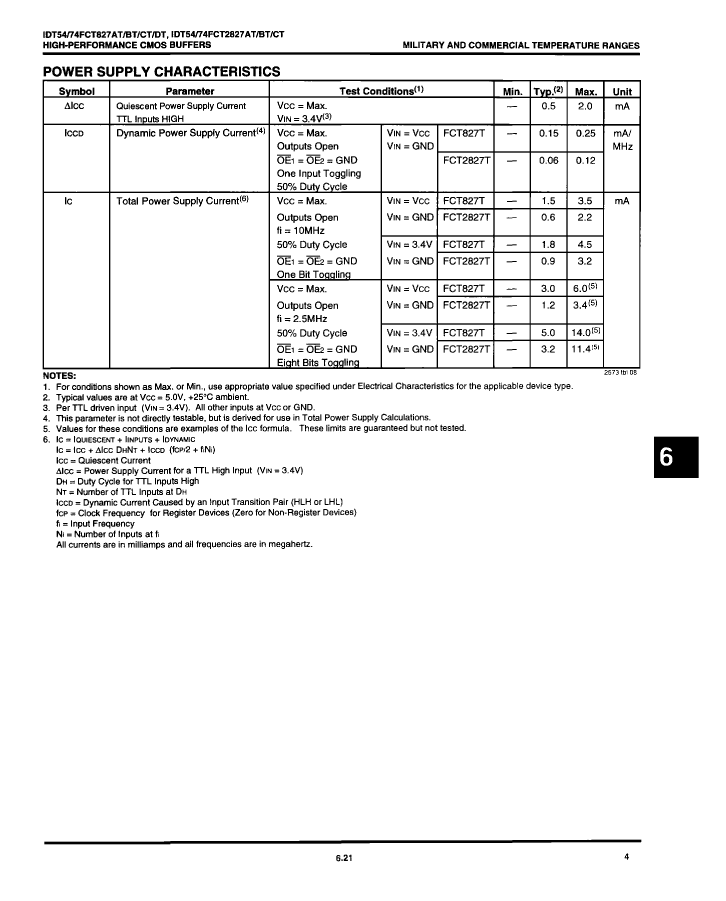

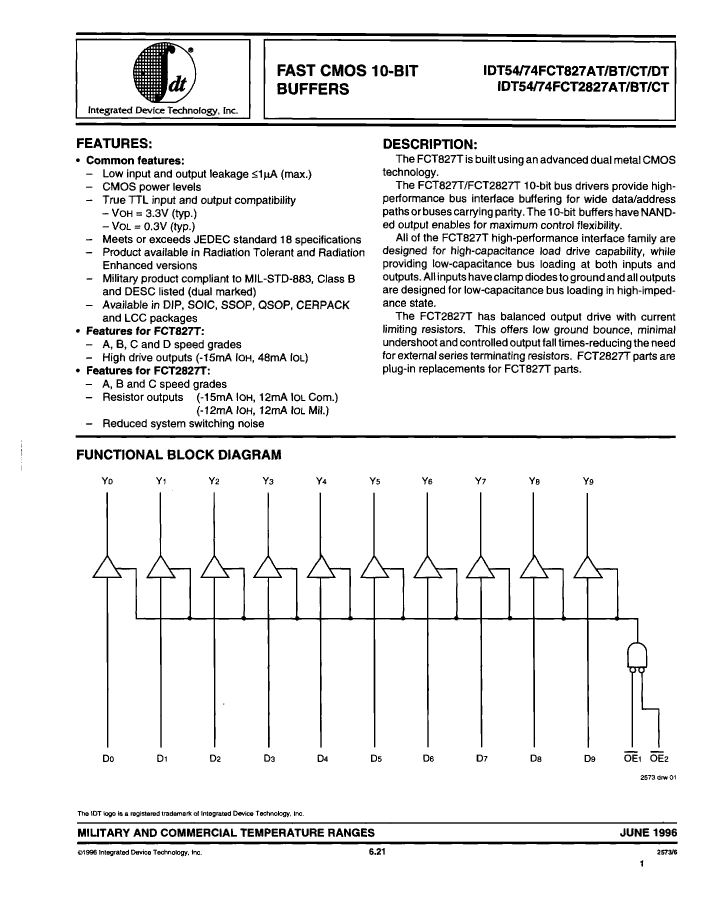

Preview

Download Datasheet

View All

5962-9224701MKA Related Products

	5962-9224701MKA	5962-9224703MKX	5962-9224703M3X	5962-9224703MKA	5962-9224703MLX	5962-9224705MKA
Description	CPACK-24, Tube	Bus Driver, FCT Series, 1-Func, 10-Bit, True Output, CMOS, CDFP24, CERPACK-24	Bus Driver, FCT Series, 1-Func, 10-Bit, True Output, CMOS, CQCC28, LCC-28	CPACK-24, Tube	Bus Driver, FCT Series, 1-Func, 10-Bit, True Output, CMOS, CDIP24, 0.300 INCH, CERDIP-24	CPACK-24, Tube
Parts packaging code	CPACK	DFP	QLCC	CPACK	DIP	CPACK
package instruction	DFP, FL24,.4	DFP,	QCCN,	DFP, FL24,.4	DIP,	DFP, FL24,.4
Contacts	24	24	28	24	24	24
Reach Compliance Code	not_compliant	unknow	unknown	not_compliant	unknown	not_compliant
Other features	WITH DUAL OUTPUT ENABLE	WITH DUAL OUTPUT ENABLE	WITH DUAL OUTPUT ENABLE	WITH DUAL OUTPUT ENABLE	WITH DUAL OUTPUT ENABLE	WITH DUAL OUTPUT ENABLE
series	FCT	FCT	FCT	FCT	FCT	FCT
JESD-30 code	R-GDFP-F24	R-GDFP-F24	S-CQCC-N28	R-GDFP-F24	R-GDIP-T24	R-GDFP-F24
length	15.748 mm	15.748 mm	11.4554 mm	15.748 mm	32.004 mm	15.748 mm
Logic integrated circuit type	BUS DRIVER	BUS DRIVER	BUS DRIVER	BUS DRIVER	BUS DRIVER	BUS DRIVER
Number of digits	10	10	10	10	10	10
Number of functions	1	1	1	1	1	1
Number of ports	2	2	2	2	2	2
Number of terminals	24	24	28	24	24	24
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C
Output characteristics	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE
Output polarity	TRUE	TRUE	TRUE	TRUE	TRUE	TRUE
Package body material	CERAMIC, GLASS-SEALED	CERAMIC, GLASS-SEALED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, GLASS-SEALED	CERAMIC, GLASS-SEALED	CERAMIC, GLASS-SEALED
encapsulated code	DFP	DFP	QCCN	DFP	DIP	DFP
Package shape	RECTANGULAR	RECTANGULAR	SQUARE	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	FLATPACK	FLATPACK	CHIP CARRIER	FLATPACK	IN-LINE	FLATPACK
propagation delay (tpd)	17 ns	14 ns	14 ns	14 ns	14 ns	11 ns
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Filter level	MIL-STD-883	MIL-STD-883	MIL-STD-883	MIL-STD-883	MIL-STD-883	MIL-STD-883
Maximum seat height	2.286 mm	2.286 mm	2.54 mm	2.286 mm	5.08 mm	2.286 mm
Maximum supply voltage (Vsup)	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V
Minimum supply voltage (Vsup)	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	YES	YES	YES	YES	NO	YES
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY
Terminal form	FLAT	FLAT	NO LEAD	FLAT	THROUGH-HOLE	FLAT
Terminal pitch	1.27 mm	1.27 mm	1.27 mm	1.27 mm	2.54 mm	1.27 mm
Terminal location	DUAL	DUAL	QUAD	DUAL	DUAL	DUAL
width	9.144 mm	9.144 mm	11.4554 mm	9.144 mm	7.62 mm	9.144 mm
Base Number Matches	1	1	1	1	1	1
JESD-609 code	e0	e0	e0	e0	-	e0
Peak Reflow Temperature (Celsius)	260	-	-	260	NOT SPECIFIED	260
Terminal surface	TIN LEAD	TIN LEAD	TIN LEAD	TIN LEAD	-	TIN LEAD
Maximum time at peak reflow temperature	NOT SPECIFIED	-	-	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
