Silicon Abrupt Tuning Varactor
MTV4060 Series Datasheet
Chip
H20
CS37
CS75
CS85
Features
•
•
•
•
•
Large capacitance ratio
High quality factor
Low series resistance

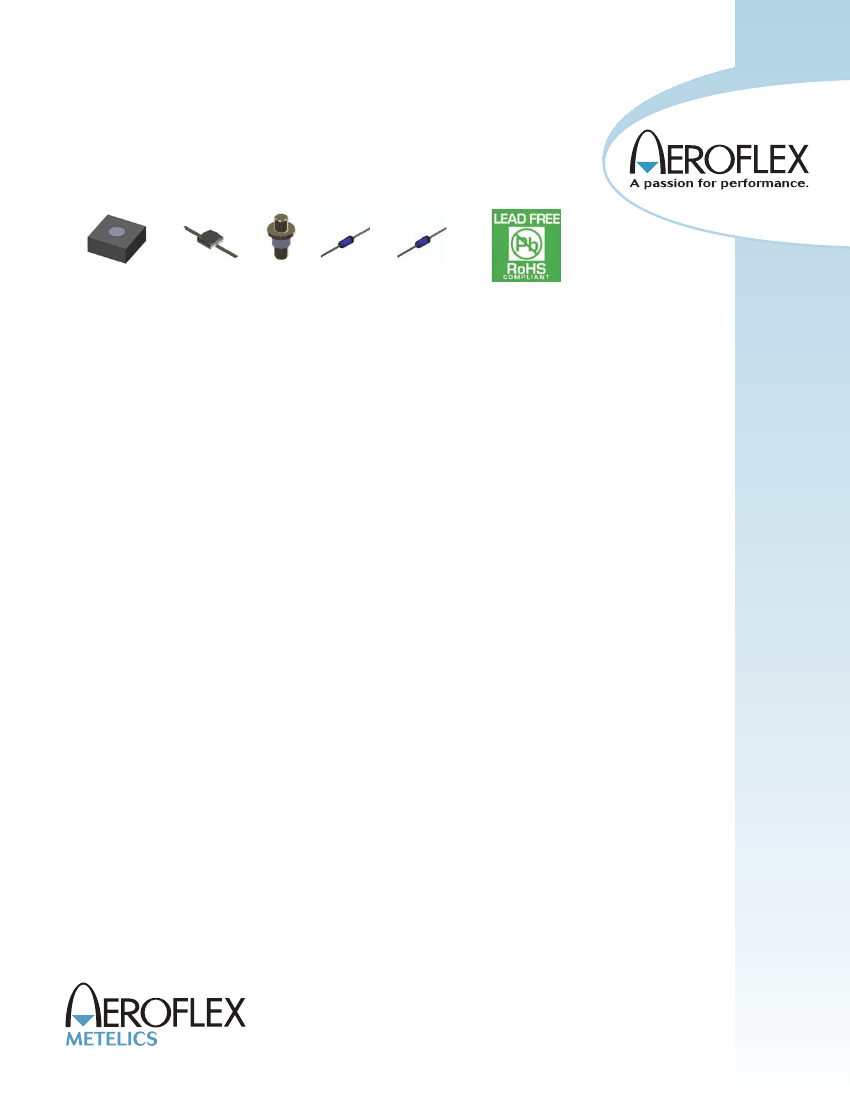

Available as chips or in a wide variety
of packages
RoHS Compliant
Applications
•
•
•
Voltage controlled oscillators
Voltage controlled filters
Analog voltage controlled phase shifters
DESCRIPTION
Tuning varactors from the Aeroflex/Metelics MTV4060 series are available with typical capacitance at
reverse voltage of 4 V from 0.8 pF up to 15 pF. These silicon varactor diodes offer very high quality
factor for low series resistance, very low leakage current and wide tuning range. These diodes are
passivated with a high-reliability passivation for low leakage current and high reliability. The devices are
available as unpackaged chips or in several package styles. Contact the factory for specific package
styles.
These rugged devices are capable of reliable operation in all military, commercial and industrial
applications. They are RoHS compliant.
Environmental Capabilities
The MTV4060 family of silicon abrupt tuning varactors are capable of meeting the environmental
requirements of MIL-STD-750 and MIL-STD-883.
ESD Rating
As are all semiconductor devices, tuning varactors are susceptible to damage from ESD events. Proper
ESD prevention procedures should be followed. The ESD rating for these devices is Class 0 (HBM).
Document No. DS 15023 Rev. A, ECN 12267
Revision Date: 10/16/2012
Si Abrupt Varactor
MTV4060 Series
Electrical Specifications
TA = 25 ºC (unless otherwise noted)
Reverse Voltage
VB
Part Number
IR = 10
μA
Minimum
MTV4060-01
MTV4060-02
MTV4060-03
MTV4060-04
MTV4060-05
MTV4060-06
MTV4060-07
MTV4060-08
MTV4060-09
MTV4060-10
MTV4060-11
MTV4060-12
MTV4060-13
MTV4060-14
MTV4060-15
MTV4060-16
MTV4060-17
MTV4060-18
60
60
60
60
60
60
60
60
60
60
60
60
60
60
60
60
60
60
Total Capacitance*
CJ
VR = 4 V, f = 1 MHz
Typical
0.8
1.0
1.2
1.4
1.6
1.8
2.2
2.7
3.3
3.6
3.9
4.7
5.6
6.8
8.2
10.0
12.0
15.0
Capacitance Ratio
CR
CJ0 / CJ60
Minimum
8.0
8.0
8.0
8.0
8.0
8.0
8.0
8.0
8.0
8.0
8.0
8.0
8.0
8.0
8.0
8.0
8.0
8.0
Quality Factor
Q
VR = 4 V, f = 50 MHz
Minimum
2100
2100
2100
2000
2000
2000
2000
1900
1800
1700
1700
1600
1500
1400
1300
1200
1100
1000
* Total capacitance (CT) is the sum of the diode’s junction capacitance and the package capacitance.
Consult the factory for package capacitance values.
2
603-641-3800 • 888-641--SEMI (7364) • metelics-sales@aeroflex.com • www.aeroflex.com/metelics
Document No. DS 15023 Rev. A, ECN 12267
Revision Date: 10/16/2012
Si Abrupt Varactor
MTV4060 Series
Absolute Maximum Ratings
TA = 25 ºC (Unless otherwise noted)
Parameter
Reverse DC Voltage
Forward Current
Power Dissipation
Operating Temperature
Storage Temperature
Conditions
Absolute Maximum Value
60 V
50 mA
250 mW
-55 ºC to 150 ºC
-65 ºC to 200 ºC

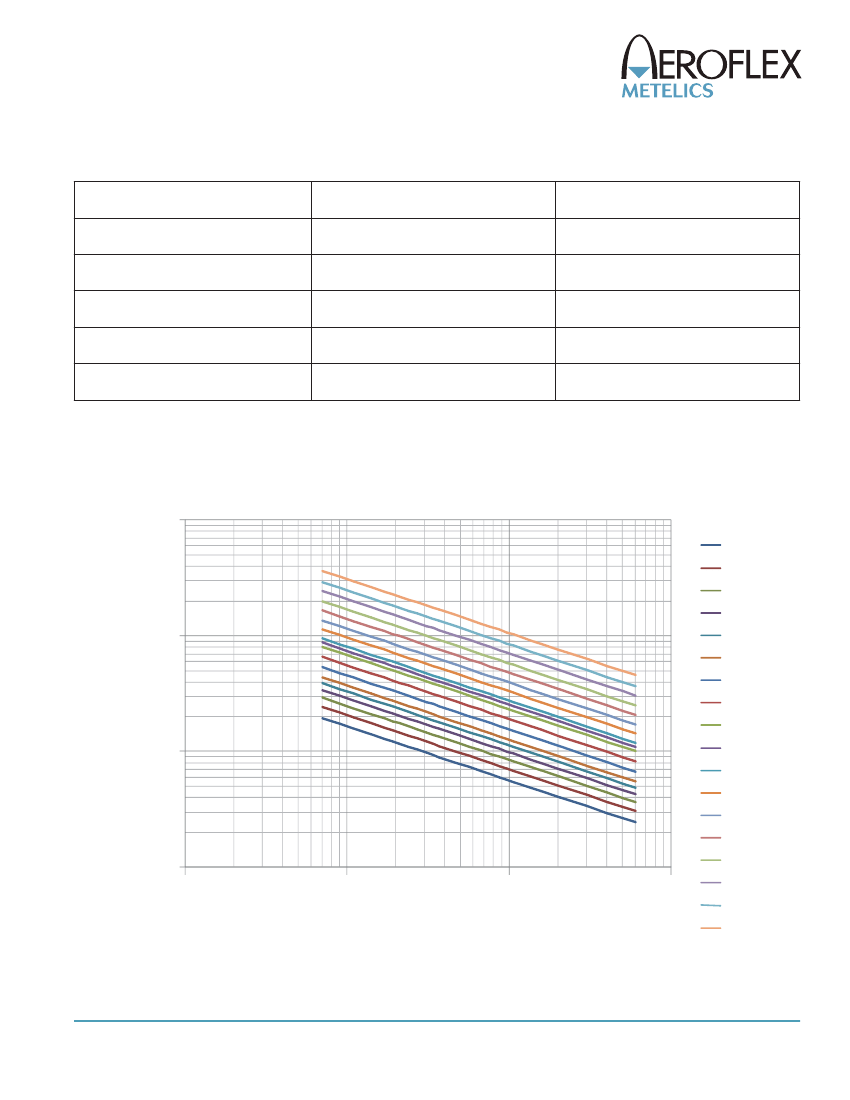

Typical Junction Capacitance vs. Reverse Voltage
TA = 25 ºC, f = 1 MHz (Unless otherwise noted)
100
MTV4060-01
Junc on Capacitance (pF)
MTV4060-02
MTV4060-03
MTV4060-04
MTV4060-05
MTV4060-06
MTV4060-07
MTV4060-08
MTV4060-09
10
1
MTV4060-10
MTV4060-11
MTV4060-12
MTV4060-13
MTV4060-14
0.1
0.1
1
10
100
Reverse Voltage + Contact Poten al (V)
MTV4060-15
MTV4060-16
MTV4060-17
MTV4060-18
603-641-3800 • 888-641--SEMI (7364) • metelics-sales@aeroflex.com • www.aeroflex.com/metelics
Document No. DS 15023 Rev. A, ECN 12267
Revision Date: 10/16/2012
3
Si Abrupt Varactor
MTV4060 Series

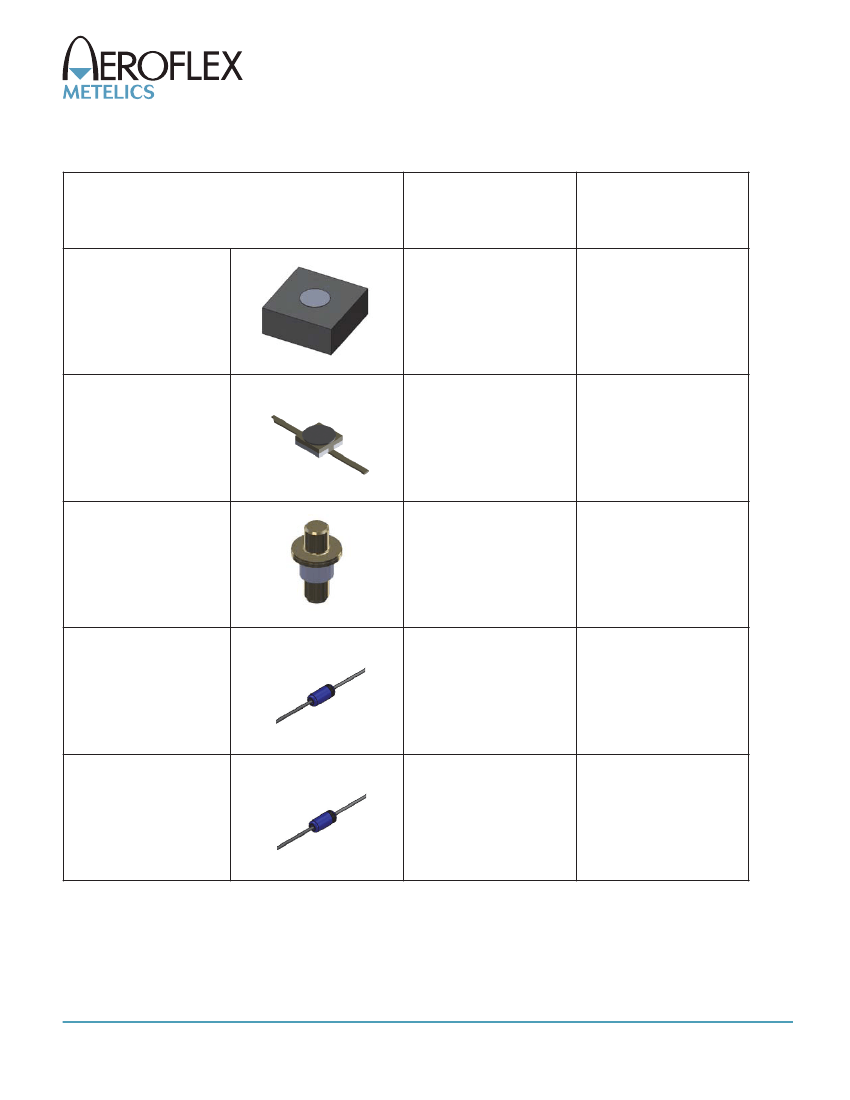

Pacakage Styles
Typical Package
Capacitance (pF)
Typical Series
Inductance (nH)
Package Style
CS11
0
0.12
H20
0.2
0.45
CS37
0.19
0.4
CS75
0.25
1.2
CS85
0.3
1.5
Consult factory for more package options.
4
603-641-3800 • 888-641--SEMI (7364) • metelics-sales@aeroflex.com • www.aeroflex.com/metelics
Document No. DS 15023 Rev. A, ECN 12267
Revision Date: 10/16/2012
Si Abrupt Varactor
MTV4060 Series

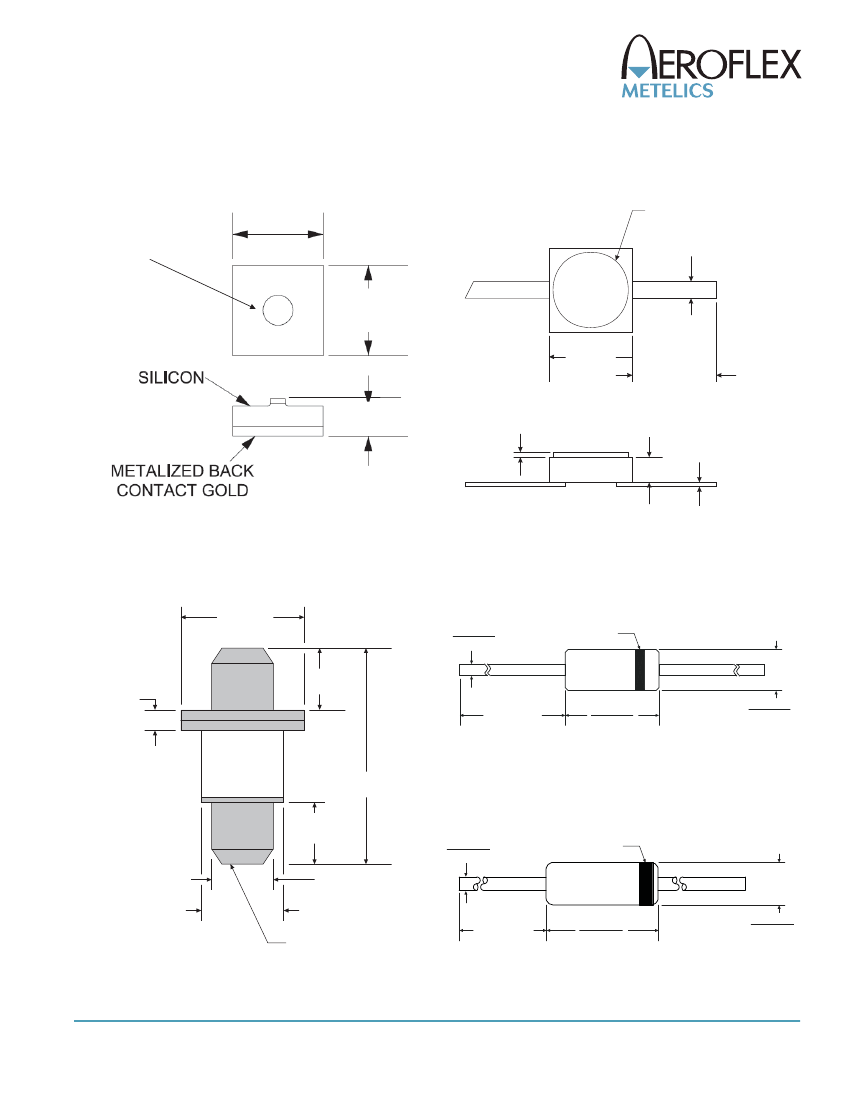

CS11 (C11)
0.013 ± 0.002
(0.330 ± 0.051)
CS20 (H20)
102 [2.591] Dia
81 [2.057]
23 [0.584]
17 [0.432]
Cut lead is Cathode
Anode
Anode Diameters
MLP7130-11: 1.1 mil min
MLP7131-11: 1.4 mil min
0.013 ± 0.002
(0.330 ± 0.051)
104 [2.642]
92 [2.337]
Square
130 [3.302]
Min. 2 Pls
8 [0.203]
4 [0.102]
6 [0.152]
3 [0.076]
0.006 ± 0.001
(0.152 ± 0.025)
0.1 um thick minimum
Dimensions are in inches ( mm )
35 [0.889]
25 [0.635]
CS37 (T86)
124 [3.150] Dia.
118 [2.997]
CS75 (A15)
.016 (0.41)
.014 (0.36)
Cathode Band
64 [1.626]
60 [1.524]
27 [0.686] Max.
1.00 (25.4) Min
2Pls
.170 (4.32)
.150 (3.81)
.076 (1.93)
.068 (1.73)
Dia.
Ceramic
Body
225 [5.715]
205 [5.207]
CS85
.019 (0.53)
.021 (0.48)
Cathode Band
64 [1.626]
60 [1.524]
64 [1.626] Dia.
60 [1.524]
83 [2.108] Dia.
77 [1.956]
Cathode (T86)
1.00 (25.4) Min
2Pls
.300 (5.84)
.230 (7.62)
.085 (2.16)
.105 (2.67)
Dia.
Note: Dimenisions are in inches (mm)
