5962-9082906YX datasheet, PDF - EEWORLD Datasheet

5962-9082906YX: DescriptionMIL-STD-1553 Data Bus Transceiver, 1.270 X 0.770 INCH, 0.215 INCH HEIGHT, DIP-24; CategoryWireless rf/communication Telecom circuit; File Size129KB，4 Pages; ManufacturerData Device Corporation

Download Datasheet Parametric View All

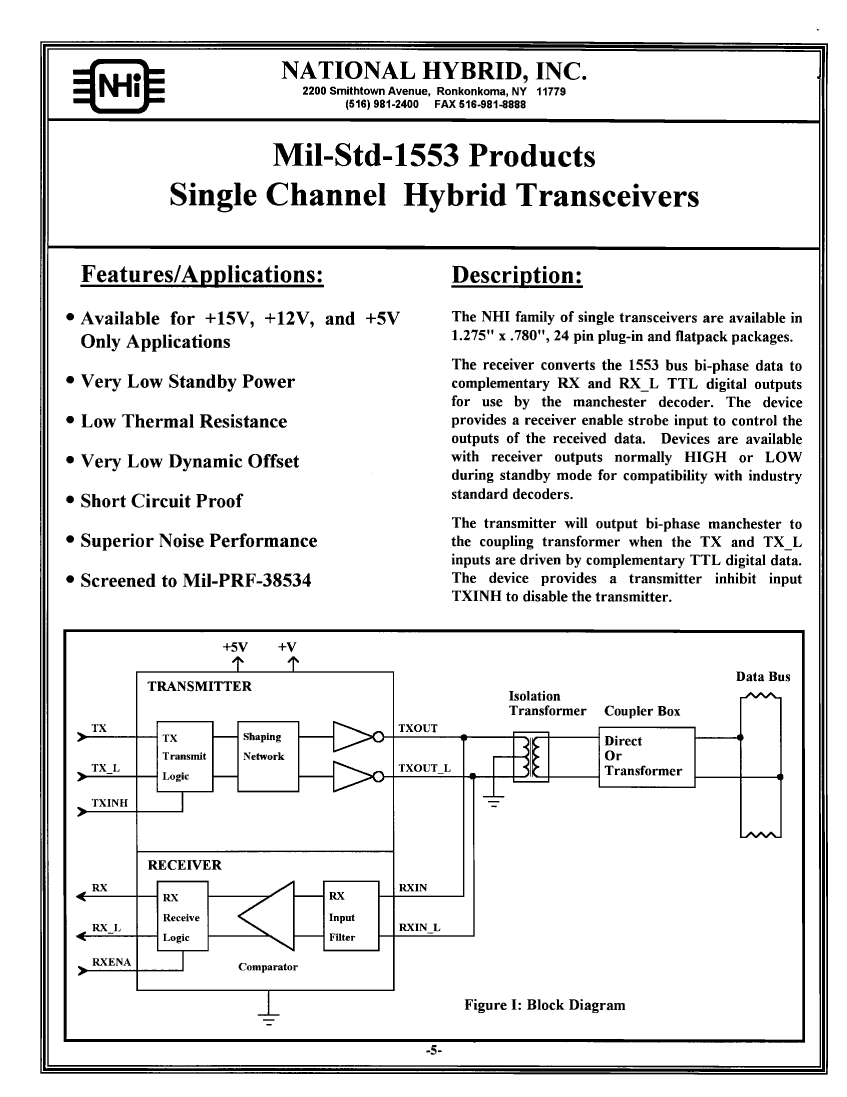

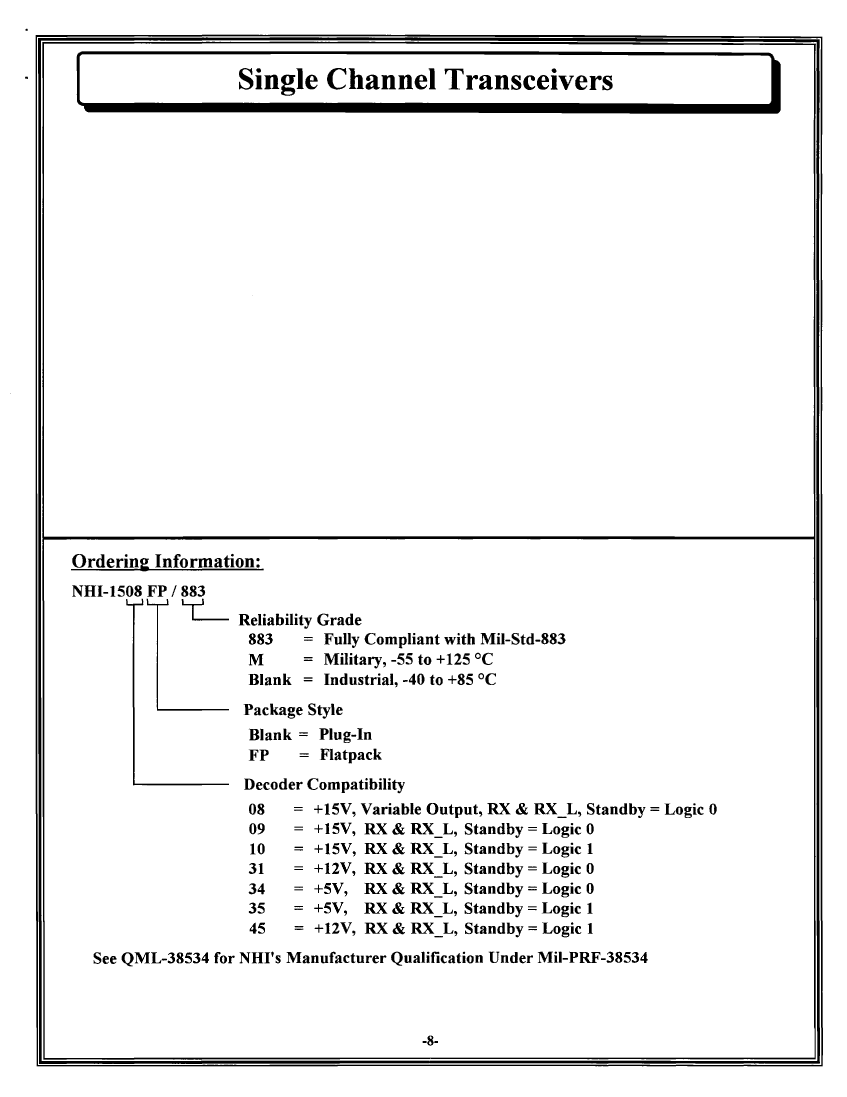

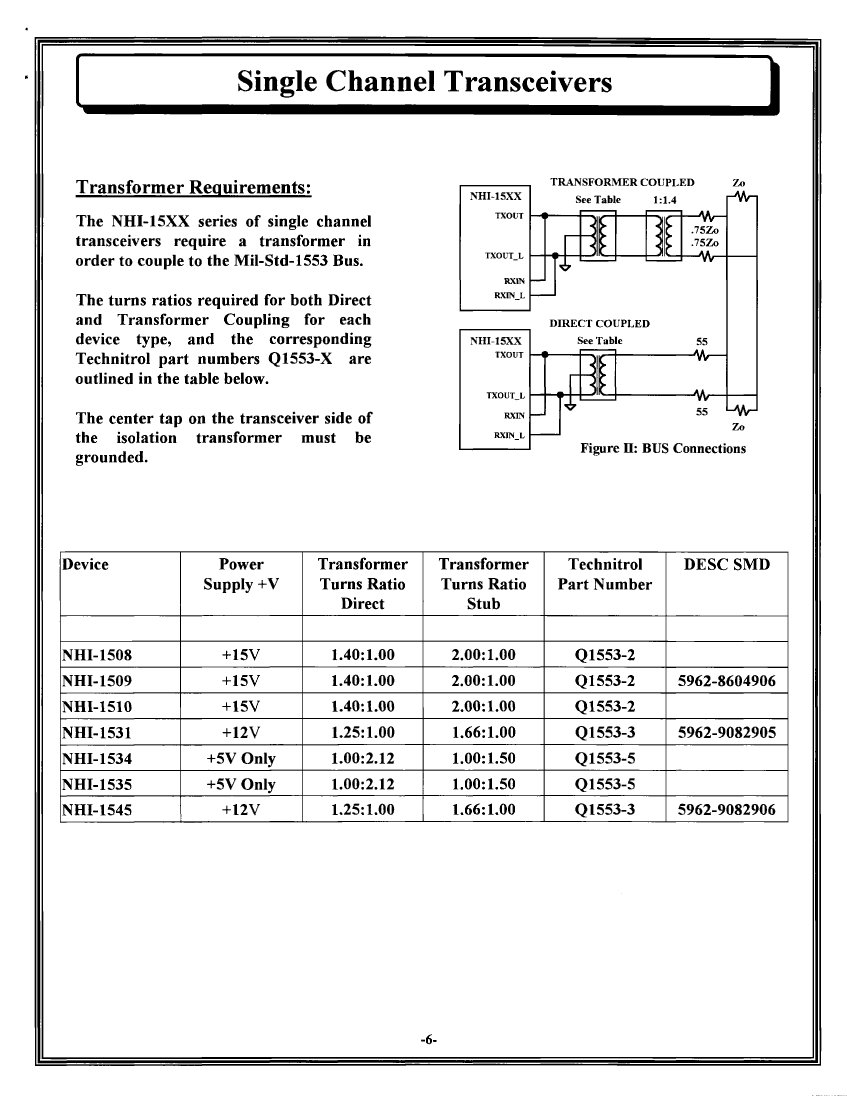

5962-9082906YX Overview

MIL-STD-1553 Data Bus Transceiver, 1.270 X 0.770 INCH, 0.215 INCH HEIGHT, DIP-24

Parameter Name	Attribute value
Maker	Data Device Corporation

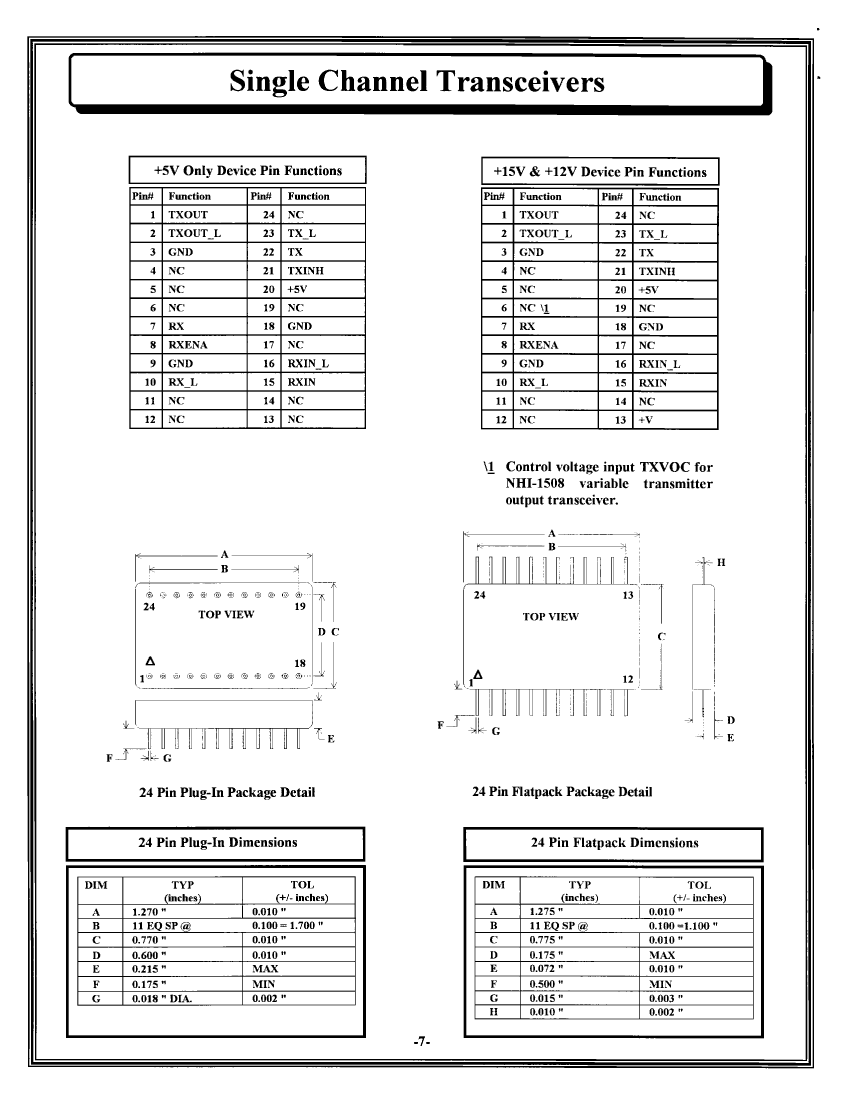

package instruction	1.270 X 0.770 INCH, 0.215 INCH HEIGHT, DIP-24
Reach Compliance Code	compliant
JESD-30 code	R-XDIP-P24
length	32.25 mm
Negative supply voltage rating	-12 V
Number of functions	1
Number of terminals	24
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package body material	UNSPECIFIED
encapsulated code	DIP
Package shape	RECTANGULAR
Package form	IN-LINE
Certification status	Not Qualified
Filter level	MIL-PRF-38534
Maximum seat height	5.461 mm
Nominal supply voltage	12 V
surface mount	NO
Telecom integrated circuit types	MIL-STD-1553 DATA BUS TRANSCEIVER
Temperature level	MILITARY
Terminal form	PIN/PEG
Terminal pitch	2.54 mm
Terminal location	DUAL
width	15.24 mm
Base Number Matches	1
