K1S161611B-FI700 datasheet, PDF

Datasheet> All Categories > storage> storage> K1S161611B-FI700

K1S161611B-FI700: DescriptionPseudo Static RAM, 1MX16, 70ns, CMOS, PBGA48, 6 X 7 MM, 0.75 PITCH, FBGA-48; Categorystorage storage; File Size352KB，11 Pages; ManufacturerSAMSUNG; Websitehttp://www.samsung.com/Products/Semiconductor/

Download Datasheet Parametric View All

K1S161611B-FI700 Overview

Pseudo Static RAM, 1MX16, 70ns, CMOS, PBGA48, 6 X 7 MM, 0.75 PITCH, FBGA-48

K1S161611B-FI700 Parametric

Parameter Name	Attribute value
Maker	SAMSUNG
Parts packaging code	BGA
package instruction	6 X 7 MM, 0.75 PITCH, FBGA-48
Contacts	48
Reach Compliance Code	unknown
ECCN code	3A991.B.2.A
Maximum access time	70 ns
JESD-30 code	R-PBGA-B48
length	7 mm
memory density	16777216 bit
Memory IC Type	PSEUDO STATIC RAM
memory width	16
Number of functions	1
Number of terminals	48
word count	1048576 words
character code	1000000
Operating mode	ASYNCHRONOUS
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
organize	1MX16
Package body material	PLASTIC/EPOXY
encapsulated code	VFBGA
Package shape	RECTANGULAR
Package form	GRID ARRAY, VERY THIN PROFILE, FINE PITCH
Parallel/Serial	PARALLEL
Certification status	Not Qualified
Maximum seat height	1 mm
Maximum supply voltage (Vsup)	3.1 V
Minimum supply voltage (Vsup)	2.7 V
Nominal supply voltage (Vsup)	2.9 V
surface mount	YES
technology	CMOS
Temperature level	INDUSTRIAL
Terminal form	BALL
Terminal pitch	0.75 mm
Terminal location	BOTTOM
width	6 mm
Base Number Matches	1

Preview

Download Datasheet

View All

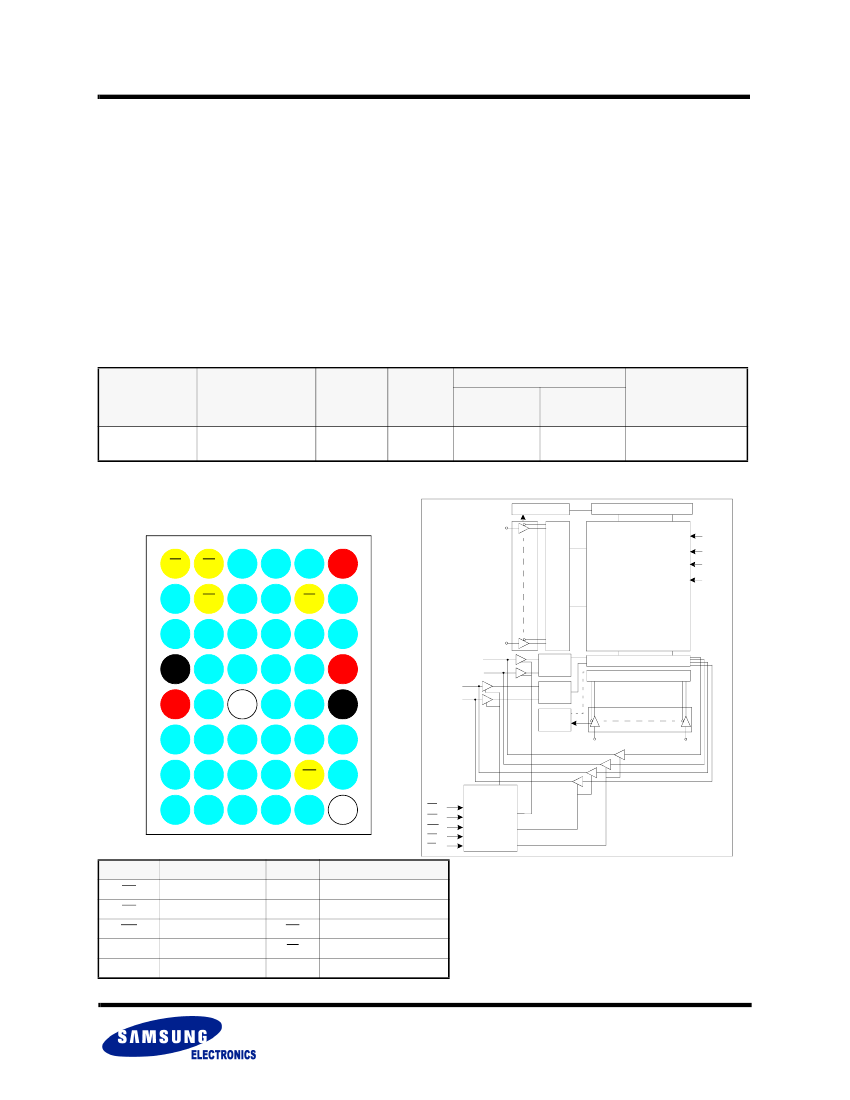

K1S161611B
