5.0 SMLJ SERIES
Technical Data
Data Sheet N0069 Rev. D
5.0 SMLJ SERIES
SURFACE MOUNT TRANSIENT VOLTAGE SUPPRESSOR
Features
For surface mounted applications in order
to optimize board space
Low profile package
Built-in strain relief
Glass passivated junction
Low inductance
Excellent clamping capability
Repetition rate (duty cycle):0.01%
Fast response time: typically less than 1.0 ps from
0 volts to BV for unidirectional types
Plastic Case Material has UL Flammability
Classification Rating 94V-O
High temperature soldering: 260°C/40 seconds
at terminals
SMC

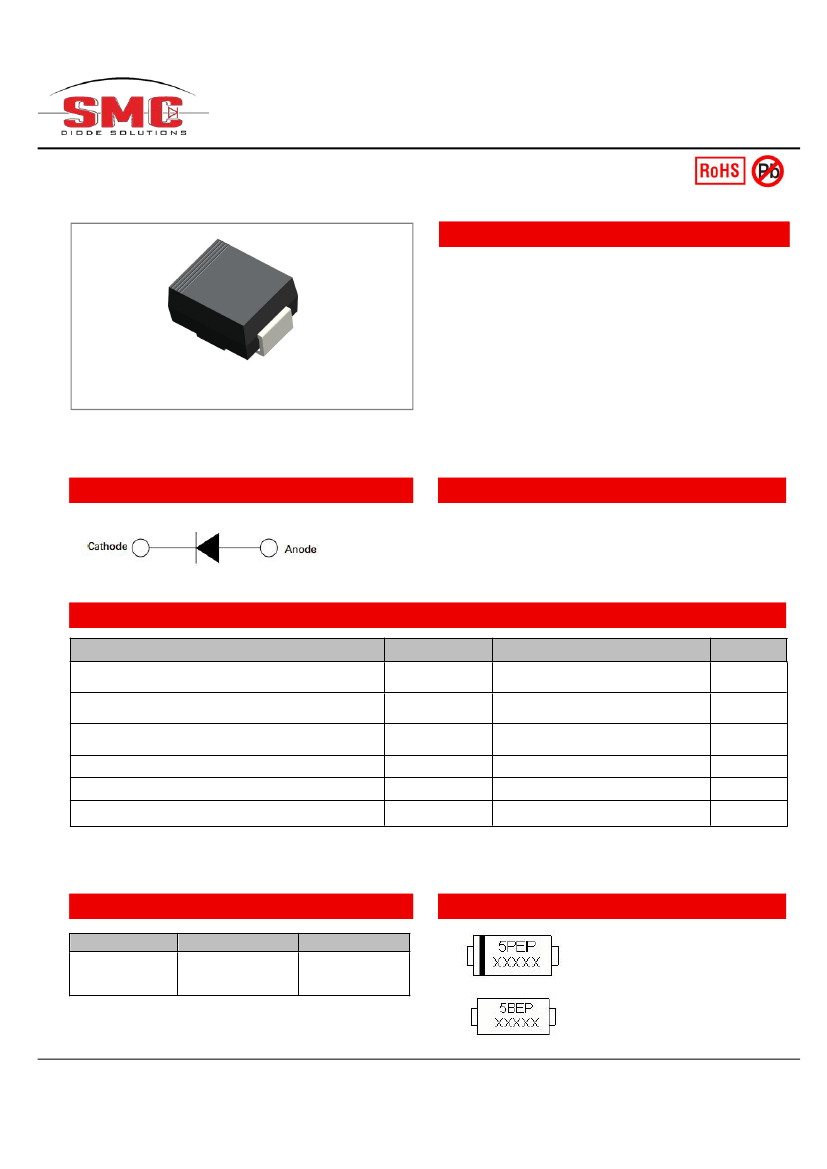

Circuit Diagram
Mechanical Data
Case: SMC Low Profile Molded Plastic
Terminals: Solder Plated , Solderable per MIL-STD
750, Method 2026
Polarity: Color band denoted positive end
(cathode) except Bidirectional
Maximum Ratings and Thermal Characteristics
@T
A
=25°C unless otherwise specified
Parameter
Peak Pulse Power Dissipation on 10/1000 us
waveform (NOTE 1, 2, Fig.1)
Peak Pulse Current of on 10/1000 us waveform
(Note 1,Fig 3)
Peak Forward Surge Current, 8.3ms
Single Half Sine Wave (Note 2),(Note 3)
Typical Thermal Resistance Junction to Lead
Typical Thermal Resistance Junction to Ambient
Operating Junction and Storage Temperature Range
Notes:
Symbol
P
PPM
I
PPM
I
FSM
R
θJL
R
θJA
T
J
,T
STG
Value
5000
SEE TABLE 1
300
15
75
-55 to 150
Units
W
A
A
°C/W
°C/W
°C
1. Non-repetitive current pulse , per Fig. 3 and derated above T
L
= 25°C per Fig. 2.
2. Mounted on 8.0x8.0mm Copper Pads to each terminal.
3. Measured on 8.3ms single half sine wave or equivalent square wave, duty cycle=4pulses per minute maximum.
Ordering Information
Device
5.0SMLJ12A
THRU
5.0SMLJ170A
Marking Diagram
Shipping
3000pcs / reel
5.0SMLJ12A
Where XXXXX is YYWWL
5PEP/5BEP
YY
WW
L
= Marking code
= Year
= Week
= Lot Number
Package
SMC (Pb-Free)
For information on tape and reel specifications, including part
orientation and tape sizes, please refer to our tape and reel
packaging specification.
Cautions：Molding resin
Epoxy resin UL:94V-0
5.0SMLJ12CA
China - Germany - Korea - Singapore - United States
http://www.smc-diodes.com - sales@ smc-diodes.com
5.0 SMLJ SERIES
Technical Data
Data Sheet N0069 Rev. D

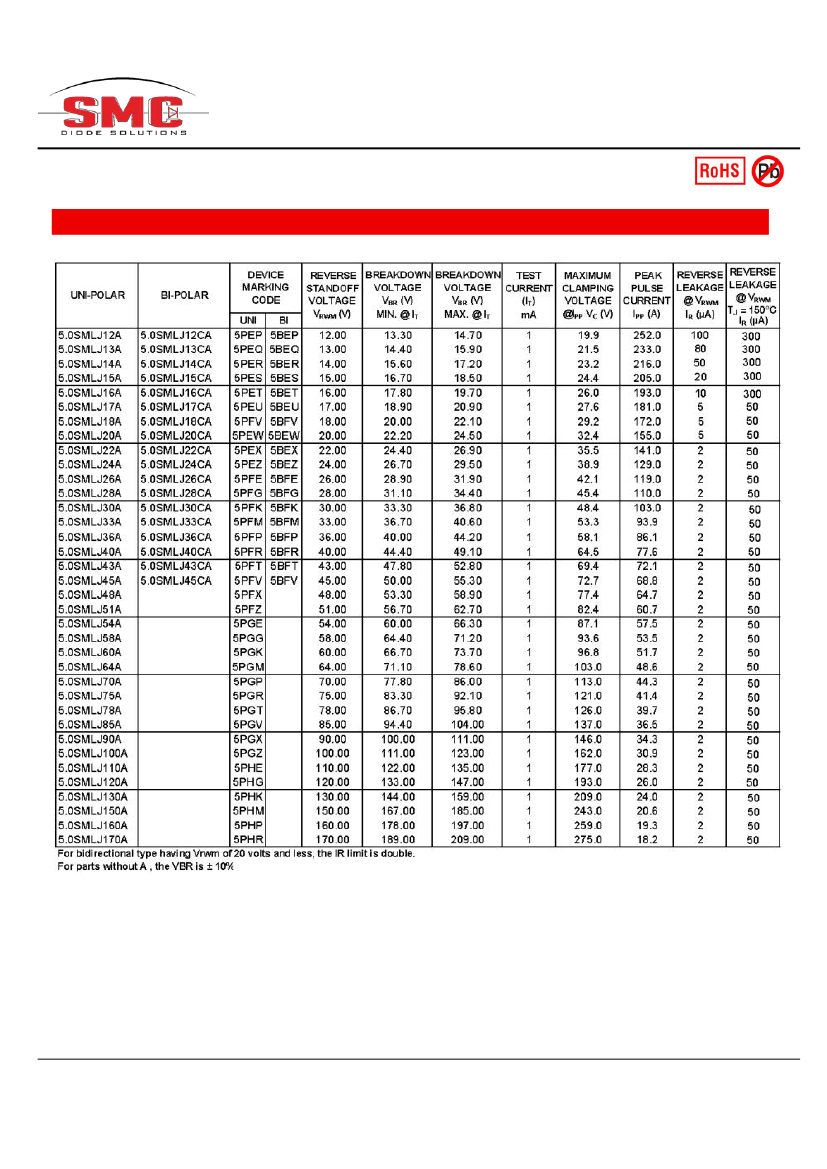

Electrical Characteristics
@T
A
=25°C unless otherwise specified
China - Germany - Korea - Singapore - United States
http://www.smc-diodes.com - sales@ smc-diodes.com
5.0 SMLJ SERIES
Technical Data
Data Sheet N0069 Rev. D

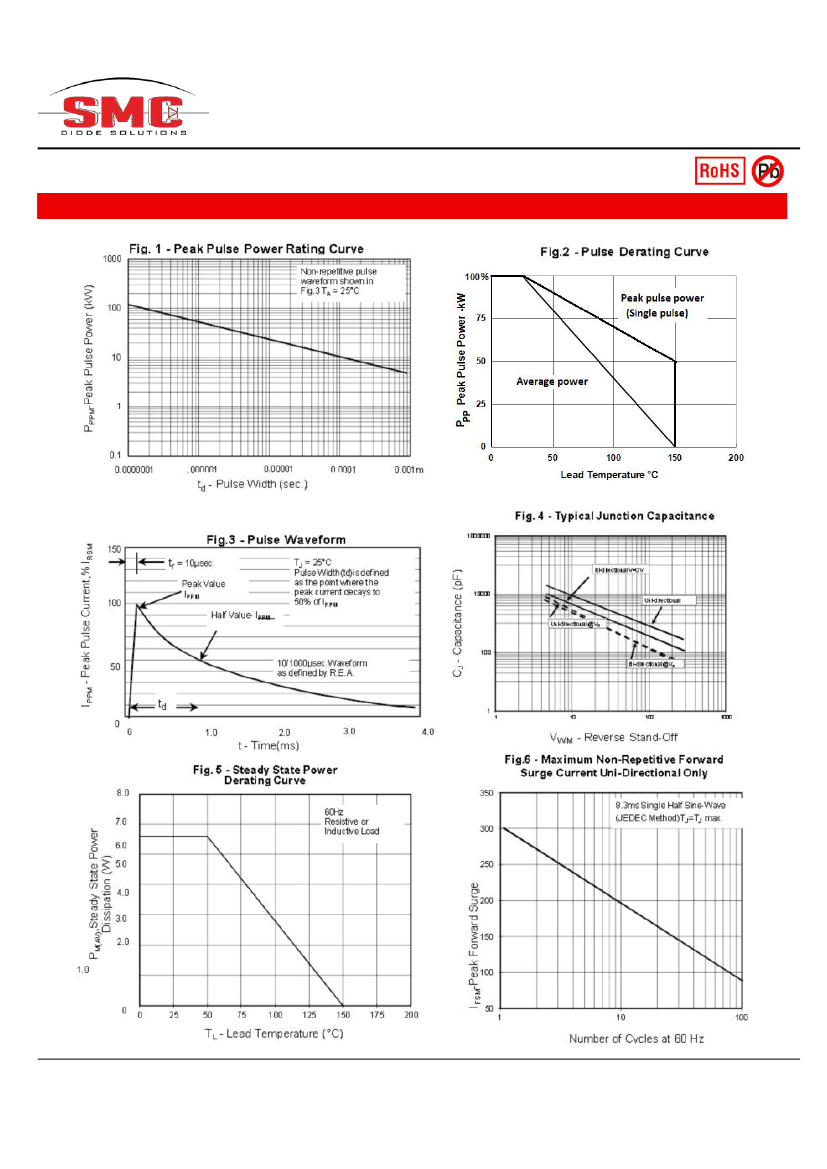

Ratings and Characteristics Curves
China - Germany - Korea - Singapore - United States
http://www.smc-diodes.com - sales@ smc-diodes.com
5.0 SMLJ SERIES
Technical Data
Data Sheet N0069 Rev. D

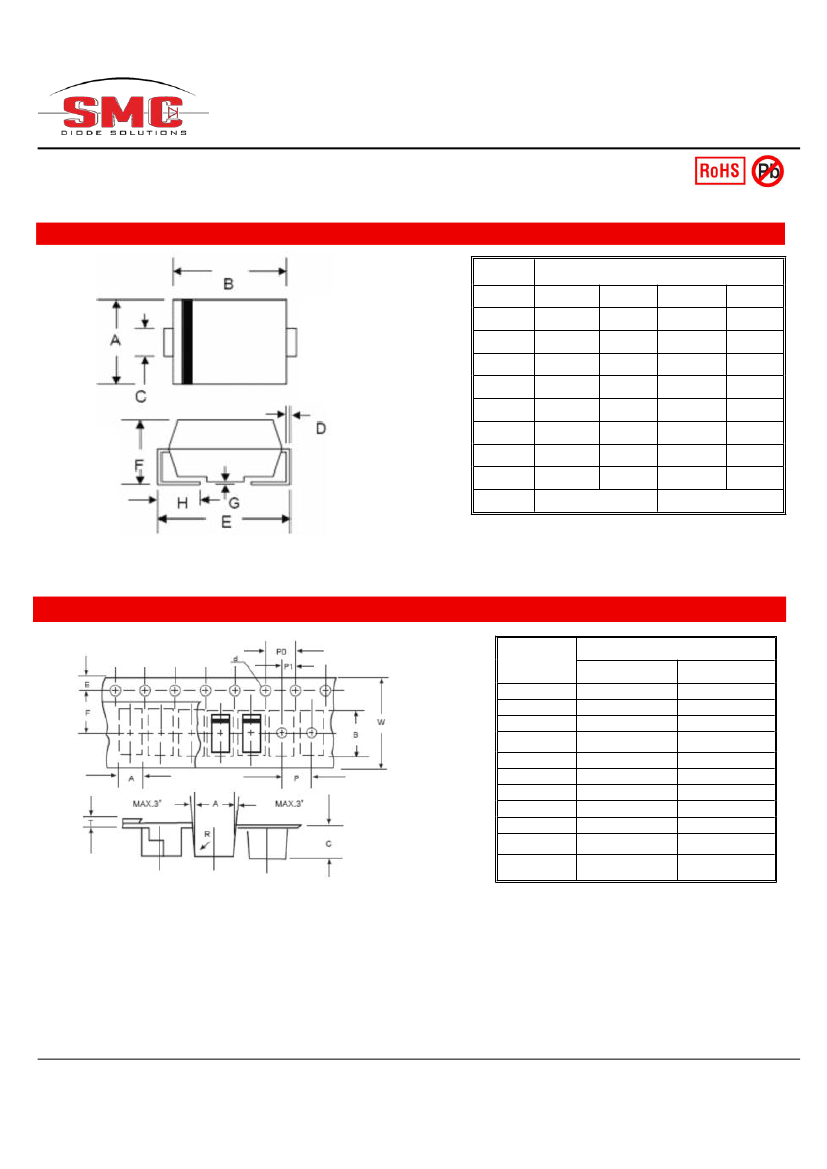

Mechanical Dimensions SMC
SMC/DO-214AB
Dim.
A
B
C
D
E
F
G
H
Min.
5.59
6.60
2.90
0.152
7.75
2.00
-
0.76
Max.
6.22
7.11
3.20
0.305
8.13
2.62
0.203
1.52
Min.
0.220
0.260
0.114
0.006
0.305
0.079
-
0.030
Max.
0.245
0.280
0.126
0.012
0.320
0.103
0.008
0.060
In inches
In Millimeters
Carrier Tape Specification SMC
SYMBOL
A
B
C
d
E
F
P
P0
P1
T
W
Millimeters
Min.
5.90
8.20
2.40
1.40
1.40
7.60
7.90
3.90
3.90
-
15.80
Max.
6.10
8.40
2.60
1.60
1.60
7.70
8.10
4.10
4.10
0.600
16.20
China - Germany - Korea - Singapore - United States
http://www.smc-diodes.com - sales@ smc-diodes.com
5.0 SMLJ SERIES
Technical Data
Data Sheet N0069 Rev. D
DISCLAIMER:
1- The information given herein, including the specifications and dimensions, is subject to change without prior notice to improve product
characteristics. Before ordering, purchasers are advised to contact the SMC - Sangdest Microelectronics (Nanjing) Co., Ltd sales department for
the latest version of the datasheet(s).
2- In cases where extremely high reliability is required (such as use in nuclear power control, aerospace and aviation, traffic equipment, medical
equipment , and safety equipment) , safety should be ensured by using semiconductor devices that feature assured safety or by means of users’
fail-safe precautions or other arrangement .
3- In no event shall SMC - Sangdest Microelectronics (Nanjing) Co., Ltd be liable for any damages that may result from an accident or any other
cause during operation of the user’s units according to the datasheet(s). SMC - Sangdest Microelectronics (Nanjing) Co., Ltd assumes no
responsibility for any intellectual property claims or any other problems that may result from applications of information, products or circuits
described in the datasheets.
4- In no event shall SMC - Sangdest Microelectronics (Nanjing) Co., Ltd be liable for any failure in a semiconductor device or any secondary
damage resulting from use at a value exceeding the absolute maximum rating.
5- No license is granted by the datasheet(s) under any patents or other rights of any third party or SMC - Sangdest Microelectronics (Nanjing)
Co., Ltd.
6- The datasheet(s) may not be reproduced or duplicated, in any form, in whole or part, without the expressed written permission of SMC -
Sangdest Microelectronics (Nanjing) Co., Ltd.
7- The products (technologies) described in the datasheet(s) are not to be provided to any party whose purpose in their application will hinder
maintenance of international peace and safety nor are they to be applied to that purpose by their direct purchasers or any third party. When
exporting these products (technologies), the necessary procedures are to be taken in accordance with related laws and regulations..
