54780-0552 datasheet, PDF - EEWORLD Datasheet

54780-0552: DescriptionBoard Connector, 55 Contact(s), 5 Row(s), Female, Right Angle, Press Fit Terminal, White Insulator, Receptacle,; CategoryThe connector The connector; File Size200KB，4 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home

Download Datasheet Parametric Compare View All

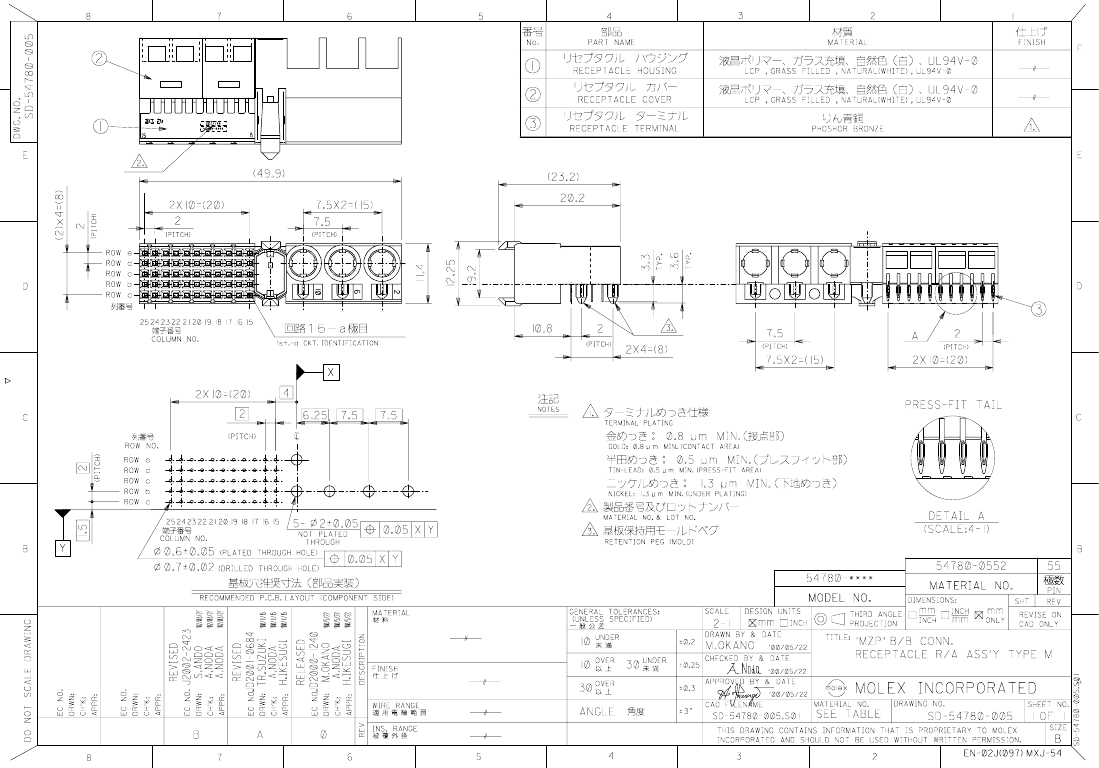

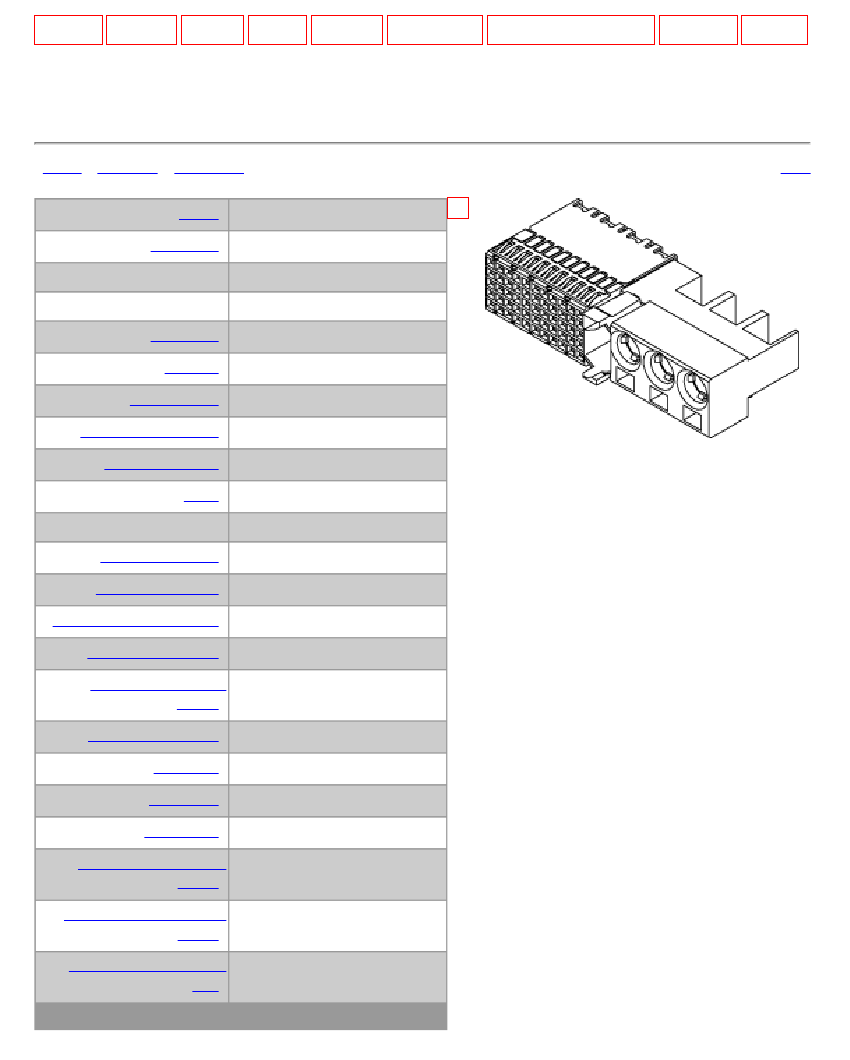

54780-0552 Overview

Board Connector, 55 Contact(s), 5 Row(s), Female, Right Angle, Press Fit Terminal, White Insulator, Receptacle,

Parameter Name	Attribute value
Maker	Molex
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	MZP, STANDARD: DIN 41626, POLARIZED
Board mount options	PEG
body width	0.482 inch
subject depth	0.913 inch
body length	1.965 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact arrangement	S55C3
Contact to complete cooperation	AU ON NI
Contact completed and terminated	TIN/LEAD OVER NICKEL
Contact point gender	FEMALE
Contact material	PHOSPHOR BRONZE
Contact resistance	30 mΩ
Contact style	SQ PIN-SKT
DIN compliance	YES
Dielectric withstand voltage	750VAC V
Durability	125 Cycles
Filter function	NO
IEC compliance	NO
maximum insertion force	.9452 N
Insulation resistance	10000000000 Ω
Insulator color	WHITE
insulator material	GLASS FILLED LIQUID CRYSTAL POLYMER
MIL compliance	NO
Manufacturer's serial number	54780
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	YES
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
Number of rows loaded	5
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
Plating thickness	31u inch
Rated current (signal)	1 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.13 inch
Terminal pitch	2 mm
Termination type	PRESS FIT
Total number of contacts	55
UL Flammability Code	94V-0
Evacuation force-minimum value	.139 N
Base Number Matches	1

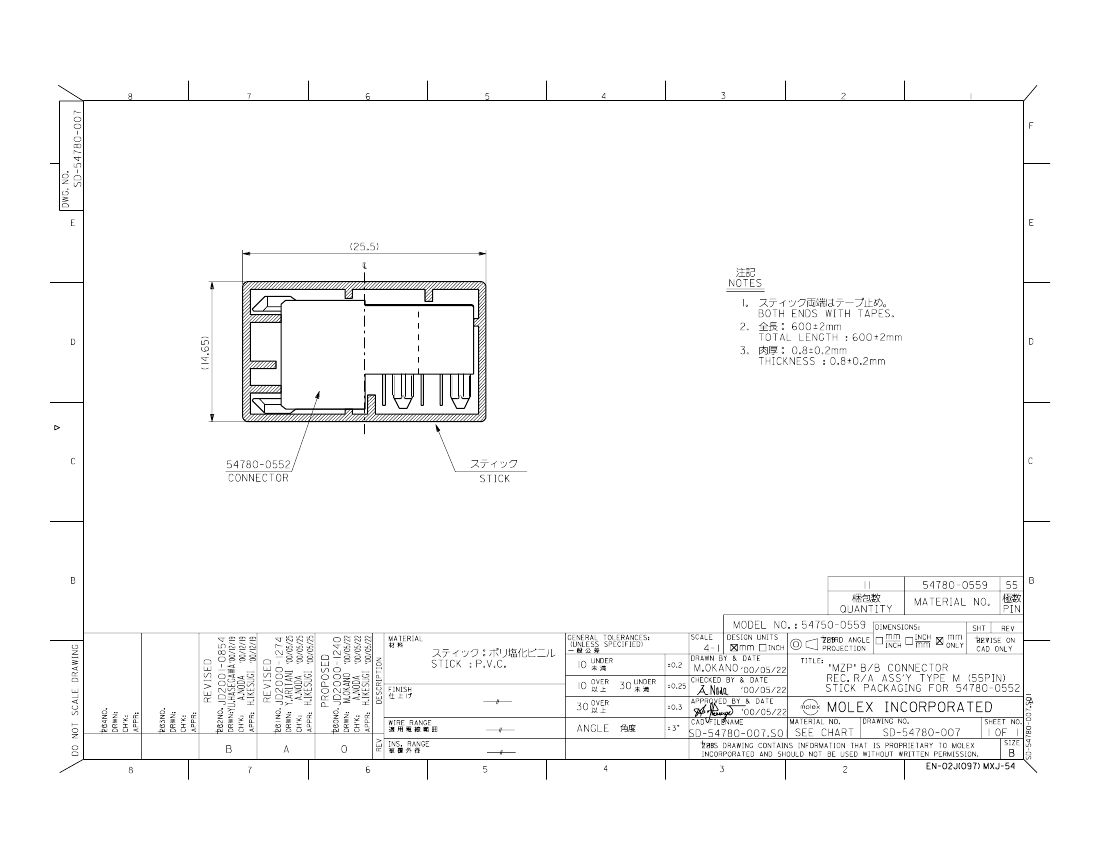

	54780-0552	54780-0559
Description	Board Connector, 55 Contact(s), 5 Row(s), Female, Right Angle, Press Fit Terminal, White Insulator, Receptacle,	Board Connector, 55 Contact(s), 5 Row(s), Female, Right Angle, Press Fit Terminal, Receptacle
Maker	Molex	Molex
Reach Compliance Code	unknown	unknown
Other features	MZP, STANDARD: DIN 41626, POLARIZED	MZP, STANDARD: DIN 41626, POLARIZED
Body/casing type	RECEPTACLE	RECEPTACLE
Connector type	BOARD CONNECTOR	BOARD CONNECTOR
Contact to complete cooperation	AU ON NI	NOT SPECIFIED
Contact point gender	FEMALE	FEMALE
Contact material	PHOSPHOR BRONZE	NOT SPECIFIED
DIN compliance	YES	YES
Filter function	NO	NO
IEC compliance	NO	NO
MIL compliance	NO	NO
Manufacturer's serial number	54780	54780
Plug information	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	YES	YES
Installation method	RIGHT ANGLE	RIGHT ANGLE
Installation type	BOARD	BOARD
Number of rows loaded	5	5
Options	GENERAL PURPOSE	GENERAL PURPOSE
Terminal pitch	2 mm	2 mm
Termination type	PRESS FIT	PRESS FIT
Total number of contacts	55	55
UL Flammability Code	94V-0	94V-0
Base Number Matches	1	1
