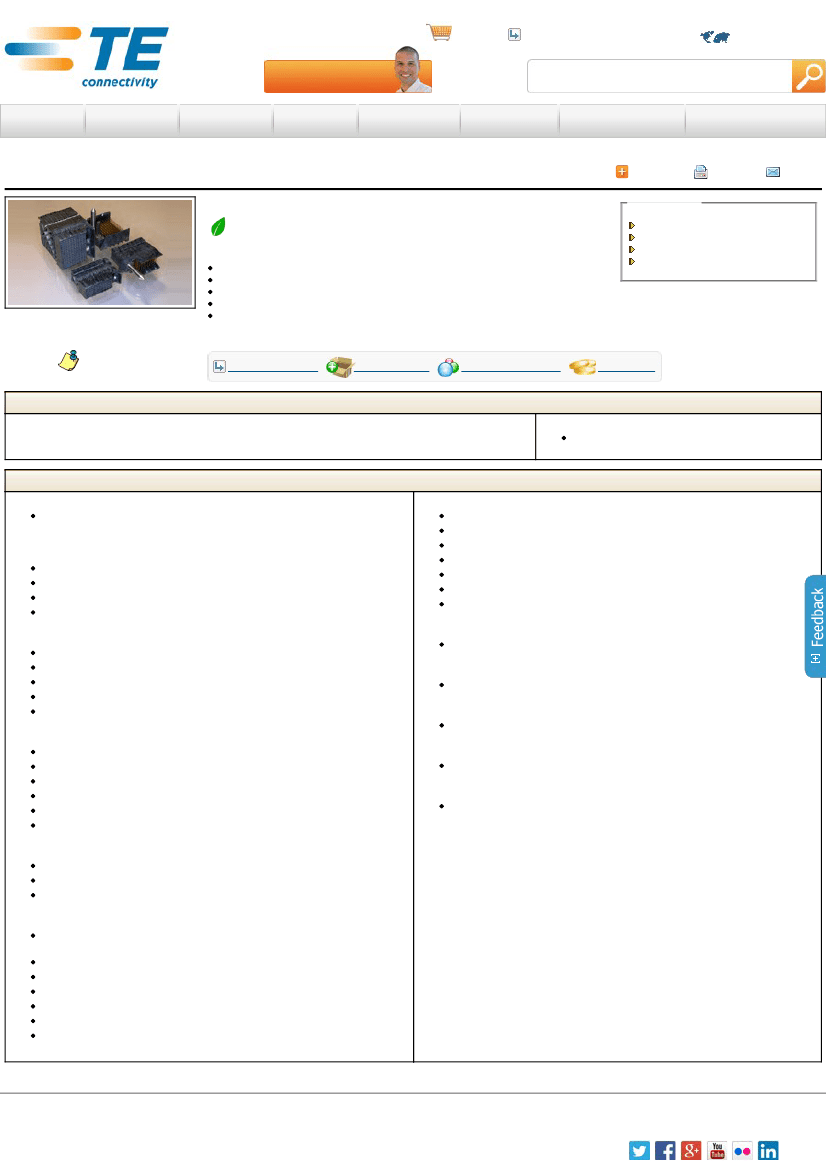

1­2132756­1 Product Details
Impact High Density Backplane Connectors

Always EU RoHS/ELV Compliant
 (
Statement of Compliance
)
Product Highlights:
Connector Style = Receptacle
72/Signal, 36/Ground
108 Positions
Board­to­Board Configuration = Right Angle
Number of Differential Pairs Per Column = 6
View all Features
 Share
 Print
 Email
Quick Links
Pricing & Availability
Search for Tooling
Product Feature Selector
Contact Us About This Product
1­2132756­1

TE Internal Number: 1­2132756­1
 Preliminary
Add to My Part List
Request Sample
Find Similar Products
Buy Product
Documentation & Additional Information
Documents are temporarily unavailable. We are working hard to correct the problem. Please try
again later.
Related Products:
Tooling
Product Features
(Please use the Product Drawing for all design activity)
Product Type Features:
PCB Mount Retention Type = Action/Compliant Tail and Screw(s),
Locating Post(s)
Electrical Characteristics:
Impedance (Ω) = 100
Operating Voltage Reference = AC/DC
Operating Voltage (VAC) = 120
Operating Voltage (VDC) = 120
Dimensions:
Tail Length (mm [in]) = 1.2 [0.047]
Length (X­Axis) (mm [in]) = 19.00 [0.748]
Width (Z­Axis) (mm [in]) = 37.30 [1.469]
Profile Height (Y­Axis) (mm [in]) = 25.40 [1.000]
PCB Hole Diameter (mm [in]) = 0.39 [0.015]
Contact Features:
Contact Type = Socket
Contact Plating, Termination Area, Material = Matte Tin
Contact Plating, Termination Area, Thickness (µm [μin]) = 1.27 [50]
Contact Base Material = Copper­Nickel­Silicon
Underplate Material = Nickel
Underplate Material Thickness (µm [μin]) = 1.27 [50.000]
Housing Features:
Connector Style = Receptacle
Housing Color = Black
Housing Material = Liquid Crystal Polymer (LCP)
Configuration Features:
Connector Contact Configuration (No. of Pos./Type) = 72/Signal,
36/Ground
Number of Positions = 108
Number of Differential Pairs Per Column = 6
Number of Columns = 6
Number of Rows = 18
Guide Location = Right
Tail Orientation = In­line
Industry Standards:
RoHS/ELV Compliance = RoHS compliant, ELV compliant
Lead Free Solder Processes = Not relevant for lead free process
RoHS/ELV Compliance History = Always was RoHS compliant
UL Rating = Recognized
UL File Number = E28476
UL Flammability Rating = UL 94V­0
CSA Certified = Yes
Environmental:
Operating Temperature (°C [°F]) = ­55 – +85 [­67 – +185]
Conditions for Usage:
Board­to­Board Configuration = Right Angle
Operation/Application:
Industry Application = Networking (Communications)
Packaging Features:
Packaging Method = Tube
Other:
Brand = TE Connectivity
