PI74LPT241CQX datasheet, PDF - EEWORLD Datasheet

PI74LPT241CQX: DescriptionBus Driver, LPT Series, 2-Func, 4-Bit, True Output, CMOS, PDSO20, 0.150 INCH, 0.635 MM PITCH, PLASTIC, QSOP-20; Categorylogic logic; File Size142KB，4 Pages; ManufacturerPericom Semiconductor Corporation (Diodes Incorporated); Websitehttps://www.diodes.com/

Download Datasheet Parametric View All

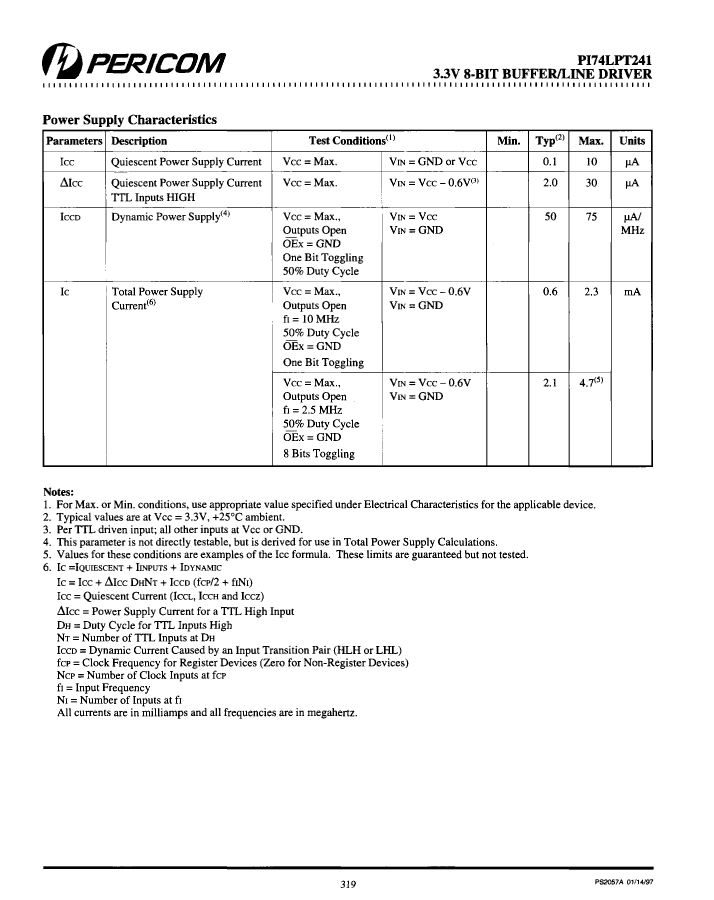

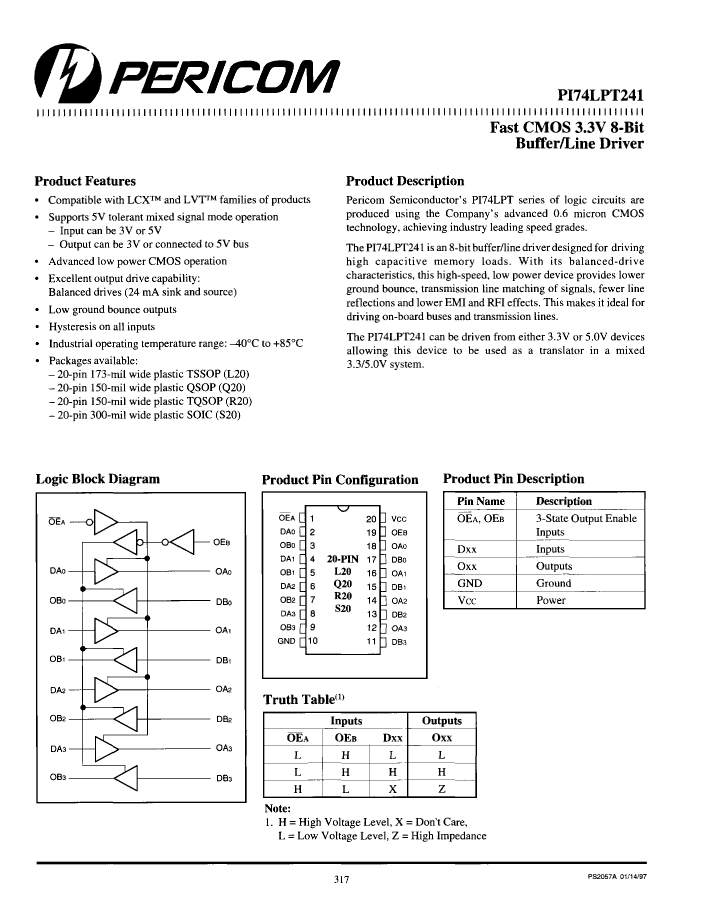

PI74LPT241CQX Overview

Bus Driver, LPT Series, 2-Func, 4-Bit, True Output, CMOS, PDSO20, 0.150 INCH, 0.635 MM PITCH, PLASTIC, QSOP-20

Parameter Name	Attribute value
Maker	Pericom Semiconductor Corporation (Diodes Incorporated)
Parts packaging code	QSOP
package instruction	SSOP,
Contacts	20
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	OUTPUT ENABLE ACTIVE HIGH FOR ONE FUNCTION
series	LPT
JESD-30 code	R-PDSO-G20
JESD-609 code	e0
length	8.65 mm
Load capacitance (CL)	50 pF
Logic integrated circuit type	BUS DRIVER
Number of digits	4
Number of functions	2
Number of ports	2
Number of terminals	20
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Output characteristics	3-STATE
Output polarity	TRUE
Package body material	PLASTIC/EPOXY
encapsulated code	SSOP
Package shape	RECTANGULAR
Package form	SMALL OUTLINE, SHRINK PITCH

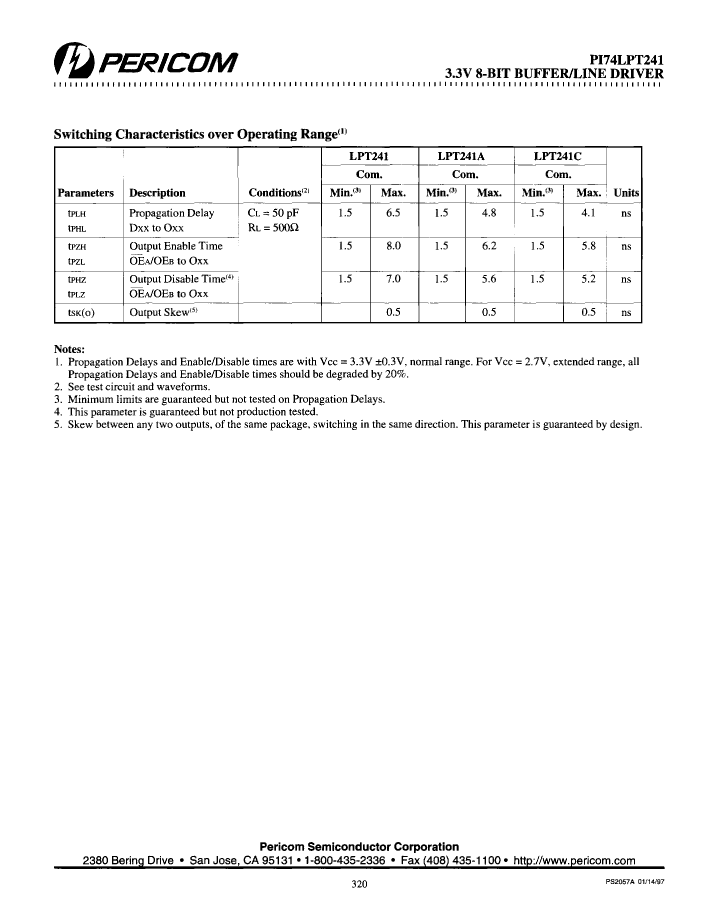

propagation delay (tpd)	4.92 ns
Certification status	Not Qualified
Maximum seat height	1.75 mm

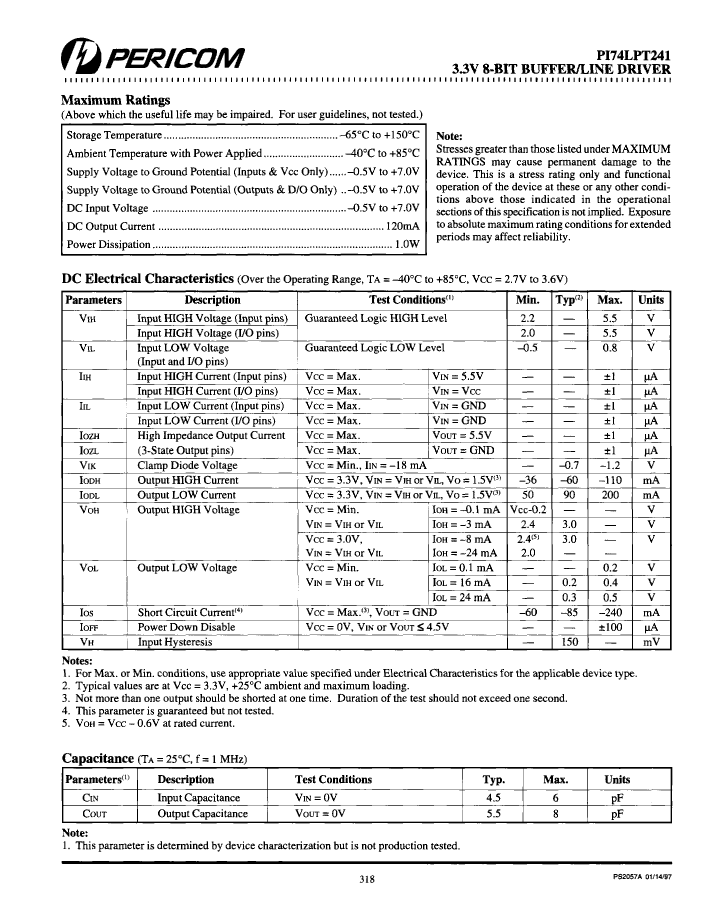

Maximum supply voltage (Vsup)	3.6 V
Minimum supply voltage (Vsup)	2.7 V
Nominal supply voltage (Vsup)	3.3 V
surface mount	YES
technology	CMOS
Temperature level	INDUSTRIAL
Terminal surface	TIN LEAD
Terminal form	GULL WING
Terminal pitch	0.635 mm
Terminal location	DUAL
width	3.9116 mm
Base Number Matches	1
