KIC73B44M2 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Power/power management> The power supply circuit> KIC73B44M2

KIC73B44M2: DescriptionPower Supply Support Circuit; CategoryPower/power management The power supply circuit; File Size832KB，12 Pages; ManufacturerKEC; Websitehttp://www.keccorp.com/; Environmental Compliance

Download Datasheet Parametric View All

KIC73B44M2 Overview

Power Supply Support Circuit

KIC73B44M2 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	KEC
package instruction	LSSOP,
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	DETECTION THRESHOLD VOLTAGE IS 4.4V
Adjustable threshold	NO
Analog Integrated Circuits - Other Types	POWER SUPPLY SUPPORT CIRCUIT
JESD-30 code	R-PDSO-G3
length	2.93 mm
Number of channels	1
Number of functions	1
Number of terminals	3
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
Package body material	PLASTIC/EPOXY
encapsulated code	LSSOP
Package shape	RECTANGULAR
Package form	SMALL OUTLINE, LOW PROFILE, SHRINK PITCH
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Maximum seat height	1.3 mm
Maximum supply voltage (Vsup)	6 V
Minimum supply voltage (Vsup)	1.1 V
surface mount	YES
technology	CMOS
Temperature level	INDUSTRIAL
Terminal form	GULL WING
Terminal pitch	0.95 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
width	1.3 mm
Base Number Matches	1

Preview

Download Datasheet

View All

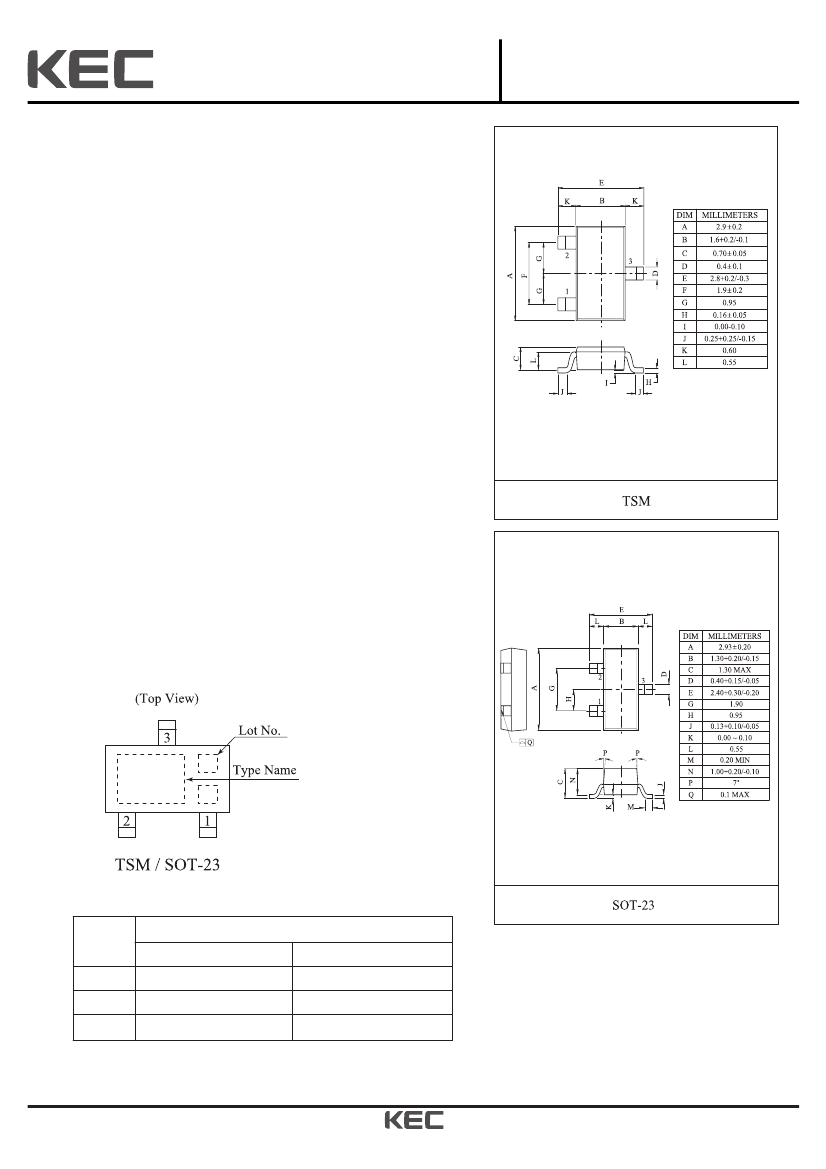

SEMICONDUCTOR

TECHNICAL DATA

CMOS System Reset IC Built-in Delay time circuit

Monolithic IC KIC73A/B/C/D/E**T/T2/M/M2 Series

This IC is a system reset IC built in delay time circuit.

KIC73 series is not required with an external capacitor, and then can use a

small package. Therefore, a space of PC board can be small.

KIC73A/B/C/D/E16~50T/T2/M/M2

Analog CMOS Integrated Circuits

KIC73A/B/C/D/E**T/T2

Features

・Operating

supply voltage : 1.0 ~ 7.0V

・Supply

current 0.5μ typ.

・Reset

threshold range : 1.6 ~5.0V

・Reset

threshold accuracy :±1%

・Other

Threshold voltage : 2.63V, 2.93V , 3.08V, 4.38V, 4.63V

・Reset

active timeout period : 240/50/100/200/400ms

・Output

type : CMOS output

Applications

・Reset

circuits for microcomputers, CPUs and MPUs

・Reset

circuits for logic circuits

・Battery

voltage check circuits

・Back-up

power supply switching circuits

・Level

detection circuits

KIC73A/B/C/D/E**M/M2

Pin Configuration

Pin No

KIC73A~D**T/M

GND

OUT

KIC73A~D**T2/M2

OUT

GND

2014. 2. 11

Revision No : 1

1/12
