IC 4-CHANNEL, DIFFERENTIAL MULTIPLEXER, CDIP16, CERDIP-16, Multiplexer or Switch

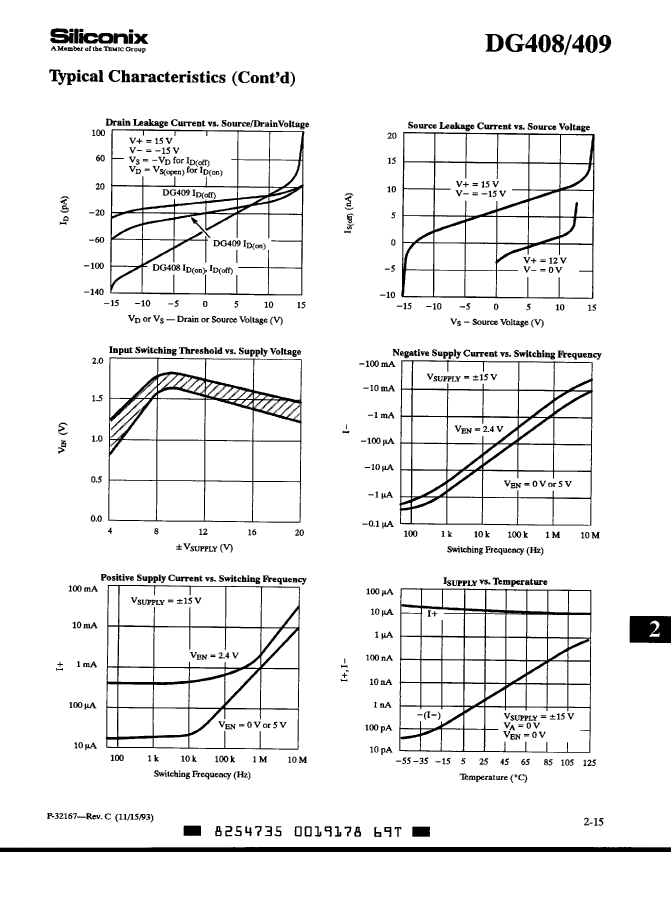

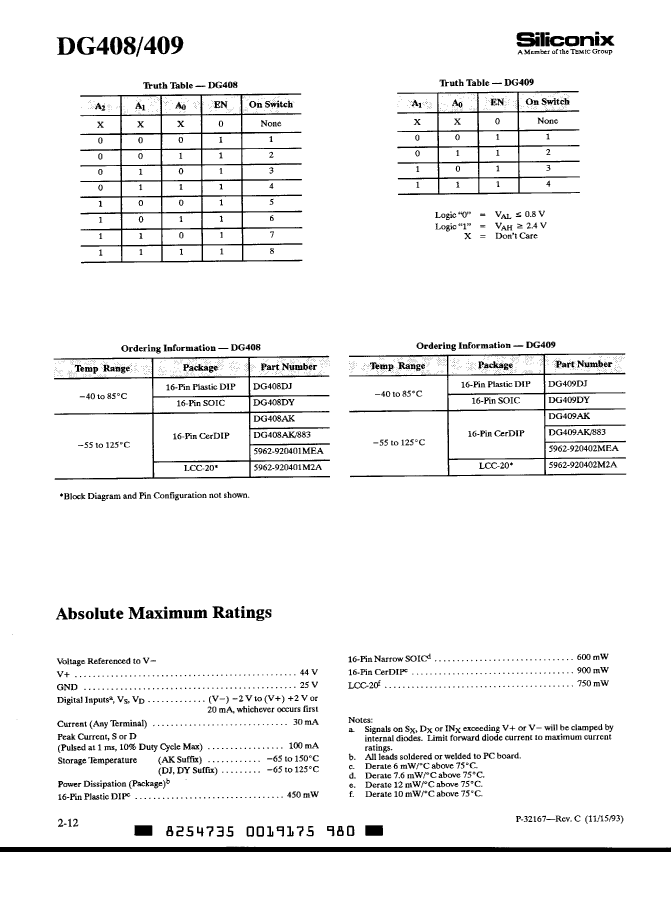

| Parameter Name | Attribute value |
| Maker | Vishay |
| Parts packaging code | DIP |
| package instruction | DIP, |
| Contacts | 16 |
| Reach Compliance Code | unknown |
| Analog Integrated Circuits - Other Types | DIFFERENTIAL MULTIPLEXER |
| JESD-30 code | R-GDIP-T16 |
| JESD-609 code | e0 |
| length | 19.305 mm |
| Nominal Negative Supply Voltage (Vsup) | -15 V |
| Number of channels | 4 |
| Number of functions | 1 |
| Number of terminals | 16 |
| Nominal off-state isolation | 75 dB |
| On-state resistance matching specifications | 15 Ω |
| Maximum on-state resistance (Ron) | 100 Ω |
| Maximum operating temperature | 125 °C |
| Minimum operating temperature | -55 °C |
| Package body material | CERAMIC, GLASS-SEALED |
| encapsulated code | DIP |
| Package shape | RECTANGULAR |
| Package form | IN-LINE |
| Certification status | Not Qualified |
| Maximum seat height | 5.08 mm |
| Nominal supply voltage (Vsup) | 15 V |
| surface mount | NO |
| Maximum disconnect time | 250 ns |
| Maximum connection time | 250 ns |
| technology | CMOS |
| Temperature level | MILITARY |
| Terminal surface | TIN LEAD |
| Terminal form | THROUGH-HOLE |
| Terminal pitch | 2.54 mm |
| Terminal location | DUAL |
| width | 7.62 mm |
| Base Number Matches | 1 |
| 5962-920402MEA | 5962-920401M2A | 5962-920402M2A | DG409AK/883 | 5962-920401MEA | DG408AK/883 | |
|---|---|---|---|---|---|---|
| Description | IC 4-CHANNEL, DIFFERENTIAL MULTIPLEXER, CDIP16, CERDIP-16, Multiplexer or Switch | IC 8-CHANNEL, SGL ENDED MULTIPLEXER, CQCC20, LCC-20, Multiplexer or Switch | IC 4-CHANNEL, DIFFERENTIAL MULTIPLEXER, CQCC20, LCC-20, Multiplexer or Switch | Differential Multiplexer, 1 Func, 4 Channel, CMOS, CDIP16, | IC 8-CHANNEL, SGL ENDED MULTIPLEXER, CDIP16, CERDIP-16, Multiplexer or Switch | Single-Ended Multiplexer, 1 Func, 8 Channel, CMOS, CDIP16, |
| Maker | Vishay | Vishay | Vishay | Vishay | Vishay | Vishay |
| Parts packaging code | DIP | QLCC | QLCC | DIP | DIP | DIP |
| package instruction | DIP, | QCCN, | QCCN, | DIP, DIP16,.3 | DIP, | DIP, DIP16,.3 |
| Contacts | 16 | 20 | 20 | 16 | 16 | 16 |
| Reach Compliance Code | unknown | unknown | unknown | unknown | unknown | unknown |
| Analog Integrated Circuits - Other Types | DIFFERENTIAL MULTIPLEXER | SINGLE-ENDED MULTIPLEXER | DIFFERENTIAL MULTIPLEXER | DIFFERENTIAL MULTIPLEXER | SINGLE-ENDED MULTIPLEXER | SINGLE-ENDED MULTIPLEXER |
| JESD-30 code | R-GDIP-T16 | S-CQCC-N20 | S-CQCC-N20 | R-XDIP-T16 | R-GDIP-T16 | R-XDIP-T16 |
| JESD-609 code | e0 | e0 | e0 | e0 | e0 | e0 |
| Number of channels | 4 | 8 | 4 | 4 | 8 | 8 |
| Number of functions | 1 | 1 | 1 | 1 | 1 | 1 |
| Number of terminals | 16 | 20 | 20 | 16 | 16 | 16 |
| Maximum on-state resistance (Ron) | 100 Ω | 100 Ω | 100 Ω | 125 Ω | 100 Ω | 125 Ω |
| Maximum operating temperature | 125 °C | 125 °C | 125 °C | 125 °C | 125 °C | 125 °C |
| Minimum operating temperature | -55 °C | -55 °C | -55 °C | -55 °C | -55 °C | -55 °C |
| Package body material | CERAMIC, GLASS-SEALED | CERAMIC, METAL-SEALED COFIRED | CERAMIC, METAL-SEALED COFIRED | CERAMIC | CERAMIC, GLASS-SEALED | CERAMIC |
| encapsulated code | DIP | QCCN | QCCN | DIP | DIP | DIP |
| Package shape | RECTANGULAR | SQUARE | SQUARE | RECTANGULAR | RECTANGULAR | RECTANGULAR |
| Package form | IN-LINE | CHIP CARRIER | CHIP CARRIER | IN-LINE | IN-LINE | IN-LINE |
| Certification status | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified |
| surface mount | NO | YES | YES | NO | NO | NO |
| Maximum connection time | 250 ns | 250 ns | 250 ns | 150 ns | 250 ns | 150 ns |
| technology | CMOS | CMOS | CMOS | CMOS | CMOS | CMOS |
| Temperature level | MILITARY | MILITARY | MILITARY | MILITARY | MILITARY | MILITARY |
| Terminal surface | TIN LEAD | TIN LEAD | TIN LEAD | Tin/Lead (Sn/Pb) | TIN LEAD | Tin/Lead (Sn/Pb) |
| Terminal form | THROUGH-HOLE | NO LEAD | NO LEAD | THROUGH-HOLE | THROUGH-HOLE | THROUGH-HOLE |
| Terminal pitch | 2.54 mm | 1.27 mm | 1.27 mm | 2.54 mm | 2.54 mm | 2.54 mm |
| Terminal location | DUAL | QUAD | QUAD | DUAL | DUAL | DUAL |
| Base Number Matches | 1 | 1 | 1 | 1 | 1 | 1 |
| length | 19.305 mm | 8.89 mm | 8.89 mm | - | 19.305 mm | - |
| Nominal Negative Supply Voltage (Vsup) | -15 V | -15 V | -15 V | - | -15 V | - |
| Nominal off-state isolation | 75 dB | 75 dB | 75 dB | - | 75 dB | - |
| On-state resistance matching specifications | 15 Ω | 15 Ω | 15 Ω | - | 15 Ω | - |
| Maximum seat height | 5.08 mm | 2.54 mm | 2.54 mm | - | 5.08 mm | - |
| Nominal supply voltage (Vsup) | 15 V | 15 V | 15 V | - | 15 V | - |
| Maximum disconnect time | 250 ns | 250 ns | 250 ns | - | 250 ns | - |
| width | 7.62 mm | 8.89 mm | 8.89 mm | - | 7.62 mm | - |
