M55342K06B732ET-TR datasheet, PDF

Datasheet> All Categories > Passive components> The resistor> M55342K06B732ET-TR

M55342K06B732ET-TR: DescriptionFixed Resistor, Metal Glaze/thick Film, 0.15W, 732000ohm, 50V, 1% +/-Tol, 100ppm/Cel, Surface Mount, 0705, CHIP; CategoryPassive components The resistor; File Size97KB，1 Pages; ManufacturerState of the Art Inc.

Download Datasheet Parametric View All

M55342K06B732ET-TR Overview

Fixed Resistor, Metal Glaze/thick Film, 0.15W, 732000ohm, 50V, 1% +/-Tol, 100ppm/Cel, Surface Mount, 0705, CHIP

M55342K06B732ET-TR Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	State of the Art Inc.
package instruction	CHIP
Reach Compliance Code	not_compliant
ECCN code	EAR99
Other features	SEMI PRECISION
structure	Rectangular
JESD-609 code	e0
Installation features	SURFACE MOUNT
Number of terminals	2
Maximum operating temperature	150 °C
Minimum operating temperature	-65 °C
Package height	0.43 mm
Package length	1.98 mm
Package shape	RECTANGULAR PACKAGE
Package form	SMT
Package width	1.24 mm
method of packing	TR
Rated power dissipation(P)	0.15 W
Rated temperature	70 °C
Guideline	MIL-PRF-55342/06
resistance	732000 Ω
Resistor type	FIXED RESISTOR
size code	0705
surface mount	YES
technology	METAL GLAZE/THICK FILM
Temperature Coefficient	100 ppm/°C
Terminal surface	Tin/Lead (Sn60Pb40) - with Nickel (Ni) barrier
Terminal shape	WRAPAROUND
Tolerance	1%
Operating Voltage	50 V
Base Number Matches	1

Preview

Download Datasheet

View All

State of the Art, Inc.

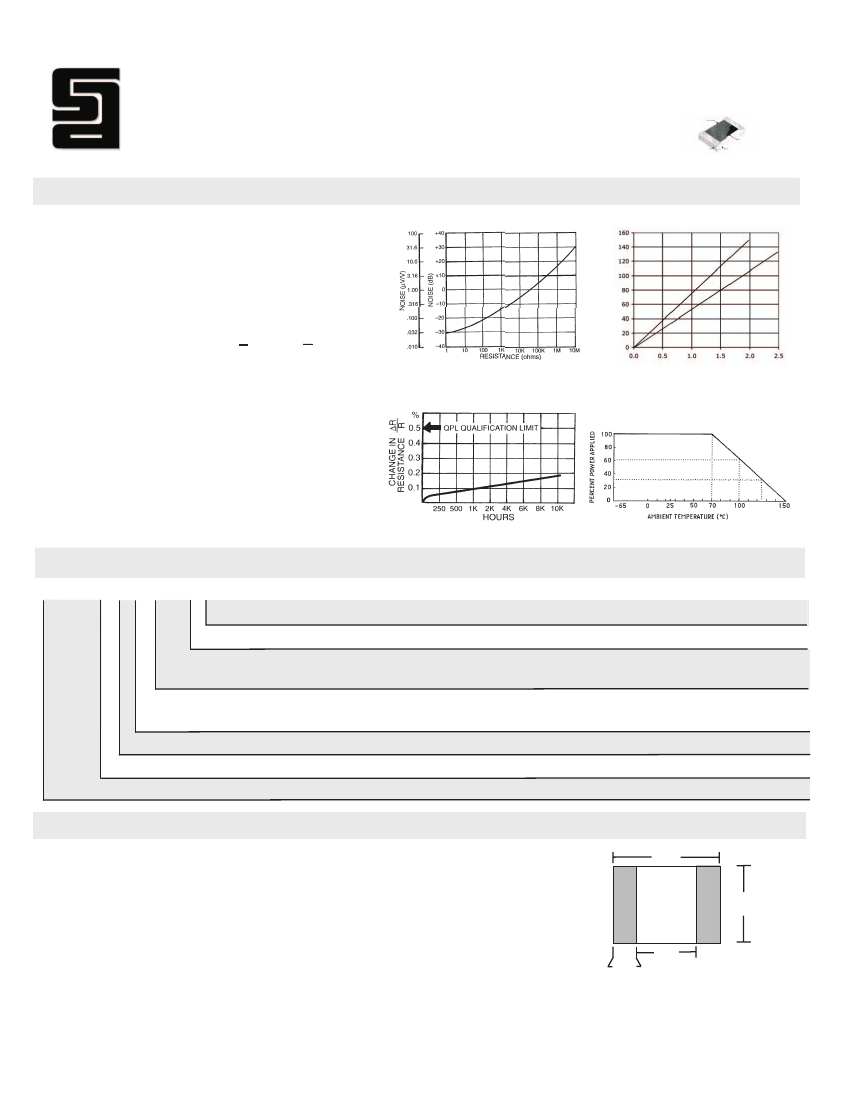

Thick Film Chip Resistor

M55342/06 RM0705

GLASS

PASSIVATION

WRAPAROUND

TERMINATIONS

RESISTOR

FILM

96% ALUMINA CHIP

PERFORMANCE

TEMPERATURE RISE (°C)

Resistance Range

Tolerances

Maximum Power

Maximum Voltage

- 22M

1%, 2%, 5%, 10%

150 mW

50 Volts

CHARACTERISTICS*

±100

±0.5%

±0.25%

±0.5%

±300

±0.5%

±0.25%

±0.5%

±2.0%

±1.0%

CURRENT NOISE

POWER DISSIPATION

fiber epoxy board

ceramic board

TESTS

TCR (-55 to +125

C) in ppm/

Thermal Shock

Low Temperature Operation

Short-time Overload

Resistance to Soldering Heat

Moisture Resistance

Life, 2,000 Hours

High Temperature Exposure

POWER DISSIPATION (WATTS)

LIFE TEST

POWER DERATING

*Maximum allowable change per MIL-PRF-55342,

typical change is 10% of these values.

PART NUMBERING

M55342 K 06 B 100D S - TR

PACKAGING CODE: TR = Tape & Reel W= Waffle Pack

PRODUCT LEVEL DESIGNATOR: M: 1% per 1000 hrs. R: 0.01% P: 0.1% S: 0.001% T: Space Level C: Non - ER

RESISTANCE AND TOLERANCE CODE:

Three significant digits, with a letter indicating the

decimal location, the tolerance, and the value range.

D: 1%

E: 1% K

F: 1% M

G: 2%

H: 2% K

T: 2% M

J: 5%

K: 5% K

L: 5% M

M: 10%

N: 10% K

P: 10% M

TERMINATION MATERIALS:

B: Solderable wraparound C: Epoxy bondable palladium/silver wraparound U: Epoxy bondable platinum/gold wraparound

W: Gold wire bondable

G: Gold wraparound

SIZE CODE: /06 = RM0705

TEMPERATURE CHARACTERISTIC: K: ± 100ppm M: ± 300ppm

PERFORMANCE SPECIFICATION MIL-PRF-55342

MECHANICAL

INCHES

MILLIMETERS

.105

MINIMUM

RECOMMENDED

MOUNTING

PADS

(INCHES)

Length

Width

Thickness

Top Term

Bottom Term

Gap

Approx. Weight

.075 (.074 - .086)

.048 (.045 - .055)

.018 (.015 - .033)

.012 (.008 - .024)

.014 (.010 - .020)

.047 (.043 - .051)

.00405 grams

1.91

1.22

0.46

0.31

0.36

1.19

(1.88 - 2.18)

(1.14 - 1.40)

(0.38 - 0.84)

(0.20 - 0.61)

(0.25 - 0.51)

(1.09 - 1.30)

.052

.043

.031

State of the Art, Inc.

2470 Fox Hill Road, State College, PA 16803-1797

Phone (814) 355-8004 Fax (814) 355-2714 Toll Free 1-800-458-3401

“Specifications subject to change without notice.”

www.resistor.com

04/09/08
