301381A000-21: DescriptionBoard Connector, 138 Contact(s), 3 Row(s), Female, Right Angle, 0.1 inch Pitch, Solder Terminal, Hole .099-.111, Black Insulator, Plug; CategoryThe connector The connector; File Size66KB，1 Pages; ManufacturerThomas & Betts Corporation; Websitehttp://www.tnb.com/

Download Datasheet Parametric View All

301381A000-21 Overview

Board Connector, 138 Contact(s), 3 Row(s), Female, Right Angle, 0.1 inch Pitch, Solder Terminal, Hole .099-.111, Black Insulator, Plug

301381A000-21 Parametric

Parameter Name	Attribute value
Maker	Thomas & Betts Corporation
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	XD/P
Board mount options	HOLE .099-.111
Body/casing type	PLUG
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU ON NI
Contact completed and terminated	TIN OVER NICKEL
Contact point gender	FEMALE
Contact material	COPPER ALLOY
contact mode	RECTANGULAR
Contact style	SQ PIN-SKT
DIN compliance	NO
Dielectric withstand voltage	1000VDC V
Filter function	NO
IEC compliance	NO
Insulation resistance	1000000000 Ω
Insulator color	BLACK
insulator material	GLASS FILLED THERMOPLASTIC
MIL compliance	NO
Manufacturer's serial number	30
Plug contact pitch	0.1 inch
Match contact row spacing	0.1 inch
Mixed contacts	NO
Installation option 1	HOLE .099-.111
Installation option 2	NON-THREADED
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
PCB row number	3
Number of rows loaded	3
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.54 mm
Plating thickness	30u inch
polarization key	ENDS
Guideline	UL, CSA
reliability	COMMERCIAL
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	138
UL Flammability Code	94V-0
Base Number Matches	1

Preview

Download Datasheet

View All

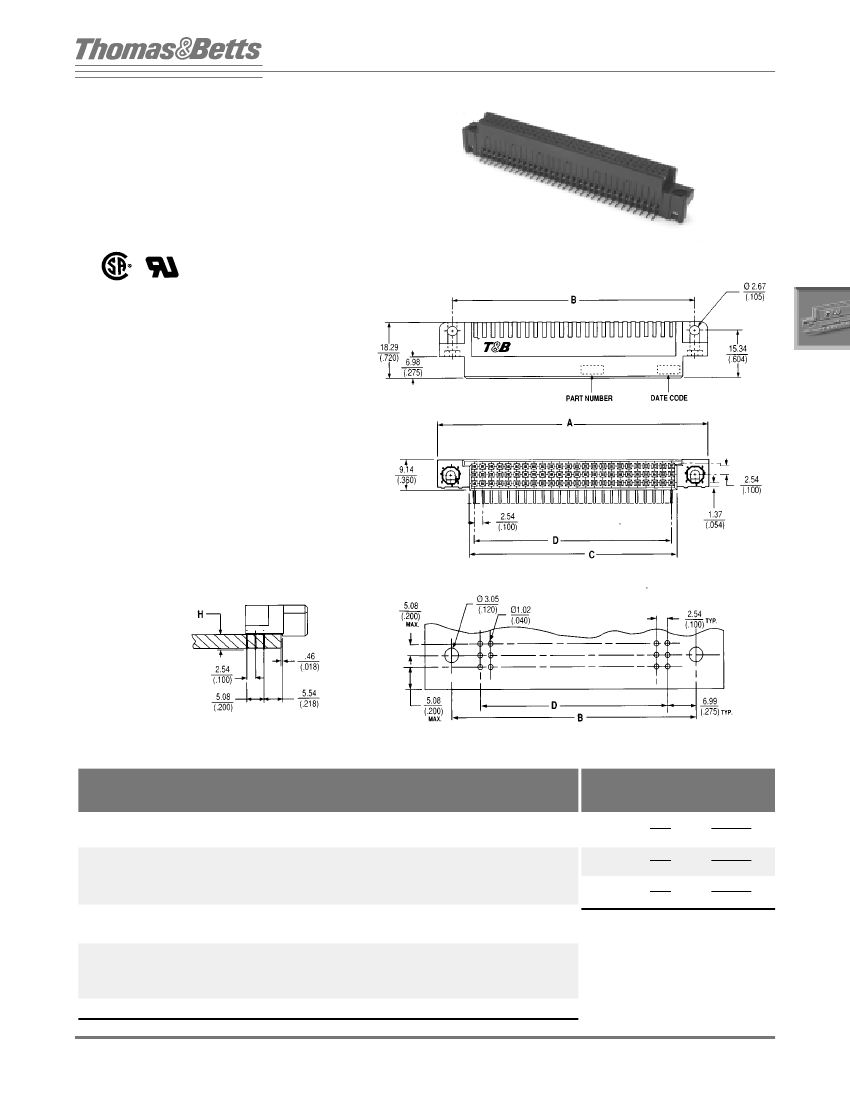

Two–Piece Connectors

XD/P System

THREE ROW, ONE CELL

RIGHT ANGLE FEMALE

XD/P

™

CONNECTORS

30-225 POSITIONS

NO CENTER MOUNTING

FEATURE

LR49571

E60980

P

HYSICAL

P

ROPERTIES

I

NSULATION

M

ATERIAL

:

Glass filled thermoplastic

rated UL 94V-0

C

OLOR

:

Black

C

ONTACTS

:

Copper alloy, nickel plate overall, 30

microinches gold plating in contact zone, tin/lead

on solder tails

E

LECTRICAL

P

ROPERTIES

C

URRENT

R

ATING

:

2 Amps/pin

I

NSULATION

R

ESISTANCE

:

>1 x 10

9

0hms

D

IELECTRIC

S

TRENGTH

:

> 1000 VDC at sea level

E

NVIRONMENTAL

P

ROPERTIES

T

EMPERATURE

R

ATING

:

-55˚C TO 125°C

M

OUNTING

H

ARDWARE

See pages 310-314

S

ELECTIVE

L

OADING

See pages 308-309

Recommended Printed Circuit Board Layout

Ordering Information

NUMBER OF

POSITIONS

WWW

030

072

096

120

138

150

165

180

195

210

225

PART NUMBER

SPECIFY X

300301X000-21

300721X000-21

300961X000-21

301201

X000-21

301381

X000-21

301501X000-21

301651X000-21

301801X000-21

301951X000-21

302101X000-21

302251X000-21

X

A

44.45 (1.750)

80.01 (3.150)

100.33 (3.950)

120.65 (4.750)

135.89 (5.350)

146.05 (5.750)

158.75 (6.250)

171.45 (6.750)

184.15 (7.250)

196.85 (7.750)

209.55 (8.250)

B

36.83 (1.450)

72.39 (2.850)

92.71 (3.650)

113.03 (4.450)

128.27 (5.050)

138.43 (5.450)

151.13 (5.950)

163.83 (6.450)

176.53 (6.950)

189.23 (7.450)

201.93 (7.950)

C

26.01 (1.024)

61.57 (2.424)

81.89 (3.224)

102.21 (4.024)

117.45 (4.624)

127.61 (5.024)

140.31 (5.524)

153.01 (6.024)

165.71 (6.524)

178.41 (7.024)

191.11 (7.524)

D

22.86 (0.900)

58.42 (2.300)

78.74 (3.100)

99.06 (3.900)

114.30 (4.500)

124.46 (4.900)

137.16 (5.400)

149.86 (5.900)

162.56 (6.400)

175.26 (6.900)

187.96 (7.400)

C

B

A

H

TAIL LENGTH

3.05

(.120)

3.81

(.150)

4.57

(.180)

RECOMMENDED

PCB THICKNESS

RANGE

1.2 - 2.0

(.047 - .077)

2.0 - 2.8

(.078 - .109)

2.8 - 3.6

(.110 - .140)

eg. 302251A000-21

Thomas & Betts Electronics/OEM Division Tel: 901-252-5000 Fax: 901-252-1312

Dimensions shown are for reference only. Dimensions are in millimeters (inches).

285
