IC100-2003-G datasheet, PDF - EEWORLD Datasheet

IC100-2003-G: DescriptionIC Socket, SOJ20, 20 Contact(s), Solder; CategoryThe connector socket; File Size146KB，1 Pages; ManufacturerYamaichi Electronics Co., Ltd.; Websitehttp://www.yamaichi.com/

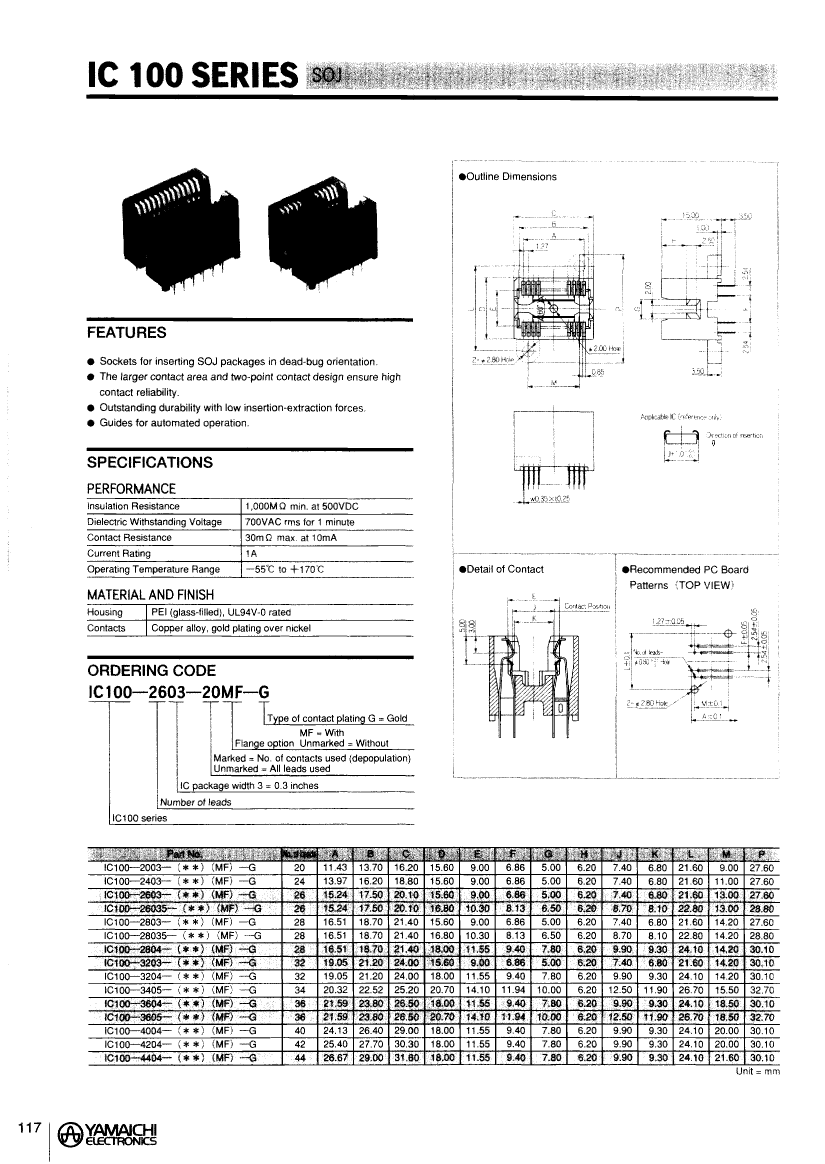

Download Datasheet Parametric View All

IC100-2003-G Overview

IC Socket, SOJ20, 20 Contact(s), Solder

Parameter Name	Attribute value
Maker	Yamaichi Electronics Co., Ltd.
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	WITH P.C.BOARD STANDOFF
body width	0.614 inch
subject depth	0.591 inch
body length	0.638 inch
Contact to complete cooperation	AU ON NI
Contact completed and terminated	GOLD OVER NICKEL
Contact material	BE-CU
Contact style	BELLOWED TYPE
Device slot type	IC SOCKET
Type of equipment used	SOJ20
Dielectric withstand voltage	700VAC V
Shell material	POLYETHERIMIDE
Insulation resistance	1000000000 Ω
Manufacturer's serial number	IC100
Plug contact pitch	0.05 inch
Installation method	STRAIGHT
Number of contacts	20
Maximum operating temperature	170 °C
Minimum operating temperature	-55 °C
Termination type	SOLDER
Base Number Matches	1
