Connector for Shielded Wire
SHIELD-KON
®
“Wrap-Around” RSK
Connector for Shielded Pair Wire
This solderless wrap-around connector provides a quick means of attaching a ground
lead to shielded pair wire…without soldering. The low profile crimping tool and con-
nector make grounding in crowded central offices much quicker, cleaner and easier.
Once crimped, it provides a compact, lightweight, low resistance, high strength con-
nection. The quality and consistent precision of SHIELD-KON
®
connectors help
decrease high-capacity digital circuit sensitivity to noise and cross-talk interference.
The insulated connector is designed to work on braided, wrapped, or foil shields.
Only one size is needed over the range of .090” to .143” diameter.

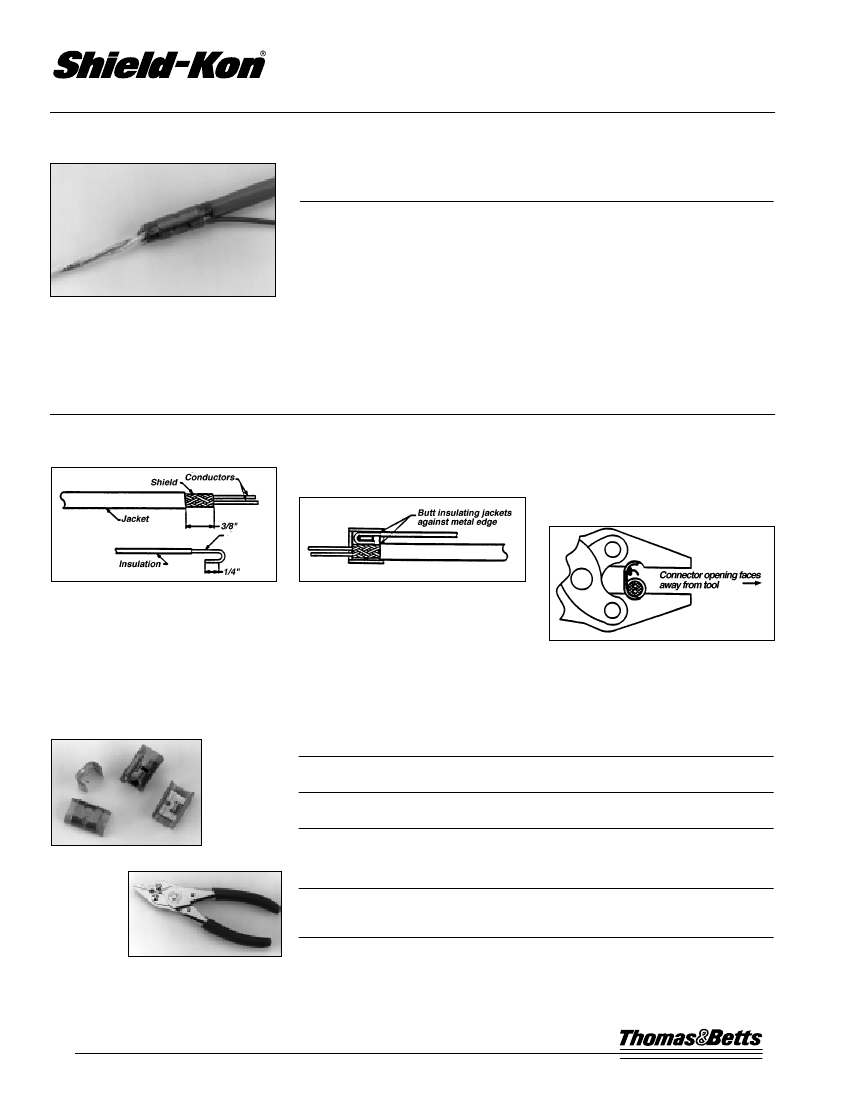

Installation Procedures
Step 1: Prepare shielded wire and
ground wire insulation as shown
Step 2: Place the ground wire around
the trap hook and the shielded wire
into the bottom of the connector.
Step 3: Insert connector into the
WT201A tool with the opening facing
away from the tool. Squeeze tool
handles firmly to form connector
around the shielded wire and ground
wire.
NO HEAT REQUIRED to install
No damage to inner connectors
Less installation time required
Uniform, precise connection every
time
• Low installed cost
•
•
•
•
• Compact, low profile connector and
tool
• One piece “Wrap-around” design
• Tough Mylar
®
insulation
• Inventory savings
• Easily inspected
SHIELD-KON
®
RSK Connector for Shielded Pair Wire
Connector Cat.
No. & Color
201RSKA
Blue
201RSKA
Shielded Pair
Size
#22-24 AWG
Diameter
of Shield
.090-.143 in.
Ground Wire
Range
Tool
Cat. No.
Unit Std.
Qty. Pkg.
25
25
#22-24 AWG WT201A
Additional Sizes Available- Using Tool #WT740
Connector Cat.
Diameter
Ground Wire
No. & Color
of Shield
Range
101RSK*
Red
301RSK*
Yellow
401RSK*
Green
WT201A
.050-.089 in.
.144-.201 in.
.202-300 in.
#22-24 AWG
#20-22 AWG
#18-20 AWG
Unit
Qty.
25
25
25
Std.
Pkg.
100
100
100
*Requires hand tool cat. no. WT740 and appropriate die. Call customer service for list
of dies and for ground wire combinations not covered.
Mylar
®
is a Dupont trademark.
Thomas & Betts Electronics/OEM Division Tel: 901-252-5000 Fax: 901-252-1312
80
RSK Connectors and Installation Tools
stem
Connector
Cat. No.
& Color
RSK101
Red
Dia.
of
Shield
(1.27-1.78 mm)
.050-.070 in.
(1.80-2.26 mm)
.071-.089 in.
(2.29-2.54 mm)
.090-.100 in.
(2.56-3.00 mm)
.101-.118 in.
(3.022-3.33 mm)
.119-.131 in.
(3.35-3.63 mm)
.132-.143 in.
(3.66-4.11 mm)
.144-.162 in.
(4.14-4.70 mm)
.163-.185 in.
(4.72-5.10 mm)
.186-.201 in.
(5.13-5.84 mm)
.202-.230 in.
(5.87-6.35 mm)
.231-.250 in.
(6.37-6.98 mm)
.251-.275 in.
(7.01-7.62 mm)
.276-.300 in.
Die
Cat. No.
101A
101B
201C
201D
201E
201F
301G
301H
301J
401K
401L
401M
401N
Ground
Wire
Range
1 or 2
#24 AWG STR
or 1
#22 AWG STR
Die
Gage
Cat. No.
101AG
101BG
201CG
Application
Tool
The WT-740 hand tool and 13300 pneumatic
tool both feature interchangeable dies for form-
ing the full line of RSK connectors. The Shure
Stake
®
mechanism (on the WT-740) assures
positive, controlled forming of connectors.
Insulation
INSULATION
.59 .64
.59
-
- .64
.11
.11 Both
BOTH SIDES
Sides
C
D
A
E
B
Thomas & Betts Electronics/OEM Division Tel: 901-252-5000 Fax: 901-252-1312
➤
➤
➤
➤
➤
➤
upper die
separation
spring
lower die
die stop
lower die stem
ram
➤
RSK201
Blue
1 or 2
#22 AWG STR
or 1
#20 AWG STR
201DG
201EG
201FG
Hand
Tool
WT740
RSK301
Yellow
1 or 2
#22 AWG STR
or 1 or 2
#20 AWG STR
301GG
301HG
301JG
401KG
Air Tool
13300
RSK401
Green
1 or 2
#20 AWG STR
or 1
#18 AWG STR
401LG
401MG
401NG
How to use connector die and tool selection chart
1. Use a calibrated measuring tool lightly over shield for most accurate measurement. Rotate
shielded wire to pick up high spots on cable. Use “Diameter of Shield” column to match
the measured dimension.
2. Select connector and die for WT-740 or 13300 tool from appropriate column.
Notes: 1. Do not solder-dip ends of ground leads.
2. For ground wire combinations not covered in table, consult Technical Service.
Dimensions
Cat.
No.
RSK-101
RSK-201
RSK-301
RSK-401
A
.31
.38
.47
.69
B
.16
.22
.28
.43
C
.18
.18
.24
.37
D
.06
.06
.07
.08
E
.15
.18
.22
.37
Copper
Thickness
.02
.02
.03
.03
Color
Red
Blue
Yellow
Green
GROUND
Ground
LEAD TRAP
Lead Trap
81
RSK Connectors and Installation Tools
2
1
⁄
4
" (5.7 cm)
Open Yoke Design
Upper Die
(Dies not included
with tool)
Lower Die
Ram
Swivel Head
Air Cylinder

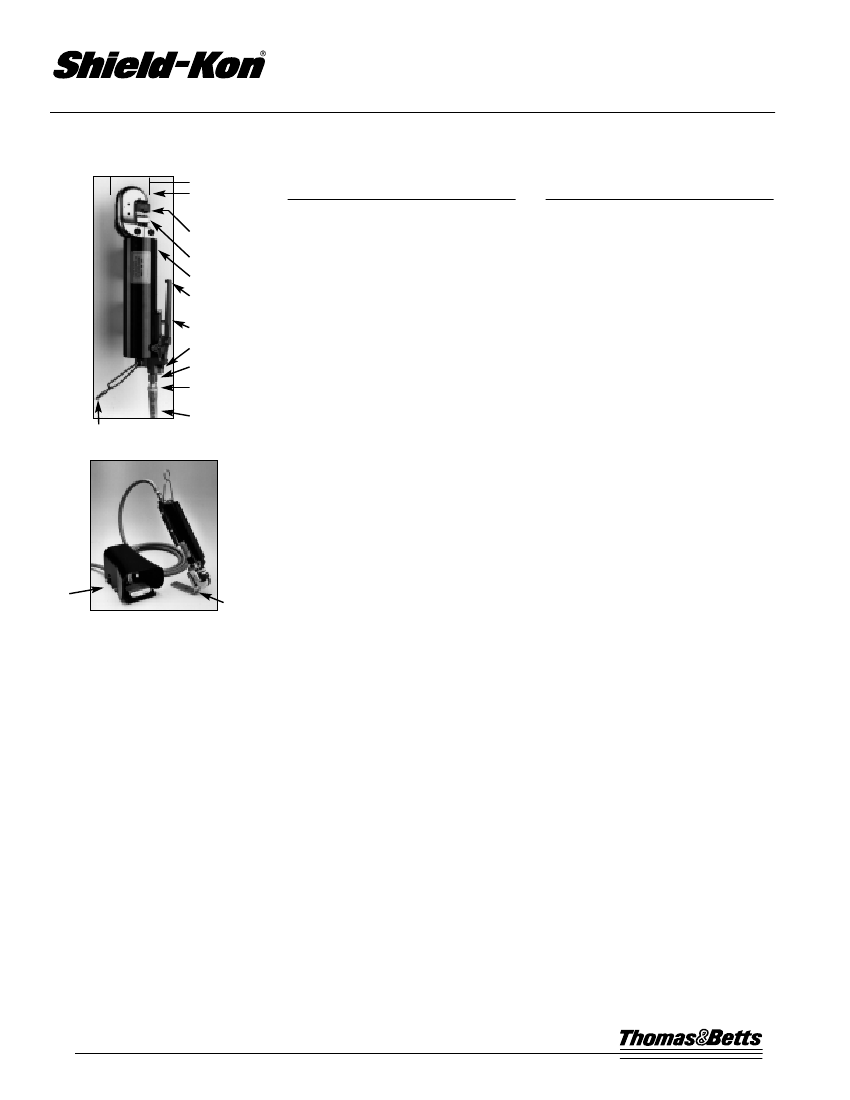

“13300” Portable Pneumatic
Crimping Tool
Installs RSK Series wrap-around connectors
and ground wire to shielded cable in sec-
onds
• Accepts 13 color-coded precision
wrap-around installing dies
• Lightweight, compact, portable or bail-
mounted
• Bench mountable option
• Applicable installations meet MIL-F-
21608
Specifications
Operating Air Pressure*: 120 psi* (8.3
Bar) max.
Output Force (at 120 psi): 1250 lb. (567
kg)
Ram Stroke:
1
⁄
2
in. (1.3 cm) minimum
Weight: 3
1
⁄
4
lb. (1.4 kg)
Finish: Anodize & Nickel
Air Hose: 8 ft. (2.44 m.)
Air Hose Coupler: Hansen “13”
* Actual operating pressure required is
60-80 psi (4.1-5.5 Bar.)
Operation
Operation is quick and easy; however,
you must follow the detailed instructions
enclosed with the 13300 tool. Briefly, this
is what you do:
1. Select the proper die set and install it
into the tool. Refer to Table on page
P3).
2. Select the proper connector and posi-
tion it in the dies.
3. Insert the ground wire(s) and shielded
cable in the connector.
4. Squeeze the trigger to complete the
installation.
Warning: Keep hands clear of dies to
avoid injury.
Performance Specification for
Shield-Kon
®
RSK Connectors
Construction
Material: Copper conforming to CDA No.
110
Finish: Electro-deposited tin in accor-
dance with MIL-T-10727A
Insulation: Type A Mylar* polyester film,
color-coded for size identification
* DuPont reg. trademark
Test Criteria
Shield-Kon RSK connectors meet the
requirements of MIL-F-21608 for the fol-
lowing environmental and functional cri-
teria:
Voltage drop: 9 millivolts maximum at 1
ampere after environmental exposure
Insulation dielectric strength: 500 VRMS
at 60 Hz for one minute
Temperature Cycling: Between the limits
of -65 degrees C and +125 degrees C
Vibration: .03 inch double amplitude
between 10 and 55 Hz for 6 hours on
each of two axis
Pullout strength: 15 pounds minimum for
22 AWG, and 19 pounds min. for 20
AWG
Corrosion resistance: 48 hours in 5%
salt fog
In addition, hypot tests have shown that
the cable manufacturers’ specified work-
ing voltage rating is maintained after the
installation of Shield-Kon RSK connec-
tors. It is, however, still advisable to
evaluate the suitability of these connec-
tors and verify their performance for the
particular application.
Trigger
Trigger Safety
Valve
Air Hose Coupler
(Hansen “13”)
Air Hose
Bail for Overhead
Suspension
foot
controller
mounting
bracket
13301 Bench Mounting Kit Converts
Easily to Foot Control
The “13300” tool may be converted easily
from a hand actuated type to a foot actuated
type by the addition of the bench mounting kit,
Cat. No. 13301. The kit contains the foot con-
troller, mounting bracket, and all other
required hardware.
Thomas & Betts Electronics/OEM Division Tel: 901-252-5000 Fax: 901-252-1312
