511-7.3728-BBE10010 datasheet, PDF

Datasheet> All Categories > Passive components> Crystal/resonator> 511-7.3728-BBE10010

511-7.3728-BBE10010: DescriptionParallel - Fundamental Quartz Crystal, 7.3728MHz Nom, ROHS COMPLIANT, SMD, 2 PIN; CategoryPassive components Crystal/resonator; File Size188KB，2 Pages; ManufacturerFOX [Fox Electronics]; Environmental Compliance

Download Datasheet Parametric View All

511-7.3728-BBE10010 Overview

Parallel - Fundamental Quartz Crystal, 7.3728MHz Nom, ROHS COMPLIANT, SMD, 2 PIN

511-7.3728-BBE10010 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	FOX [Fox Electronics]
package instruction	ROHS COMPLIANT, SMD, 2 PIN
Reach Compliance Code	compliant
Other features	TAPE AND REEL
Ageing	5 PPM/YEAR
Crystal/Resonator Type	PARALLEL - FUNDAMENTAL
Drive level	100 µW
frequency stability	0.005%
frequency tolerance	50 ppm
JESD-609 code	e4
load capacitance	10 pF
Manufacturer's serial number	FEG
Installation features	SURFACE MOUNT
Nominal operating frequency	7.3728 MHz
Maximum operating temperature	70 °C
Minimum operating temperature	-10 °C
physical size	L8.0XB4.5XH2.0 (mm)/L0.315XB0.177XH0.079 (inch)
Series resistance	110 Ω
surface mount	YES
Terminal surface	Gold (Au)
Base Number Matches	1

Preview

Download Datasheet

View All

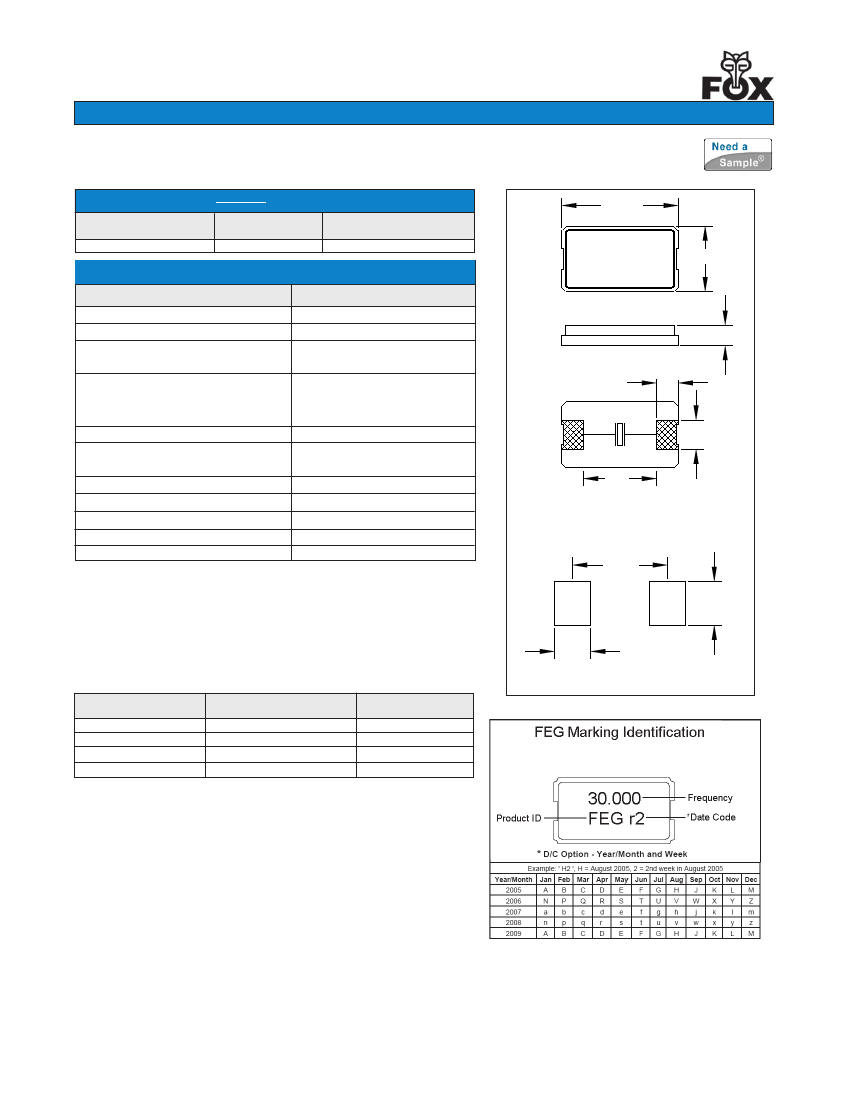

Glass Seal SMD Crystal

Model: FEG Series

Page 1 of 2

RoHS Compliant

Rev. 12/5/2007

http://www.foxonline.com/need_a_sample.htm

• PART NUMBER

Learn More - Internet Required

Part Number

511-Frequency-xxxxx

Model Number

FEG

8 ±0.3

7.3728 ~ 80.000

Frequency Range (MHz)

M a rkin g A re a

4 .5 ±0.3

• STANDARD SPECIFICATIONS

PARAMETERS

Frequency Range

(Fo)

Frequency Tolerance @ 25ºC

Frequency Stability, ref @ 25ºC

Over Operating Temp Range

Temperature Range

Operating (T

OPR

)

Storage

STG

)

Shunt Capacitance

(Co)

Load Capacitance

)

Drive Level

Aging per year

Maximum Soldering Temp / Time

Moisture Sensitivity Level (MSL)

Termination Finish

MAX

(unless otherwise noted)

7.3728 ~ 80.000 MHz

±50 PPM

10ºC ~ +70ºC

-40ºC ~ +85ºC

7 pF

10 pF ~ Series

(Customer Specified)

0.1 mW

±5 PPM

260ºC / 10 Seconds

2 .0 M ax

1 .5

2 .0

R e co m m e nded

S o ld e r P a d Layout

6 .5

2 .5

All dimensions are in millimeters.

Other stabilities & operating temperature ranges available.

Note: Dimensional drawing is for reference to critical specifications defined by size measure-

ments. Certain non-critical visual attributes, such as side castellations, reference pin shape, etc.

may vary.

The above specifiactions, having been carefully prepared and checked, is believed to be ac-

curate at the time of publication: however, no responsibility is assumed by Fox Electronics for

inaccuracies.

Frequency Range

(MHz)

7.3728 ~ 10.000

10.000+ ~ 12.000

12.000+ ~ 37.500

37.500+ ~ 80.000

Operating Mode

Fundamental

3rd OT

Max ESR

Ω

110

FOXElectronics

5570 Enterprise Parkway Fort Myers, Florida 33905 USA +1.239.693.0099 FAX +1.239.693.1554

http://www.foxonline.com

EMEA

Tel/Fax: +44 .1767.312632 |

Asia

Hong Kong Tel: +852.2854.4285 Fax +852.2854.4282 |

Taiwan

Tel: +886.2.22073427 Fax +886.2.22073486

Japan

Tel: +81.3.3374/2079 Fax: +81.3.3374.5221
