IDT39C01CPB datasheet, PDF - EEWORLD Datasheet

IDT39C01CPB: DescriptionBit-Slice Processor, 4-Bit, CMOS, PDIP40, 0.600 INCH, PLASTIC, DIP-40; CategoryThe embedded processor and controller Microcontrollers and processors; File Size470KB，15 Pages; ManufacturerIDT (Integrated Device Technology)

Download Datasheet Parametric View All

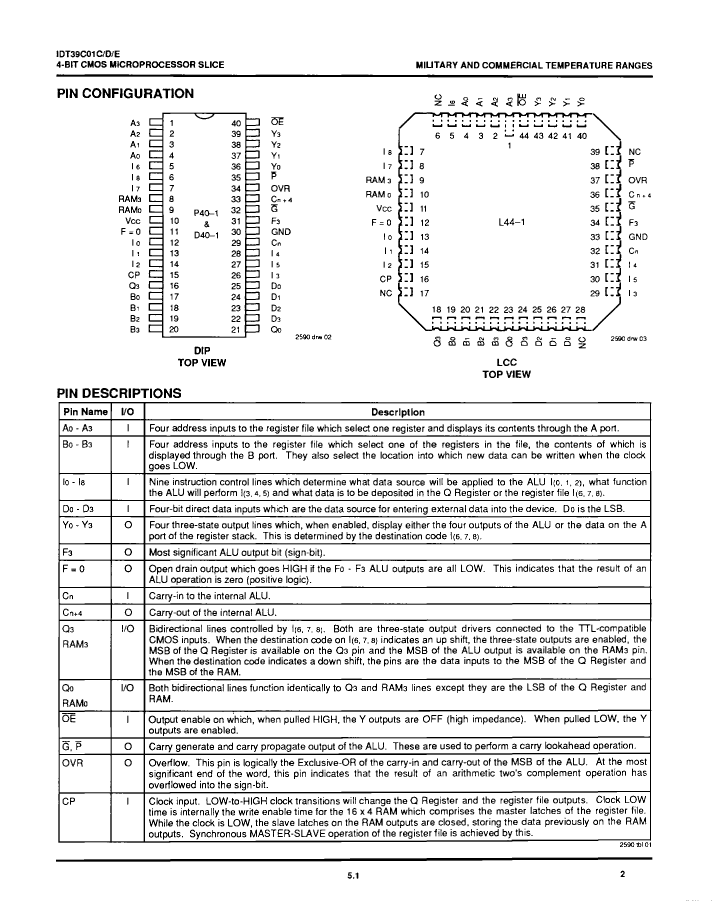

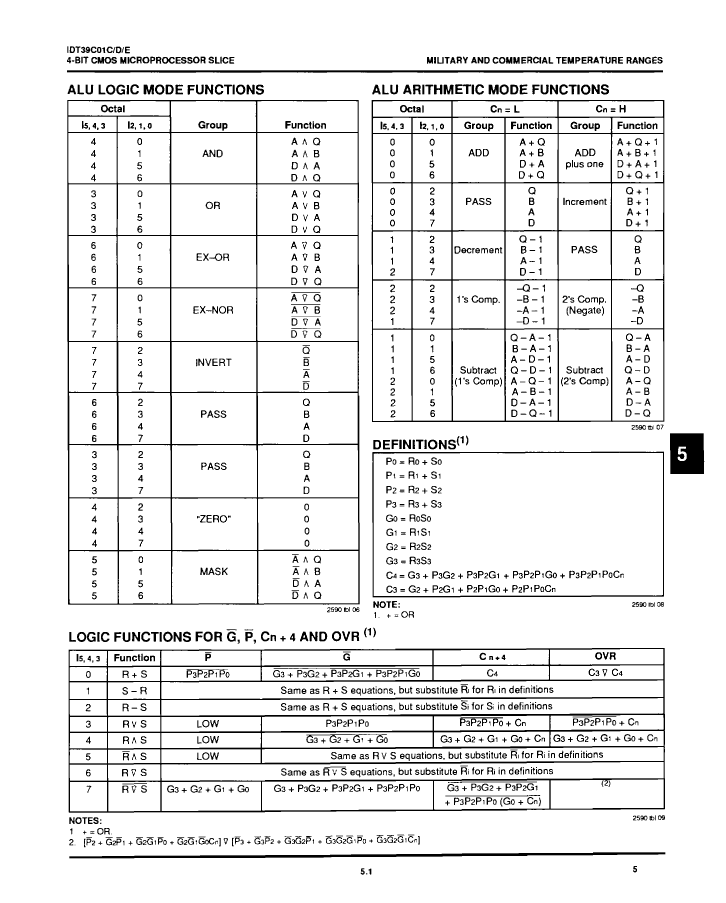

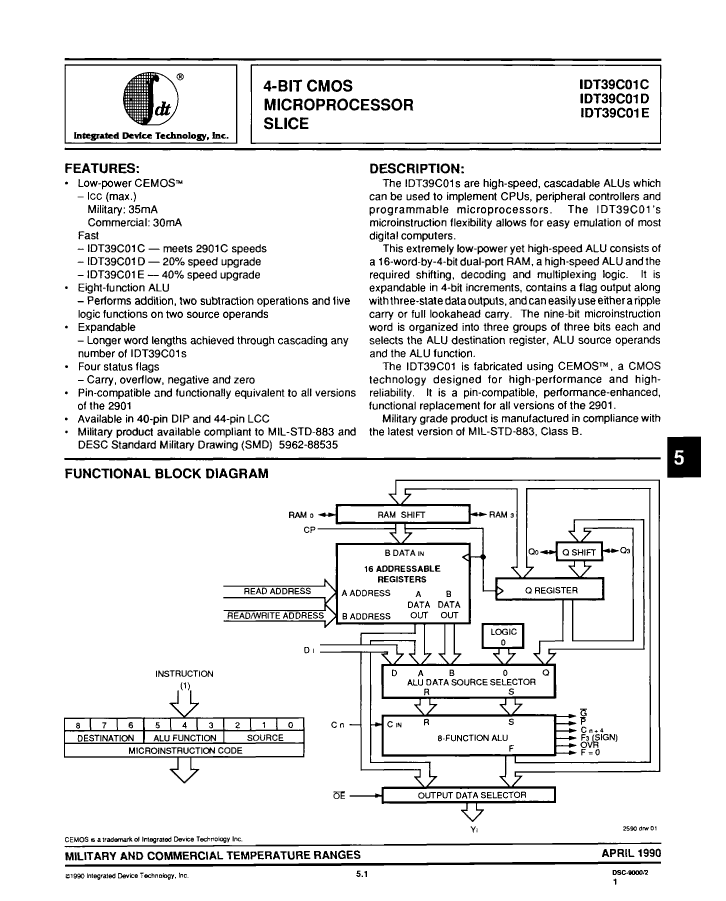

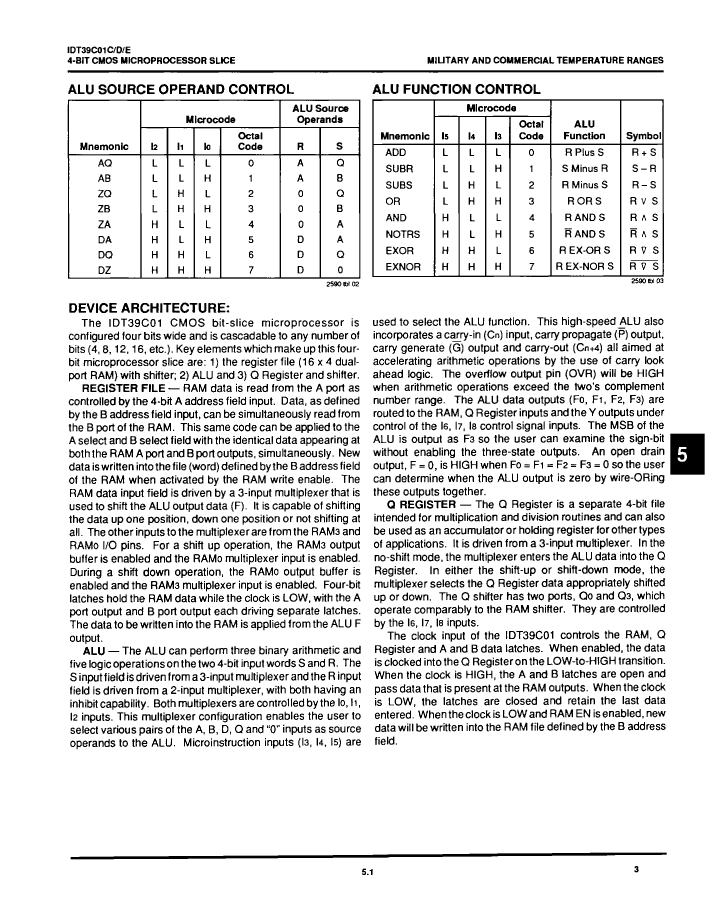

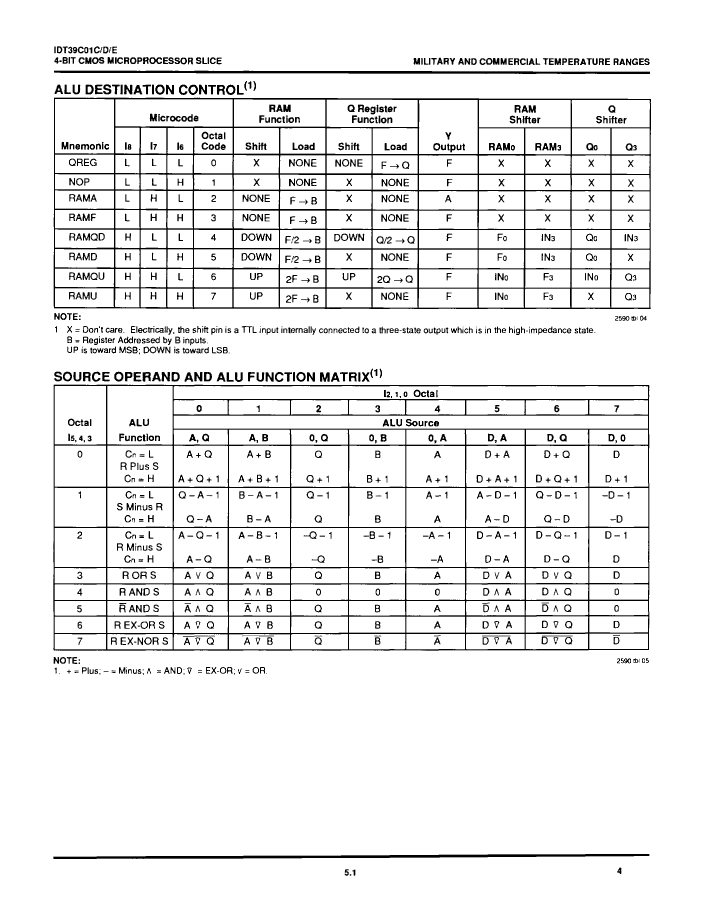

IDT39C01CPB Overview

Bit-Slice Processor, 4-Bit, CMOS, PDIP40, 0.600 INCH, PLASTIC, DIP-40

Parameter Name	Attribute value
Parts packaging code	DIP
package instruction	DIP,
Contacts	40
Reach Compliance Code	unknown
ECCN code	3A001.A.2.C
maximum clock frequency	31 MHz
External data bus width	4
JESD-30 code	R-PDIP-T40
JESD-609 code	e0
length	52.07 mm
Number of terminals	40
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package body material	PLASTIC/EPOXY
encapsulated code	DIP
Package shape	RECTANGULAR
Package form	IN-LINE
Certification status	Not Qualified
Maximum seat height	4.699 mm
Maximum supply voltage	5.5 V
Minimum supply voltage	4.5 V
Nominal supply voltage	5 V
surface mount	NO
technology	CMOS
Temperature level	MILITARY
Terminal surface	TIN LEAD
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
width	15.24 mm
uPs/uCs/peripheral integrated circuit type	BIT-SLICE MICROPROCESSOR
Base Number Matches	1
