FUJITSU SEMICONDUCTOR

DATA SHEET

DS07-12545-1E

8-bit Proprietary Microcontroller

CMOS

MC-8L MB89960 Series

MB89965/P965A/F969A/

MB89PV960

DESCRIPTION

The MB89960 series is a single-chip microcontroller that utilizes the F

MC-8L core for low voltage and high speed

performance. The microcontroller contains a range of peripheral functions including timers, a serial interface, I

interface, A/D converter, and external interrupts. The internal I

C interface complies with the SM bus standard

and supports an SM bus battery controller.

FEATURES

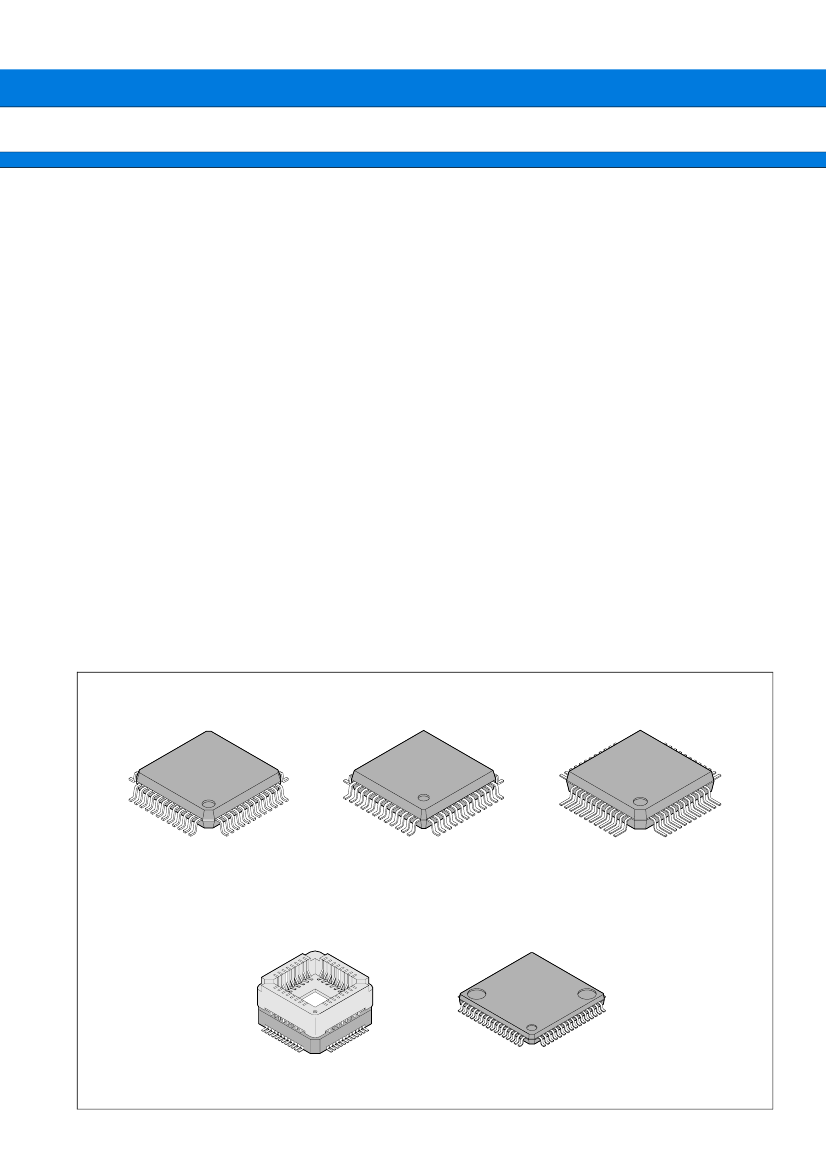

• Range of package options

• QFP and MQFP packages (0.8 mm pitch)

• LQFP package (0.5 mm and 0.65 mm pitch)

•

High speed operation at low voltage

Minimum instruction execution time

0.4

µs

(for a 10 MHz oscillation)

•

MC-8L CPU core

Instruction set optimized for controller applications

• Multiplication and division instructions

• 16-bit arithmetic operations

• Bit test branch instructions

• Bit manipulation instructions, etc.

•

Dual-clock control system

• Main clock : 10 MHz max.

(Four speed settings available, oscillation halts in sub-clock mode)

• Sub-clock : 32.768 kHz (Operation clock for sub-clock mode)

•

Four channels

8/16-bit timer/counter (8-bit

2 channels or 16-bit

1 channel)

21-bit timebase timer

Clock prescaler (15-bit)

•

Serial I/O

Selectable transfer format (MSB-first or LSB-first) supports communications with a wide range of devices.

•

A/D converter

10-bit

4 channels

MB89960 Related Products

	MB89960	E712545	MB89965	MB89F969A	MB89P965A	MB89PV960	MB8996x
Description	8-bit Proprietary Microcontroller	8-bit Proprietary Microcontroller	8-bit Proprietary Microcontroller	8-bit Proprietary Microcontroller	8-bit Proprietary Microcontroller	8-bit Proprietary Microcontroller	8-bit Proprietary Microcontroller
