36505-0021 datasheet, PDF - EEWORLD Datasheet

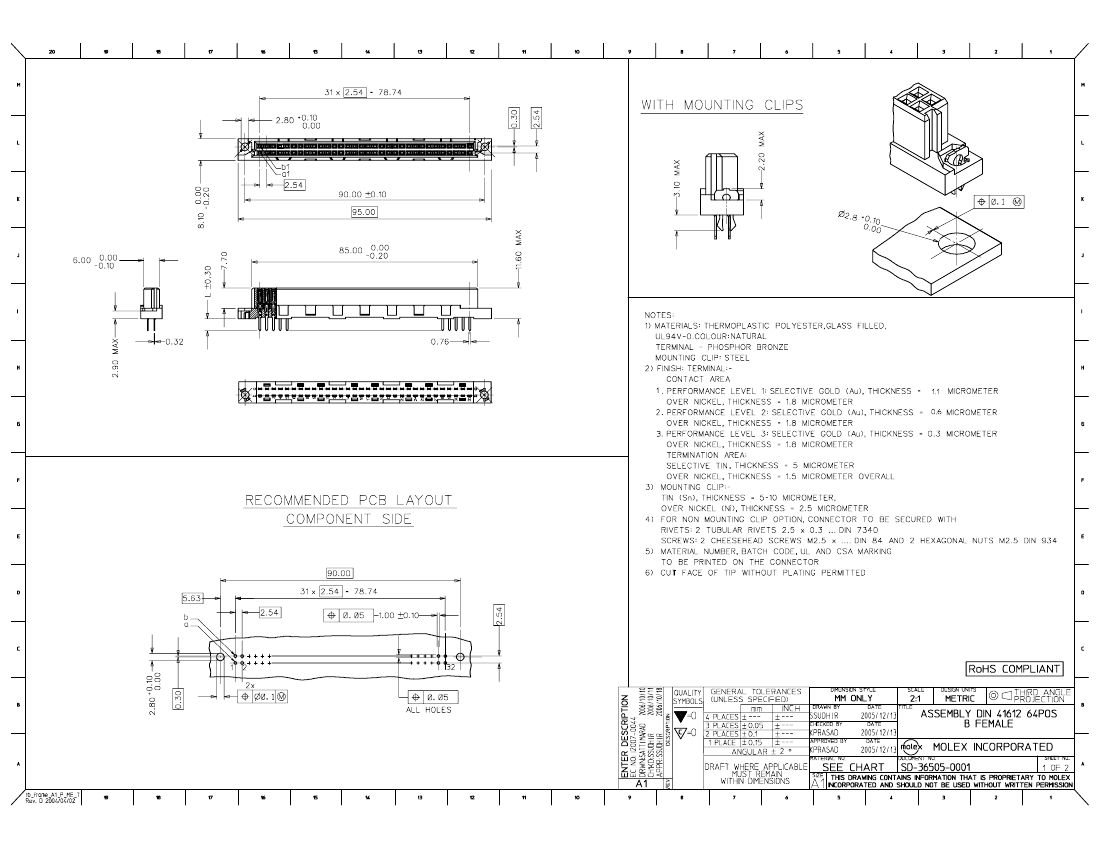

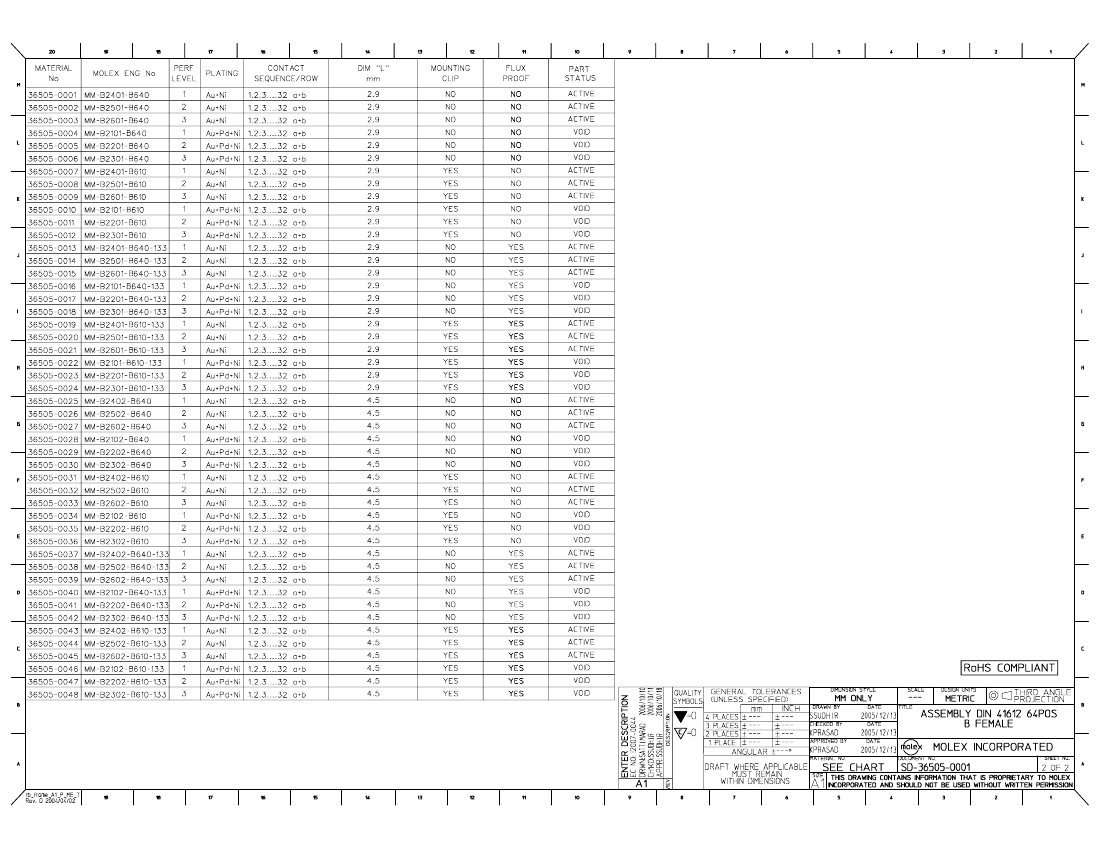

36505-0021: DescriptionBoard Euro Connector, 64 Contact(s), 2 Row(s), Straight, 0.1 inch Pitch, Solder Terminal, Hole .099-.111, Natural Insulator; CategoryThe connector The connector; File Size225KB，2 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home

Download Datasheet Parametric View All

36505-0021 Overview

Board Euro Connector, 64 Contact(s), 2 Row(s), Straight, 0.1 inch Pitch, Solder Terminal, Hole .099-.111, Natural Insulator

Parameter Name	Attribute value
Maker	Molex
Reach Compliance Code	unknown
body width	0.319 inch
subject depth	0.457 inch
body length	3.74 inch
Connector type	BOARD EURO CONNECTOR
Contact completed and terminated	TIN OVER NICKEL
Contact material	PHOSPHOR BRONZE
Contact style	SQ PIN-SKT
DIN compliance	YES
Insulator color	NATURAL
Manufacturer's serial number	36505
Plug contact pitch	0.1 inch
Match contact row spacing	0.1 inch
Installation option 1	HOLE .099-.111
Installation option 2	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Loaded row name	A,B
PCB row number	2
Number of rows loaded	2
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.54 mm
Guideline	UL
reliability	COMMERCIAL
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	64
Base Number Matches	1
