IAC10/32-A datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > LED optoelectronic/LED> photoelectric> IAC10/32-A

IAC10/32-A: DescriptionTransistor Output SSR, 1-Channel, ROHS COMPLIANT PACKAGE-5; CategoryLED optoelectronic/LED photoelectric; File Size146KB，5 Pages; ManufacturerPanasonic; Websitehttp://www.panasonic.co.jp/semicon/e-index.html; Environmental Compliance

Download Datasheet Parametric Compare View All

IAC10/32-A Overview

Transistor Output SSR, 1-Channel, ROHS COMPLIANT PACKAGE-5

IAC10/32-A Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Panasonic
package instruction	ROHS COMPLIANT PACKAGE-5
Reach Compliance Code	unknown
Other features	UL APPROVED
Configuration	SINGLE WITH OPTOCOUPLER AC INPUT-TRANSISTOR OUTPUT
Maximum forward current	0.005 A
Number of components	1
Maximum on-state current	0.025 A
Maximum operating temperature	80 °C
Minimum operating temperature	-30 °C
Optoelectronic device types	TRANSISTOR OUTPUT SSR
Base Number Matches	1

Preview

Download Datasheet

View All

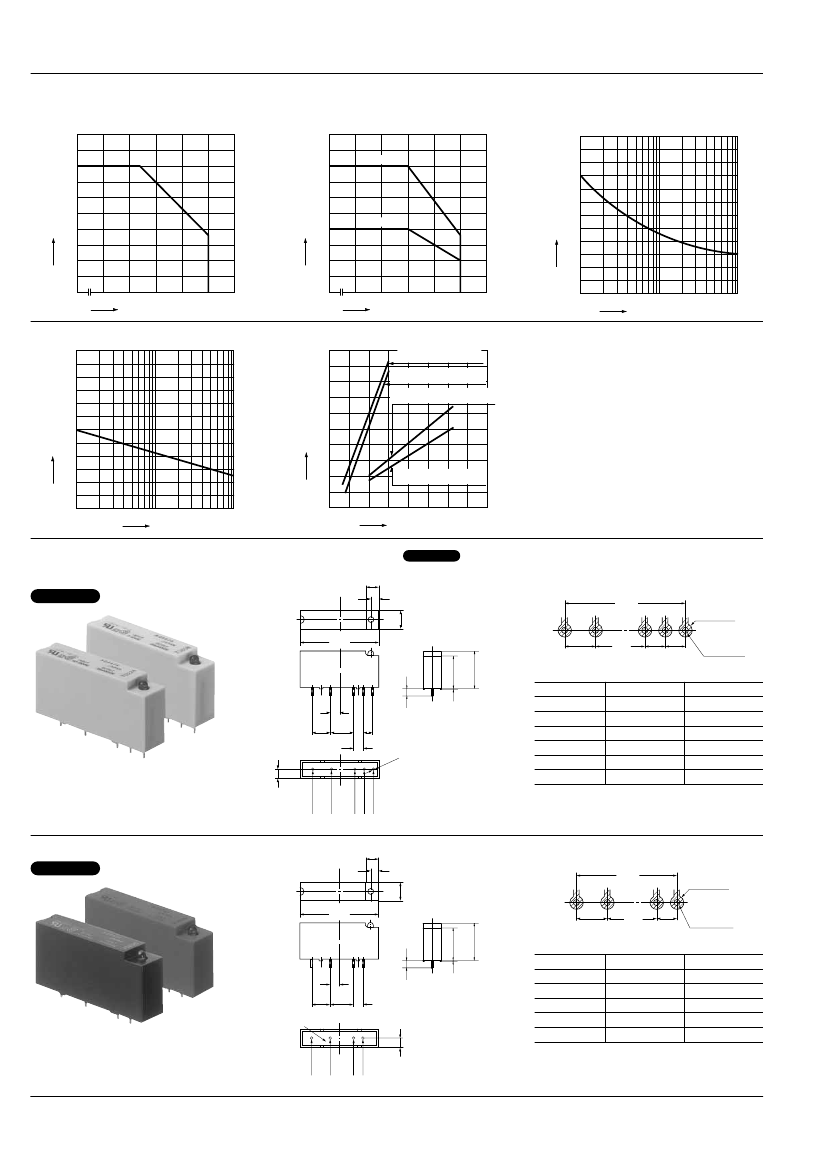

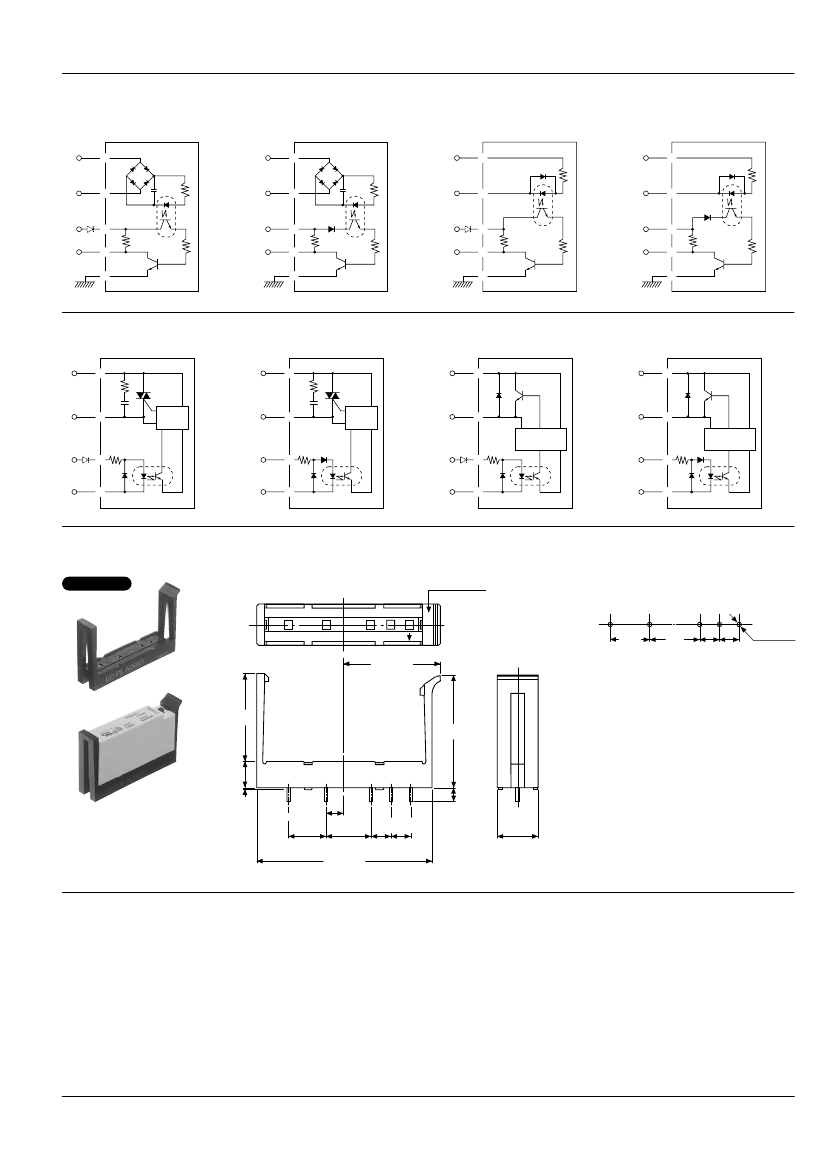

I/O

Input/output relays for

interface between

the CPU and the load

I/O-RELAYS

TYPICAL APPLICATIONS

1. Optimum for minicomputer and

microcomputer use, and for feed back

control process control systems.

Robot, NC machine, Automatic

Assembling machine.

2. Programmable controllers controls for

motors, solenoids and solenoid valves.

FEATURES

• Input and output modules for

interfacing between CPU and

external input devices or loads

IAC: AC input (yellow)

OAC: AC output (black)

IDC: DC input (white)

ODC: DC output (red)

• Excellent transient noise immunity

• Breakdown voltage: 4,000 V between

input and output

• Zero-cross switching for reducing

EMI

• LED operation indication types

available

Compliance with RoHS Directive

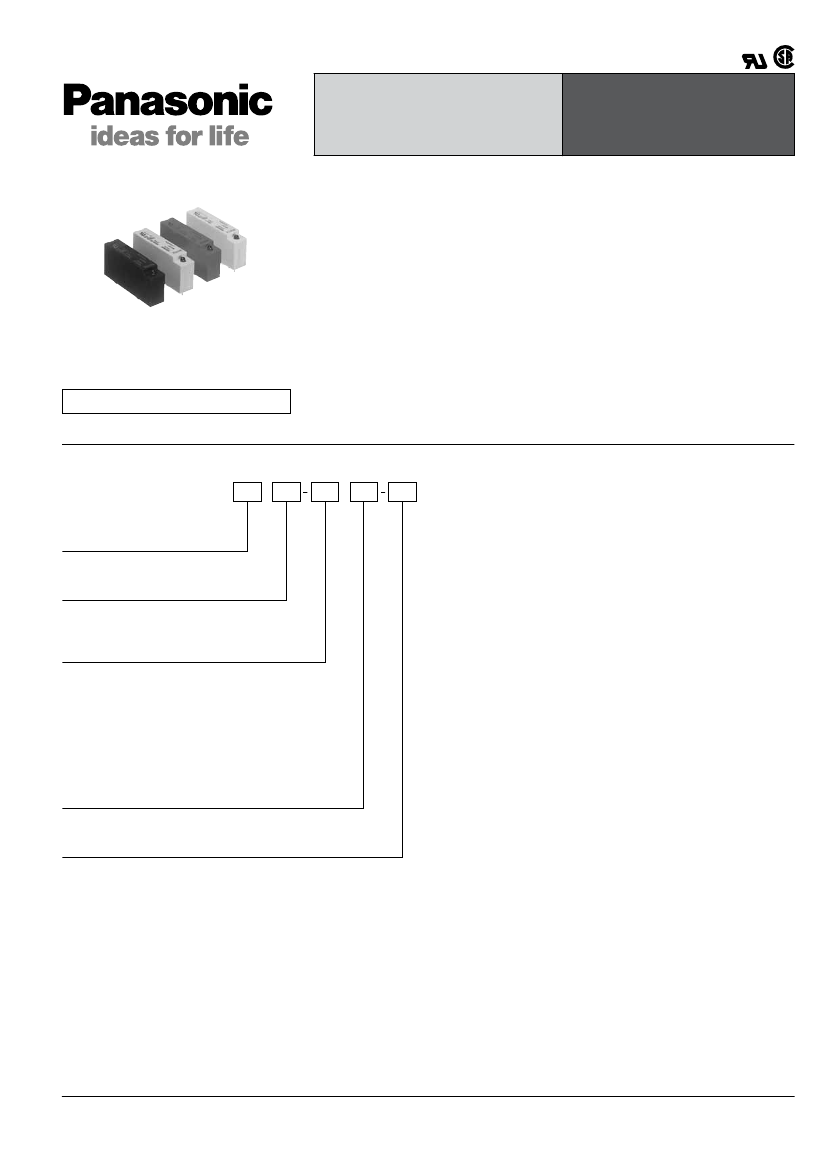

ORDERING INFORMATION

Input or Output

I: Input module

O: Output module

AC or DC

AC: AC input or AC output

DC: DC input or DC output

Logic supply or control voltage

3/15: 3 to 15 V DC

4/15: 4 to 15 V DC

10/32: 10 to 32 V DC

Input or Output Voltage

Input

Nil: 80 to 140 V AC

3 to 32 C DC

A: 160 to 280 V AC

Output

Nil: 75 to 125 V AC

3 to 60 V DC

A: 75 to 250 V AC

10 to 200 V DC

Operation indication

Nil: No operation indication

L: Operation indication

IAC10/32-A Related Products

	IAC10/32-A	IAC4/15-A	IAC10/32-AL	IDC10/32-L	IAC10/32-L
Description	Transistor Output SSR, 1-Channel, ROHS COMPLIANT PACKAGE-5	Transistor Output SSR, 1-Channel, ROHS COMPLIANT PACKAGE-5	Transistor Output SSR, 1-Channel, ROHS COMPLIANT PACKAGE-5	Transistor Output SSR, 1-Channel, ROHS COMPLIANT PACKAGE-5	Transistor Output SSR, 1-Channel, ROHS COMPLIANT PACKAGE-5
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to
package instruction	ROHS COMPLIANT PACKAGE-5	ROHS COMPLIANT PACKAGE-5	ROHS COMPLIANT PACKAGE-5	ROHS COMPLIANT PACKAGE-5	ROHS COMPLIANT PACKAGE-5
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown
Other features	UL APPROVED	UL APPROVED	UL APPROVED	UL APPROVED	UL APPROVED
Configuration	SINGLE WITH OPTOCOUPLER AC INPUT-TRANSISTOR OUTPUT	SINGLE WITH OPTOCOUPLER AC INPUT-TRANSISTOR OUTPUT	SINGLE WITH OPTOCOUPLER AC INPUT-TRANSISTOR OUTPUT	SINGLE WITH OPTOCOUPLER TRANSISTOR OUTPUT	SINGLE WITH OPTOCOUPLER AC INPUT-TRANSISTOR OUTPUT
Maximum forward current	0.005 A	0.005 A	0.005 A	0.02 A	0.005 A
Number of components	1	1	1	1	1
Maximum on-state current	0.025 A	0.025 A	0.025 A	0.025 A	0.025 A
Maximum operating temperature	80 °C	80 °C	80 °C	80 °C	80 °C
Minimum operating temperature	-30 °C	-30 °C	-30 °C	-30 °C	-30 °C
Optoelectronic device types	TRANSISTOR OUTPUT SSR	TRANSISTOR OUTPUT SSR	TRANSISTOR OUTPUT SSR	TRANSISTOR OUTPUT SSR	TRANSISTOR OUTPUT SSR
Maker	Panasonic	Panasonic	Panasonic	-	Panasonic
Base Number Matches	1	1	1	1	-
