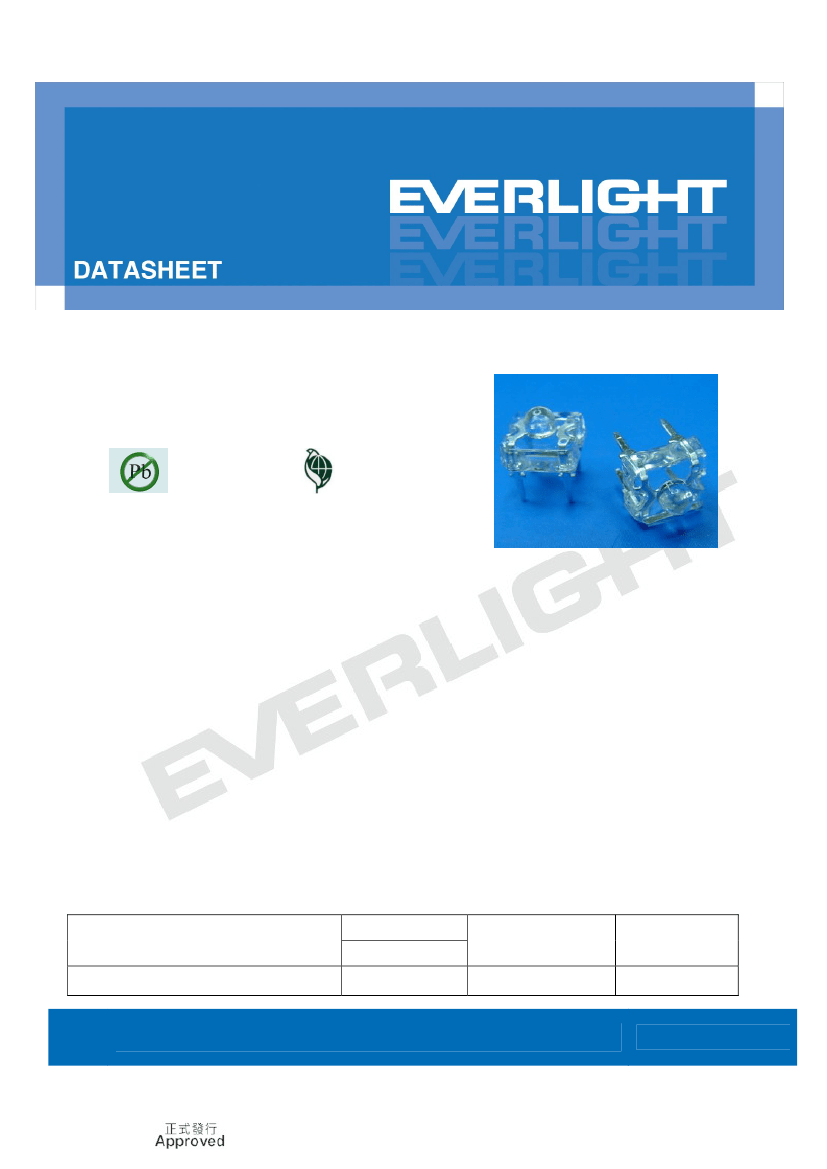

3mm Advanced Super Flux LEDs
33-01-C44-RRFC-D1T1U1CH-AM
Lead (Pb) Free Product - RoHS Compliant
Feature
Lead-Free
RoHS compliant.
Low profile.
Uniform color
High flux output
Colorless clear resin.
Brightness: 7150 to 14250 mlm at 70mA.
Qualification according to AEC-Q101.
Packaged in tubes for use with automatic insertion equipment.
Compliance with EU REACH.
Compliance Halogen Free .(Br <900 ppm ,Cl <900 ppm , Br+Cl < 1500 ppm).
Applications
Automotive lighting
Electronic Signs and Signals.
Special Lighting application
Device Selection Guide
LED Part No.
33-01-C44-RRFC-D1T1U1CH-AM
1
Copyright © 2010, Everlight All Rights Reserved. Release Date : Feb.25. 2014 IssueNo
DPE-0000148.
Rev.3
Chip
Material
AlGaInP
Emitted Color
Red
Resin Color
Water Clear
www.everlight.com
Revision
:3
Release Date:2014-03-04 18:14:39.0
Expired Period: Forever
LifecyclePhase:
DATASHEET
P-LED
33-01-C44-RRFC-D1T1U1CH-AM
Table of Content
Product Nomenclature
Absolute Maximum Ratings (Ta=25℃)
Electro-Optical Characteristics (Ta=25℃)
Bin Range of Dominant Wavelength (Ta=25℃)
Bin Range of Forward Voltage (Ta=25℃)
Bin Range of Total Flux (Ta=25℃)
Typical Electro-Optical Characteristics Curves
Package Dimensions
Inner and Outer Label Explanation
Antistatic Packing Materials Tube and Standard Boxes
Precautions
Revision History
Page
3
4
5
6
7
8
9
11
12
13
14
18
2
Copyright © 2010, Everlight All Rights Reserved. Release Date : Feb.25, 2014 IssueNo
DPE-0000148.
Rev.3
www.everlight.com
Revision
:3
Release Date:2014-03-04 18:14:39.0
Expired Period: Forever
LifecyclePhase:
DATASHEET
P-LED
33-01-C44-RRFC-D1T1U1CH-AM
Product Nomenclature
33
1
-
01
2
-
C5
3
4
4
-
RRF
5
C
6
-
D1
7
T1U1
8
C
9
H
10
-
AM
11
The product name is designated as below:
1.
2.
3
4.
5
6.
7.
8.
9.
Product type
Lead-frame type
Angle
Product pasted without Zener
Chip code
Resin color
Wavelength
Power &Total Flux
Range of Forward Voltage specification
10.
Operation current
11
Application
3
Copyright © 2010, Everlight All Rights Reserved. Release Date : Feb.25, 2014 IssueNo
DPE-0000148.
Rev.3
www.everlight.com
Revision
:3
Release Date:2014-03-04 18:14:39.0
Expired Period: Forever
LifecyclePhase:
DATASHEET
P-LED
33-01-C44-RRFC-D1T1U1CH-AM
Absolute Maximum Ratings (Ta=25℃)
Parameter
Reverse Voltage
Continuous Forward Current
Peak Forward Current
(Duty 1/10 @1KHz)
Power Dissipation
LED Junction Temperature
Operating Temperature
Storage Temperature
Electrostatic Discharge
Soldering Temperature
Symbol
V
R
I
F
I
FP
Pd
T
j
T
opr
Rating
5
70
120
220
115
-40 ~ +100
-40 ~ +110
2000
Unit
V
mA
mA
mW
℃
℃
℃
V
T
stg
ESD
T
sol
Wave Soldering : 260
℃
for 5 sec
Hand Soldering : 300
℃
for 3 sec
4
Copyright © 2010, Everlight All Rights Reserved. Release Date : Feb.25, 2014 IssueNo
DPE-0000148.
Rev.3
www.everlight.com
Revision
:3
Release Date:2014-03-04 18:14:39.0
Expired Period: Forever
LifecyclePhase:
DATASHEET
P-LED
33-01-C44-RRFC-D1T1U1CH-AM
Electro-Optical Characteristics (Ta=25℃)
Parameter
Luminous Intensity
Peak Wavelength
Dominant
Wavelength
Spectrum Radiation
Bandwidth
Viewing Angle
Forward Voltage
Reverse Current
Symbol
Min.
7150
-----
620
-----
-----
1.9
-----
Typ.
-----
631
-----
18
115
-----
-----
Max.
14250
-----
628
-----
-----
2.9
10
Unit
mlm
nm
nm
nm
deg
V
μA
Condition
I
F
=70mA
I
F
=70mA
I
F
=70mA
I
F
=70mA
I
F
=70mA
I
F
=70mA
V
R
=10V
Φ
V
λ
p
λ
d
Δλ
2θ
1/2
V
F
I
R
Note:
1. Tolerance of Total Flux: ±11%
2. Tolerance of Dominant Wavelength: ±1nm
3. Tolerance of Forward Voltage: ±0.1V
5
Copyright © 2010, Everlight All Rights Reserved. Release Date : Feb.25, 2014 IssueNo
DPE-0000148.
Rev.3
www.everlight.com
Revision
:3
Release Date:2014-03-04 18:14:39.0
Expired Period: Forever
LifecyclePhase:
