IRG4PC30S-EPBF

Description
Insulated Gate Bipolar Transistor, 34A I(C), 600V V(BR)CES, N-Channel, TO-247AD, TO-247AD, 3 PIN
CategoryDiscrete semiconductor    The transistor
File Size123KB,9 Pages
ManufacturerInternational Rectifier ( Infineon )
Websitehttp://www.irf.com/
Environmental Compliance
Download Datasheet Parametric Compare View All

IRG4PC30S-EPBF Overview

Insulated Gate Bipolar Transistor, 34A I(C), 600V V(BR)CES, N-Channel, TO-247AD, TO-247AD, 3 PIN

IRG4PC30S-EPBF Parametric

Parameter NameAttribute value
Is it lead-free?Lead free
Is it Rohs certified?conform to
MakerInternational Rectifier ( Infineon )
Parts packaging codeTO-247AD
package instructionFLANGE MOUNT, R-PSFM-T3
Contacts3
Reach Compliance Codecompliant
Shell connectionCOLLECTOR
Maximum collector current (IC)34 A
Collector-emitter maximum voltage600 V
ConfigurationSINGLE
JEDEC-95 codeTO-247AD
JESD-30 codeR-PSFM-T3
JESD-609 codee3
Number of components1
Number of terminals3
Maximum operating temperature150 °C
Package body materialPLASTIC/EPOXY
Package shapeRECTANGULAR
Package formFLANGE MOUNT
Peak Reflow Temperature (Celsius)250
Polarity/channel typeN-CHANNEL
Certification statusNot Qualified
surface mountNO
Terminal surfaceMATTE TIN OVER NICKEL
Terminal formTHROUGH-HOLE
Terminal locationSINGLE
Maximum time at peak reflow temperature30
transistor applicationsPOWER CONTROL
Transistor component materialsSILICON
Nominal off time (toff)1550 ns
Nominal on time (ton)40 ns
Base Number Matches1
PD - 91586A
IRG4PC30S
INSULATED GATE BIPOLAR TRANSISTOR
Features
• Standard: Optimized for minimum saturation
voltage and low operating frequencies ( < 1kHz)
• Generation 4 IGBT design provides tighter
parameter distribution and higher efficiency than
Generation 3
• Industry standard TO-247AC package
C
Standard Speed IGBT
V
CES
= 600V
G
E
V
CE(on) typ.
=
1.4V
@V
GE
= 15V, I
C
= 18A
n-channel
Benefits
• Generation 4 IGBTs offer highest efficiency available
• IGBTs optimized for specified application conditions
• Designed to be a "drop-in" replacement for equivalent
industry-standard Generation 3 IR IGBTs
TO-247AC
Absolute Maximum Ratings
Parameter
V
CES
I
C
@ T
C
= 25°C
I
C
@ T
C
= 100°C
I
CM
I
LM
V
GE
E
ARV
P
D
@ T
C
= 25°C
P
D
@ T
C
= 100°C
T
J
T
STG
Collector-to-Emitter Breakdown Voltage
Continuous Collector Current
Continuous Collector Current
Pulsed Collector Current
Q
Clamped Inductive Load Current
R
Gate-to-Emitter Voltage
Reverse Voltage Avalanche Energy
S
Maximum Power Dissipation
Maximum Power Dissipation
Operating Junction and
Storage Temperature Range
Soldering Temperature, for 10 seconds
Mounting torque, 6-32 or M3 screw.
Max.
600
34
18
68
68
± 20
10
100
42
-55 to + 150
300 (0.063 in. (1.6mm) from case )
10 lbf•in (1.1N•m)
Units
V
A
V
mJ
W
°C
Thermal Resistance
Parameter
R
θJC
R
θCS
R
θJA
Wt
Junction-to-Case
Case-to-Sink, Flat, Greased Surface
Junction-to-Ambient, typical socket mount
Weight
Typ.
–––
0.24
–––
6 (0.21)
Max.
1.2
–––
40
–––
Units
°C/W
g (oz)
www.irf.com
1
4/15/2000

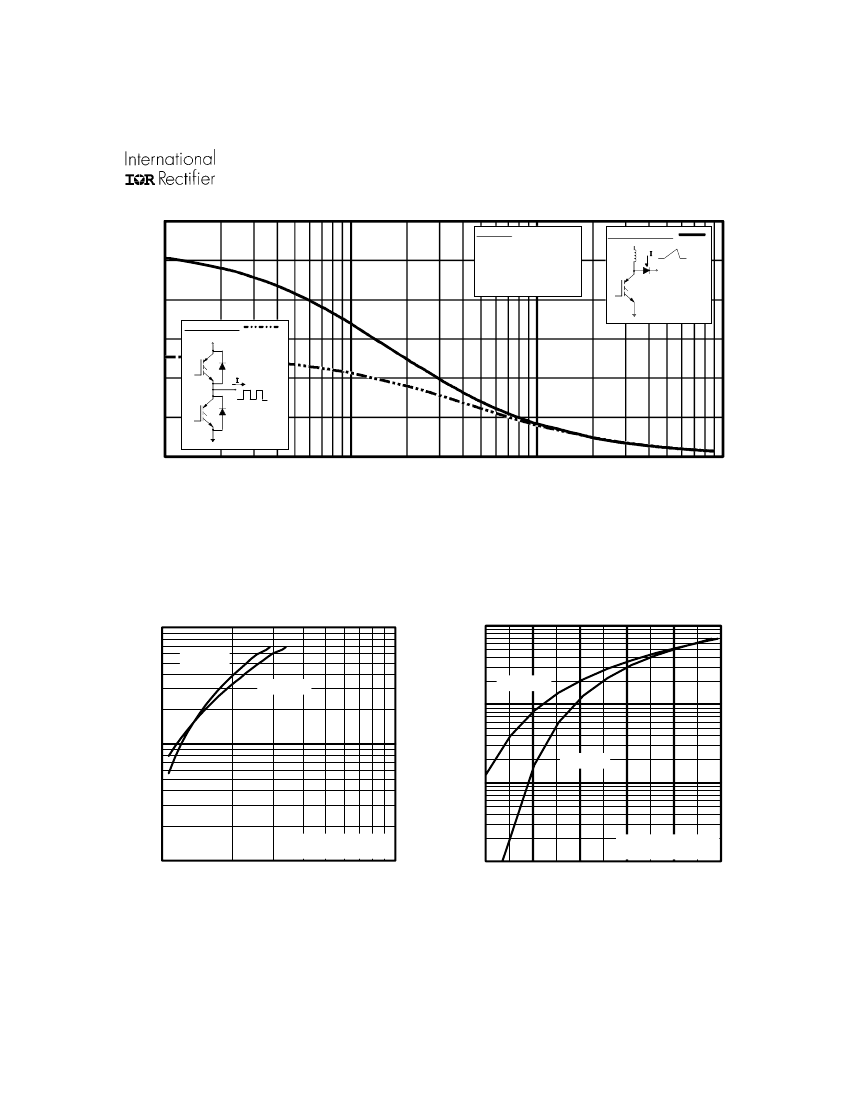

IRG4PC30S-EPBF Related Products

IRG4PC30S-EPBF IRG4PC30S-E
Description Insulated Gate Bipolar Transistor, 34A I(C), 600V V(BR)CES, N-Channel, TO-247AD, TO-247AD, 3 PIN Insulated Gate Bipolar Transistor, 34A I(C), 600V V(BR)CES, N-Channel, TO-247AD, TO-247AD, 3 PIN
Is it lead-free? Lead free Contains lead
Is it Rohs certified? conform to incompatible
Maker International Rectifier ( Infineon ) International Rectifier ( Infineon )
Parts packaging code TO-247AD TO-247AD
package instruction FLANGE MOUNT, R-PSFM-T3 FLANGE MOUNT, R-PSFM-T3
Contacts 3 3
Reach Compliance Code compliant compliant
Shell connection COLLECTOR COLLECTOR
Maximum collector current (IC) 34 A 34 A
Collector-emitter maximum voltage 600 V 600 V
Configuration SINGLE SINGLE
JEDEC-95 code TO-247AD TO-247AD
JESD-30 code R-PSFM-T3 R-PSFM-T3
JESD-609 code e3 e0
Number of components 1 1
Number of terminals 3 3
Maximum operating temperature 150 °C 150 °C
Package body material PLASTIC/EPOXY PLASTIC/EPOXY
Package shape RECTANGULAR RECTANGULAR
Package form FLANGE MOUNT FLANGE MOUNT
Peak Reflow Temperature (Celsius) 250 225
Polarity/channel type N-CHANNEL N-CHANNEL
Certification status Not Qualified Not Qualified
surface mount NO NO
Terminal surface MATTE TIN OVER NICKEL TIN LEAD
Terminal form THROUGH-HOLE THROUGH-HOLE
Terminal location SINGLE SINGLE
Maximum time at peak reflow temperature 30 30
transistor applications POWER CONTROL POWER CONTROL
Transistor component materials SILICON SILICON
Nominal off time (toff) 1550 ns 1550 ns
Nominal on time (ton) 40 ns 40 ns
Base Number Matches 1 1
