L34YDTNR5/7 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > LED optoelectronic/LED> photoelectric> L34YDTNR5/7

L34YDTNR5/7: DescriptionT-1 SINGLE COLOR LED, YELLOW, 3 mm; CategoryLED optoelectronic/LED photoelectric; File Size221KB，5 Pages; ManufacturerKingbright; Websitehttp://www.us.kingbright.com; Environmental Compliance

Download Datasheet Parametric Compare View All

L34YDTNR5/7 Overview

T-1 SINGLE COLOR LED, YELLOW, 3 mm

L34YDTNR5/7 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Kingbright
Reach Compliance Code	unknown
color	YELLOW
Configuration	SINGLE
Maximum forward current	0.03 A
Lens type	DIFFUSED
Nominal luminous intensity	10.0 mcd
Installation features	RADIAL MOUNT
Number of functions	1
Number of terminals	2
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Optoelectronic device types	SINGLE COLOR LED
total height	5 mm
method of packing	TAPE AND REEL
peak wavelength	590 nm
shape	ROUND
size	3 mm
surface mount	NO
T code	T-1
Terminal surface	NOT SPECIFIED
Terminal pitch	5 mm
perspective	60 deg
Base Number Matches	1

Preview

Download Datasheet

View All

TAPE AND REEL LED LAMPS

L34HDTNR254, L34HDTNR5/7

L34IDTNR254, L34IDTNR5/7

L34GDTNR254, L34GDTNR5/7

L34YDTNR254, L34YDTNR5/7

L34ADTNR254, L34ADTNR5/7

BRIGHT RED

HIGH EFFICIENCY RED

GREEN

YELLOW

Features

FOR THE USE OF AUTOMATIC INSERTION

Description

The Bright Red source color devices are made with Gallium

Phosphide Red Light Emitting Diode.

The High Efficiency Red source color devices are made

with Gallium Arsenide Phosphide on Gallium Phosphide

Orange Light Emitting Diode.

The Green source color devices are made with Gallium

Phosphide Green Light Emitting Diode.

The Yellow source color devices are made with Gallium

Arsenide Phosphide on Gallium Phosphide Yellow Light

Emitting Diode.

MACHINE.

5mm FORMED LEAD AND 2.54mm STRAIGHT LEAD.

SPACING

AVAILABLE.

LED LAMPS ALSO AVAILABLE IN

RECTANGULAR

TAPE & REEL PACKAGE.

AMMO

PACKS ALSO AVAILABLE.

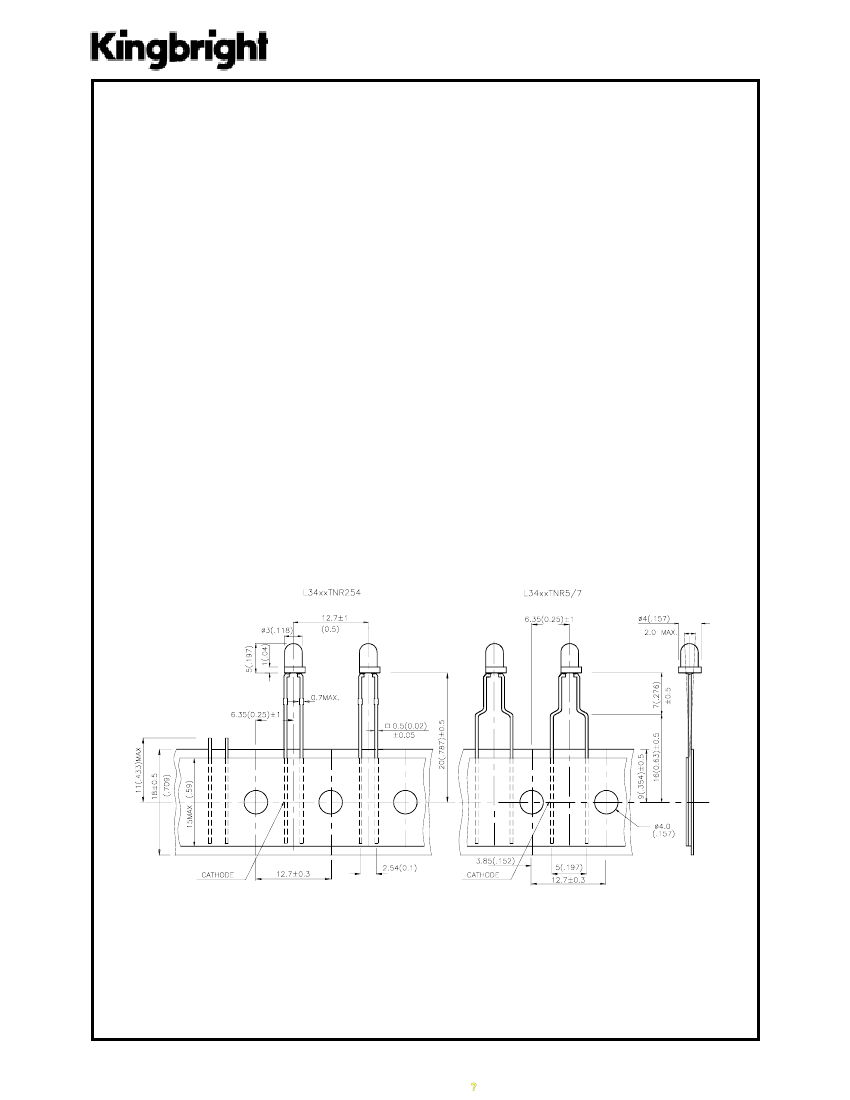

Package Dimensions

Notes:

1. All dimensions are in millimeters (inches).

2. Tolerance is

±0.25(0.01")

unless otherwise noted.

3. Lead spacing is measured where the lead emerge package.

4. Specifications are subject to change without notice.

SPEC NO: CDA0818

APPROVED: J.LU

REV NO: V.1

CHECKED:

Digitally signed by

YANGSHOUFEN

cn=YANGSHOUFEN,

ou=KINGBRIHGT, o=42, c=US

Date: 2001.11.20 08:32:17

+08'00'

Reason: Document is certified

DATE: NOV/17/2001

DRAWN: J.X.FU

PAGE: 1 OF 5

L34YDTNR5/7 Related Products

	L34YDTNR5/7	L34ADTNR254	L34ADTNR5/7	L34IDTNR254	L34YDTNR254	L34GDTNR5/7	L34IDTNR5/7	L34GDTNR254	L34HDTNR254
Description	T-1 SINGLE COLOR LED, YELLOW, 3 mm	Single Color LED, Yellow, Diffused Amber, T-1, 3mm,	T-1 SINGLE COLOR LED, YELLOW, 3 mm	Single Color LED, High Efficiency Red, Diffused Red, T-1, 3mm,	Single Color LED, Yellow, Diffused, T-1, 3mm,	T-1 SINGLE COLOR LED, GREEN, 3 mm	T-1 SINGLE COLOR LED, HIGH EFFICIENCY RED, 3 mm	Single Color LED, Green, Diffused, T-1, 3mm,	Single Color LED, Bright Red, Diffused Red, T-1, 3mm,
Is it lead-free?	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to	conform to	conform to	conform to	conform to
Reach Compliance Code	unknown	compliant	unknown	compliant	compliant	unknown	unknown	compliant	compliant
color	YELLOW	YELLOW	YELLOW	HIGH EFFICIENCY RED	YELLOW	GREEN	HIGH EFFICIENCY RED	GREEN	BRIGHT RED
Configuration	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE
Maximum forward current	0.03 A	0.03 A	0.03 A	0.03 A	0.03 A	0.025 A	0.03 A	0.025 A	0.025 A
Lens type	DIFFUSED	DIFFUSED AMBER	DIFFUSED AMBER	DIFFUSED RED	DIFFUSED	DIFFUSED	DIFFUSED RED	DIFFUSED	DIFFUSED RED
Nominal luminous intensity	10.0 mcd	10.0 mcd	10.0 mcd	25.0 mcd	10.0 mcd	20.0 mcd	25.0 mcd	20.0 mcd	3.0 mcd
Installation features	RADIAL MOUNT	RADIAL MOUNT	RADIAL MOUNT	RADIAL MOUNT	RADIAL MOUNT	RADIAL MOUNT	RADIAL MOUNT	RADIAL MOUNT	RADIAL MOUNT
Number of functions	1	1	1	1	1	1	1	1	1
Number of terminals	2	2	2	2	2	2	2	2	2
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C
Optoelectronic device types	SINGLE COLOR LED	SINGLE COLOR LED	SINGLE COLOR LED	SINGLE COLOR LED	SINGLE COLOR LED	SINGLE COLOR LED	SINGLE COLOR LED	SINGLE COLOR LED	SINGLE COLOR LED
total height	5 mm	5 mm	5 mm	5 mm	5 mm	5 mm	5 mm	5 mm	5 mm
method of packing	TAPE AND REEL	TAPE AND REEL	TAPE AND REEL	TAPE AND REEL	TAPE AND REEL	TAPE AND REEL	TAPE AND REEL	TAPE AND REEL	TAPE AND REEL
peak wavelength	590 nm	590 nm	590 nm	627 nm	590 nm	565 nm	627 nm	565 nm	700 nm
shape	ROUND	ROUND	ROUND	ROUND	ROUND	ROUND	ROUND	ROUND	ROUND
size	3 mm	3 mm	3 mm	3 mm	3 mm	3 mm	3 mm	3 mm	3 mm
surface mount	NO	NO	NO	NO	NO	NO	NO	NO	NO
T code	T-1	T-1	T-1	T-1	T-1	T-1	T-1	T-1	T-1
Terminal pitch	5 mm	2.54 mm	5 mm	2.54 mm	2.54 mm	5 mm	5 mm	2.54 mm	2.54 mm
perspective	60 deg	60 deg	60 deg	60 deg	60 deg	60 deg	60 deg	60 deg	60 deg
Maker	Kingbright	Kingbright	Kingbright	Kingbright	Kingbright	Kingbright	-	Kingbright	Kingbright
Base Number Matches	1	1	1	1	1	1	1	-	-
ECCN code	-	EAR99	-	EAR99	EAR99	-	-	EAR99	EAR99
