PC6-16/3-G1-10,16CP3BDU2-W2 datasheet, PDF

Datasheet> All Categories > The connector> terminals> PC6-16/3-G1-10,16CP3BDU2-W2

PC6-16/3-G1-10,16CP3BDU2-W2: DescriptionBarrier Strip Terminal Block,; CategoryThe connector terminals; File Size86KB，4 Pages; ManufacturerPHOENIX CONTACT; Websitehttps://www.phoenixcontact.com; Environmental Compliance

Download Datasheet Parametric View All

PC6-16/3-G1-10,16CP3BDU2-W2 Overview

Barrier Strip Terminal Block,

PC6-16/3-G1-10,16CP3BDU2-W2 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	PHOENIX CONTACT
Reach Compliance Code	compliant
Terminal and terminal strip types	BARRIER STRIP TERMINAL BLOCK
Base Number Matches	1

Preview

Download Datasheet

View All

https://www.phoenixcontact.com/in/products/1770636

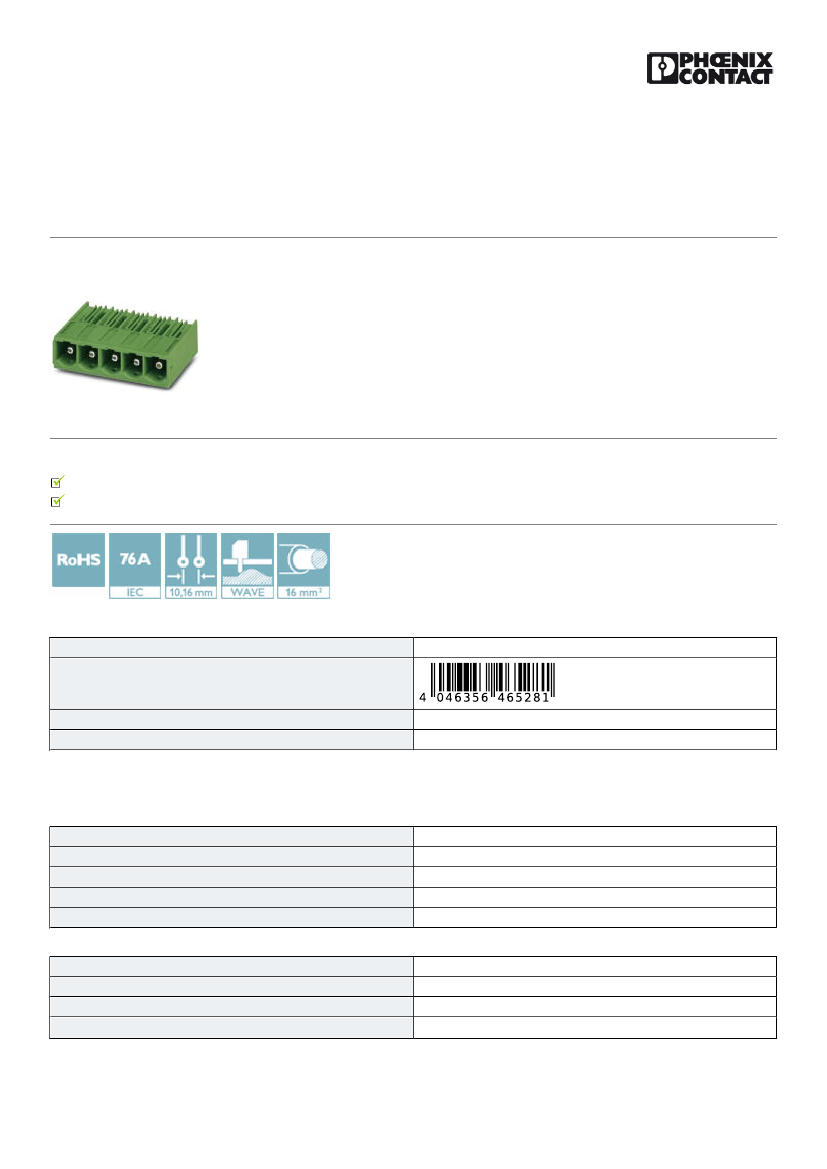

Printed-circuit board connector - PC 6-16/ 3-G1-10,16 CP3BDU2-

W2 - 1770636

Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's

documentation. Our General Terms of Use for Downloads are valid

(http://phoenixcontact.com/download)

PCB headers, nominal current: 76 A, number of positions: 3, pitch: 10.16 mm, color: green, contact surface:

Silver, mounting: Wave soldering

The figure shows a 5-pos. version

of the product

Your advantages

Well-known mounting principle allows worldwide use

Maximum flexibility when it comes to device design – one header for connectors with different connection technologies

Key Commercial Data

Packing unit

GTIN

Custom tariff number

4046356465281

85366930

Technical data

Dimensions

Pitch

Dimension a

Height

Length of the solder pin

Pin dimensions

10.16 mm

20.32 mm

17.4 mm

4 mm

1 x 1.2 mm

General

Range of articles

Rated voltage (III/3)

Connection in acc. with standard

Nominal current I

PC 6-16/..-G1

1000 V

EN-VDE

76 A

01/16/2019 Page 1 / 4
