DBCHDFSR62S

Description
D Subminiature Connector, 62 Contact(s), Female, Solder Terminal,
CategoryThe connector    The connector
File Size473KB,4 Pages
ManufacturerCDE [ CORNELL DUBILIER ELECTRONICS ]
Download Datasheet Parametric View All

DBCHDFSR62S Overview

D Subminiature Connector, 62 Contact(s), Female, Solder Terminal,

DBCHDFSR62S Parametric

Parameter NameAttribute value
MakerCDE [ CORNELL DUBILIER ELECTRONICS ]
Reach Compliance Codeunknown
ECCN codeEAR99
Connector typeD SUBMINIATURE CONNECTOR
Contact point genderFEMALE
DIN complianceNO
empty shellNO
Filter functionNO
IEC complianceNO
insulator materialGLASS FILLED POLYBUTYLENE TEREPHTHALATE
MIL complianceNO
Manufacturer's serial numberHD
Plug informationMULTIPLE MATING PARTS AVAILABLE
Mixed contactsNO
Installation typeBOARD
OptionsGENERAL PURPOSE
Shell materialSTEEL, NICKEL AND TIN PLATED
Housing size4/C
Termination typeSOLDER
Total number of contacts62
UL Flammability Code94V-0
Base Number Matches1
D TYPE CONNECTORS LOW COST
15, 26, 44, 62, or 78 way
Stamped & Formed Contacts
Selective Gold Plated Contacts
Tin Plated Metal Housing
Low cost
HIGH DENSITY SOLDER BUCKET
SPECIFICATION
Mechanical:
Insulator:
Pin contacts:
Shell:
PBT +30% Glass Fibre
UL94V-0
Phosphor Bronze
Gold Plated
Steel, SPCC
Nickel and Tin Plated
Electrical Data:
Rated Voltage:
Rated Current:
With stand Voltage:
Insulation Resistance:
Contact Resistance:
Temperature:
350V AC
5A
500V AC(rms)
Over 1000 MΩ
5 MΩ at 1A
-20˚C to 100˚C

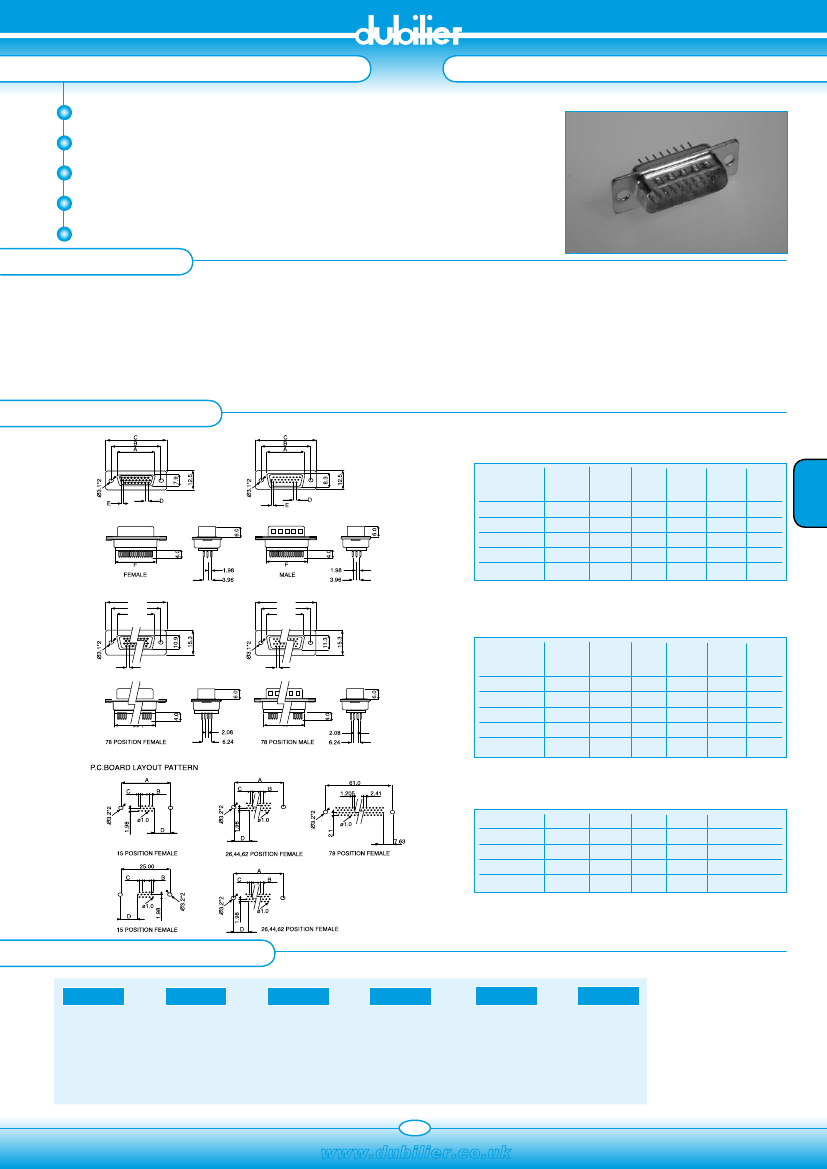

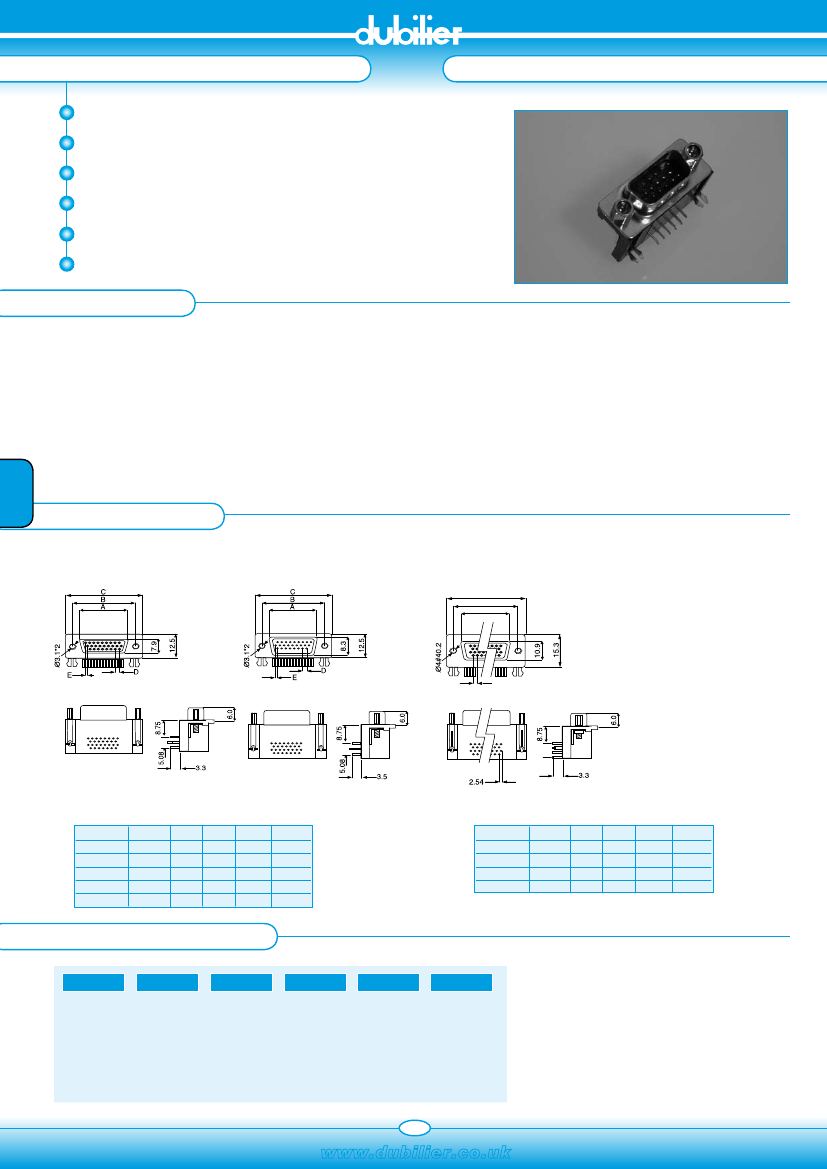

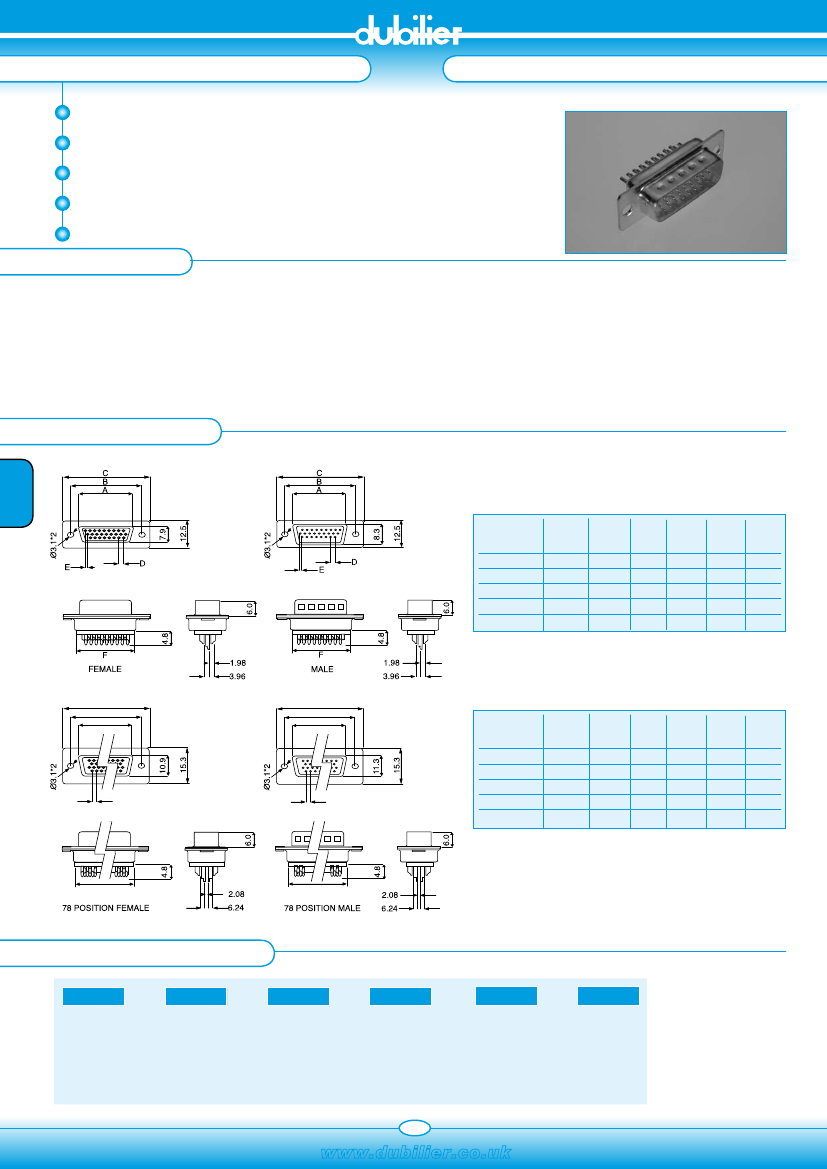

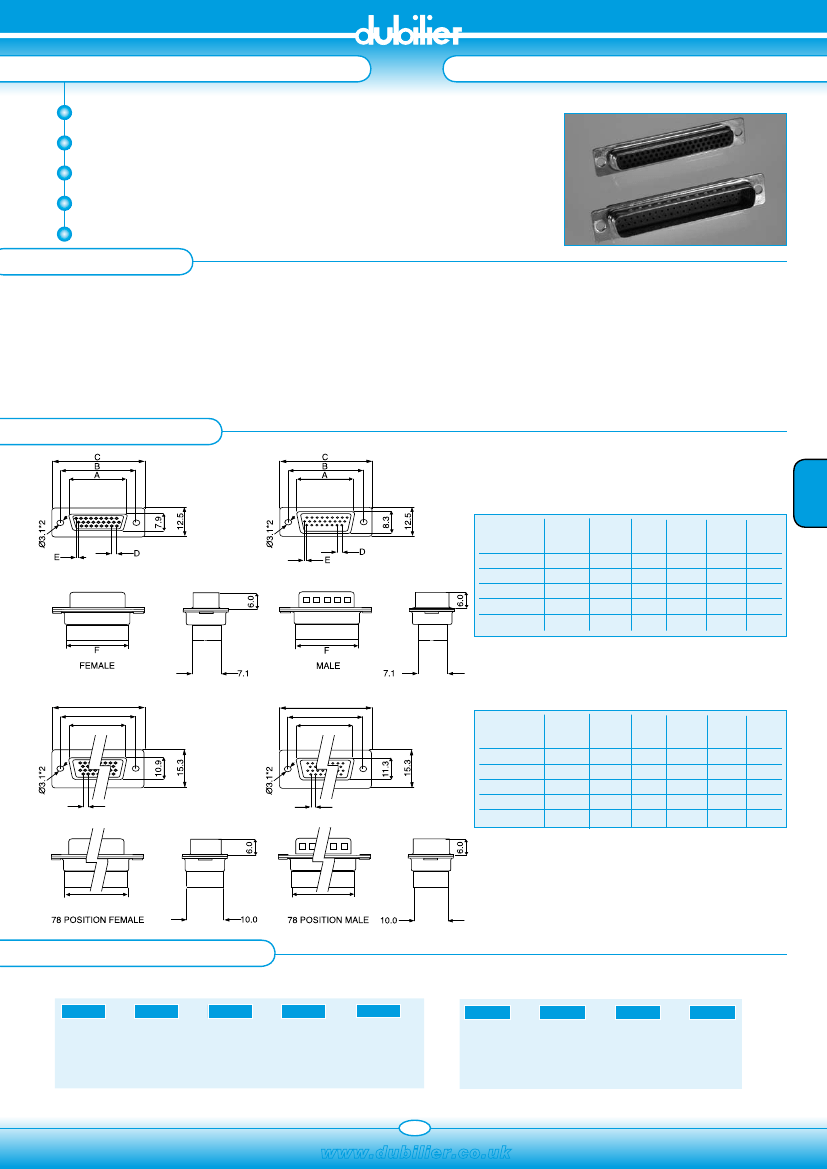

OUTLINE DRAWING
SECTION 11
C
B
A
C
B
A
D
D
POSITION
15 F
26 F
44 F
62 F
78F
A
16.30
24.60
38.30
54.80
52.2
B
25.00
33.30
47.10
63.50
61.00
C
30.8
39.2
53.1
69.4
67.0
D
2.29
2.29
2.29
2.41
2.41
E
1.14
1.14
1.14
1.20
-
F
19.2
27.7
41.1
57.3
55.1
POSITION
15 M
26 M
44 M
62 M
78M
A
16.92
25.25
38.96
55.42
52.81
B
25.00
33.30
47.10
63.50
61.00
C
30.8
39.2
53.1
69.4
67.0
D
2.29
2.29
2.29
2.41
2.41
E
1.14
1.14
1.14
1.20
-
F
19.2
27.7
41.1
57.3
55.1
F
F
ORDERING INFORMATION
DBC
Dubilier
Connectors
HD
Series
HD= High
Density
Stamped &
Formed
F
Connector Type
M = Male
F = Female
SB
Contact Style
SB = Solder Bucket
26
Nº of Ways
15 = 15ways
26 = 26ways
44 = 44ways
62 = 62ways
78 = 78ways
S
Contact
Plating
S= Selective
Plating
258
www.dubilier.co.uk
