2N3094 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Analog mixed-signal IC> Trigger device> 2N3094

2N3094: Description110 AMP RMS SCRS; CategoryAnalog mixed-signal IC Trigger device; File Size242KB，6 Pages; ManufacturerInternational Rectifier （ Infineon ）; Websitehttp://www.irf.com/

Download Datasheet Parametric Compare View All

2N3094 Overview

110 AMP RMS SCRS

2N3094 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	International Rectifier （ Infineon ）
package instruction	POST/STUD MOUNT, O-MUPM-H3
Reach Compliance Code	unknown
ECCN code	EAR99
Configuration	SINGLE
Critical rise rate of minimum off-state voltage	200 V/us
Maximum DC gate trigger current	110 mA
Maximum DC gate trigger voltage	2.5 V
JEDEC-95 code	TO-209AC
JESD-30 code	O-MUPM-H3
Maximum leakage current	2.5 mA
On-state non-repetitive peak current	1000 A
Number of components	1
Number of terminals	3
Maximum on-state current	70000 A
Maximum operating temperature	125 °C
Minimum operating temperature	-40 °C
Package body material	METAL
Package shape	ROUND
Package form	POST/STUD MOUNT
Certification status	Not Qualified
Maximum rms on-state current	110 A
Off-state repetitive peak voltage	900 V
Repeated peak reverse voltage	900 V
surface mount	NO
Terminal form	HIGH CURRENT CABLE
Terminal location	UPPER
Trigger device type	SCR

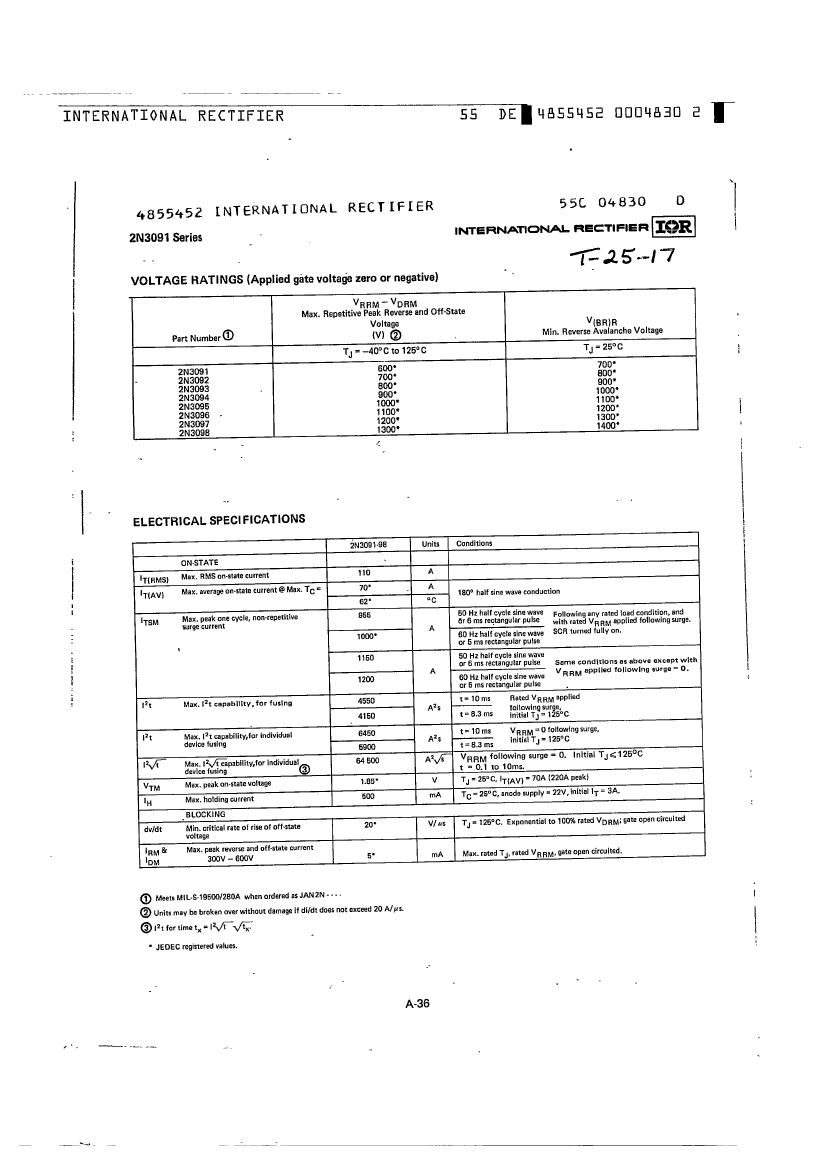

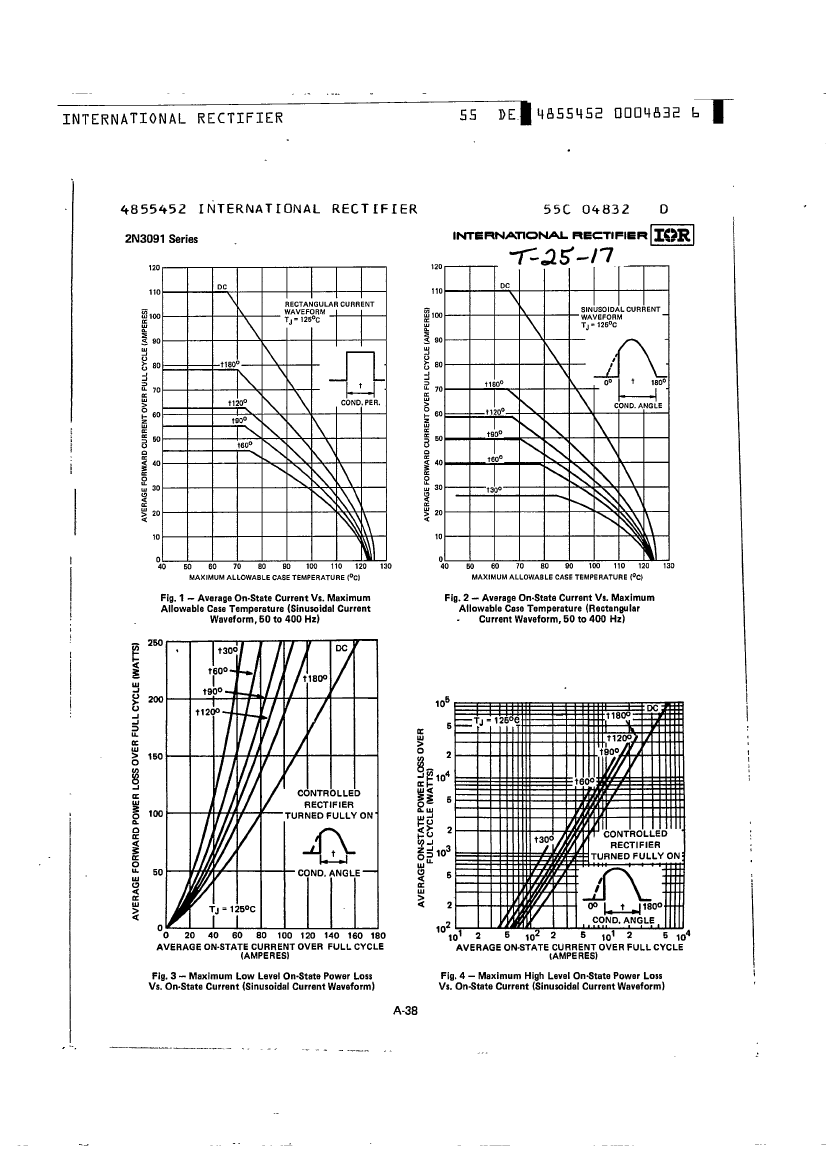

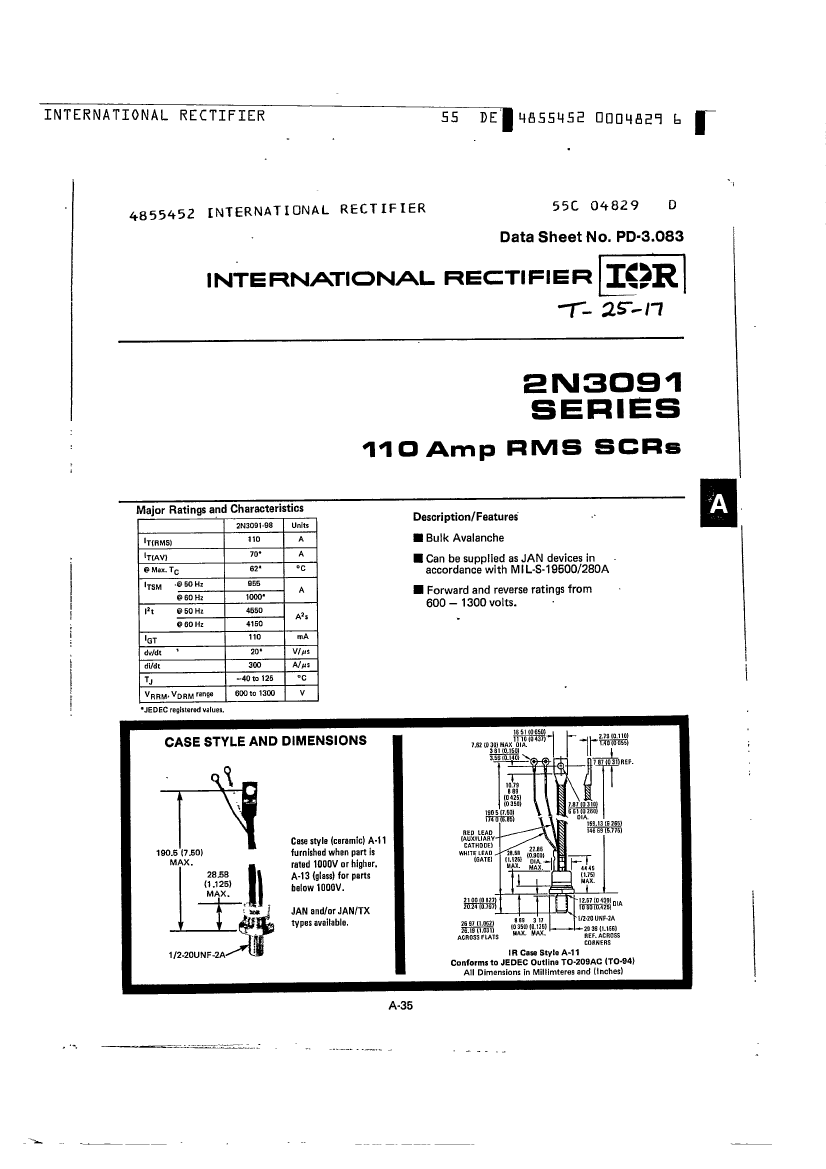

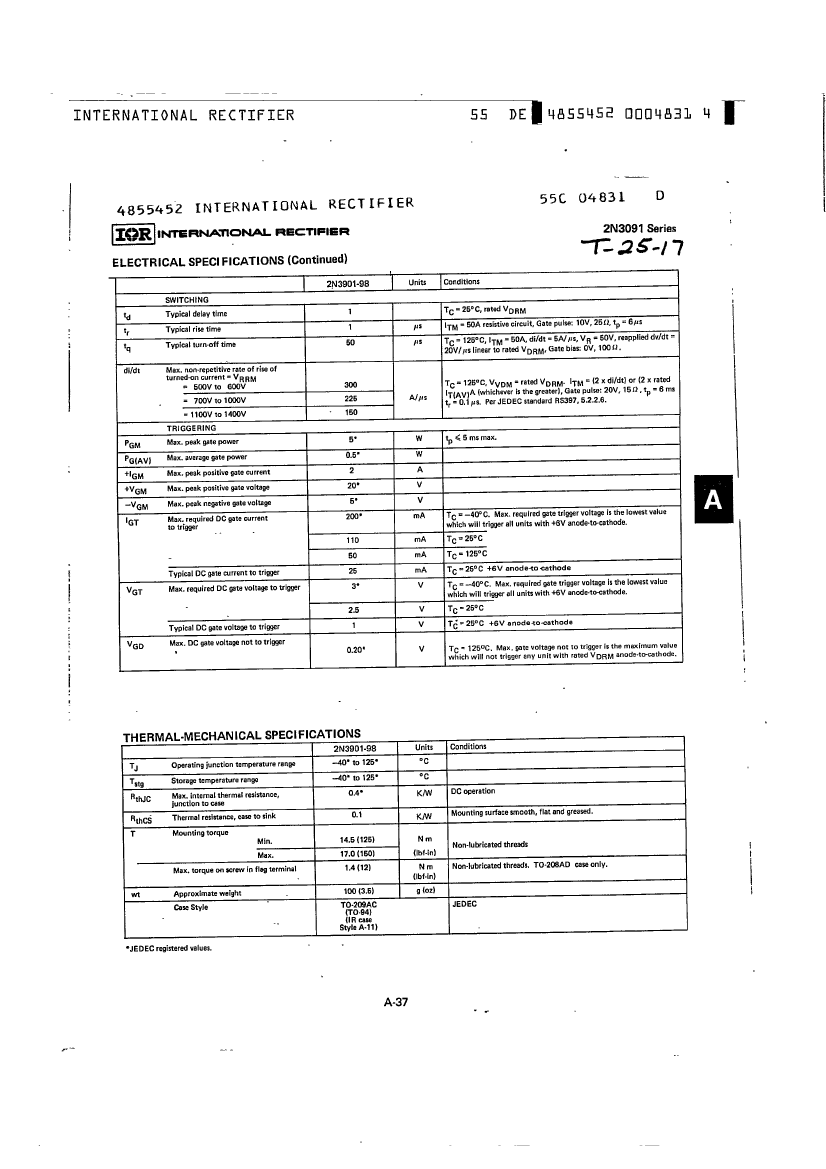

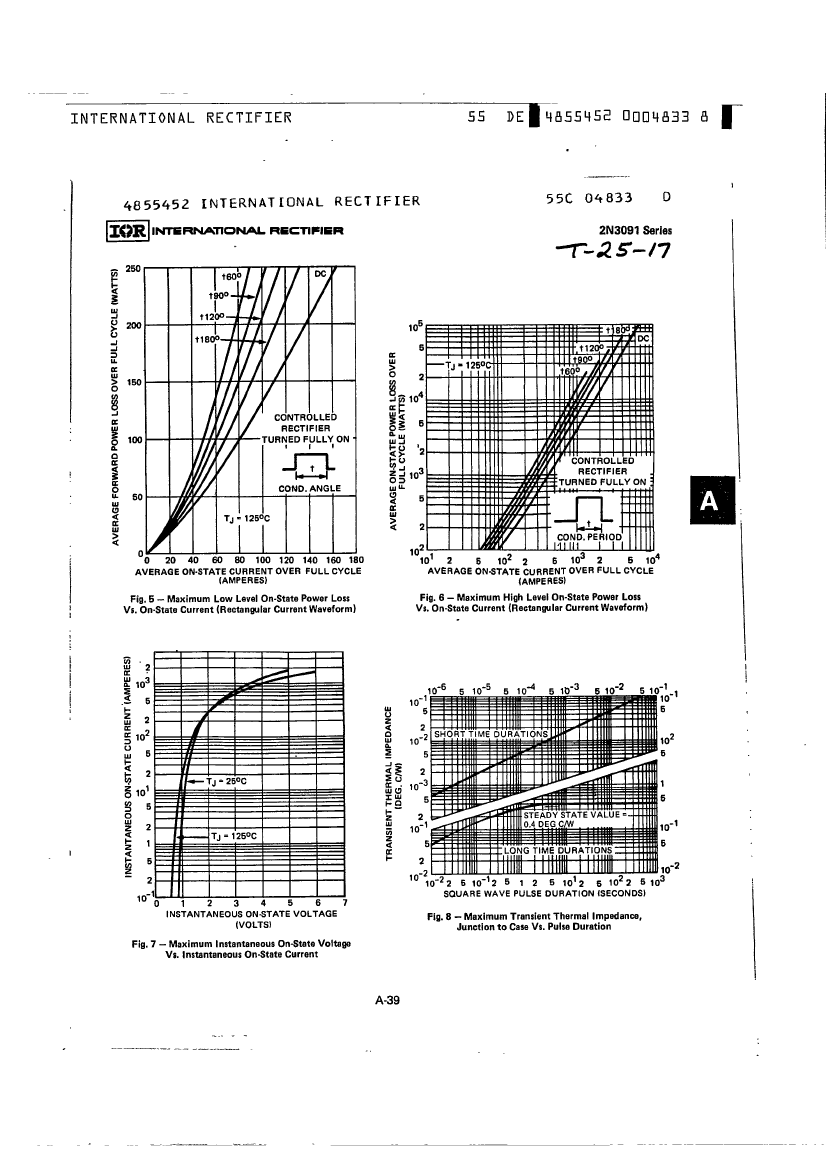

Preview

Download Datasheet

View All

2N3094 Related Products

	2N3094	2N3091	2N3093	2N3092	2N3095	2N3097	2N3096	2N3098
Description	110 AMP RMS SCRS	110 AMP RMS SCRS	110 AMP RMS SCRS	110 AMP RMS SCRS	110 AMP RMS SCRS	110 AMP RMS SCRS	110 AMP RMS SCRS	110 AMP RMS SCRS
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
Maker	International Rectifier （ Infineon ）	International Rectifier （ Infineon ）	International Rectifier （ Infineon ）	International Rectifier （ Infineon ）	International Rectifier （ Infineon ）	International Rectifier （ Infineon ）	International Rectifier （ Infineon ）	International Rectifier （ Infineon ）
package instruction	POST/STUD MOUNT, O-MUPM-H3	POST/STUD MOUNT, O-MUPM-H3	POST/STUD MOUNT, O-MUPM-H3	POST/STUD MOUNT, O-MUPM-H3	POST/STUD MOUNT, O-MUPM-H3	POST/STUD MOUNT, O-MUPM-H3	POST/STUD MOUNT, O-MUPM-H3	POST/STUD MOUNT, O-MUPM-H3
Reach Compliance Code	unknown	unknown	unknown	compliant	compliant	unknown	compliant	unknown
Configuration	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE
Critical rise rate of minimum off-state voltage	200 V/us	200 V/us	200 V/us	200 V/us	200 V/us	200 V/us	200 V/us	200 V/us
Maximum DC gate trigger current	110 mA	110 mA	110 mA	110 mA	110 mA	110 mA	110 mA	110 mA
Maximum DC gate trigger voltage	2.5 V	2.5 V	2.5 V	2.5 V	2.5 V	2.5 V	2.5 V	2.5 V
JEDEC-95 code	TO-209AC	TO-209AC	TO-209AC	TO-209AC	TO-209AC	TO-209AC	TO-209AC	TO-209AC
JESD-30 code	O-MUPM-H3	O-MUPM-H3	O-MUPM-H3	O-MUPM-H3	O-MUPM-H3	O-MUPM-H3	O-MUPM-H3	O-MUPM-H3
Maximum leakage current	2.5 mA	2.5 mA	2.5 mA	2.5 mA	2.5 mA	2.5 mA	2.5 mA	2.5 mA
On-state non-repetitive peak current	1000 A	1000 A	1000 A	1000 A	1000 A	1000 A	1000 A	1000 A
Number of components	1	1	1	1	1	1	1	1
Number of terminals	3	3	3	3	3	3	3	3
Maximum on-state current	70000 A	70000 A	70000 A	70000 A	70000 A	70000 A	70000 A	70000 A
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C
Package body material	METAL	METAL	METAL	METAL	METAL	METAL	METAL	METAL
Package shape	ROUND	ROUND	ROUND	ROUND	ROUND	ROUND	ROUND	ROUND
Package form	POST/STUD MOUNT	POST/STUD MOUNT	POST/STUD MOUNT	POST/STUD MOUNT	POST/STUD MOUNT	POST/STUD MOUNT	POST/STUD MOUNT	POST/STUD MOUNT
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum rms on-state current	110 A	110 A	110 A	110 A	110 A	110 A	110 A	110 A
Off-state repetitive peak voltage	900 V	600 V	800 V	700 V	1000 V	1200 V	1100 V	1300 V
Repeated peak reverse voltage	900 V	600 V	800 V	700 V	1000 V	1200 V	1100 V	1300 V
surface mount	NO	NO	NO	NO	NO	NO	NO	NO
Terminal form	HIGH CURRENT CABLE	HIGH CURRENT CABLE	HIGH CURRENT CABLE	HIGH CURRENT CABLE	HIGH CURRENT CABLE	HIGH CURRENT CABLE	HIGH CURRENT CABLE	HIGH CURRENT CABLE
Terminal location	UPPER	UPPER	UPPER	UPPER	UPPER	UPPER	UPPER	UPPER
Trigger device type	SCR	SCR	SCR	SCR	SCR	SCR	SCR	SCR
Base Number Matches	-	1	-	-	1	1	1	1
