5962R9576701VEC datasheet, PDF

Datasheet> All Categories > logic> logic> 5962R9576701VEC

5962R9576701VEC: DescriptionD Latch, HCT Series, 2-Func, High Level Triggered, 2-Bit, Complementary Output, CMOS, CDIP16; Categorylogic logic; File Size266KB，7 Pages; ManufacturerHarris; Websitehttp://www.harris.com/

Download Datasheet Parametric Compare View All

5962R9576701VEC Overview

D Latch, HCT Series, 2-Func, High Level Triggered, 2-Bit, Complementary Output, CMOS, CDIP16

5962R9576701VEC Parametric

Parameter Name	Attribute value
package instruction	,
Reach Compliance Code	unknown
Other features	RADIATION HARD CMOS/SILICON ON SAPPHIRE (SOS) TECHNOLOGY
series	HCT
JESD-30 code	R-CDIP-T16
JESD-609 code	e4
Load capacitance (CL)	50 pF
Logic integrated circuit type	D LATCH
Number of digits	2
Number of functions	2
Number of terminals	16
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Output polarity	COMPLEMENTARY
Package body material	CERAMIC, METAL-SEALED COFIRED
Package shape	RECTANGULAR
Package form	IN-LINE
propagation delay (tpd)	34 ns
Certification status	Not Qualified
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	CMOS
Temperature level	MILITARY
Terminal surface	GOLD
Terminal form	THROUGH-HOLE
Terminal location	DUAL
total dose	100k Rad(Si) V
Trigger type	HIGH LEVEL
Base Number Matches	1

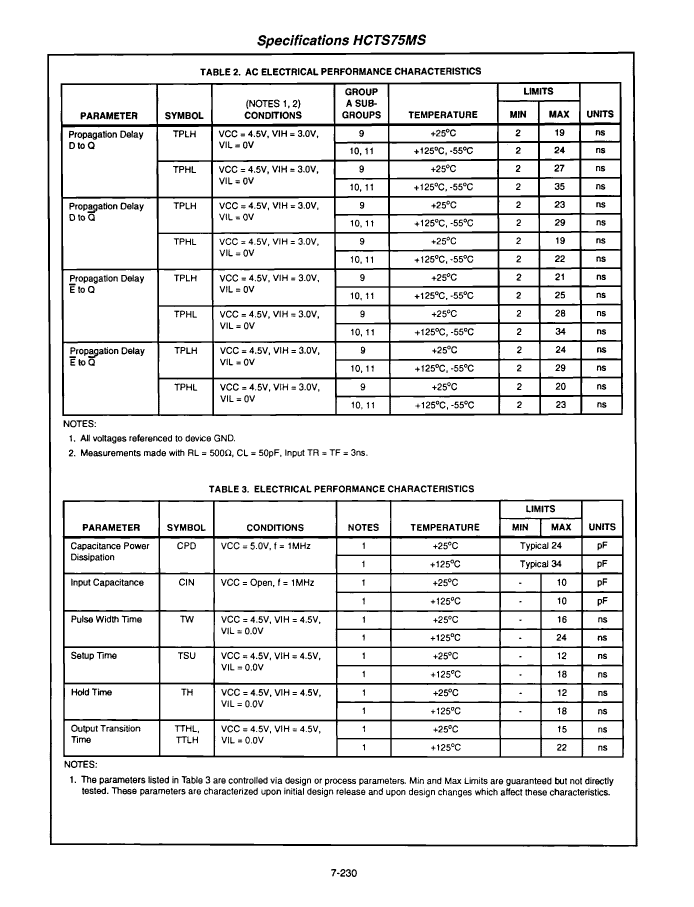

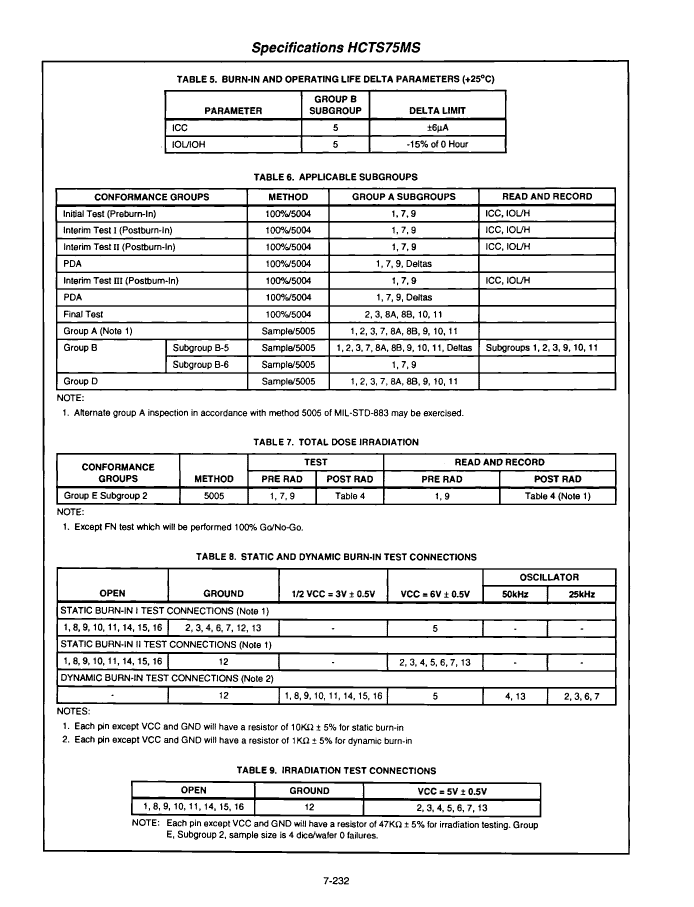

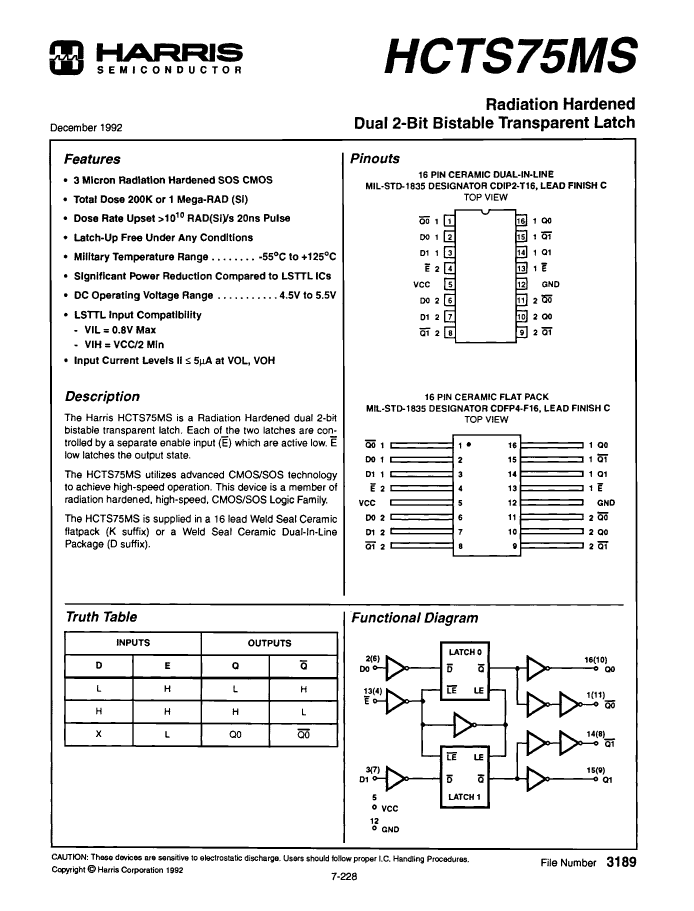

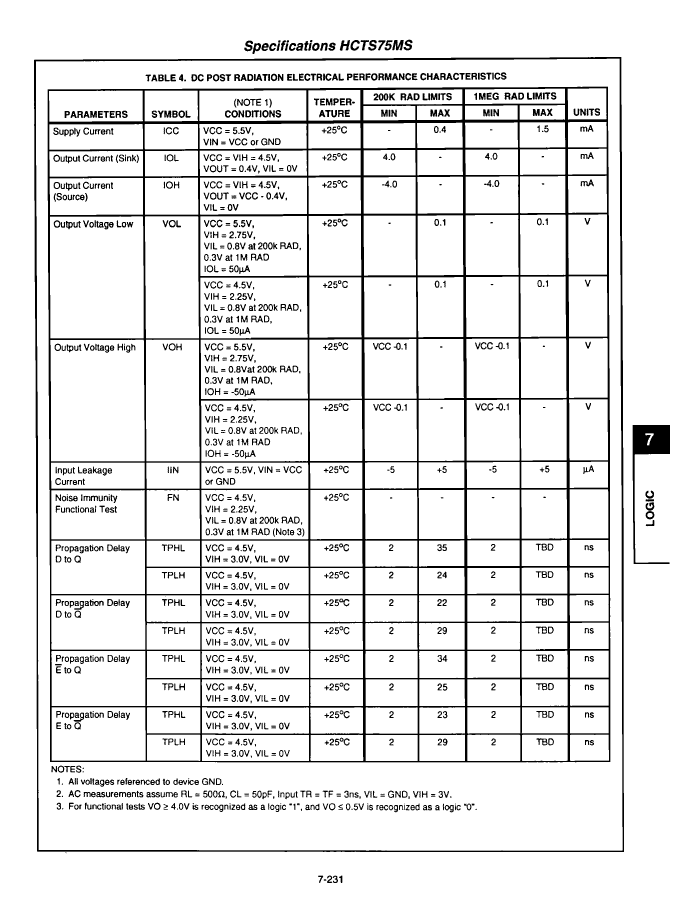

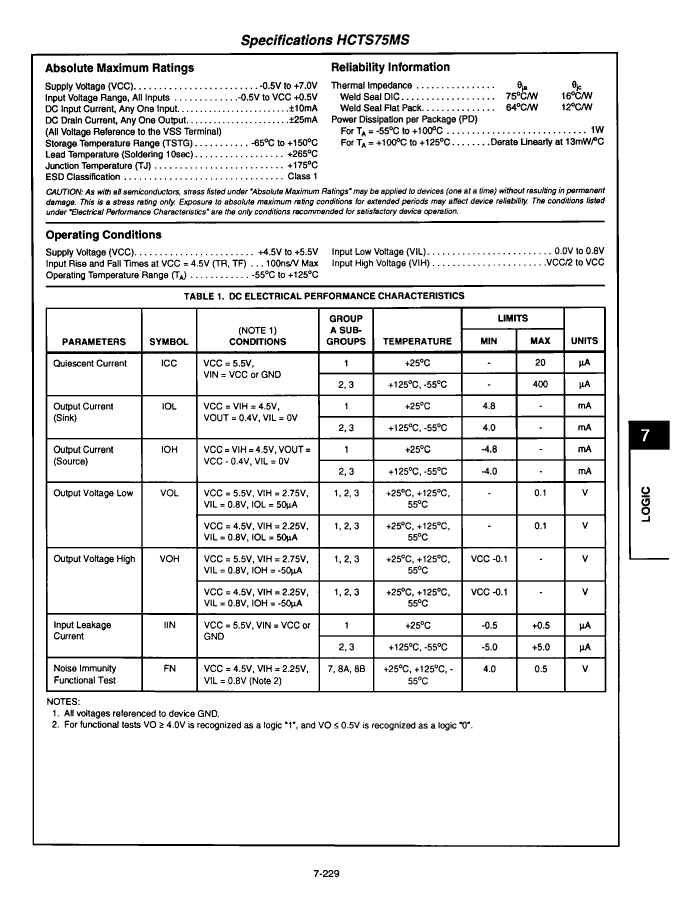

Preview

Download Datasheet

View All

5962R9576701VEC Related Products

	5962R9576701VEC	5962R9576701VXX	5962R9576701VXC	5962R9576701VEX	HCTS75KMSH	HCTS75DMSH
Description	D Latch, HCT Series, 2-Func, High Level Triggered, 2-Bit, Complementary Output, CMOS, CDIP16	D Latch, HCT Series, 2-Func, High Level Triggered, 2-Bit, Complementary Output, CMOS, CDFP16	D Latch, HCT Series, 2-Func, High Level Triggered, 2-Bit, Complementary Output, CMOS, CDFP16	D Latch, HCT Series, 2-Func, High Level Triggered, 2-Bit, Complementary Output, CMOS, CDIP16	D Latch, HCT Series, 2-Func, High Level Triggered, 2-Bit, Complementary Output, CMOS, CDFP16	D Latch, HCT Series, 2-Func, High Level Triggered, 2-Bit, Complementary Output, CMOS, CDIP16
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown
Other features	RADIATION HARD CMOS/SILICON ON SAPPHIRE (SOS) TECHNOLOGY	RADIATION HARD CMOS/SILICON ON SAPPHIRE (SOS) TECHNOLOGY	RADIATION HARD CMOS/SILICON ON SAPPHIRE (SOS) TECHNOLOGY	RADIATION HARD CMOS/SILICON ON SAPPHIRE (SOS) TECHNOLOGY	RADIATION HARD CMOS/SILICON ON SAPPHIRE (SOS) TECHNOLOGY	RADIATION HARD CMOS/SILICON ON SAPPHIRE (SOS) TECHNOLOGY
series	HCT	HCT	HCT	HCT	HCT	HCT
JESD-30 code	R-CDIP-T16	R-CDFP-F16	R-CDFP-F16	R-CDIP-T16	R-CDFP-F16	R-CDIP-T16
Logic integrated circuit type	D LATCH	D LATCH	D LATCH	D LATCH	D LATCH	D LATCH
Number of digits	2	2	2	2	2	2
Number of functions	2	2	2	2	2	2
Number of terminals	16	16	16	16	16	16
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C
Output polarity	COMPLEMENTARY	COMPLEMENTARY	COMPLEMENTARY	COMPLEMENTARY	COMPLEMENTARY	COMPLEMENTARY
Package body material	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	FLATPACK	FLATPACK	IN-LINE	FLATPACK	IN-LINE
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum supply voltage (Vsup)	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V
Minimum supply voltage (Vsup)	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	NO	YES	YES	NO	YES	NO
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY
Terminal form	THROUGH-HOLE	FLAT	FLAT	THROUGH-HOLE	FLAT	THROUGH-HOLE
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
Trigger type	HIGH LEVEL	HIGH LEVEL	HIGH LEVEL	HIGH LEVEL	HIGH LEVEL	HIGH LEVEL
Load capacitance (CL)	50 pF	-	50 pF	-	50 pF	50 pF
propagation delay (tpd)	34 ns	34 ns	34 ns	34 ns	-	-
total dose	100k Rad(Si) V	100k Rad(Si) V	100k Rad(Si) V	100k Rad(Si) V	-	-
Base Number Matches	1	1	1	1	1	-
