TS68332
High-performance 32-bit Integrated
Microcontroller
Datasheet
Features
•
•
•
•
•
•
•
•
Low-power Operation Including Special STOP Mode
Frequency: 16.78 MHz at 5V ± 10% Supply and 20.97 MHz at 5V ± 5%, Software Programmable
Technology: 1
µ
High-density Complementary Metal-Oxide Semiconductor (HCMOS), Static Design
Package: 132-pin Ceramic Leaded Chip Carrier (CERQUAD) and 132-pin Ceramic Pin Grid Array (PGA)
Modular Architecture in a Single Chip
CPU: 32-bit 6800 Family (Upward Object-code Compatible with The 68010)
New Instructions For Controller Applications
Intelligent 16-bit Timer
– 16 Independent, Programmable Channels
– Any Channel Can Perform Any Time Function (For Example Input Capture, Output Compare, Pulse Width Modulation,
etc.)
– Two timer Count Registers with 2-bit Programmable Prescalers
– Selectable Channel Priority Levels
– Reduced CPU Intervention
– RISC like CPU within the TPU
Two Serial I/O Subsystems
– Enhanced 68HC11-type Serial Communications Interface (SCI) Universal Asynchronous Receiver Transmitter (UART)
with Parity
– Enhanced 68HC11-type Serial Peripheral Interface with I/O RAM Queue (QSPI)
On-chip Memory: 2-Kbytes Standby RAM
On-chip, Programmable, Chip-select Logic
– Up to 12 Signals for Memory and Peripheral Interface with I/O Select
System Failure Protection
– 68HC11-type Computer Operating Properly (COP) Watchdog Timer
– 68HC11-type Periodic Interrupt Timer
– 68000 Family Spurious Interrupt, Halt, and Bus Time-out Monitors
Up to 48 Discrete I/O Pins
•
•
•
•
•
Description
The TS68332 is a 32-bit microcontroller, combining high-performance data manipulation capabilities with powerful periph-
eral subsystems. The TS68332 is the first member of the 68300 family of modular embedded controllers featuring fully
static, high-speed complementary metal-oxide semiconductor technology. Based on the powerful TS68020, the CPU32
instruction processing module provides enhanced system performance and utilizes the extensive software base of the
68000 family.
Visit our website: www.e2v.com
for the latest version of the datasheet
e2v semiconductors SAS 2008
0884B–HIREL–04/08
TS68332
Screening/Quality
This product is manufactured in full compliance with:
• MIL-STD-883 (class B)
• DSCC 5962-91501
• Or according to e2v-Grenoble standard

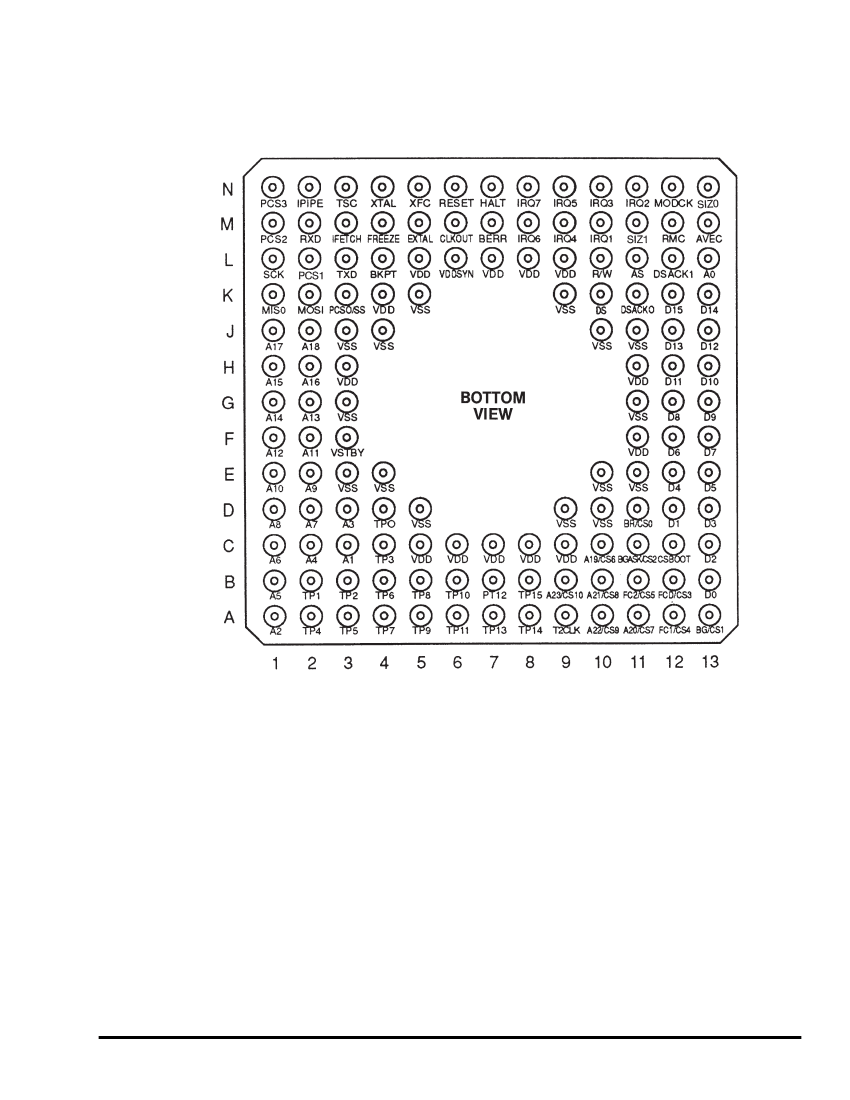

R suffix

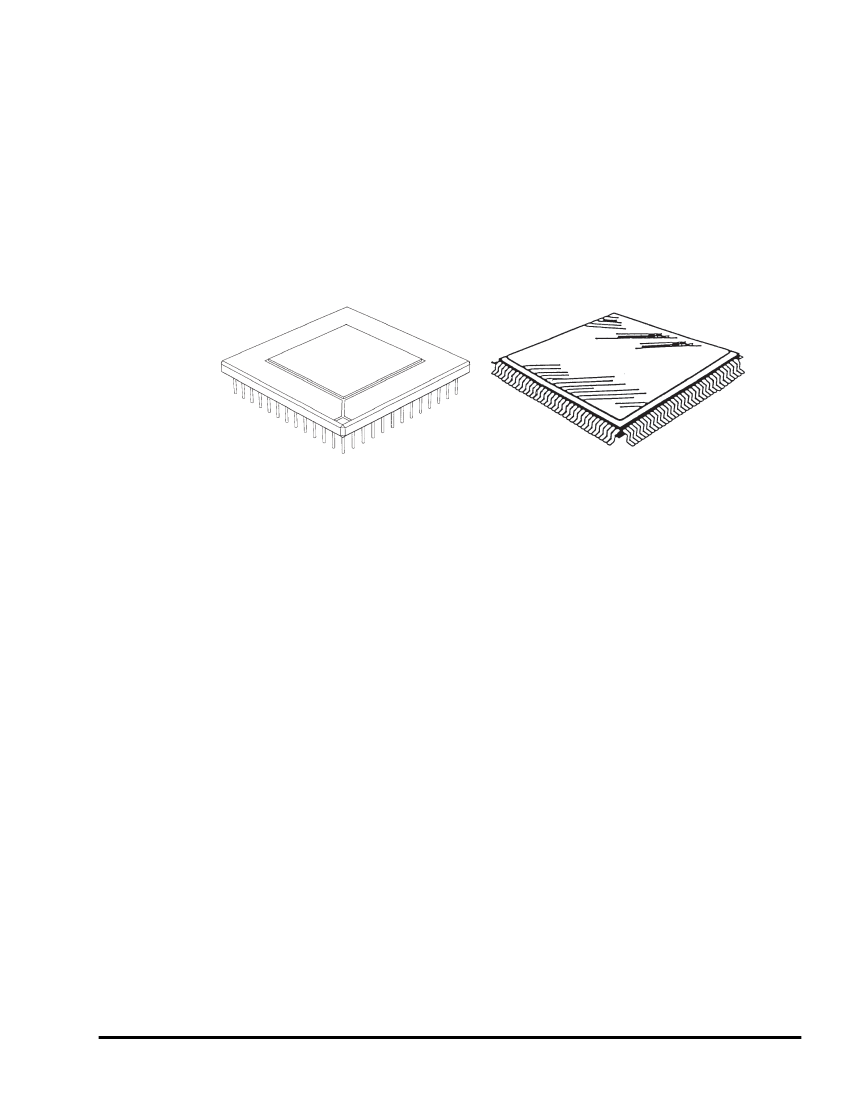

PGA 132
Ceramic Pin Grid Array
A suffix
CERQUAD 132
Ceramic Leaded Chip Carrier
1. Introduction
Figure 1-1 on page 3
is a block diagram of the TS68332 showing the major components. The pin
descriptions are provided in
Table 1-1 on page 6.
The TS68332 contains intelligent peripheral modules
such as the Time Processor Unit (TPU), which provides 16 microcoded channels for performing time-
related activities from simple input capture or output compare to complicated motor control or pulse
width modulation. High-speed serial communications are provided by the Queued Serial Module (QSM)
with synchronous and asynchronous protocols available. 2-Kbytes of fully static standby RAM allow fast
two-cycle access for system and data stacks and variable storage with provision for battery back-up.
There is a System Integration Module (SIM) which includes twelve chip selects to enhance system inte-
gration for fast external memory or peripheral access. The powerful 32-bit CPU (CPU 32) is based on
the industry-standard TS68020. These modules are connected on chip via the Intermodule Bus (IMB)
and provide reduced system part count, size, cost of implementation and increased reliability.
2
0884B–HIREL–04/08
e2v semiconductors SAS 2008
