Part Number

Search

591-900-0635Y

Description
RF TNC Connector, Female, Panel Mount, Cable Mount, Crimp Terminal, Jack
CategoryThe connector    The connector
File Size60KB,1 Pages
ManufacturerWinchester Electronics
Download Datasheet Parametric Compare View All

591-900-0635Y Overview

RF TNC Connector, Female, Panel Mount, Cable Mount, Crimp Terminal, Jack

591-900-0635Y Parametric

Parameter NameAttribute value
Reach Compliance Codeunknown
Other featuresAPPLICABLE CABLES: RG 179B; RG 187A, INSERTION LOSS MAX AT 3GHZ
Body/casing typeJACK
Characteristic impedance50 Ω
Connector typeRF TNC CONNECTOR
Contact point genderFEMALE
Coupling typeTHREADED
DIN complianceNO
Filter functionNO
IEC complianceNO
Insertion loss0.2 dB
insulator materialTEFLON
MIL complianceNO
Manufacturer's serial number59
Installation methodSTRAIGHT
Installation typeCABLE
Maximum operating frequency11 GHz
OptionsGENERAL PURPOSE
Panel mountingYES
Termination typeCRIMP
voltage standing wave ratio1.3
Base Number Matches1

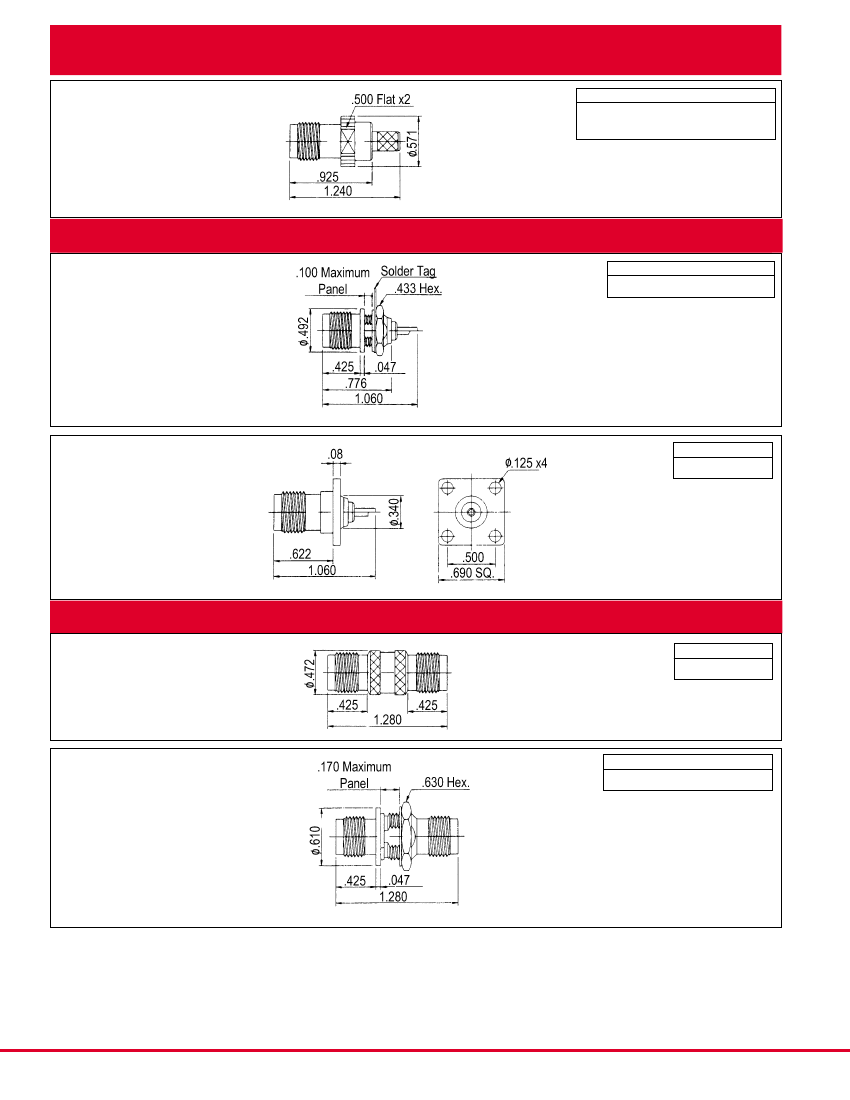

TNC:
Flexible Cable - Crimp Attachment
Part Number
591-900-0630Y
591-900-0635Y
Cable
RG-174,188A,316
RG-179B,187A
Straight
Bulkhead
Jack
Crimp
• See page 116 for cable assembly procedures: CM-03
TNC:
Bulkhead, Panel, PCB Mount Receptacles
Part Number Mounting Hole
591-029-0000Y
No. 029
• See page 83 for mounting hole layout.
Straight
Bulkhead
Jack
Receptacle
Square
Flange
Jack
Receptacle
Part Number
591-050-0000Y
TNC:
SAME SERIES ADAPTERS
Part Number
591-591-0000Y
Jack - Jack
Bulkhead
Jack - Jack
Part Number Mounting Hole
591-591-2400Y
No. 024
• See page 83 for mounting hole layout.
Note: Dimensions shown in inches.
Winchester/Retconn
RF/62
400 Park Road • Watertown, Connecticut 06795-5000 • Phone: (860) 945-5000 • FAX: (860) 945-3950• Internet: http://www.litton-wed.com

591-900-0635Y Related Products

591-900-0635Y 591-900-0630Y
Description RF TNC Connector, Female, Panel Mount, Cable Mount, Crimp Terminal, Jack RF TNC Connector, Female, Panel Mount, Cable Mount, Crimp Terminal, Jack
Reach Compliance Code unknown unknown
Other features APPLICABLE CABLES: RG 179B; RG 187A, INSERTION LOSS MAX AT 3GHZ APPLICABLE CABLES: RG 174; RG 188A; RG 316, INSERTION LOSS MAX AT 3GHZ
Body/casing type JACK JACK
Characteristic impedance 50 Ω 50 Ω
Connector type RF TNC CONNECTOR RF TNC CONNECTOR
Contact point gender FEMALE FEMALE
Coupling type THREADED THREADED
DIN compliance NO NO
Filter function NO NO
IEC compliance NO NO
Insertion loss 0.2 dB 0.2 dB
insulator material TEFLON TEFLON
MIL compliance NO NO
Manufacturer's serial number 59 59
Installation method STRAIGHT STRAIGHT
Installation type CABLE CABLE
Maximum operating frequency 11 GHz 11 GHz
Options GENERAL PURPOSE GENERAL PURPOSE
Panel mounting YES YES
Termination type CRIMP CRIMP
voltage standing wave ratio 1.3 1.3
Base Number Matches 1 1
