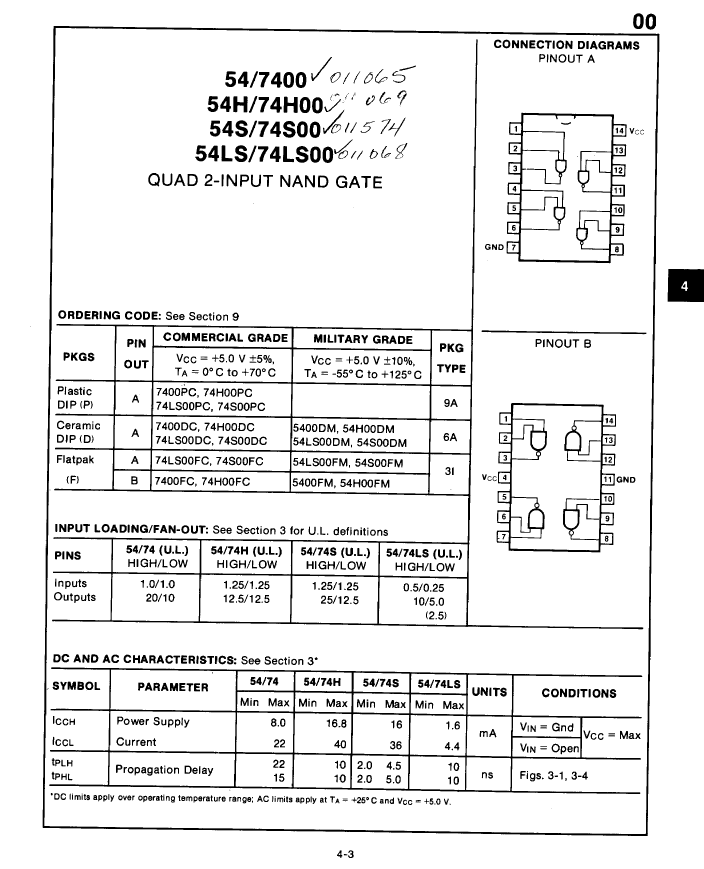

NAND Gate, LS Series, 4-Func, 2-Input, TTL, DFP-14
| Parameter Name | Attribute value |
| Is it Rohs certified? | incompatible |
| Maker | Fairchild |
| Parts packaging code | DFP |
| package instruction | DFP-14 |
| Contacts | 14 |
| Reach Compliance Code | compliant |
| series | LS |
| JESD-30 code | R-XDSO-F14 |
| JESD-609 code | e0 |
| Logic integrated circuit type | NAND GATE |
| Number of functions | 4 |
| Number of entries | 2 |
| Number of terminals | 14 |
| Maximum operating temperature | 70 °C |
| Minimum operating temperature | |
| Package body material | UNSPECIFIED |
| encapsulated code | DFP |
| Encapsulate equivalent code | FL14,.3 |
| Package shape | RECTANGULAR |
| Package form | SMALL OUTLINE |
| Peak Reflow Temperature (Celsius) | NOT SPECIFIED |
| power supply | 5 V |
| propagation delay (tpd) | 10 ns |
| Certification status | Not Qualified |
| Schmitt trigger | NO |
| Maximum supply voltage (Vsup) | 5.25 V |
| Minimum supply voltage (Vsup) | 4.75 V |
| Nominal supply voltage (Vsup) | 5 V |
| surface mount | YES |
| technology | TTL |
| Temperature level | COMMERCIAL |
| Terminal surface | Tin/Lead (Sn/Pb) |
| Terminal form | FLAT |
| Terminal pitch | 1.27 mm |
| Terminal location | DUAL |
| Maximum time at peak reflow temperature | NOT SPECIFIED |
| Base Number Matches | 1 |
