GSGX-NS6-88: DescriptionTelecom and Datacom Connector, 48 Contact(s), Female, Right Angle, Solder Terminal, Locking, Jack, ROHS COMPLIANT; CategoryThe connector The connector; File Size1MB，2 Pages; ManufacturerKycon; Environmental Compliance

Download Datasheet Parametric View All

GSGX-NS6-88 Overview

Telecom and Datacom Connector, 48 Contact(s), Female, Right Angle, Solder Terminal, Locking, Jack, ROHS COMPLIANT

GSGX-NS6-88 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Kycon
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	6 PORTS 8 POSITION EACH, SHIELDED
Board mount options	SPLIT BOARD LOCK
body width	0.512 inch
subject depth	0.81 inch
body length	3.4 inch
Body/casing type	JACK
Connector type	TELECOM AND DATACOM CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	FEMALE
Contact material	PHOSPHOR BRONZE
Contact resistance	20 mΩ
Contact style	TELCOM, MODULAR
DIN compliance	NO
Dielectric withstand voltage	1400VAC V
Durability	500 Cycles
empty shell	NO
Filter function	NO
IEC compliance	NO
Insulation resistance	500000000 Ω
Insulator color	BLACK
insulator material	GLASS FILLED POLYBUTYLENE TEREPHTHALATE THERMOPLASTIC
MIL compliance	NO
Mixed contacts	NO
Installation option 1	LOCKING
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of ports	6
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Options	GENERAL PURPOSE
PCB contact pattern	STAGGERED
Rated current (signal)	1.5 A
Guideline	CSA, UL
reliability	COMMERCIAL
Shell surface	NICKEL
Shell material	COPPER ALLOY
Terminal length	0.126 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	48
UL Flammability Code	94V-0
Base Number Matches	1

Preview

Download Datasheet

View All

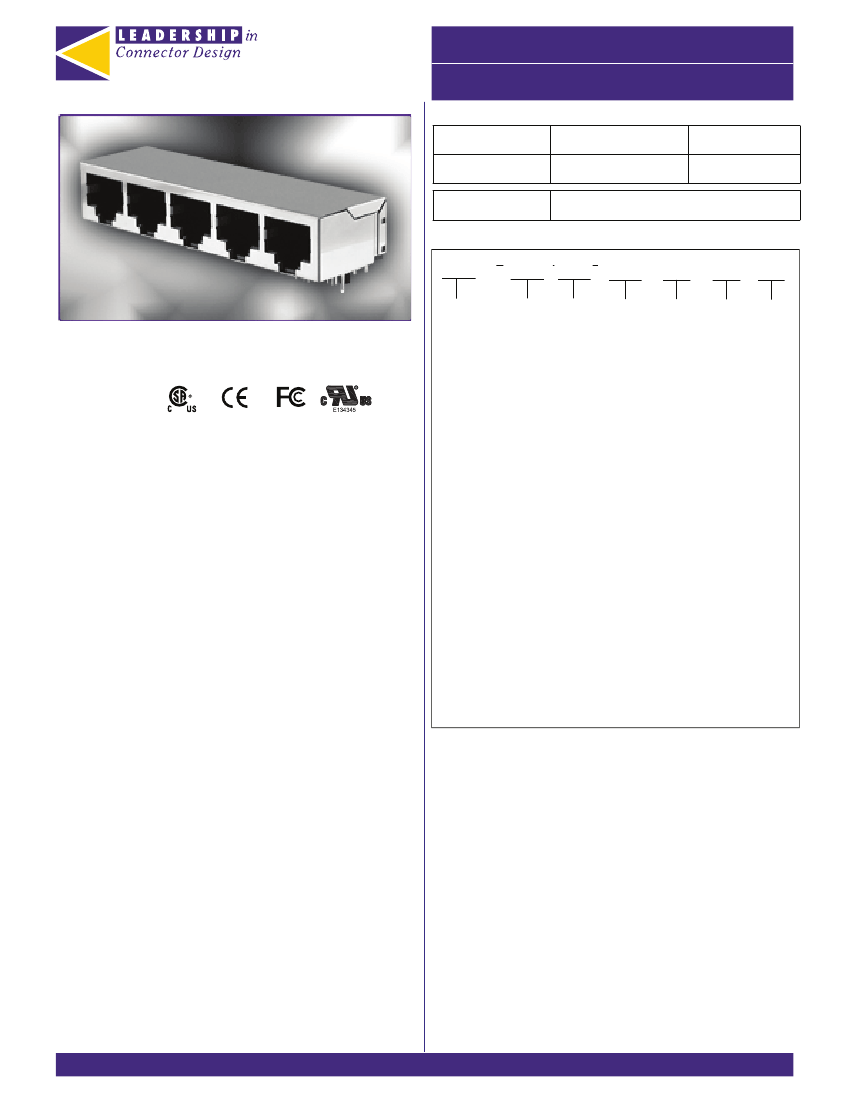

MODULAR JACKS AND PLUGS

KYCON

RoHS

GSGX/GSGXHT Series

Documentation &

Ordering Information

Drawing

Sample

Stock

Email

CofC

RFQ

Kycon Part #

GSGXHT-N-2-88

Part Number Builder

GSGXHT

Series

N

Shield

Option

2

No. of

Ports

8

GSGX/GSGXHT Series

Right Angle Ganged Jack

Features

LR78160

Series

GSGX

- Right Angle Ganged Jack

GSGXHT - High Temperature Right Angle Ganged Jack

GSGXHT

Shield Options

N

- Non-Shielded

N

NS

- Shielded

No. of

Ground Plating

Positions Contacts

Option

Spacing

• Available in up to 12 Ports

• Available Fully Shielded for Category 5 Applications

• Reflow Compatible Through Hole Design

• CSA/NRTL Certified File No. LR78160

Performance Specifications

Materials and Finish

Housing Material

GSGX - PBT Thermoplastic, Glass Filled, UL 94V-0 Rated,

Black Color

GSGXHT - High Temperature Thermoplastic, UL 94V-0 Rated,

Black Color

Shield Material

Copper Alloy, Nickel Plated

Contact Material

Phosphor Bronze

Number of Ports

2

-

2 Port

2

4

-

4 Port

4

5

-

5 Port

6

-

6 Port

6

8

-

8 Port

10

-

10 Port

10

12

-

12 Port

Number of Positions/Contacts

88

-

8 Positions / 8 Contacts

88

Ground Pin Spacing (Shielded Only)

Blank

- 3.68 mm Ground Pin Spacing

Blank

4.57

- 4.57mm Ground Pin Spacing

Plating Option

Blank - Standard

Blank

50 - 50µ" Gold Plating

50

Electrical Characteristics

Insulation Resistance

500 Megohms Min.

Dielectric Withstanding Voltage

1000V RMS, 60 Hz

Contact Resistance

20 milliohms Max.

Current Rating

1.5A

Voltage Rating

125V DC

Operating Temperature

-40°C to +85°C

Durability

500 Mating Cycles Min.

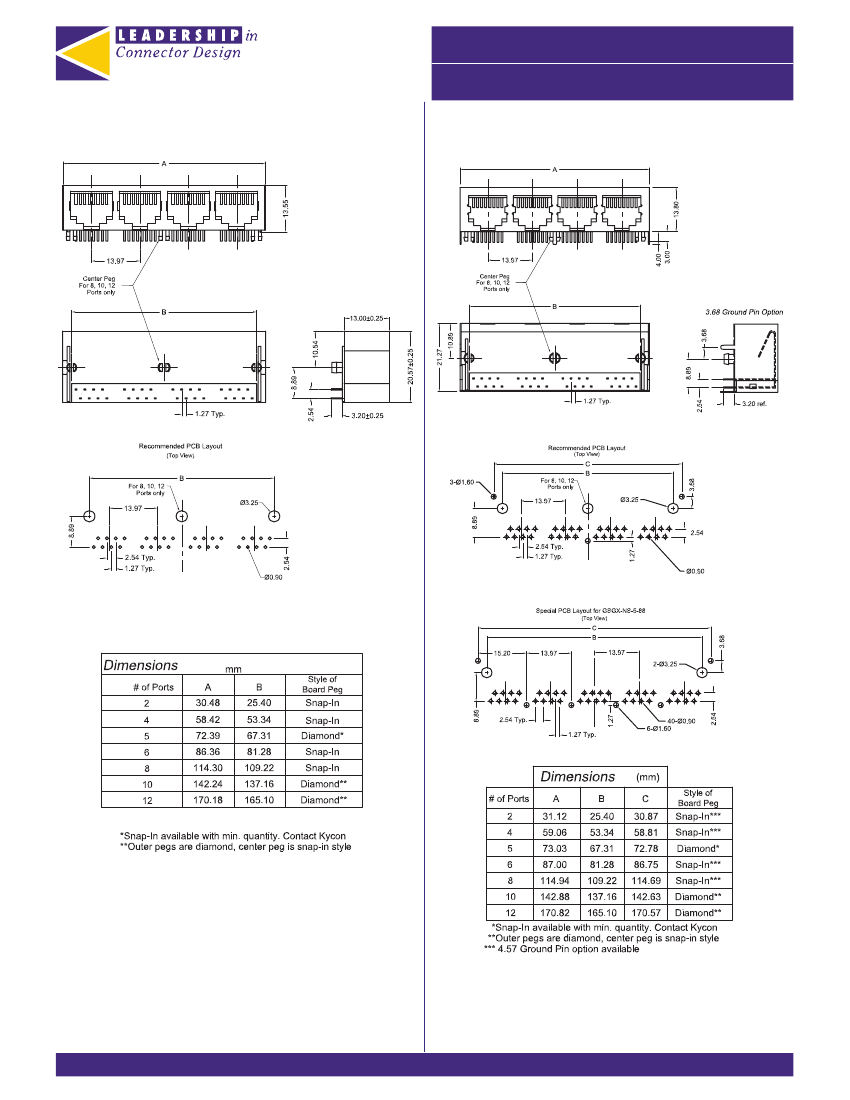

*See next page for dimensions

KYCON, Inc. • Tel: +1 408-494-0330 • US: 1-888-KYCON-22 • Fax: +1 408-494-0325 • www.kycon.com
