SPICE MODELS: DF005M DF01M DF02M DF04M DF06M DF08M DF10M
DF005M - DF10M
1.0A GLASS PASSIVATED BRIDGE RECTIFIERS
Features
·
·
·
·
·
·
·
·
·
·
·
·
·
·
·
Glass Passivated Die Construction
Diffused Junction
Low Forward Voltage Drop, High Current Capability
Surge Overload Rating to 50A Peak
Designed for Printed Circuit Board Applications
UL Listed Under Recognized Component Index, File
Number E94661
Lead Free Finish, RoHS Compliant (Note 3)
H
J
L
K
DF-M
Dim
C
Min
7.40
6.20
0.22
1.27
7.60
3.81
8.13
2.40
5.00
0.46
1.40
2.10
Max
7.90
6.50
0.30
2.03
8.90
4.69
8.51
2.60
5.20
0.58
1.56
2.34
A
B
C
D
E
G
H
B
A
E
Mechanical Data
Case: DF-M
Case Material: Molded Plastic. UL Flammability
Classification Rating 94V-0
Moisture Sensitivity: Level 1 per J-STD-020C
Terminals: Finish - Bright Tin. Solder Plated Leads,
Solderable per MIL-STD-202, Method 208
Also Available in Lead Free Plating (Bright Tin Finish).
Please see Ordering Information, Note 5, on Page 3
Polarity: As Marked on Case
Marking: Type Number, See Page 3
Weight: 0.38 grams (approximate)
D
G
J
K
L
M
N
All Dimensions in mm
Maximum Ratings and Electrical Characteristics
Single phase, 60Hz, resistive or inductive load.
For capacitive load, derate current by 20%.
Characteristic
Peak Repetitive Reverse Voltage
Working Peak Reverse Voltage
DC Blocking Voltage
RMS Reverse Voltage
Average Rectified Output Current
@ T
A
= 40°C
Non-Repetitive Peak Forward Surge Current, 8.3 ms
single half-sine-wave superimposed on rated load
(JEDEC method)
Forward Voltage (per element)
@ I
F
= 1.0 A
Peak Reverse Current
@ T
A
= 25°C
at Rated DC Blocking Voltage (per element) @ T
A
= 125°C
I
2
t Rating for Fusing (t<8.3ms)
Typical Total Capacitance per element (Note 1)
Typical Thermal Resistance, Junction to Ambient (Note 2)
Operating and Storage Temperature Range
Notes:
@ T
A
= 25°C unless otherwise specified
Symbol
V
RMM
V
RWM
V
R
V
RMS
I
O
I
FSM
V
FM
I
RM
I
2
t
C
T
R
qJA
T
j
, T
STG
DF
005M
50
35
DF
01M
100
70
DF
02M
200
140
DF
04M
400
280
1.0
50
1.1
10
500
10.4
25
40
-65 to +150
DF
06M
600
420
DF
08M
800
580
DF
10M
1000
700
Unit
V
V
A
A
V
µA
A
2
s
pF
°C/W
°C
1. Measured at 1.0MHz and Applied Reverse Voltage of 4.0V DC.
2. Thermal Resistance, junction to ambient, measured on PC board with 5.0
2
mm (0.03mm thick) land areas.
3. RoHS revision 13.2.2003. Glass and High Temperature Solder Exemptions Applied, see
EU Directive Annex Notes 5 and 7.
DS21201 Rev. 11 - 2
1 of 3
www.diodes.com
DF005M-DF10M
ã
Diodes Incorporated
I
(AV)
, AVERAGE FORWARD CURRENT (A)
60 Hz Resistive or
Inductive load
I
F
, INSTANTANEOUS FORWARD CURRENT (A)
1.0
10
1.0
0.5
0.1
0
40
60
80
100
120
140
0.01
0.4
0.6
0.8
1.0
1.2
1.4
T
A
, AMBIENT TEMPERATURE (°C)

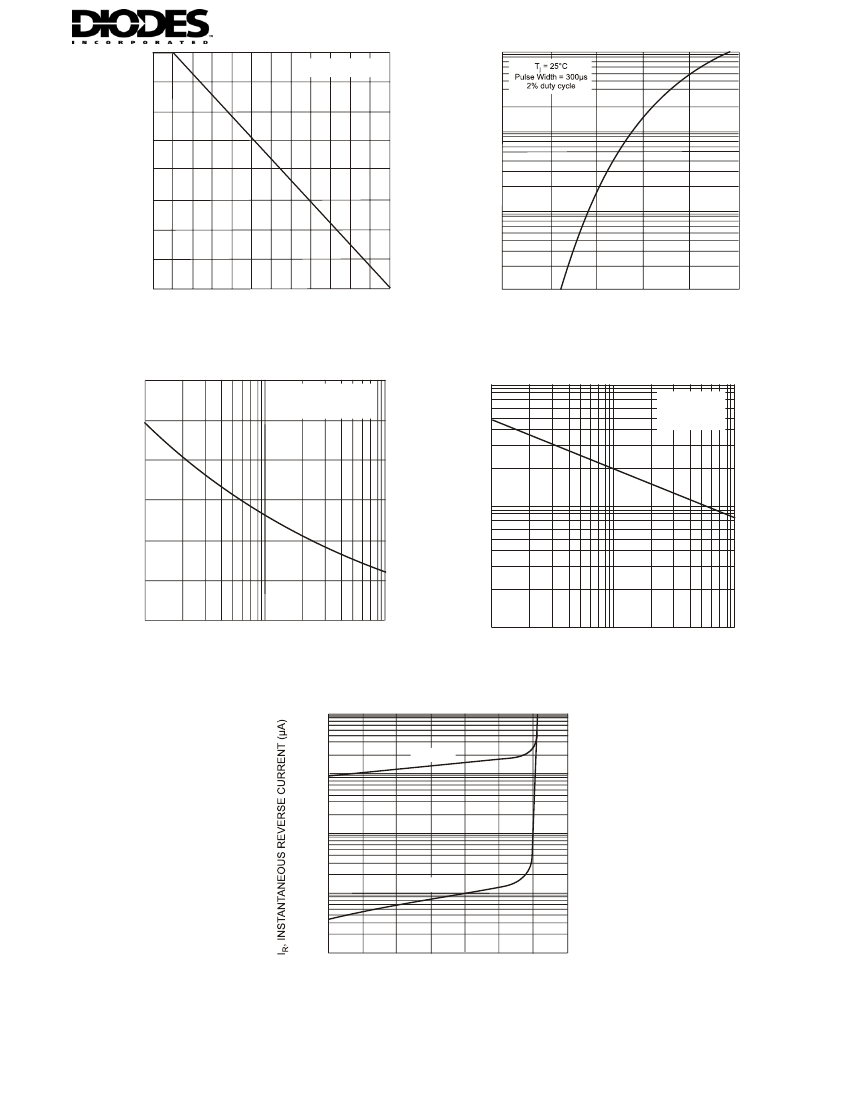

Fig. 1 Output Current Derating Curve
V
F
, INSTANTANEOUS FORWARD VOLTAGE (V)
Fig. 2 Typ Forward Characteristics (per element)
I
FSM
, PEAK FORWARD SURGE CURRENT (A)
60
Single half-sine-Wave
(JEDEC Method)
100
T
j
= 25°C
f = 1.0 Mhz
Vsig = 50 mV p-p
50
40
30
C
T
, CAPACITANCE (pF)
1
10
100
10
20
10
0
1
1
10
100
NUMBER OF CYCLES AT 60 Hz
Fig. 3 Max Non-Repetitive Peak Forward Surge Current
V
R
, REVERSE VOLTAGE (V)
Fig. 4 Typ Junction Capacitance (per element)
100
T
j
= 125°C
10
1.0
0.1
T
j
= 25°C
0.01
0
20
40
60
80
100
120
140
PERCENT OF RATED PEAK REVERSE VOLTAGE (%)
Fig. 5 Typ Reverse Characteristics (per element)
DS21201 Rev. 11 - 2
2 of 3
www.diodes.com
DF005M-DF10M
Ordering Information
Device*
DFxM
DFxM-T
(Notes 4 & 5)
Packaging
DF-M
DF-M
Shipping
Tube
1500/Tape & Reel, 13-inch
* x = Device type, e.g. DF005S or DF10S, etc.
Notes:
4. For Packaging Details, go to our website at http://www.diodes.com/datasheets/ap02007.pdf.
5. For Lead Free/RoHS Compliant version part numbers, please add "-F" suffix to the part numbers above. Example: DF10M-T-F.
Marking Information
XXXXX
YWW
= Manufacturers’ code marking
XXXXX = Product type marking code, ex: DF10M
YWW = Date code marking
Y = Last digit of year ex: 2 for 2002
WW = Week code 01 to 52
DS21201 Rev. 11 - 2
3 of 3
www.diodes.com
DF005M-DF10M
