S-8435FF-WK-T2 datasheet, PDF - EEWORLD Datasheet

S-8435FF-WK-T2: DescriptionSwitching Regulator, Voltage-mode, 30kHz Switching Freq-Max, CMOS, PDSO5, SOT-89, 5 PIN; CategoryPower/power management The power supply circuit; File Size171KB，6 Pages; ManufacturerABLIC

Download Datasheet Parametric View All

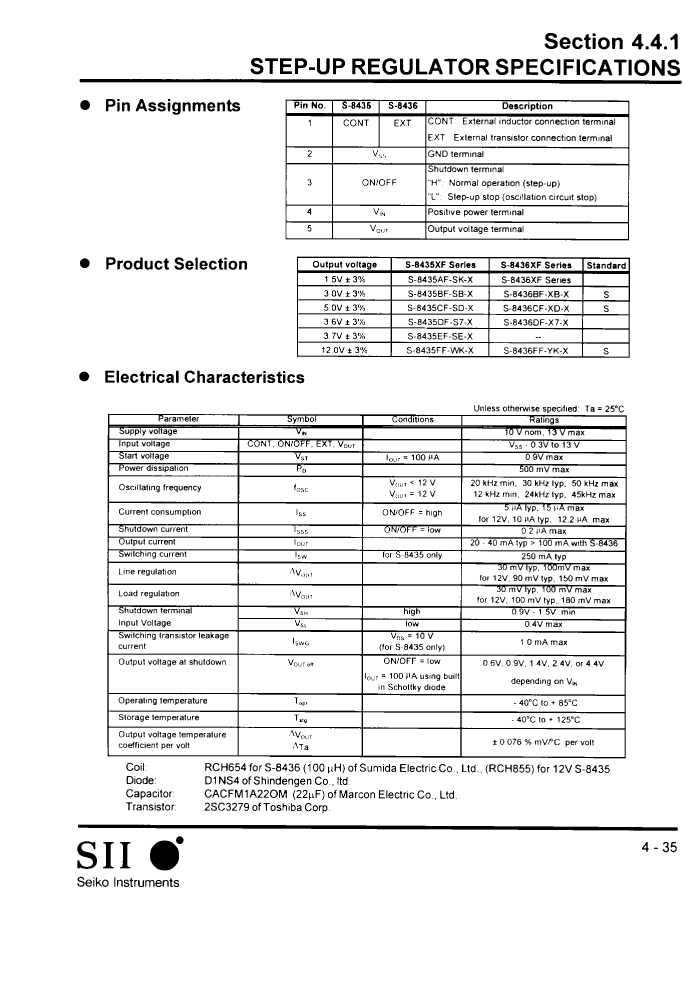

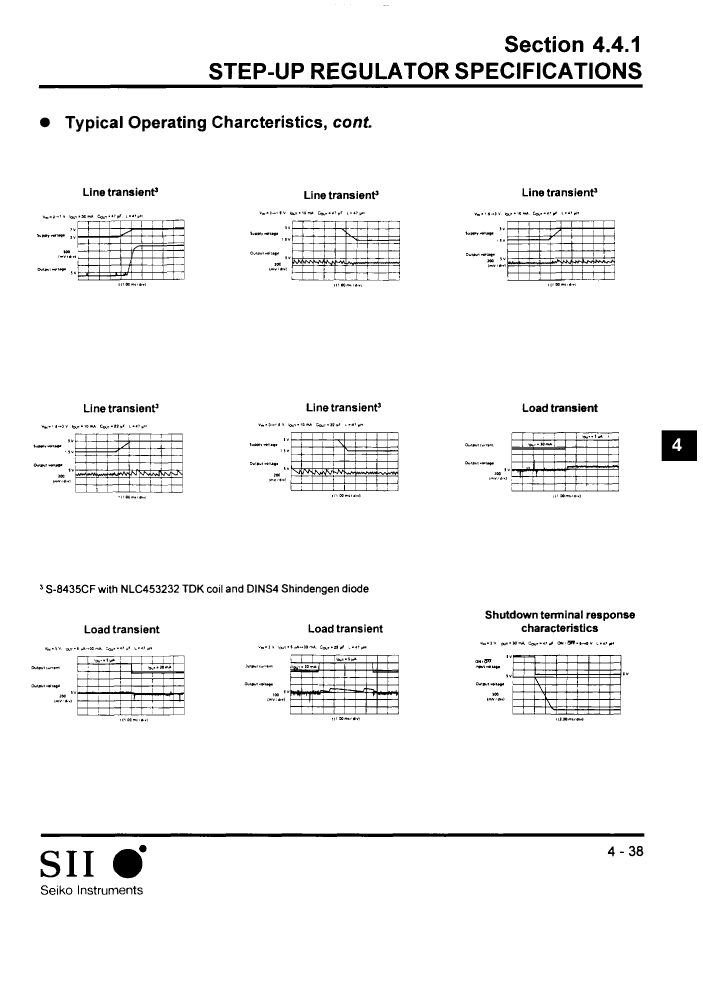

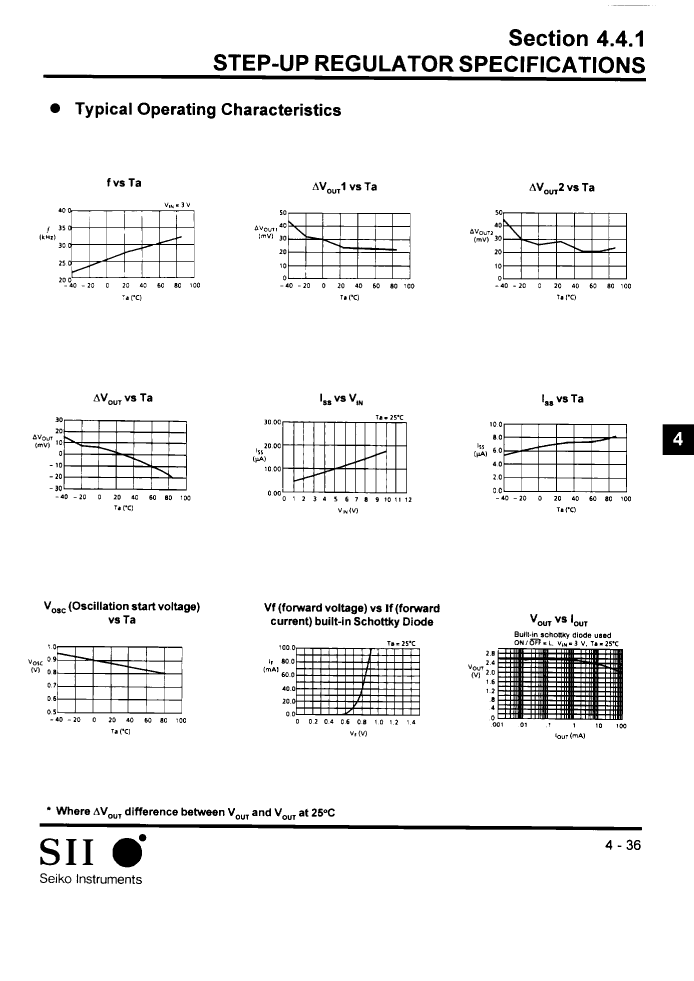

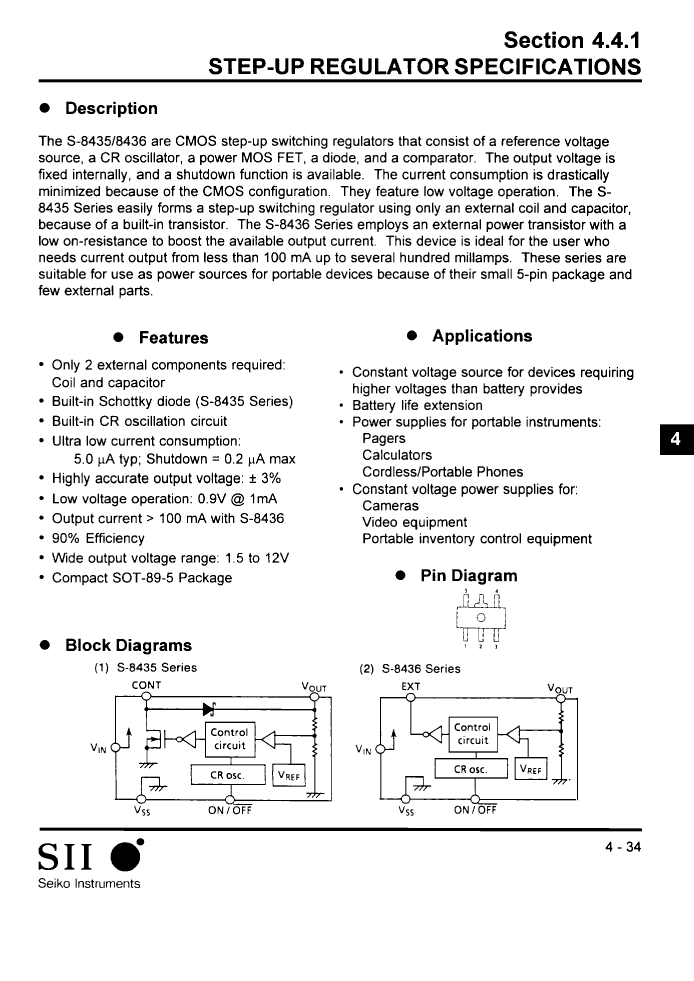

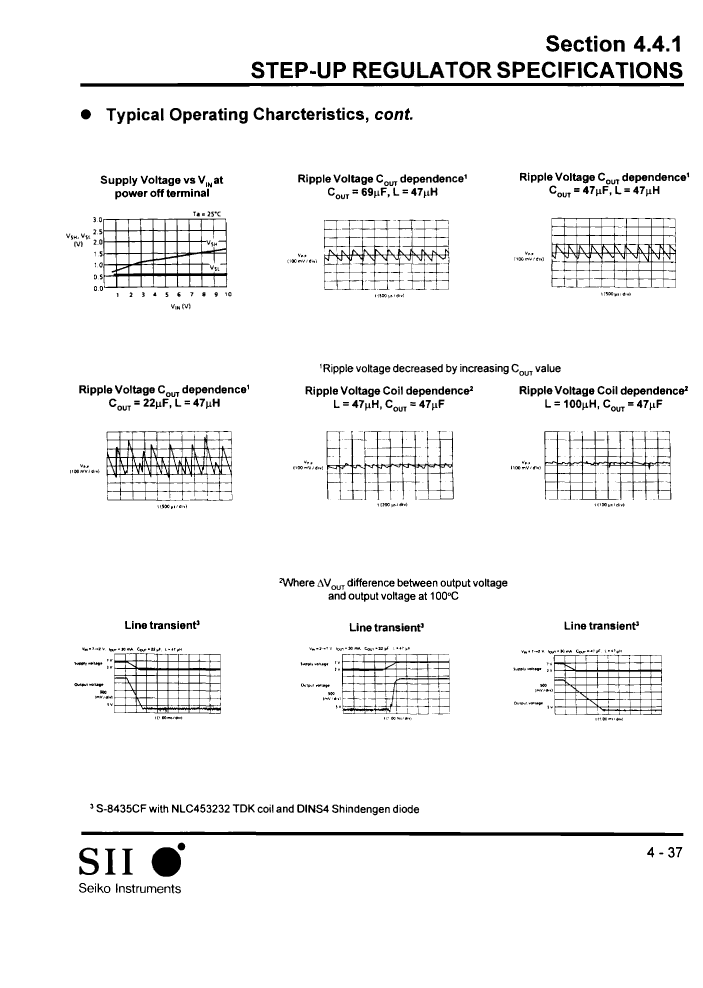

S-8435FF-WK-T2 Overview

Switching Regulator, Voltage-mode, 30kHz Switching Freq-Max, CMOS, PDSO5, SOT-89, 5 PIN

Parameter Name	Attribute value
Maker	ABLIC
Parts packaging code	SOT-89
package instruction	LSOF,
Contacts	5
Reach Compliance Code	unknown
ECCN code	EAR99
Analog Integrated Circuits - Other Types	SWITCHING REGULATOR
control mode	VOLTAGE-MODE
Control Technology	PULSE FREQUENCY MODULATION
Maximum input voltage	13 V
Nominal input voltage	10 V
JESD-30 code	R-PDSO-F5
length	4.5 mm
Number of functions	1
Number of terminals	5
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Nominal output voltage	12 V
Package body material	PLASTIC/EPOXY
encapsulated code	LSOF
Package shape	RECTANGULAR
Package form	SMALL OUTLINE, LOW PROFILE
Certification status	Not Qualified
Maximum seat height	1.7 mm
Maximum supply current (Isup)	0.015 mA
surface mount	YES
Switch configuration	BOOST
Maximum switching frequency	30 kHz
technology	CMOS
Temperature level	INDUSTRIAL
Terminal form	FLAT
Terminal pitch	1.5 mm
Terminal location	DUAL
width	2.5 mm
Base Number Matches	1
