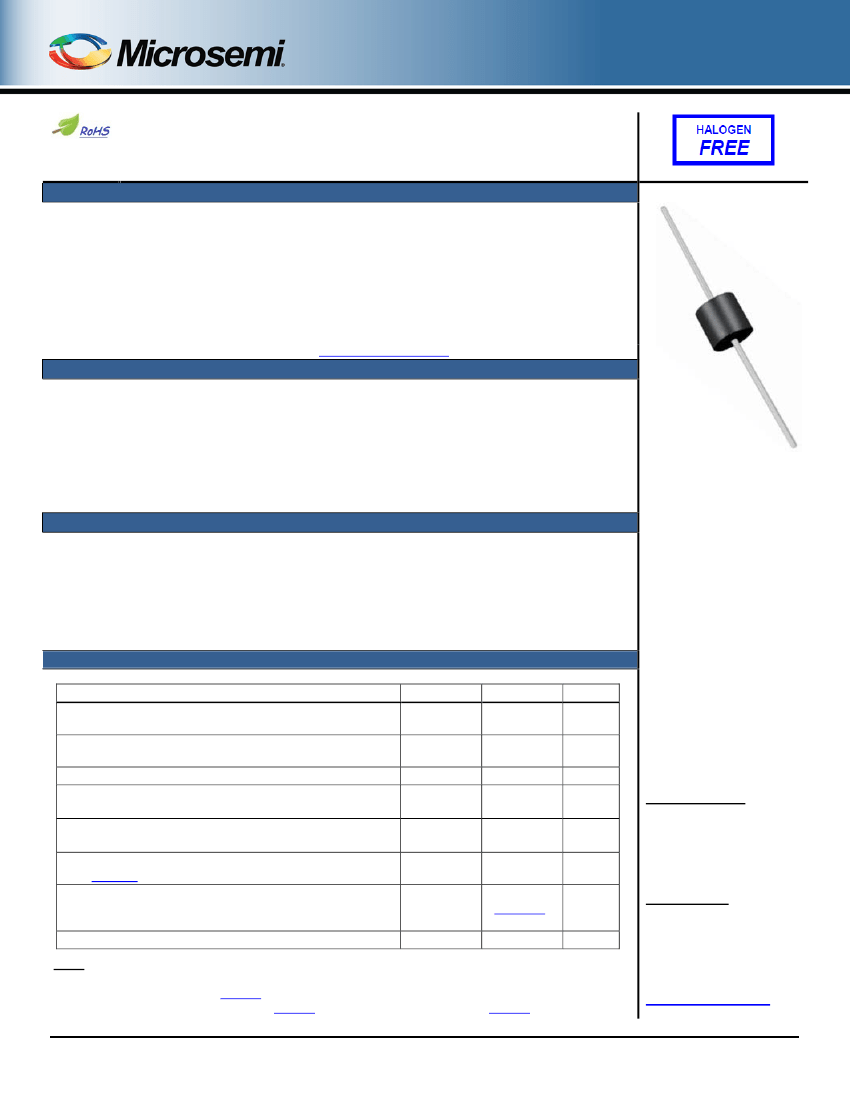

30KPA28Ae3 – 30KPA288CAe3
Compliant
30,000 Watt Transient Voltage Suppressor
(TVS) Protection Device
DESCRIPTION
This device clamps dangerous high-voltage short-term transients such as those produced by
the secondary effects of lightning strikes, providing circuit protection to several class levels in
the IEC61000-4-5 specification. Clamping time is virtually instantaneous. It also provides
protection from transients caused by inductive load dumps, RFI, and ESD, providing protection
to IEC61000-4-2 and -4-4.
Important:
For the latest information, visit our website
http://www.microsemi.com.
FEATURES
•
•
•
•
•
•
Available in both unidirectional and bidirectional configurations
5% voltage tolerance
Moisture classification is Level 1 with no dry pack required per IPC/JEDEC J-STD-020B
RoHS compliant (2002/95/EC)
MSL level 1 (J-STD-020)
RoHS compliant
P600 Package
APPLICATIONS / BENEFITS
•
•
•
Protection from transients caused by lightning strikes, switching transients, RFI, and ESD.
Protection from the secondary effects of lightning per IEC61000-4-5
Protection from ESD, and EFT per IEC 61000-4-2 and IEC 61000-4-4
MAXIMUM RATINGS
@ 25
ºC
unless otherwise noted
Parameters/Test Conditions
Junction and Storage Temperature
Thermal Resistance, Junction to Lead @ 3/8 inch (10 mm)
lead length from body
Thermal Resistance, Junction to Ambient
Non Repetitive Peak Forward Surge Current
(1)
(8.3ms single half sine wave)
Rated Average Power Dissipation @ T
L
= 75 ºC,
(2)
(0.375 inch (9.5 mm) from body)
Peak Pulse Power Dissipation with a 10/1000 μs waveform
(see
Figure 1)
(3)
Peak Pulse Current with a 10/1000 μs waveform
Symbol
T
J
and
T
STG
R
ӨJL
R
ӨJA
I
FSM
P
M(AV)
P
PP
I
PP
Value
-55 to +175
8.0
77.5
400
8.0
30,000
See
Electrical
Table
260
o
Unit
o
C
C/W
C/W
A
W
W
A
o
MSC – Lawrence
6 Lake Street,
Lawrence, MA 01841
1-800-446-1158 or
(978) 620-2600
Fax: (978) 689-0803
MSC – Ireland
Gort Road Business Park,
Ennis, Co. Clare, Ireland
Tel: +353 (0) 65 6840044
Fax: +353 (0) 65 6822298
Website:
www.microsemi.com
Solder Temperature @ 10 s
o
C
Notes:
1. Measured on 8.3ms single half sine-wave or equivalent square wave, duty cycle = 4 pulses per minute
maximum
2. Mounted as shown in
Figure 5
3. Non-repetitive current pulse, per
Figure 3
and derated above T
A
= 25 ºC per
Figure 2
RF01132, Rev. B (7/26/13)
©2013 Microsemi Corporation
Page 1 of 8
30KPA28Ae3 – 30KPA288CAe3
MECHANICAL and PACKAGING
•
•
•
•
•
•
•
CASE: Epoxy body meets UL94V-0
TERMINALS: Matte-tin plating, fully RoHS compliant. Solderable per MIL-STD-750, method 2026.
MARKING: Manufacturer ID, date code and part number
POLARITY: For unidirectional types the color band denotes the cathode, which is positive with respect to the anode under normal
TVS operation.
TAPE & REEL option: Standard per EIA-296 (add “TR” suffix to part number). Consult factory for quantities.
WEIGHT: Approximately 0.07 ounce (2.0 grams)
See
Package Dimensions
on last page.
PART NOMENCLATURE
30
Peak Pulse Power
Kilowatt Rating
K
P
A
28
C
A
e3
RoHS Compliance
e3 = RoHS compliant
5 % Voltage Tolerance
Encapsulated Plastic
Package
Axial-leaded Device
Stand-off Voltage Rating
(see
Electrical Characteristics
table)
Polarity
C = Bi-directional
Blank = Unidirectional
Symbol
α
V(BR)
I
D
I
PP
P
PP
V
(
BR)
V
C
SYMBOLS & DEFINITIONS
Definition
Temperature Coefficient of Breakdown Voltage: The change in breakdown voltage divided by the change in
temperature that caused it expressed in %/°C or mV/°C.
Standby Current: The current through the device at rated stand-off voltage.
Peak Impulse Current: The maximum rated random recurring peak impulse current or nonrepetitive peak impulse
current that may be applied to a device. A random recurring or nonrepetitive transient current is usually due to an
external cause, and it is assumed that its effect will have completely disappeared before the next transient arrives.
Peak Pulse Power. The rated random recurring peak impulse power or rated nonrepetitive peak impulse power. The
impulse power is the maximum-rated value of the product of I
PP
and V
C
.
Breakdown Voltage: The voltage across the device at a specified current I
(BR)
in the breakdown region.
Clamping Voltage: The voltage across the device in a region of low differential resistance during the application of an
impulse current (I
PP
) for a specified waveform.
Working Standoff Voltage: The maximum-rated value of dc or repetitive peak positive cathode-to-anode voltage that
may be continuously applied over the standard operating temperature.
V
W M
RF01132, Rev. B (7/26/13)
©2013 Microsemi Corporation
Page 2 of 8
30KPA28Ae3 – 30KPA288CAe3
ELECTRICAL CHARACTERISTICS
@ 25 ºC
BREAKDOWN
VOLTAGE
(2)
V
(BR)
@
I
(BR)
(Volts)
Min
30KPA28Ae3 / 30KPA28CAe3
30KPA30Ae3 / 30KPA30CAe3
30KPA33Ae3 / 30KPA33CAe3
30KPA36Ae3 / 30KPA36CAe3
30KPA39Ae3 / 30KPA39CAe3
30KPA42Ae3 / 30KPA42CAe3
30KPA43Ae3 / 30KPA43CAe3
30KPA45Ae3 / 30KPA45CAe3
30KPA48Ae3 / 30KPA48CAe3
30KPA51Ae3 / 30KPA51CAe3
30KPA54Ae3 / 30KPA54CAe3
30KPA58Ae3 / 30KPA58CAe3
30KPA60Ae3 / 30KPA60CAe3
30KPA64Ae3 / 30KPA64CAe3
30KPA66Ae3 / 30KPA66CAe3
30KPA70Ae3 / 30KPA70CAe3
30KPA71Ae3 / 30KPA71CAe3
30KPA72Ae3 / 30KPA72CAe3
30KPA75Ae3 / 30KPA75CAe3
30KPA78Ae3 / 30KPA78CAe3
30KPA84Ae3 / 30KPA84CAe3
30KPA90Ae3 / 30KPA90CAe3
30KPA96Ae3 / 30KPA96Cae3
30KPA102Ae3 / 30KPA102CAe3
30KPA108Ae3 / 30KPA108CAe3
30KPA120Ae3 / 30KPA120CAe3
30KPA132Ae3 / 30KPA132CAe3
30KPA144Ae3 / 30KPA144CAe3
30KPA150Ae3 / 30KPA150CAe3
30KPA156Ae3 / 30KPA156CAe3
30KPA160Ae3 / 30KPA160CAe3
30KPA168Ae3 / 30KPA168Cae3
30KPA170Ae3 / 30KPA170CAe3
30KPA180Ae3 / 30KPA180CAe3
30KPA198Ae3 / 30KPA198CAe3
30KPA216Ae3 / 30KPA216CAe3
30KPA240Ae3 / 30KPA240CAe3
30KPA258Ae3 / 30KPA258CAe3
30KPA260Ae3 / 30KPA260CAe3
30KPA270Ae3 / 30KPA270Cae3
31.28
33.51
36.90
40.20
43.60
46.90
48.00
50.30
53.60
57.00
60.30
64.80
67.00
71.50
73.70
78.20
79.3
80.4
83.8
87.1
93.8
100.5
107.2
113.9
120.6
134.0
147.4
160.8
167.6
174.3
178.7
187.7
189.9
201.1
221.2
241.3
268.1
288.2
290.4
301.6
Max
34.2
36.7
40.4
44.0
47.7
51.3
52.6
55.0
58.7
62.4
66.0
70.9
73.4
78.3
80.7
85.6
86.8
88.0
91.7
95.4
102.7
110.1
117.4
124.7
132.0
146.8
161.4
176.1
183.5
190.8
195.7
205.5
207.9
220.1
242.2
264.2
293.5
315.6
318.0
330.2
50
50
50
50
20
10
10
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
28
30
33
36
39
42
43
45
48
51
54
58
60
64
66
70
71
72
75
78
84
90
96
102
108
120
132
144
150
156
160
168
170
180
198
216
240
258
260
270
5000
5000
5000
5000
2000
1000
1000
250
150
50
20
20
15
10
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
606.0
548.9
517.9
490.3
450.9
420.8
415.1
391.5
371.3
350.7
331.5
327.9
297.1
291.3
283.2
278.0
271.1
265.8
253.8
234.9
217.7
207.0
194.2
183.0
172.9
155.9
142.3
135.8
129.8
123.7
120.0
111.2
110.2
104.3
94.7
86.9
78.3
72.8
72.8
69.5
50.0
55.2
58.5
61.8
67.2
72.0
73.0
77.4
81.6
86.4
91.4
92.4
102
104
107
109
111.5
114.0
119.4
129.0
139.2
146.4
156.0
165.6
175.2
194.4
213.0
223.2
233.4
245.0
252.6
272.4
275.0
290.4
319.8
348.6
387.0
416.4
416.0
436.2
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.1
TEST
CURRENT
STAND-
OFF
VOLTAGE
V
WM
(Volts)
MAXIMUM
STANDBY
CURRENT
(4)
I
D
@ V
WM
(µA)
MAXIMUM
PEAK PULSE
CURRENT
(3)
I
PP
(A)
MAXIMUM
CLAMPING
VOLTAGE
V
C
@ I
PP
(Volts)
MAXIMUM
TEMPERATURE
COEFFICIENT
α
V(BR)
(%/ °C)
DEVICE
I
(BR)
(mA)
Continued on next page.
RF01132, Rev. B (7/26/13)
©2013 Microsemi Corporation
Page 3 of 8
30KPA28Ae3 – 30KPA288CAe3
ELECTRICAL CHARACTERISTICS
@ 25 ºC (continued)
BREAKDOWN
VOLTAGE
(2)
V
(BR)
@
I
(BR)
(Volts)
Min
312.8
321.7
Max
342.4
352.2
TEST
CURRENT
STAND-
OFF
VOLTAGE
V
WM
(Volts)
280
288
MAXIMUM
STANDBY
CURRENT
(4)
I
D
@ V
WM
(µA)
2
2
MAXIMUM
PEAK PULSE
CURRENT
(3)
I
PP
(A)
65.3
64.5
MAXIMUM
CLAMPING
VOLTAGE
V
C
@ I
PP
(Volts)
464.0
469.9
MAXIMUM
TEMPERATURE
COEFFICIENT
α
V(BR)
(%/ °C)
0.1
0.1
DEVICE
I
(BR)
(mA)
30KPA280Ae3 / 30KPA280CAe3
30KPA288Ae3 / 30KPA288CAe3
5
5
Consult factory for higher voltages.
NOTES:
(1) All ratings at 25 ºC unless specified otherwise.
(2) V
(BR)
measured after I
(BR)
applied for 300 µs, I
(BR)
= square wave pulse or equivalent.
(3) Surge current waveform per
Figure 3
and derated per
Figure 2.
(4) For bidirectional types with V
WM
of 30 volts and less, the I
D
limit is doubled.
RF01132, Rev. B (7/26/13)
©2013 Microsemi Corporation
Page 4 of 8
30KPA28Ae3 – 30KPA288CAe3
GRAPHS
P
PP
– Peak Pulse Power (KW)
t
d
– Pulse Width (Sec.)

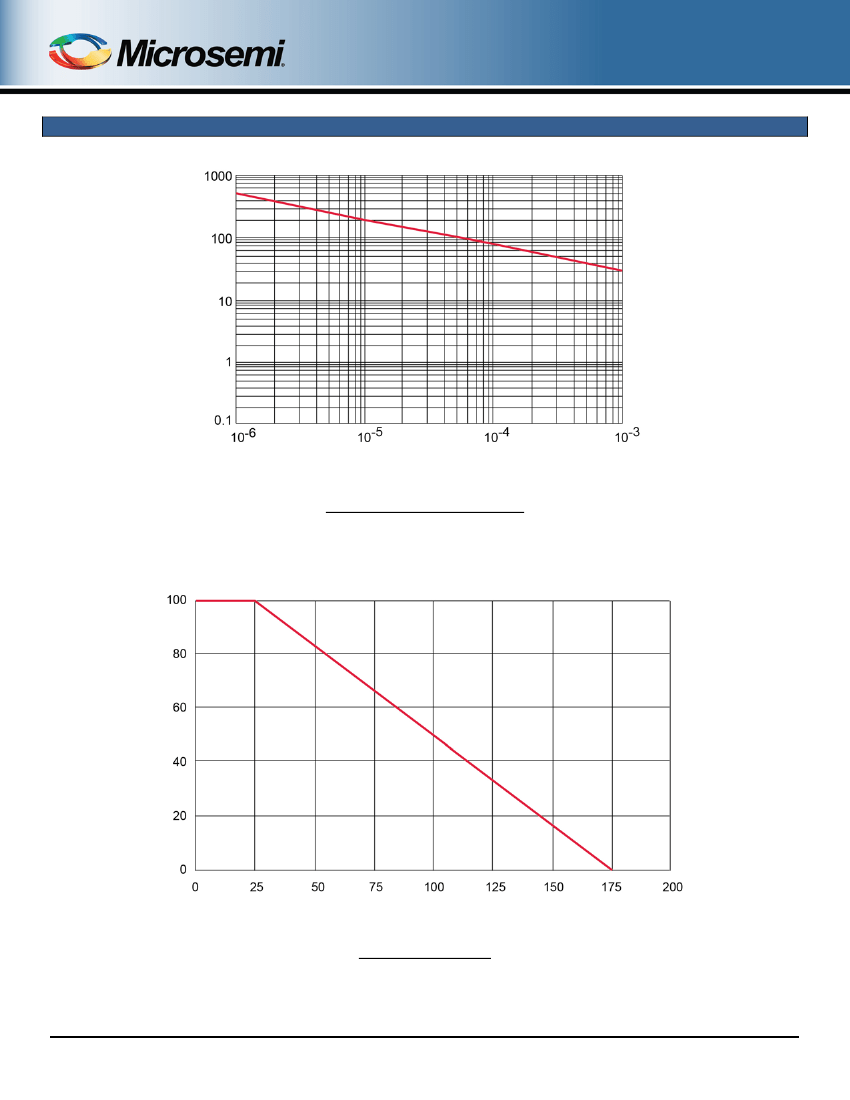

FIGURE 1
Peak Pulse Power Rating Curve
Peak Pulse Power (P
PP
) or Current (l
PP
)
Derating in Percentage %
T
A
Ambient Temperature (°C)
FIGURE 2
Pulse Derating Curve
RF01132, Rev. B (7/26/13)
©2013 Microsemi Corporation
Page 5 of 8
Discrete Device
