PRM05WJP182B00 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> The resistor> PRM05WJP182B00

PRM05WJP182B00: DescriptionFixed Resistor, 5W, 1800ohm, 5% +/-Tol, 350ppm/Cel, Through Hole Mount, RADIAL LEADED, ROHS COMPLIANT; CategoryPassive components The resistor; File Size906KB，7 Pages; ManufacturerRoyal Electronic Factory (Thailand) Co., Ltd.; Environmental Compliance

Download Datasheet Parametric View All

PRM05WJP182B00 Overview

Fixed Resistor, 5W, 1800ohm, 5% +/-Tol, 350ppm/Cel, Through Hole Mount, RADIAL LEADED, ROHS COMPLIANT

PRM05WJP182B00 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Royal Electronic Factory (Thailand) Co., Ltd.
package instruction	,
Reach Compliance Code	compliant
ECCN code	EAR99
JESD-609 code	e3
Installation features	THROUGH HOLE MOUNT
Number of terminals	2
Maximum operating temperature	275 °C
Package shape	RECTANGULAR PACKAGE
method of packing	BULK
Rated power dissipation(P)	5 W
Rated temperature	70 °C
resistance	1800 Ω
Resistor type	FIXED RESISTOR
surface mount	NO
Temperature Coefficient	350 ppm/°C
Terminal surface	Tin (Sn) - with Nickel (Ni) barrier
Terminal shape	WIRE
Tolerance	5%
Base Number Matches	1

Preview

Download Datasheet

View All

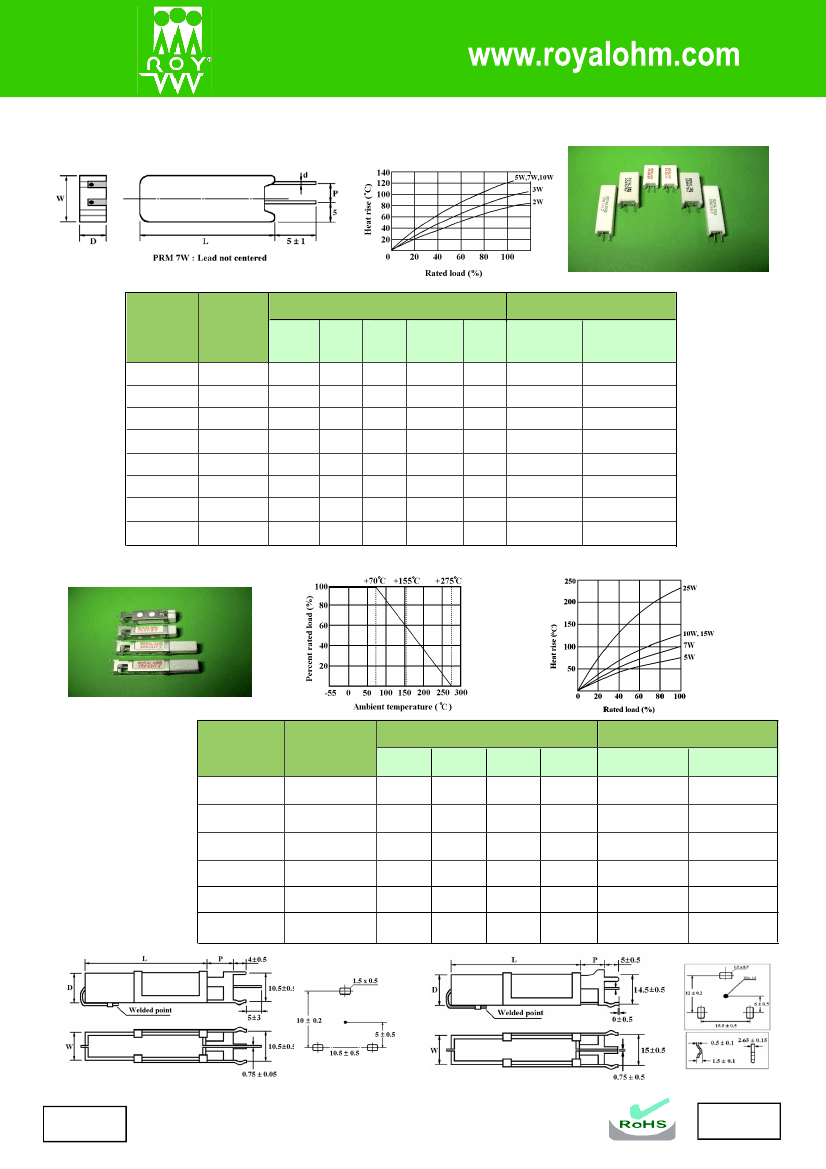

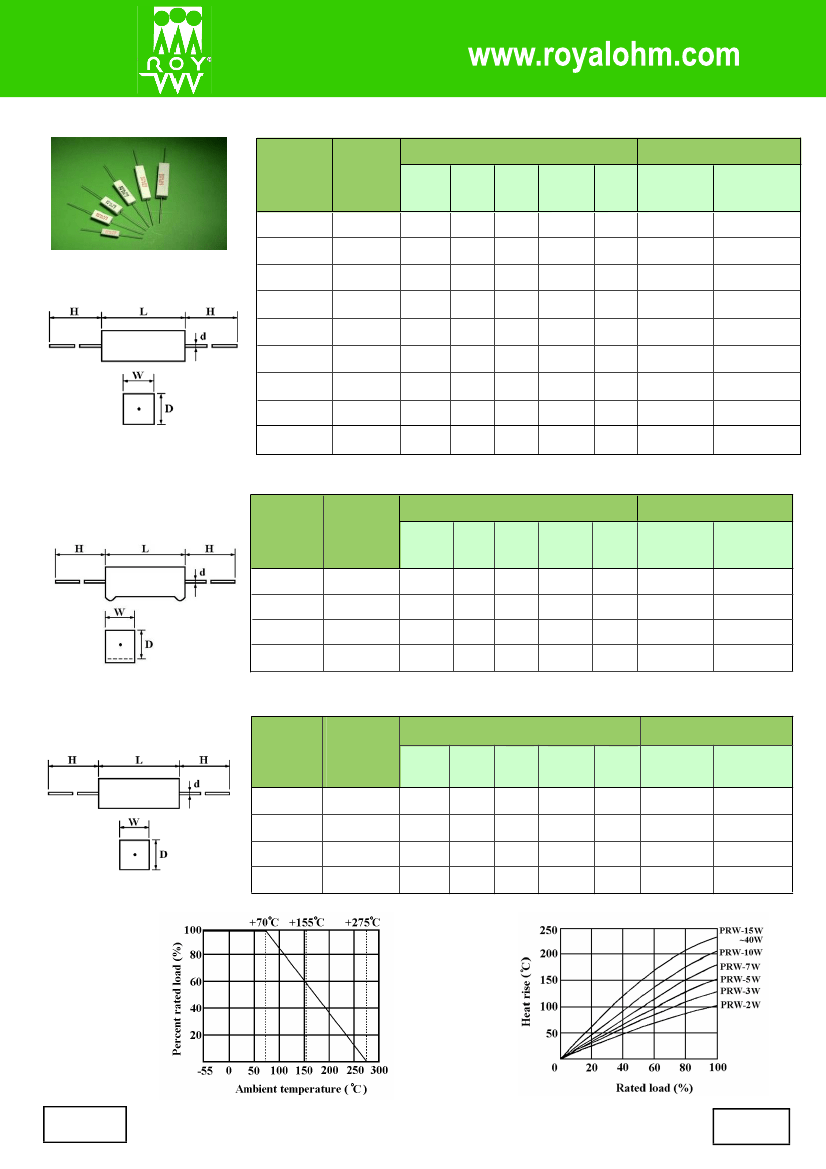

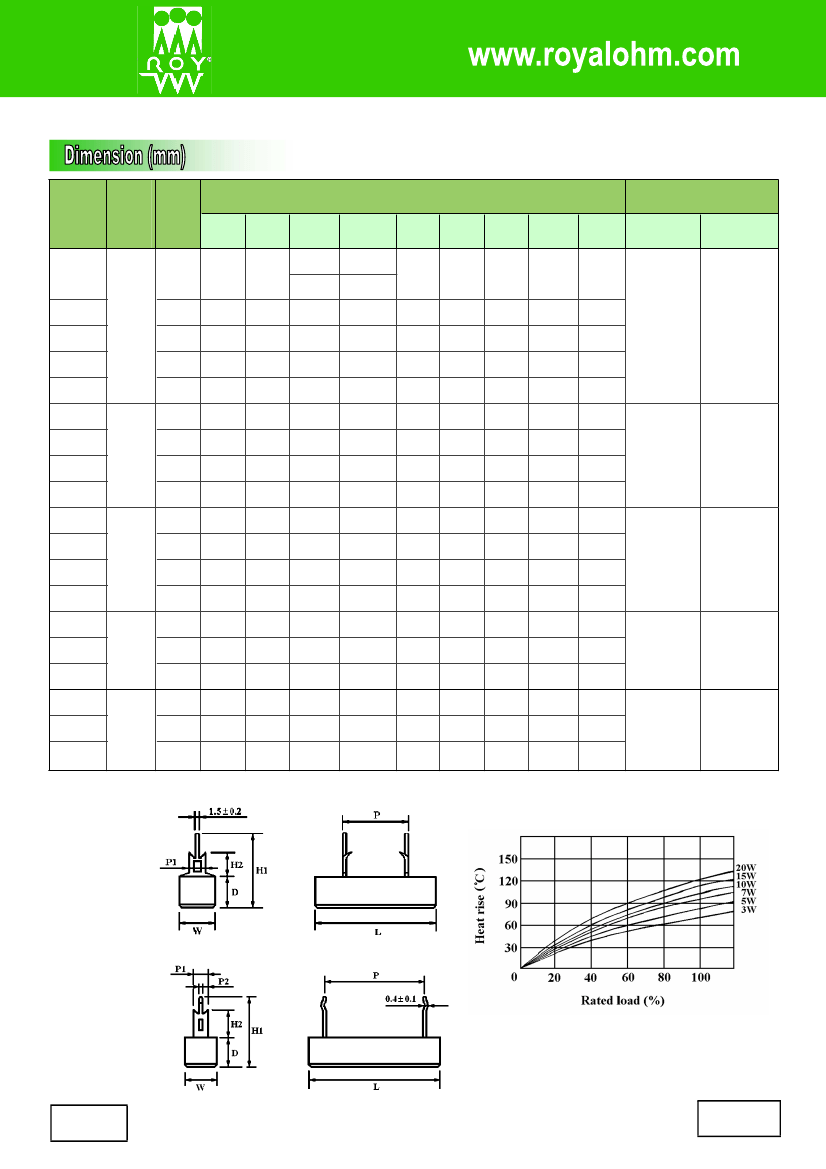

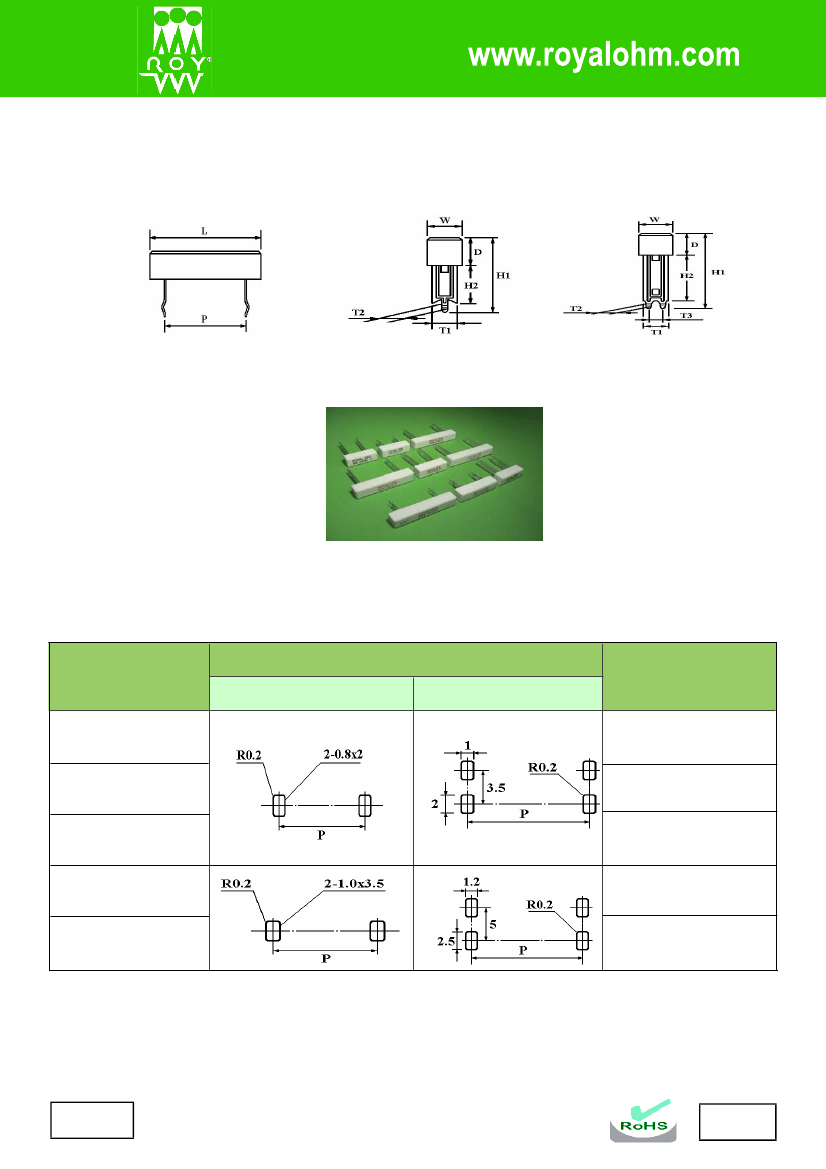

CEMENT FIXED RESISTORS

•

Self extinguishing

Excellent flame and moisture resistance

Extremely small sturdy and mechanically safe

Non-inductive types available for all Royal Ohm Cement Types

Too low or too high ohmic values on Wire-wound & Power Film type can be supplied on a case to

case basis

Ordering Procedure: (Ex.: PRW 5W, 5%, 100Ω, B/B)

Resistor Type:

PRW0 = PRW; PRWA = PRWA;

PRWC = PRWC; PRM0 = PRM;

PRMA = PRMA; PRMB = PRMB;

PRVA = PRVA;

PRS0 = PRS;

PRVB = PRVB; PZ1A = PRZA-1;

PZ2A = PRZA-2; PZ3A = PRZA-3;

PRZC = PRZC; PRZD = PRZD;

PRU0 = PRU;

PRT0 = PRT;

PDM0 = PDM; PRWI = PRWI

Wattage:

2W = 2W

3W = 3W

4W = 4W

5W = 5W

7W = 7W

AW = 10W

FW = 15W

20 = 20W

25 = 25W

30 = 30W

40 = 40W

Resistance Value:

E-24 series: the 1

digit to

denote production type of the

product:

W = Wire - wound type

P = Power film type

The 2

& 3

digits are for the

significant figures of the resistance

and the 4

digit denotes number of

zeros:

“J”- 0.1, “K”- 0.01, “L”- 0.001

Ex.

4Ω7 ~ W47J

Tolerance:

J = ±5%,

K = ±10%

Packing Type:

B =Bulk / Box

Packing Qty:

* More explanation on part no, please see details on pages 79-80.

0 = for Bulk / Box packing

Special Feature:

0 = Standard product

I = Non-Inductive

Temperature coefficient

Short-time overload

Dielectric withstanding voltage

Terminal strength

Solderability

Temperature cycling

Humidity (Steady

state)

Load life in humidity

< 20Ω: ±400PPM/°C;

≥

20Ω: ±350PPM/°C

∆R/R ≤

±(5.0% + 0.05Ω), with no evidence of mechanical damage.

No evidence of flashover, mechanical damage, arcing or insulation breakdown.

No evidence of mechanical damage.

Min. 95% coverage

∆R/R ≤

±(2.0% + 0.05Ω), with no evidence of mechanical damage.

∆R/R ≤

±(5.0% + 0.05Ω), with no evidence of mechanical damage.

For Wire-wound range; the

∆R/R

is ±5%

For Power film range: <100KΩ, the

∆R/R

is ±5%

For Power film range:

≥100KΩ,

the

∆R/R

is ±10%

Load life

For Wire-wound range: the

∆R/R

is ±5%

For Power film range: <100KΩ, the

∆R/R

is ±5%

For Power film range:

≥100KΩ,

the

∆R/R

is ±10%

Resistance to soldering heat

∆R/R

±(1.0% + 0.05Ω), with no evidence of mechanical damage.

*More details, please see pages 77-78.

2006 - 2007

Page 35
