BB804-SF2 datasheet, PDF - EEWORLD Datasheet

BB804-SF2: DescriptionVariable Capacitance Diode, 18V, Silicon; CategoryDiscrete semiconductor diode; File Size61KB，3 Pages; ManufacturerSIEMENS; Websitehttp://www.infineon.com/

Download Datasheet Parametric Compare View All

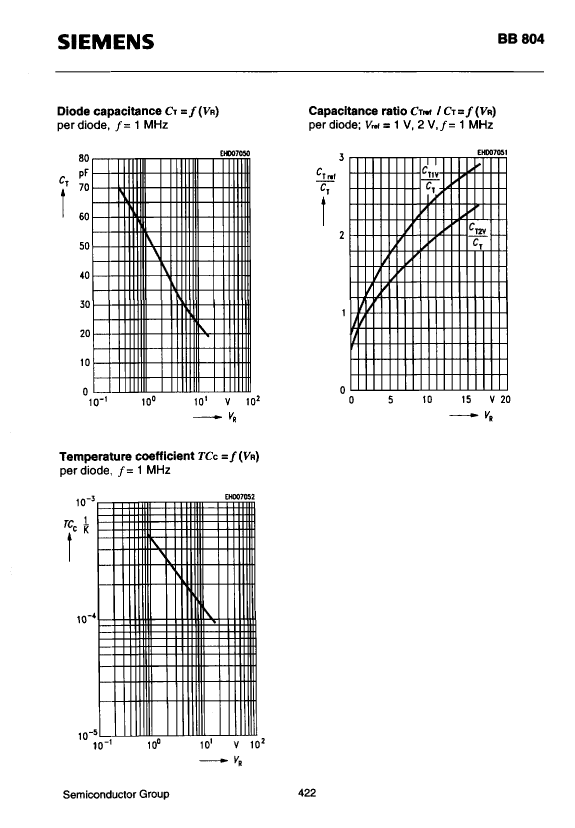

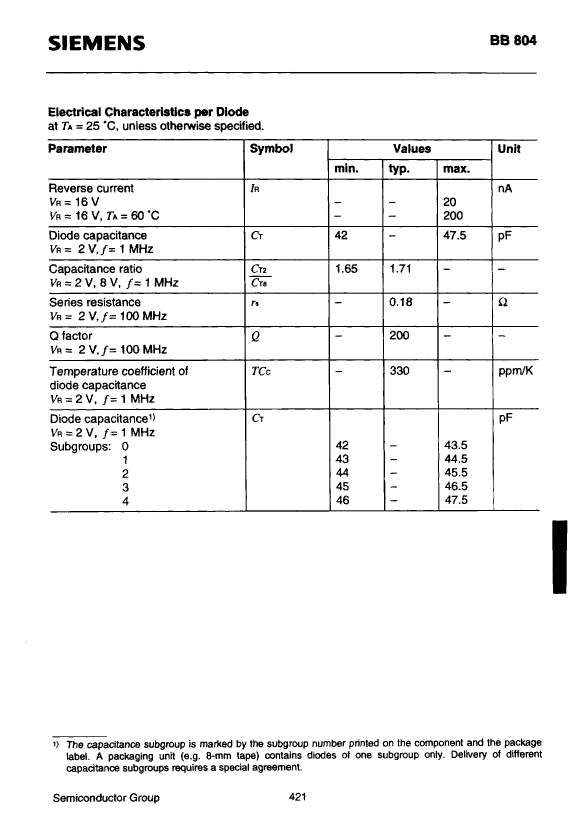

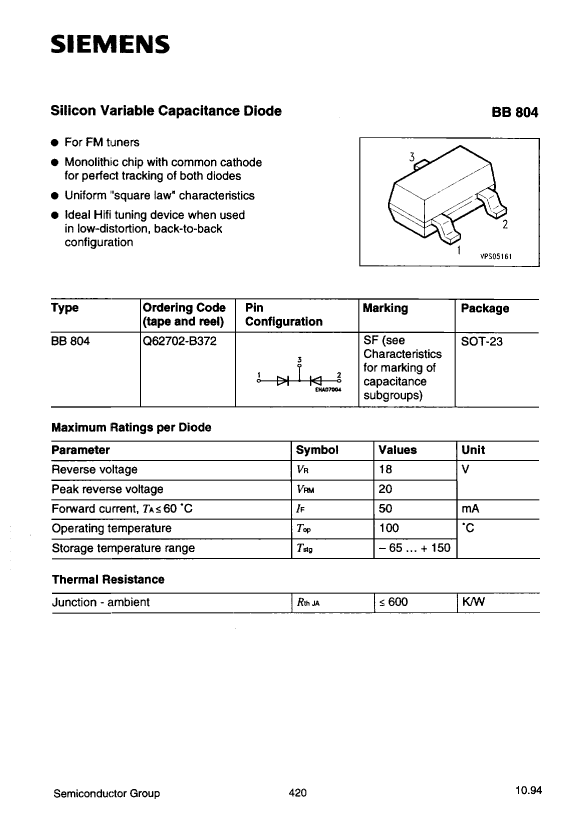

BB804-SF2 Overview

Variable Capacitance Diode, 18V, Silicon

Parameter Name	Attribute value
Maker	SIEMENS
package instruction	R-PDSO-G3
Reach Compliance Code	unknown
ECCN code	EAR99
Minimum breakdown voltage	18 V
Configuration	COMMON CATHODE, 2 ELEMENTS
Minimum diode capacitance ratio	1.65
Diode component materials	SILICON
Diode type	VARIABLE CAPACITANCE DIODE
JESD-30 code	R-PDSO-G3
Number of components	2
Number of terminals	3
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Certification status	Not Qualified
surface mount	YES
Terminal form	GULL WING
Terminal location	DUAL
Base Number Matches	1

	BB804-SF2	BB804E6433	BB804E6327
Description	Variable Capacitance Diode, 18V, Silicon	Variable Capacitance Diode, 18V, Silicon	Variable Capacitance Diode, 18V, Silicon
package instruction	R-PDSO-G3	R-PDSO-G3	R-PDSO-G3
Reach Compliance Code	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99
Minimum breakdown voltage	18 V	18 V	18 V
Configuration	COMMON CATHODE, 2 ELEMENTS	COMMON CATHODE, 2 ELEMENTS	COMMON CATHODE, 2 ELEMENTS
Minimum diode capacitance ratio	1.65	1.65	1.65
Diode component materials	SILICON	SILICON	SILICON
Diode type	VARIABLE CAPACITANCE DIODE	VARIABLE CAPACITANCE DIODE	VARIABLE CAPACITANCE DIODE
JESD-30 code	R-PDSO-G3	R-PDSO-G3	R-PDSO-G3
Number of components	2	2	2
Number of terminals	3	3	3
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE
Certification status	Not Qualified	Not Qualified	Not Qualified
surface mount	YES	YES	YES
Terminal form	GULL WING	GULL WING	GULL WING
Terminal location	DUAL	DUAL	DUAL
Base Number Matches	1	1	1
Maker	SIEMENS	SIEMENS	-
