2444-5121 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 2444-5121

2444-5121: DescriptionBoard Connector, 12 Contact(s), 2 Row(s), Female, Straight, 0.1 inch Pitch, Solder Terminal, Locking; CategoryThe connector The connector; File Size68KB，1 Pages; ManufacturerConexcon Group; Environmental Compliance

Download Datasheet Parametric View All

2444-5121 Overview

Board Connector, 12 Contact(s), 2 Row(s), Female, Straight, 0.1 inch Pitch, Solder Terminal, Locking

2444-5121 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Reach Compliance Code	unknown
body width	0.2 inch
subject depth	0.197 inch
body length	0.62 inch
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU ON NI
Contact point gender	FEMALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	600VAC V
Durability	50 Cycles
maximum insertion force	3.9198 N
Insulation resistance	1000000000 Ω
insulator material	POLYBUTYLENE TEREPHTHALATE
Manufacturer's serial number	2444
Plug contact pitch	0.1 inch
Match contact row spacing	0.1 inch
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.54 mm
Plating thickness	15u inch
polarization key	POLARIZED HOUSING
Rated current (signal)	3 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.118 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	12
Base Number Matches	1

Preview

Download Datasheet

View All

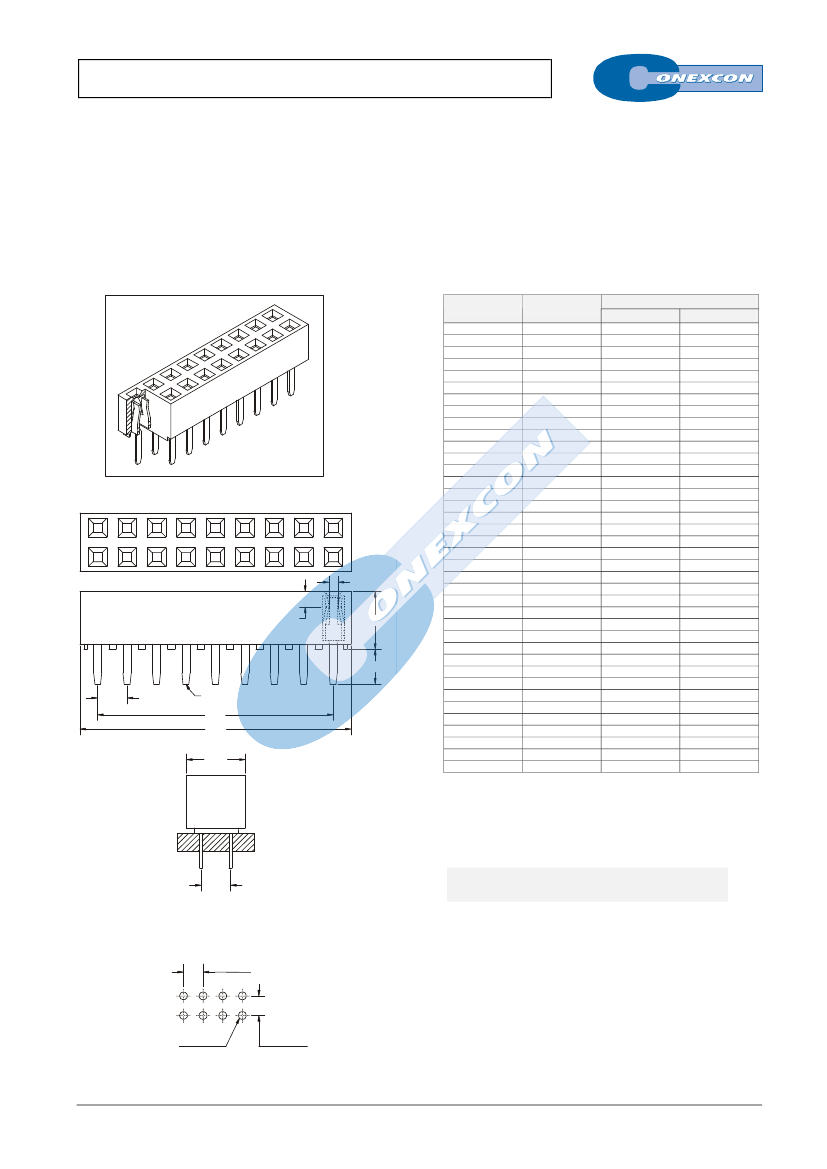

2.54mm DUAL ROW FEMALE HEADER

2444 SERIES.

2.54 x 2.54mm(0.100 X 0.100”). For PCB Solder

Features



Available in 6 through 80 circuits

Insulator Material: Nylon 6-T UL 94V-0

Mates with 2.54mm pitch and 0.64mm pin headers

Low profile and high density PCB socket



Height: 5.00mm

Different plating options are available

High quality dual beam phosphor bronze contacts

Designed for board to board small spacing interconnection

Ordering and Dimensional Information

Dimensional Information

Circuit Size

Part Number

2444-T061

2444-T081

2444-T101

2444-T121

2444-T141

2444-T161

2444-T181

2444-T201

2444-T221

2444-T241

2444-T261

2444-T281

2444-T301

2444-T321

2444-T341

2444-T361

2444-T381

2444-T401

2444-T421

2444-T441

2444-T461

2444-T481

2444-T501

2444-T521

2444-T541

2444-T561

2444-T581

2444-T601

2444-T621

2444-T641

2444-T661

2444-T681

2444-T701

2444-T721

2444-T741

2444-T761

2444-T781

2444-T801

Dimensions

5,08(0,200)

7,62(0,300)

10,16(0,400)

12,70(0,500)

15,24(0,600)

17,78(0,700)

20,32(0,800)

22,86(0,900)

25,40(1,000)

27,94(1,100)

30,48(1,200)

33,02(1,300)

35,56(1,400)

38,10(1,500)

40,64(1,600)

43,18(1,700)

45,72(1,800)

48,26(1,900)

50,80(2,000)

53,34(2,100)

55,88(2,200)

58,42(2,300)

60,96(2,400)

63,50(2,500)

66,04(2,600)

68,58(2,700)

71,12(2,800)

73,66(2,900)

76,20(3,000)

78,74(3,100)

81,28(3,200)

83,82(3,300)

86,36(3,400)

88,90(3,500)

91,44(3,600)

93,98(3,700)

96,52(3,800)

99,06(3,900)

8,12(0,320)

10,66(0,420)

13,20(0,520)

15,74(0,620)

18,28(0,720)

20,82(0,820)

23,36(0,920)

25,90(1,020)

28,44(1,120)

30,98(1,220)

33,52(1,320)

36,06(1,420)

38,60(1,520)

41,14(1,620)

43,68(1,720)

46,22(1,820)

48,76(1,920)

51,30(2,020)

53,84(2,120)

56,38(2,220)

58,92(2,320)

61,46(2,420)

64,00(2,520)

66,54(2,620)

69,08(2,720)

71,62(2,820)

74,16(2,920)

76,70(3,020)

79,24(3,120)

81,78(3,220)

84,32(3,320)

86,86(3,420)

89,40(3,520)

91,94(3,620)

94,48(3,720)

97,02(3,820)

99,56(3,920)

102,10(4,020)

0.5

1.50

5.0

2.85

2.54

PIN 0.7X0.25

5.08

T = Contact Plating

2.54



T =

Tin plated

T =

Gold flash over 50µ” nickel

Recommended Finish

T =

15µ” gold over 50µ” nickel

T =

30µ” gold over 50µ” nickel

T =

13.

Selective gold flash over 50µ” nickel

T =

15.

15µ” selective gold over 50µ” nickel

T =

16.

30µ” selective gold over 50µ” nickel

RECOMMENDED HOLE PATTERN

2.54±0.05

.100±.002

1.02±0.05

.040±.002

2.54±0.05

.100±.002

FULL LINE CATALOGUE
