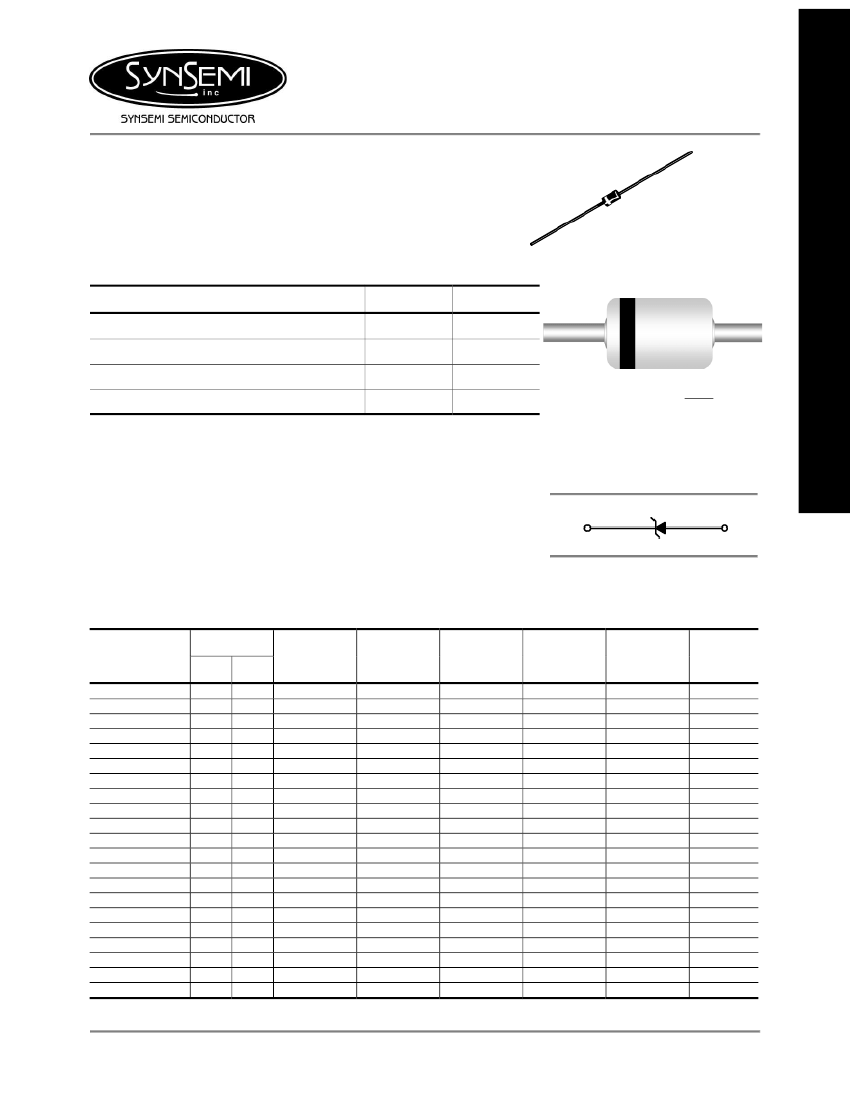

1.3 Watt DO-41 Hermetically
Sealed Glass Zener Voltage
Regulators
Absolute Maximum Ratings
Parameter
Power Dissipation
Storage Temperature Range
Operating Junction Temperature
Lead Temperature (1/16” from case for 10 seconds)
T
A
= 25°C unless otherwise noted
Value
1.3
-65 to +200
+200
+230
Units
W
°C
°C
°C
AXIAL LEAD
DO-41
DEVICE MARKING DIAGRAM
L
85C
xxx
L
: Logo
Device Code : BZX85C3V3
These ratings are limiting values above which the serviceability of the diode may be impaired.
Specification Features:
Zener Voltage Range 3.3 to 56 Volts
DO-41 Package (JEDEC)
Through-Hole Device Type Mounting
Hermetically Sealed Glass
Compression Bonded Construction
All external surfaces are corrosion resistant and leads are readily solderable
Cathode indicated by polarity band
ELECTRICAL SYMBOL
Cathode
Anode
Electrical Characteristics
Device Type
BZX85C 3V3
BZX85C 3V6
BZX85C 3V9
BZX85C 4V3
BZX85C 4V7
BZX85C 5V1
BZX85C 5V6
BZX85C 6V2
BZX85C 6V8
BZX85C 7V5
BZX85C 8V2
BZX85C 9V1
BZX85C 10
BZX85C 11
BZX85C 12
BZX85C 13
BZX85C 15
BZX85C 16
BZX85C 18
BZX85C 20
BZX85C 22
V
Z
@ I
ZT
(Volts)
V
Z
V
Z
Min
Max
3.1
3.5
3.4
3.8
3.7
4.1
4
4.6
4.4
5
4.8
5.4
5.2
6
5.8
6.6
6.4
7.2
7
7.9
7.7
8.7
8.5
9.6
9.4
10.6
10.4
11.6
11.4
12.7
12.4
14.1
13.8
15.6
15.3
17.1
16.8
19.1
18.8
21.2
20.8
23.3
T
A
= 25°C unless otherwise noted
I
ZT
(mA)
80
60
60
50
45
45
45
35
35
35
25
25
25
20
20
20
15
15
15
10
10
Z
ZT
@ I
ZT
(Ω)
Max
20
20
15
13
13
10
7
4
3.5
3
5
5
7
8
9
10
15
15
20
24
25
I
ZK
(mA)
1
1
1
1
1
1
1
1
1
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
Z
ZK
@ I
ZK
(Ω)
Max
400
500
500
500
500
500
400
300
300
200
200
200
200
300
350
400
500
500
500
600
600
I
R
@ V
R
(µA)
Max
40
20
20
3
3
1
1
1
1
1
1
1
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
V
R
(Volts)
1
1
1
1
1
1.5
2
3
4
4.5
6.2
6.9
7.5
8.2
9.1
10
11
12
13
15
16
October 2003 / B
Page 1
BZX85C3V3 through BZX85C56 Series

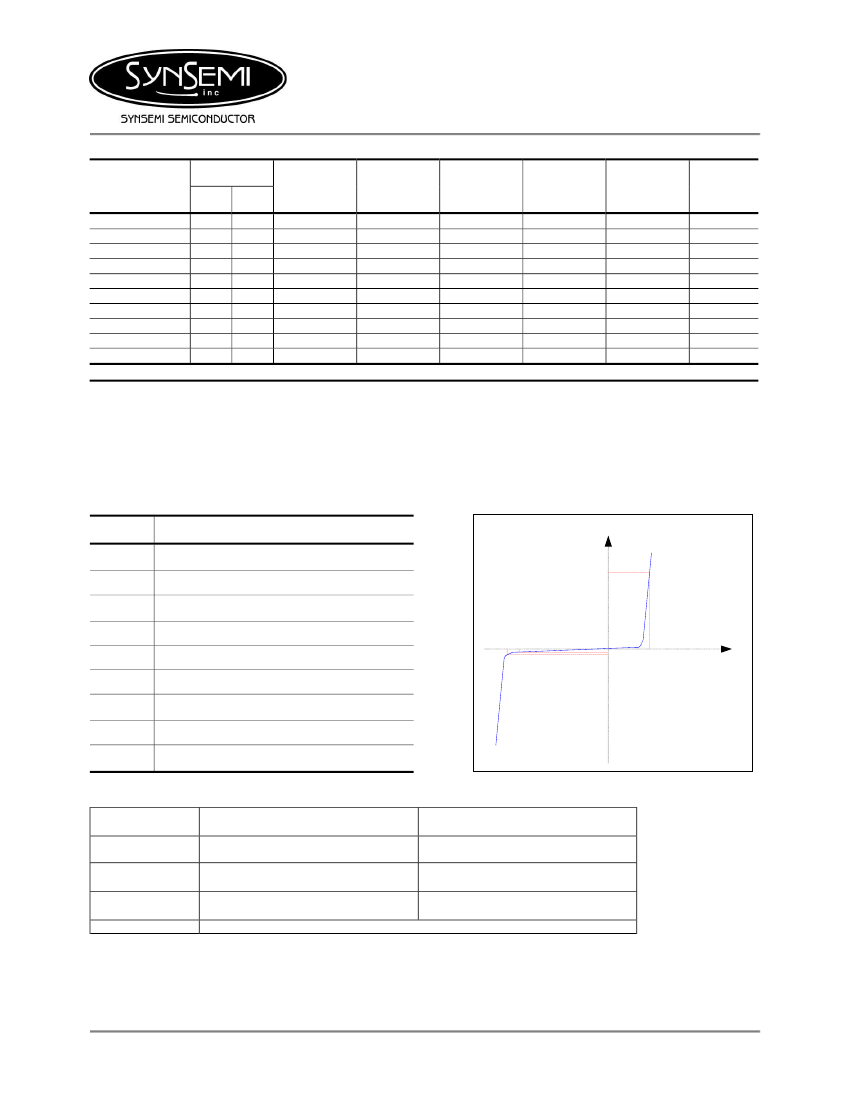

Electrical Characteristics
T
A
= 25°C unless otherwise noted
I
ZK
(mA)
0.5
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
Z
ZK
@ I
ZK
(Ω)
Max
600
750
1000
1000
1000
1000
1000
1500
1500
2000
I
R
@ V
R
(µA)
Max
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
V
R
(Volts)
18
20
22
24
25
27
30
33
36
39
V
Z
@ I
ZT
Z
ZT
@ I
ZT
I
ZT
(Volts)
Device Type
(Ω)
(mA)
V
Z
V
Z
Max
Min
Max
BZX85C 24
22.8
25.6
10
25
BZX85C 27
25.1
28.9
8
30
BZX85C 30
28
32
8
30
BZX85C 33
31
35
8
35
BZX85C 36
34
38
8
40
BZX85C 39
37
41
6
45
BZX85C 43
40
46
6
50
BZX85C 47
44
50
4
90
BZX85C 51
48
54
4
115
BZX85C 56
52
60
4
120
V
F
Forward Voltage = 1.2 V Maximum @
I
F
= 200 mA for all types
Notes:
1.
2.
3.
The type numbers listed have zener voltage min/max limits as shown and have a standard tolerance on the nominal zener
voltage.
For detailed information on price, availability and delivery of nominal zener voltages between the voltages shown and tighter
voltage tolerances, contact your nearest Synsemi representative.
The zener impedance is derived from the 60-cycle ac voltage, which results when an ac current having an rms value equal to
10% of the dc zener current (I
ZT
or
I
ZK
) is superimposed to
I
ZT
or
I
ZK.
Electrical Symbol Definition
Symbol
V
Z
I
ZT
Z
ZT
I
ZK
Z
ZK
I
R
V
R
I
F
V
F
Parameter
Reverse Zener Voltage @
I
ZT
Typical Characteristics
I
(mA)
I
F
Reverse Current
Maximum Zener Impedance @
I
ZT
Reverse Current
Maximum Zener Impedance @
I
ZK
Reverse Leakage Current @
V
R
Breakdown Voltage
Forward Current
Forward Voltage @
I
F
(nA)
(mA)
(V)
V
Z
V
R
I
R
I
ZT
V
F
(mV)
V
Ordering Information
Device
BZX85Cxxx
BZX85Cxxx.TB
BZX85Cxxx.TR
Package
Bulk
Tape and Ammo
Tape and Reel
Quantity
5,000
3,000
5,000
October 2003 / B
Page 2

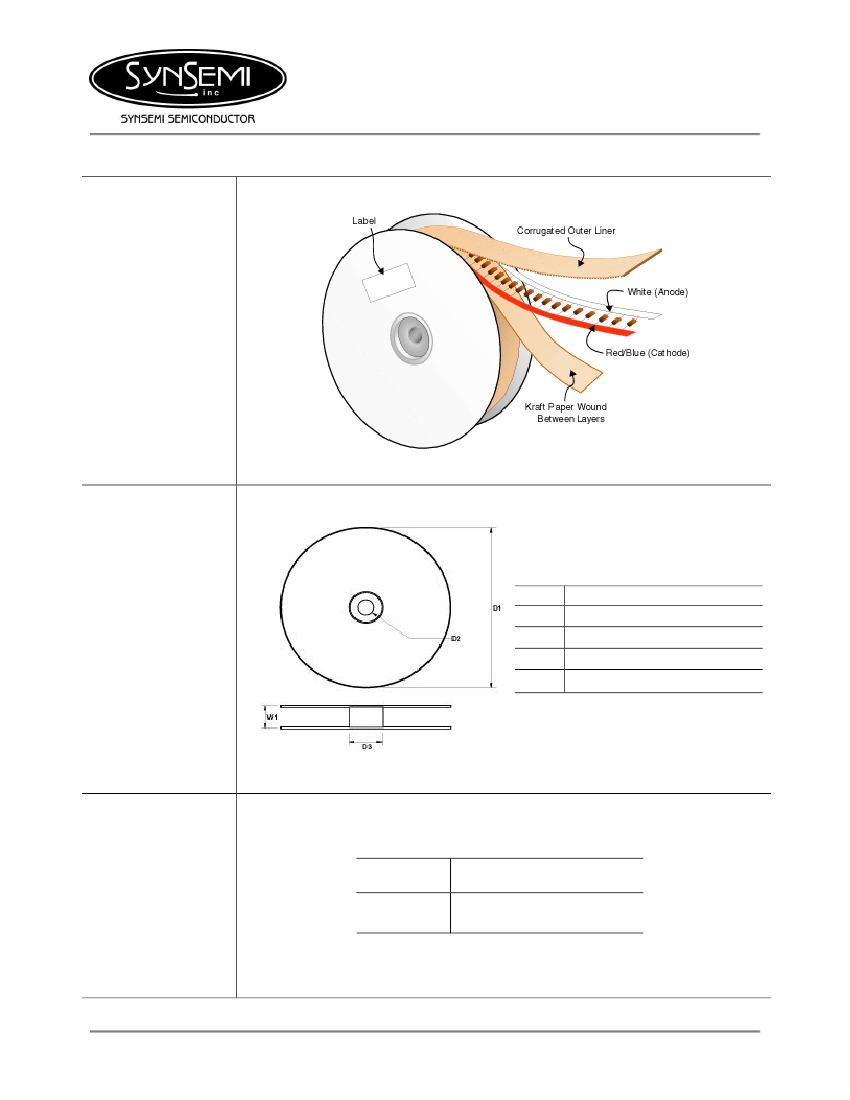

Tape & Reel Packaging Information
Tape & Reel
Outline
DIM
D1
Millimeters
356
30
84
77.5
Reel Dimensions
D2
D3
W1
PKG Type
Quantity Per Reel
Quantity Per Reel
DO-41
5,000
October 2003 / B
Page 3

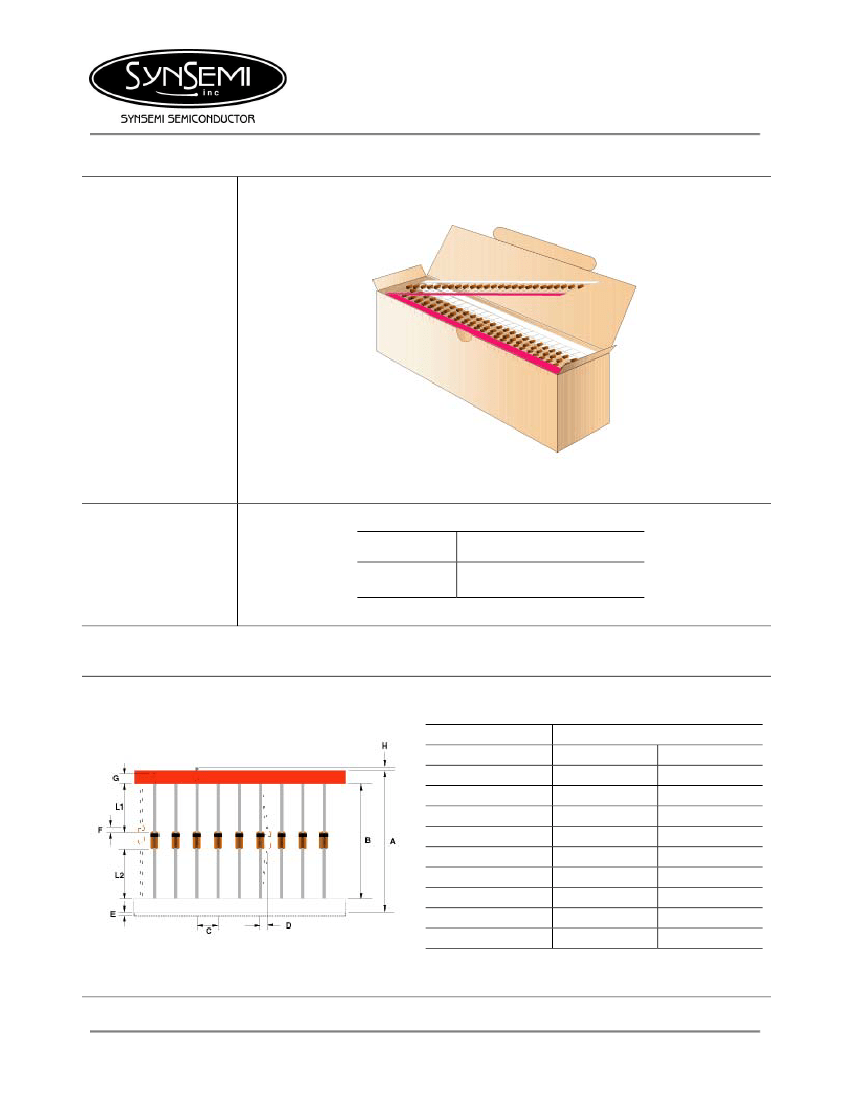

Tape & Ammo Packaging Information
Tape & Ammo
Outline
250mm x 80mm x 80mm
Quantity Per Ammo
Box
PKG Type
DO-41
Quantity Per Box
3,000
Taping Dimensions
Description
Standard Width
Tape Spacing (B)
Component Pitch (C)
Untaped Lead (L1 – L2)
Glass Offset (F)
Bent (D)
Tape Width (G)
Tape Mismatch (E)
Taped Lead (G)
Lead Beyond Tape (H)
52
52 ± 0.69
5.08 ± 0.4
± 0.69
± 0.69
1.2 Max
Millimeters
26
26 +0.5 / -0
5.08 ± 0.4
± 0.69
± 0.69
1.2 Max
6.138 ± 0.576
0.55 Max
3.2 Min
0
6.138 ± 0.576
0.55 Max
3.2 Min
0
October 2003 / B
Page 4

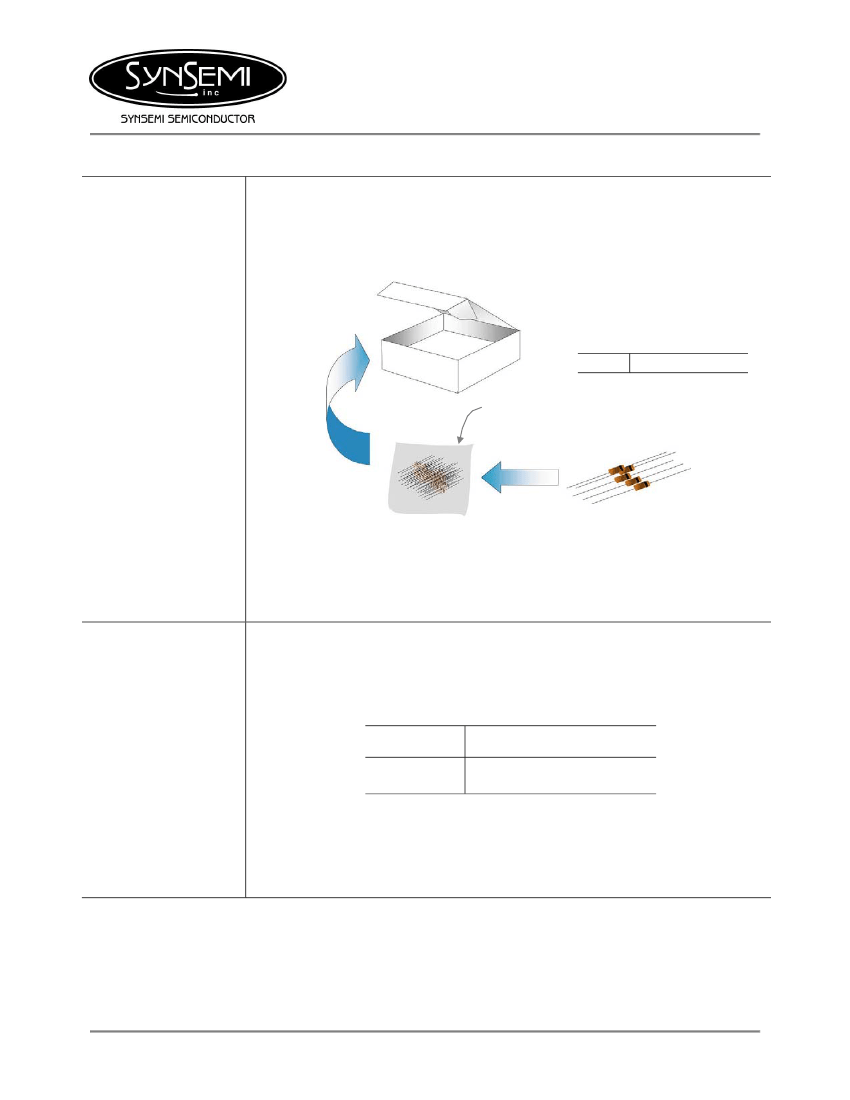

Bulk Packaging Information
190mm x 150mm x 65mm
Quantity Per Plastic Bag
DO-41
500 x 10 Plastic Bag
Bulk Outline
Plastic Bag
PKG Type
Quantity Per Box
5,000
Quantity Per Box
DO-41
October 2003 / B
Page 5
