7643-5642 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 7643-5642

7643-5642: DescriptionTelecom and Datacom Connector, 6 Contact(s), Male, Right Angle, Surface Mount Terminal, Locking, Jack; CategoryThe connector The connector; File Size829KB，1 Pages; ManufacturerConexcon Group; Environmental Compliance

Download Datasheet Parametric View All

7643-5642 Overview

Telecom and Datacom Connector, 6 Contact(s), Male, Right Angle, Surface Mount Terminal, Locking, Jack

7643-5642 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Conexcon Group
Reach Compliance Code	unknown
Board mount options	SPLIT BOARD LOCK
body width	0.495 inch
subject depth	0.81 inch
body length	0.62 inch
Body/casing type	JACK
Connector type	TELECOM AND DATACOM CONNECTOR
Contact to complete cooperation	AU ON NI
Contact point gender	MALE
Contact material	PHOSPHOR BRONZE
Contact resistance	20 mΩ
Contact style	TELCOM, MODULAR
Dielectric withstand voltage	300VAC V
Durability	1000 Cycles
Insulation resistance	1000000000 Ω
insulator material	THERMOPLASTIC
Manufacturer's serial number	7643
Installation option 1	LOCKING
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of ports	1
Maximum operating temperature	85 °C
Minimum operating temperature	-25 °C
PCB contact pattern	STAGGERED
Plating thickness	15u inch
Rated current (signal)	1.5 A
Guideline	UL
reliability	COMMERCIAL
Terminal pitch	1.27 mm
Termination type	SURFACE MOUNT
Total number of contacts	6
Base Number Matches	1

Preview

Download Datasheet

View All

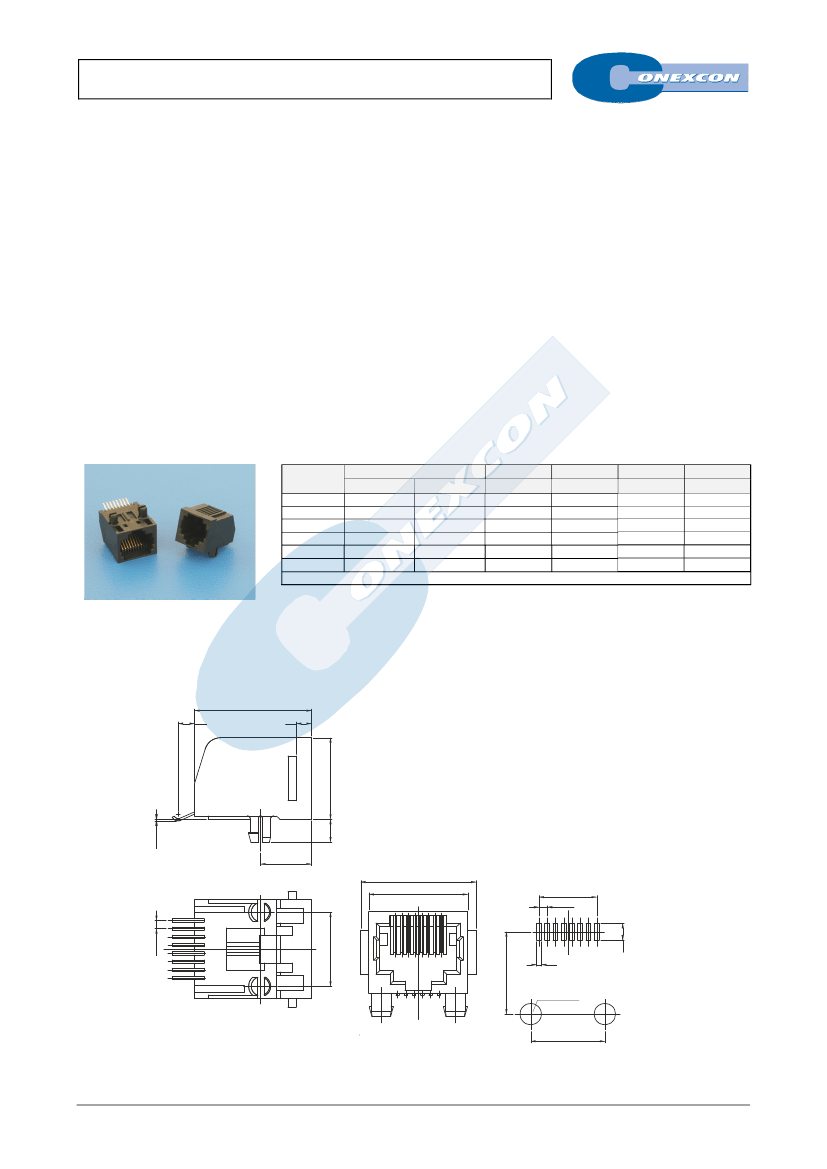

SIDE ENTRY SMT JACK FCC-68

7643 SERIES.

Right angle PCB jack.

General Features

Electrical Features



Available in 6/2, 6/4, 6/6, 8/8 and 10/10 circuits

Standard telephone jack FCC-68

Low profile: 12.57 mm.

Accept standard plugs FCC-68 type

Selective gold plating with different finish

Bifurcated plastic foot print

With/without panel stop



Voltage rating: < 125V

Current rating: < 1.50 A

Contact resistance: < 20 mΩ

Dielectric withstanding voltage: 300 V AC/minute

Insulation resistance: >1000 MΩ

Materials

Mechanical Features



Insulator: Thermoplastic UL 94V-0

Contact: 0.35 mm thickness phosphor bronze

Operating temperature. -25ºC to + 85ºC

RoHS compliant



Durability: 1000 cycles

imensional Information

Part Number

Without Flange

7643 –

T621

7643 –

T641

7643 –

T661

7643 –

T861

7643 –

T881

7643 –

T883*

With Flange

7643 –

T622

7643 –

T642

7643 –

T662

7643 –

T862

7643 –

T882

7643 –

T884*

Dimensions

13.21(0.520)

15.24 (0.600)

10.16 (0.400)

11.43 (0.450)

1.27 (0.050)

3.81(0.150)

6.35 (0.250)

8.89 (0.350)

15.74 (0.620)

17.78 (0.700)

Circuit Size

6/2

6/4

6/6

8/6

8/8

* Jack with key

T = Contact Plating



18.03

2.54

2.36

T =

10µ” gold over 50µ” nickel

T =

15µ” gold over 50µ” nickel

T =

30µ” gold over 50µ” nickel

T =

50µ” gold over 50µ” nickel

0.25

7.87

RECOMMENDED PCB LAYOUT

1.27

3.50

12.57

12.70

0.76

2- ø3.25

E-XX

2.57

FULL LINE CATALOGUE
