Halogen and Antimony Free. "Green" Device (Note 4)
Qualified to AEC-Q101 Standards for High Reliability
PPAP Capable (Note 5)
Mechanical Data
•
•
•
•
•
Case: SOT363
Case Material: Molded Plastic, “Green” Molding Compound.
UL Flammability Classification Rating 94V-0
Moisture Sensitivity: Level 1 per J-STD-020
Terminals: Finish
⎯
Matte Tin Finish. Solderable per
MIL-STD-202, Method 208
e3
Weight: 0.006 grams (approximate)
Applications
•
•
•
Current Mirrors
Differential and Instrumentation Amplifiers
Comparators

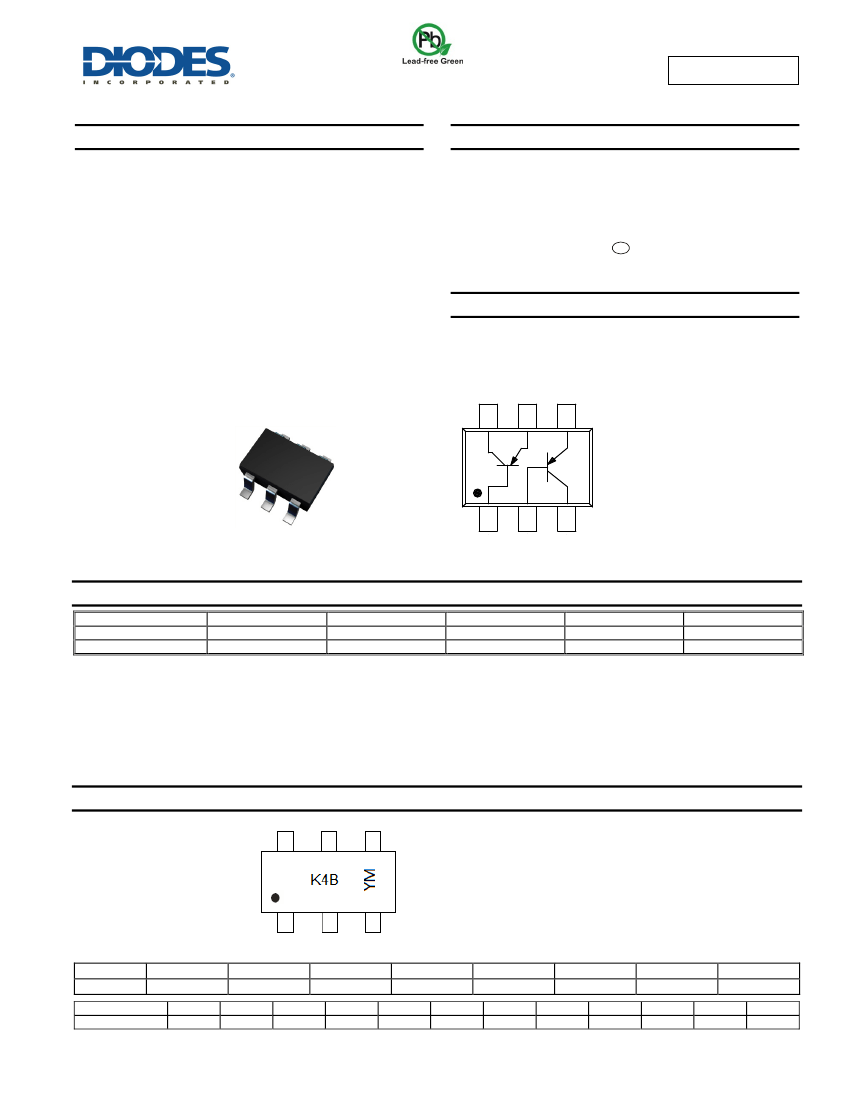

SOT363
C 2
E 2
E 1
B 2
B 1
C 1
Top View
Device Schematic and Pin-Out
Top View
Ordering Information
(Note 4 & 5)
Part Number
DMMT3906W-7-F
DMMT3906WQ-7-F
Notes:
Compliance
AEC-Q101
Automotive
Marking
K4B
K4B
Reel Size (inches)
7
7
Tape Width (mm)
8
8
Quantity per Reel
3,000
3,000
1. Intrinsically matched pair as this is built with adjacent die from the same wafer.
2. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant.
3. See http://www.diodes.com/quality/lead_free.html for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green"
and Lead-free.
4. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and
<1000ppm antimony compounds.
5. Automotive products are AEC-Q101 qualified and are PPAP capable. Automotive, AEC-Q101 and standard products are electrically and thermally the
same, except where specified. For more information, please refer to http://www.diodes.com/quality/product_compliance_definitions/.
6. For packaging details, go to our website at http://www.diodes.com/products/packages.html.
