DDM37PZJ-H

Description
D Type Connector, 37 Contact(s), Male, 0.109 inch Pitch, Solder Terminal, #4-40, Receptacle
CategoryThe connector    The connector
File Size164KB,1 Pages
ManufacturerAUK Contractors Co., Ltd.

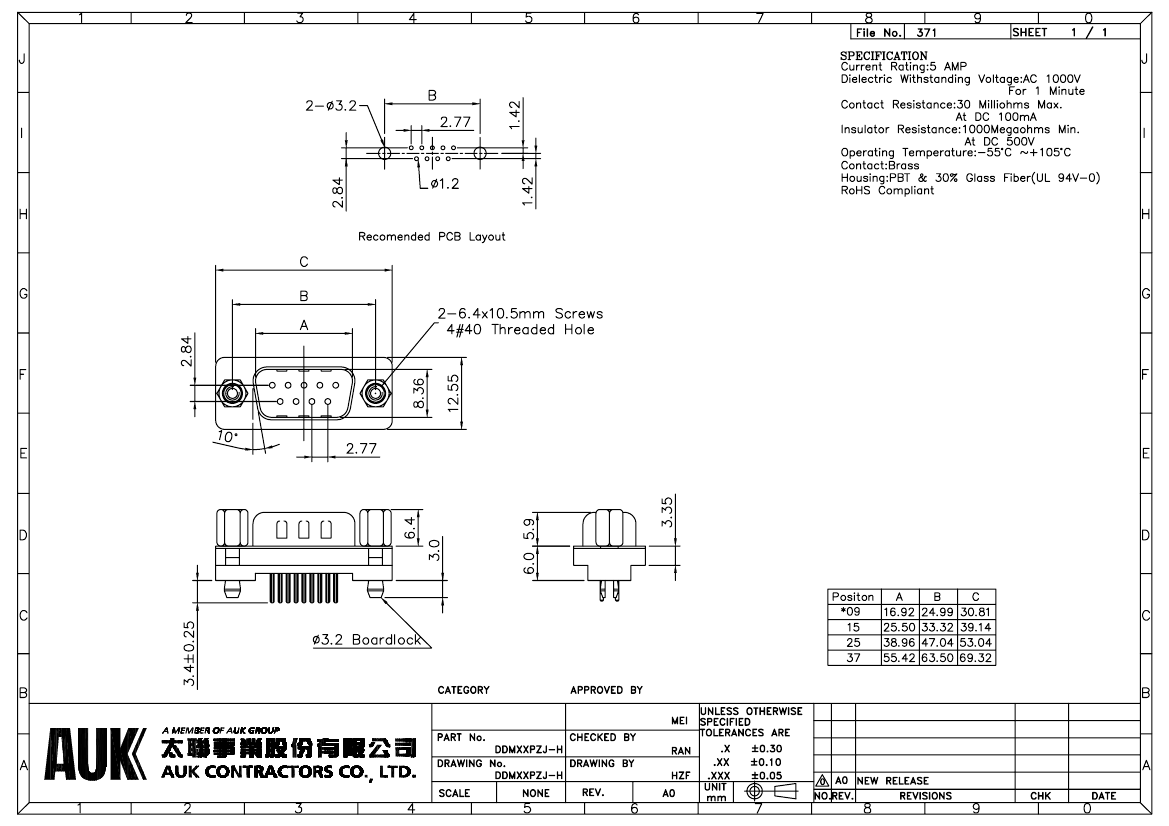

Download Datasheet Parametric Compare View All

DDM37PZJ-H Overview

D Type Connector, 37 Contact(s), Male, 0.109 inch Pitch, Solder Terminal, #4-40, Receptacle

DDM37PZJ-H Parametric

Parameter NameAttribute value
MakerAUK Contractors Co., Ltd.
Reach Compliance Codeunknown
Other featuresROHS COMPLIANT
body width0.494 inch
subject depth0.236 inch
body length2.729 inch
Body/casing typeRECEPTACLE
Contact point genderMALE
Contact materialBRASS
contact modeSTAGGERED
Contact resistance30 mΩ
Contact styleRND PIN-SKT
Dielectric withstand voltage1000VAC V
Insulation resistance1000000000 Ω
insulator materialGLASS FILLED POLYBUTYLENE TEREPHTHALATE
Manufacturer's serial numberDDM
Plug contact pitch0.109 inch
Match contact row spacing0.112 inch
Installation option 1#4-40
Installation option 2SCREW
Installation methodSTRAIGHT
Installation typeBOARD
PCB row number2
Number of rows loaded2
Maximum operating temperature105 °C
Minimum operating temperature-55 °C
PCB contact patternSTAGGERED
PCB contact row spacing2.8448 mm
Rated current (signal)5 A
GuidelineUL
reliabilityCOMMERCIAL
Terminal length0.134 inch
Terminal pitch2.7686 mm
Termination typeSOLDER
Total number of contacts37
Base Number Matches1

DDM37PZJ-H Related Products

DDM37PZJ-H DDM25PZJ-H DDM15PZJ-H
Description D Type Connector, 37 Contact(s), Male, 0.109 inch Pitch, Solder Terminal, #4-40, Receptacle D Type Connector, 25 Contact(s), Male, 0.109 inch Pitch, Solder Terminal, #4-40, Receptacle D Type Connector, 15 Contact(s), Male, 0.109 inch Pitch, Solder Terminal, #4-40, Receptacle
Maker AUK Contractors Co., Ltd. AUK Contractors Co., Ltd. AUK Contractors Co., Ltd.
Reach Compliance Code unknown unknown unknown
Other features ROHS COMPLIANT ROHS COMPLIANT ROHS COMPLIANT
body width 0.494 inch 0.494 inch 0.494 inch
subject depth 0.236 inch 0.236 inch 0.236 inch
body length 2.729 inch 2.088 inch 1.541 inch
Body/casing type RECEPTACLE RECEPTACLE RECEPTACLE
Contact point gender MALE MALE MALE
Contact material BRASS BRASS BRASS
contact mode STAGGERED STAGGERED STAGGERED
Contact resistance 30 mΩ 30 mΩ 30 mΩ
Contact style RND PIN-SKT RND PIN-SKT RND PIN-SKT
Dielectric withstand voltage 1000VAC V 1000VAC V 1000VAC V
Insulation resistance 1000000000 Ω 1000000000 Ω 1000000000 Ω
insulator material GLASS FILLED POLYBUTYLENE TEREPHTHALATE GLASS FILLED POLYBUTYLENE TEREPHTHALATE GLASS FILLED POLYBUTYLENE TEREPHTHALATE
Manufacturer's serial number DDM DDM DDM
Plug contact pitch 0.109 inch 0.109 inch 0.109 inch
Match contact row spacing 0.112 inch 0.112 inch 0.112 inch
Installation option 1 #4-40 #4-40 #4-40
Installation option 2 SCREW SCREW SCREW
Installation method STRAIGHT STRAIGHT STRAIGHT
Installation type BOARD BOARD BOARD
PCB row number 2 2 2
Number of rows loaded 2 2 2
Maximum operating temperature 105 °C 105 °C 105 °C
Minimum operating temperature -55 °C -55 °C -55 °C
PCB contact pattern STAGGERED STAGGERED STAGGERED
PCB contact row spacing 2.8448 mm 2.8448 mm 2.8448 mm
Rated current (signal) 5 A 5 A 5 A
Guideline UL UL UL
reliability COMMERCIAL COMMERCIAL COMMERCIAL
Terminal length 0.134 inch 0.134 inch 0.134 inch
Terminal pitch 2.7686 mm 2.7686 mm 2.7686 mm
Termination type SOLDER SOLDER SOLDER
Total number of contacts 37 25 15
Base Number Matches 1 1 1
